Mracking Steel Industrial Mezzanine Floor Customizable Warehouse Storage System Steel Mezzanine for Warehouse or Office

Product Description

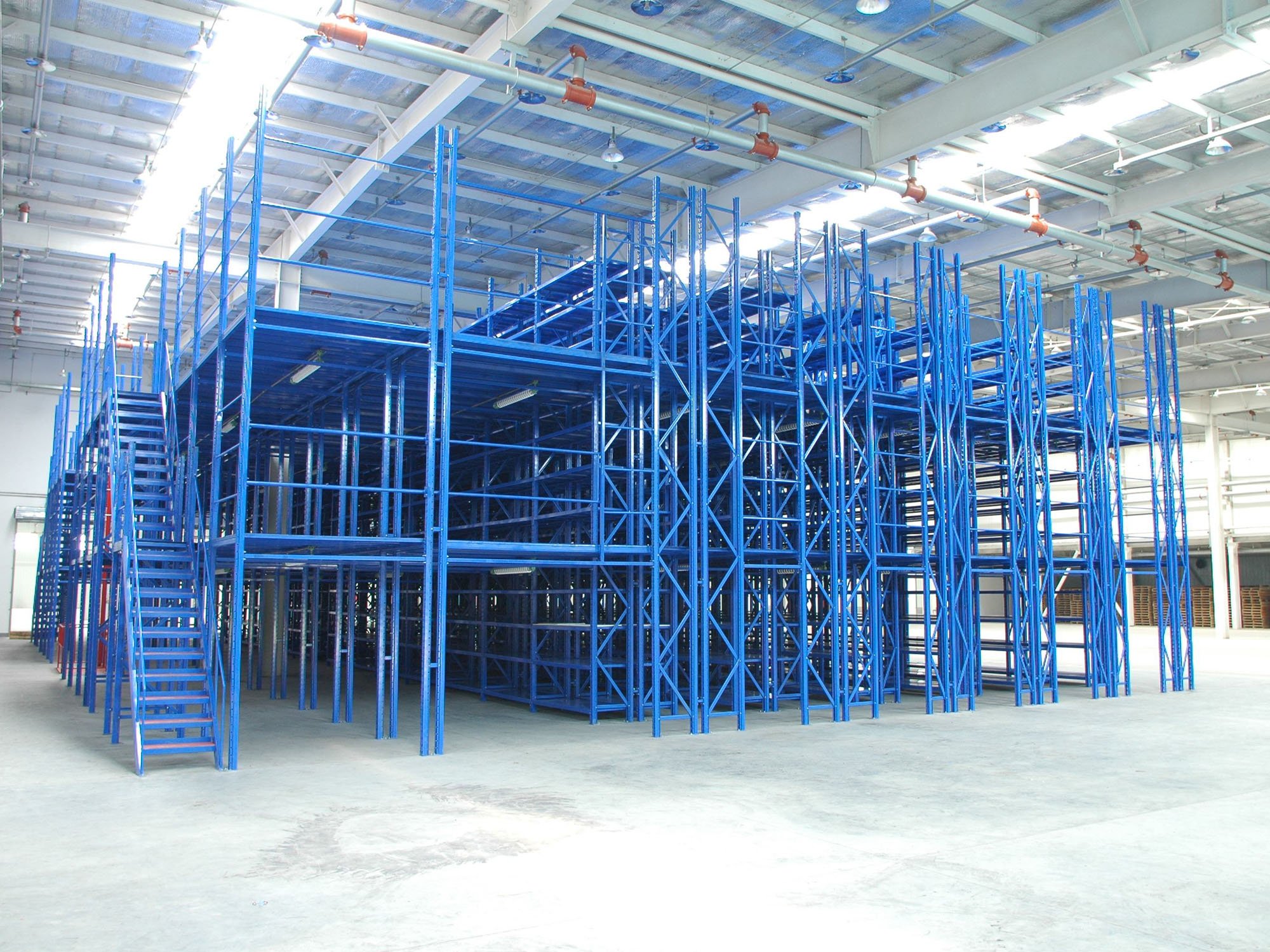

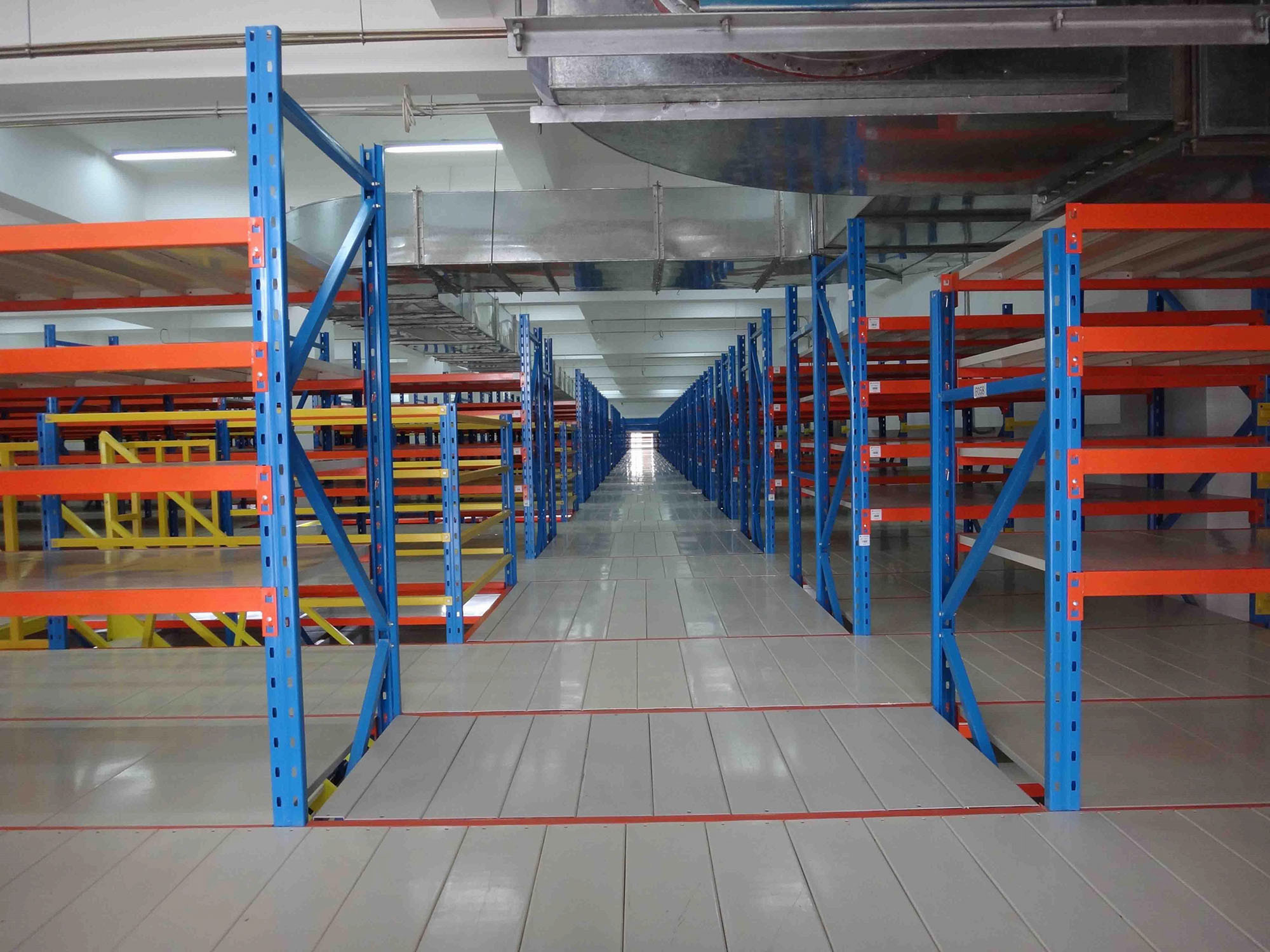

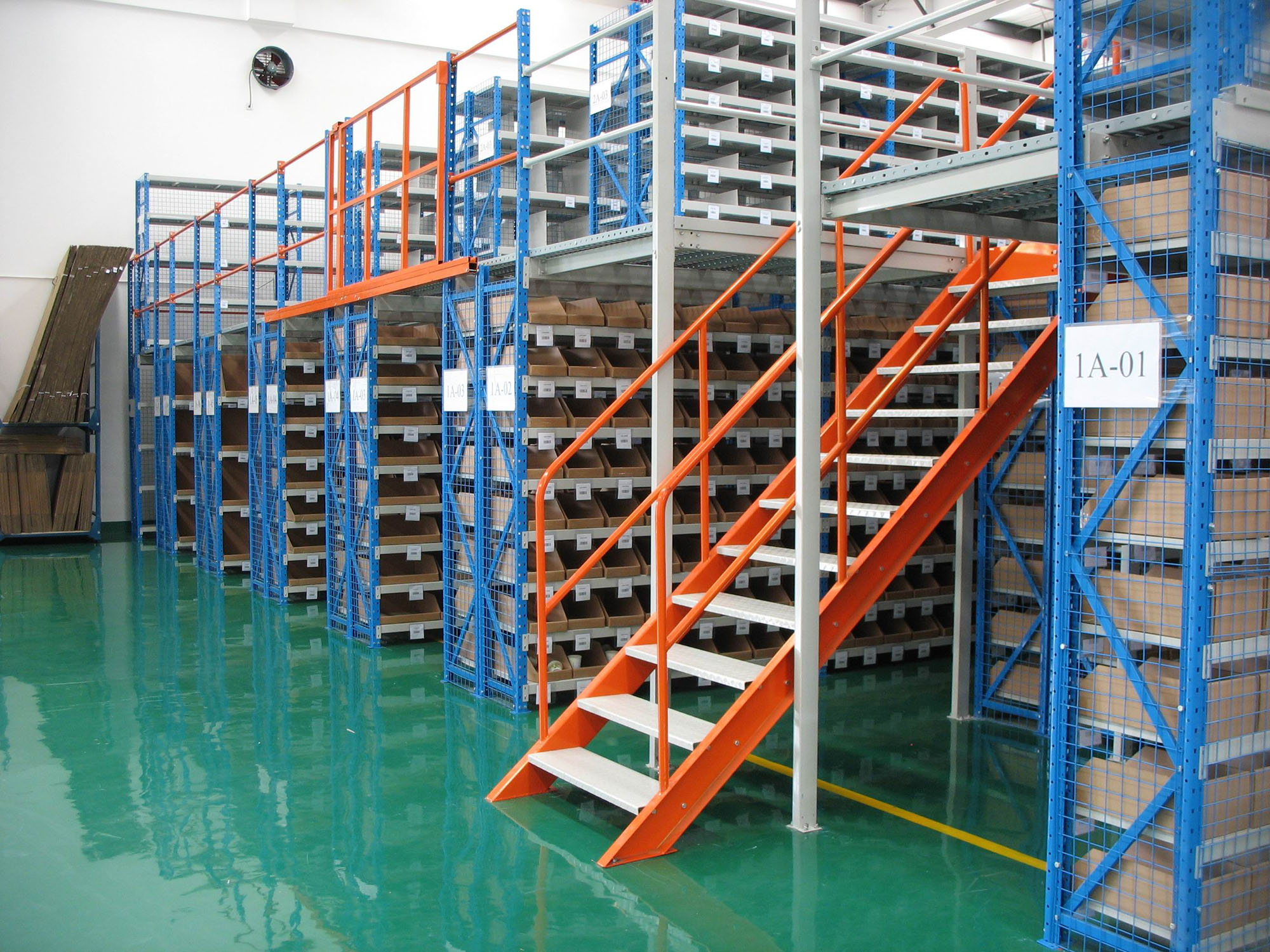

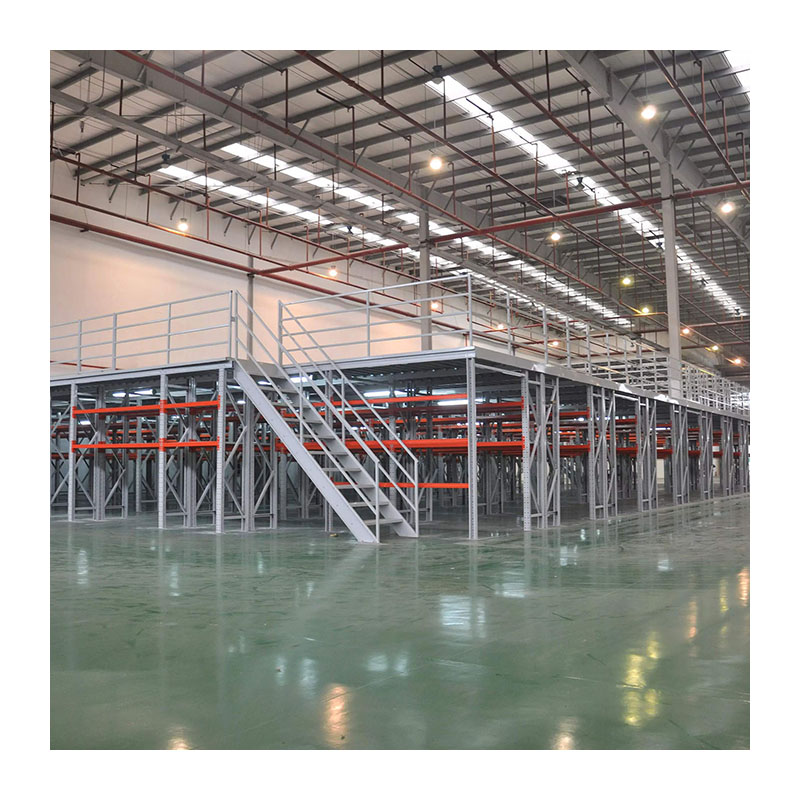

H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel. Usually we use the steel panel or MDF panel for the mezzanine floor, there are also with staircase and guardrail. Match with the cargolift for the efficiency.

It is suitable for the higher warehouse, large loading capacity, longer span and large storage, it will be full use of the space, one warehouse used as two warehouse. Widely be used for the electronics products, hardware, communication and printing, etc.

Raw-Material	High-Quality Q235 Cold rolled steel
Color	Upright frame is blue, Beam is orange, can be customized.
Height	Customized
Wide/Depth	Customized
Length	Customized
Loading Capacity	200~5000kg per sqm
Treatment Surface	Powder coated
Packing Term	Air bubble, Wooden Case, etc.

✔ Upright & Main Beam Connect

Both of them are H-steel, its loading capacity is high and span is long. The major beams are connected by connector piece in each side. It will make the beams more stable.

✔ Support Beam & Main Beam Connect

They are connected with the hanging piece. And the hanging piece is welded on the main beam, making the major beam more stable.

✔ Steel Panel & Guardrail Connect

Steel panel and support beam are connected with hooks, which is very stable. The guardrail hangs on the main beam without holes on the beam, ensuring there is no negative influence on the beam.
