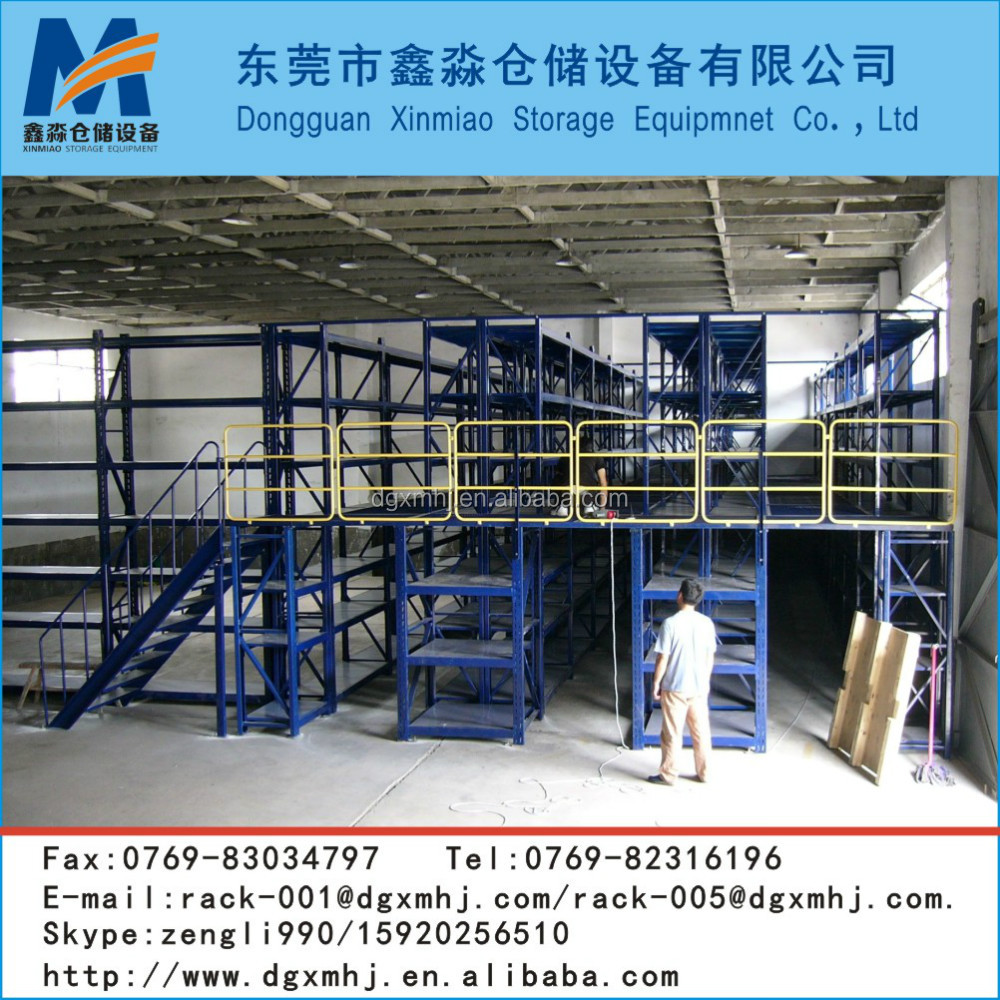

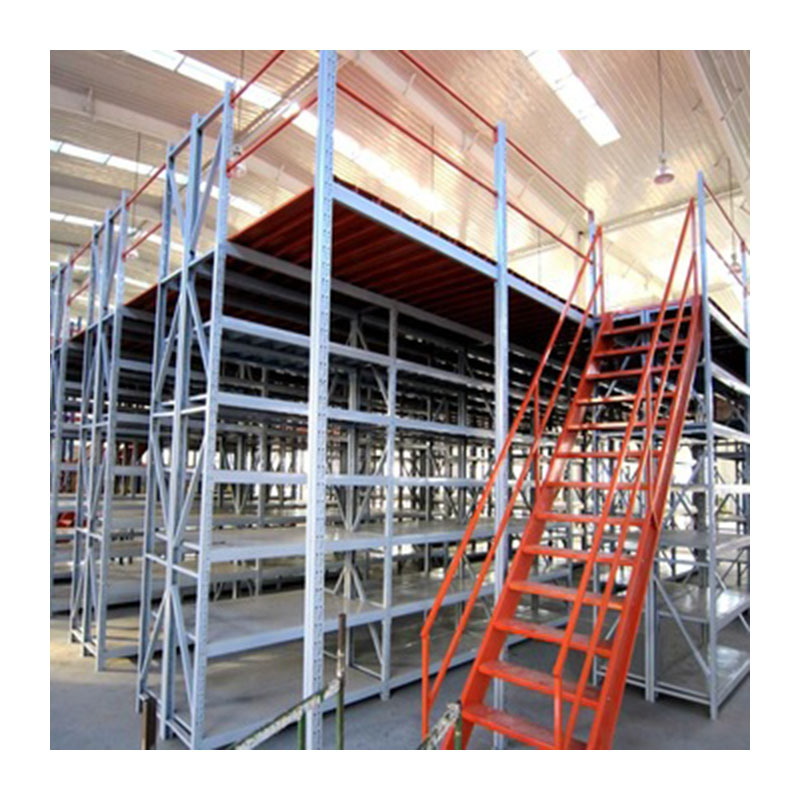

H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel. Usually we use the steel panel or MDF panel for the mezzanine floor, there are also with staircase and guardrail. Match with the cargolift for the efficiency.
It is suitable for the higher warehouse, large loading capacity, longer span and large storage, it will be full use of the space, one warehouse used as two warehouse. Widely be used for the electronics products, hardware, communication and printing, etc.
| Raw-Material | High-Quality Q235 Cold rolled steel |
| Color | Upright frame is blue, Beam is orange, can be customized. |
| Height | Customized |
| Wide/Depth | Customized |
| Length | Customized |
| Loading Capacity | 200~5000kg per sqm |
| Treatment Surface | Powder coated |
| Packing Term | Air bubble, Wooden Case, etc. |
Both of them are H-steel, Its loading capacity is high and span is long.
The major beams are connected by connector piece in each side. It will make the beams more stable.
They are connected with the hanging piece. And the hanging piece is welded on the main beam. So the major beam is more stable.
Steel panel and support beam are connected with hooks. It is very stable.
The guardrail hangs on the main beam without holes on the beam. So there is no bad influence on the beam.
