Product Description

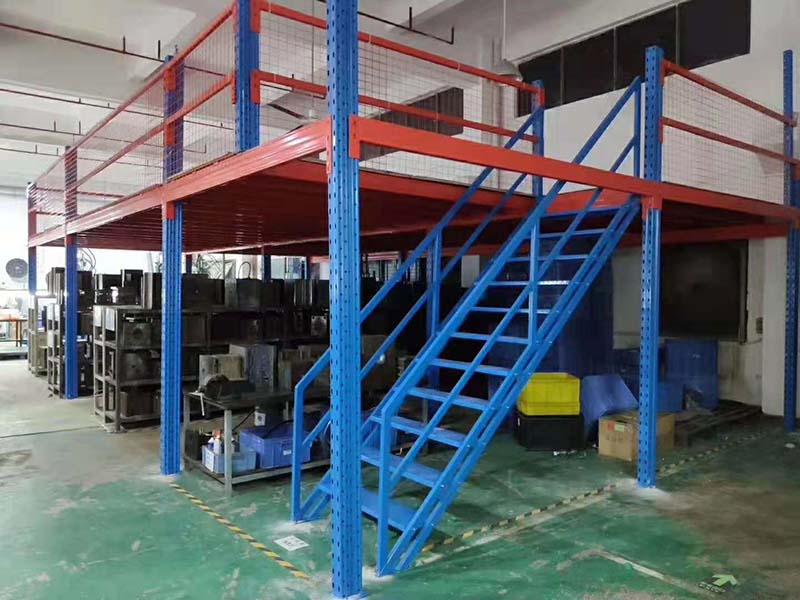

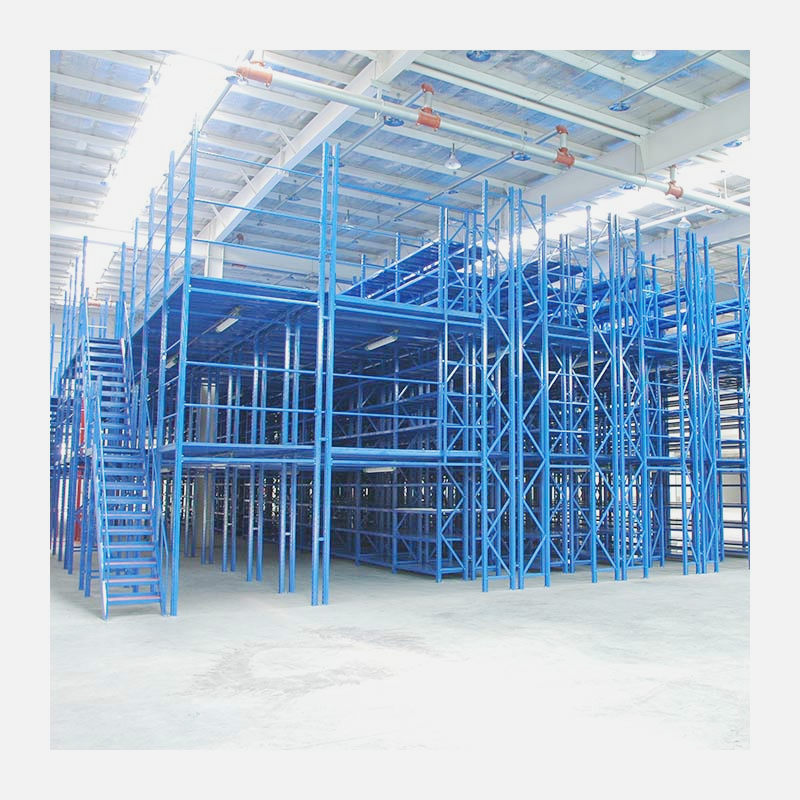

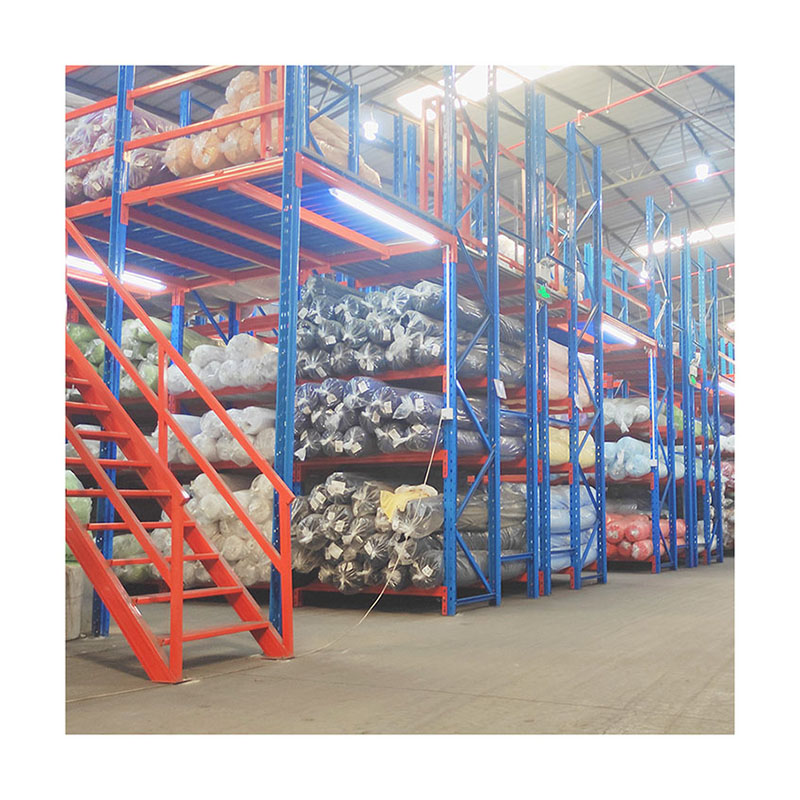

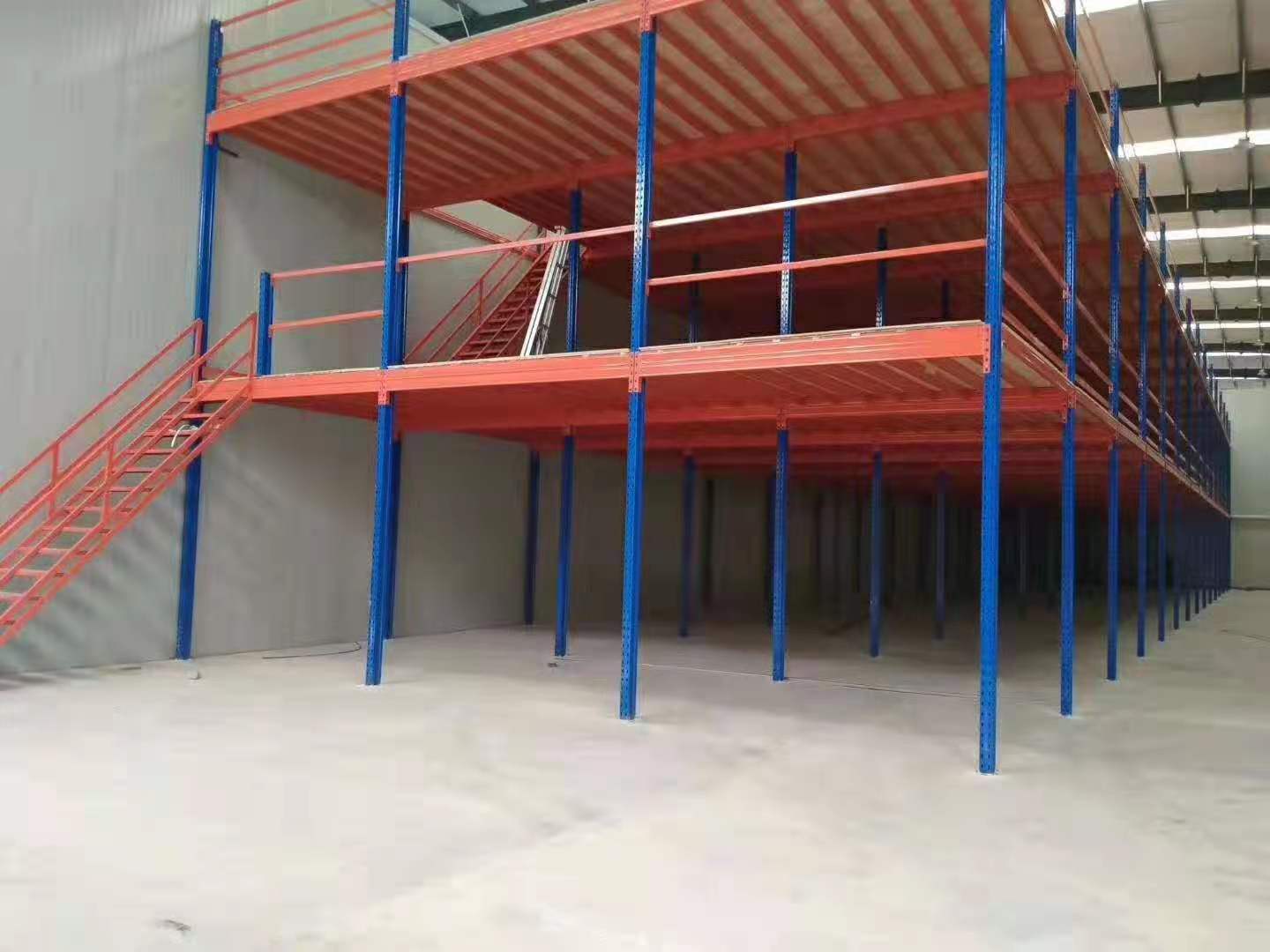

H Beam Steel Mezzanine Platform Overview

H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel. Usually we use the steel panel or MDF panel for the mezzanine floor, there are also with staircase and guardrail. Match with the cargolift for high efficiency.

It is suitable for higher warehouses, large loading capacities, longer spans and large storage needs. It makes full use of space, effectively doubling your warehouse storage capacity. Widely used for electronics, hardware, communication, printing products, and more.

Technical Specifications

Raw-Material	High-Quality Q235 Cold rolled steel
Color	Upright frame is blue, Beam is orange, can be customized.
Height	Customized
Wide/Depth	Customized
Length	Customized
Loading Capacity	200~5000kg per sqm
Treatment Surface	Powder coated
Packing Term	Air bubble, Wooden Case, etc.

Connection Details

Upright & Main Beam Connect

Both components are constructed from robust H-steel, providing exceptional load-bearing capacity and permitting longer spans. The main beams connect firmly via heavy-duty connectors on each side, guaranteeing maximum structure stability.

Support Beam & Main Beam Connect

These are joined together using a dedicated hanging connector. The hanging bracket is directly welded to the main beam, reinforcing the primary support structure and enhancing overall load safety.

Steel Panel & Guardrail Connect

Steel panels secure tightly to support beams using heavy-duty hooks to prevent shifting. Additionally, guardrails are designed to mount directly onto the main beam without requiring drill holes, preserving the structural integrity and strength of the load-carrying beams.
