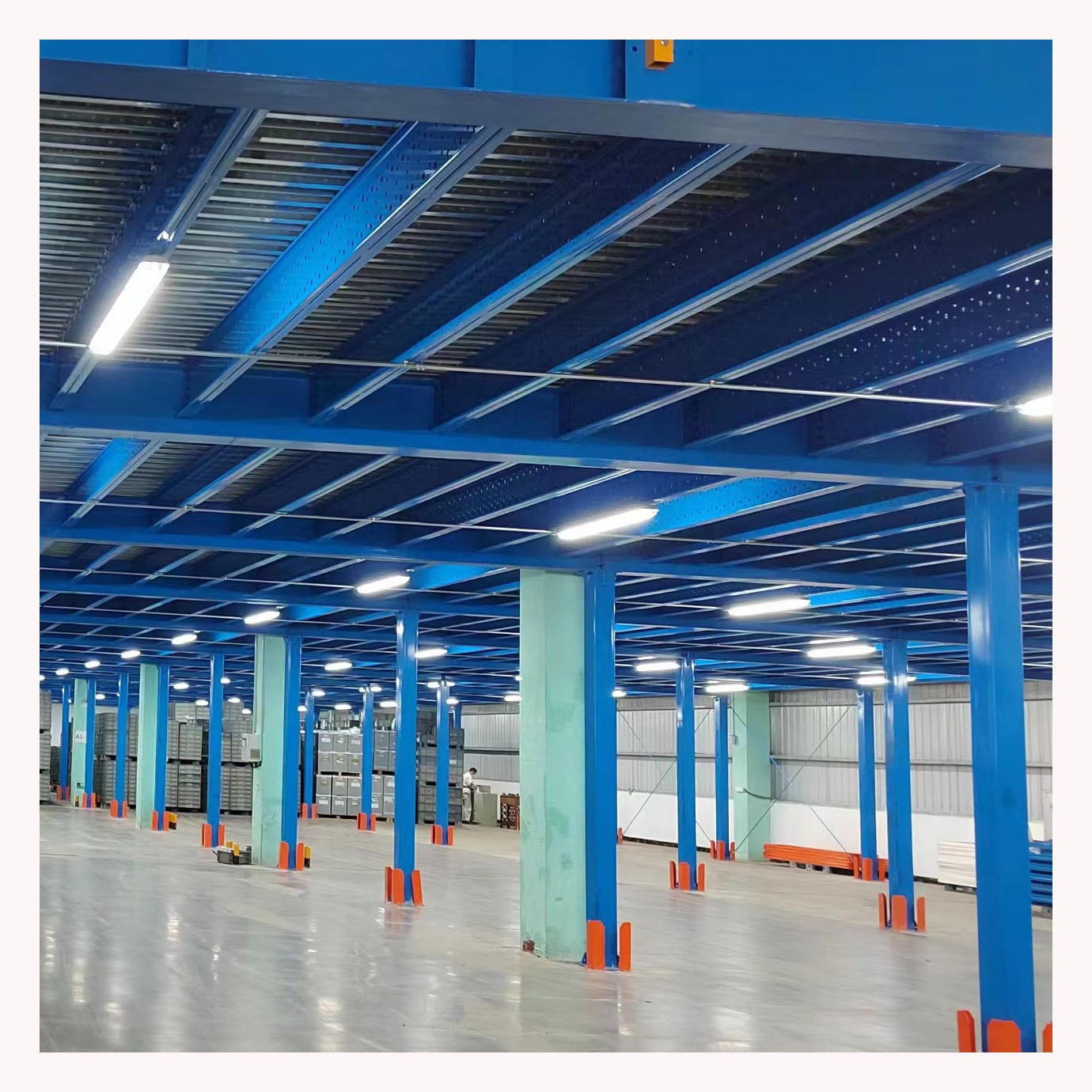

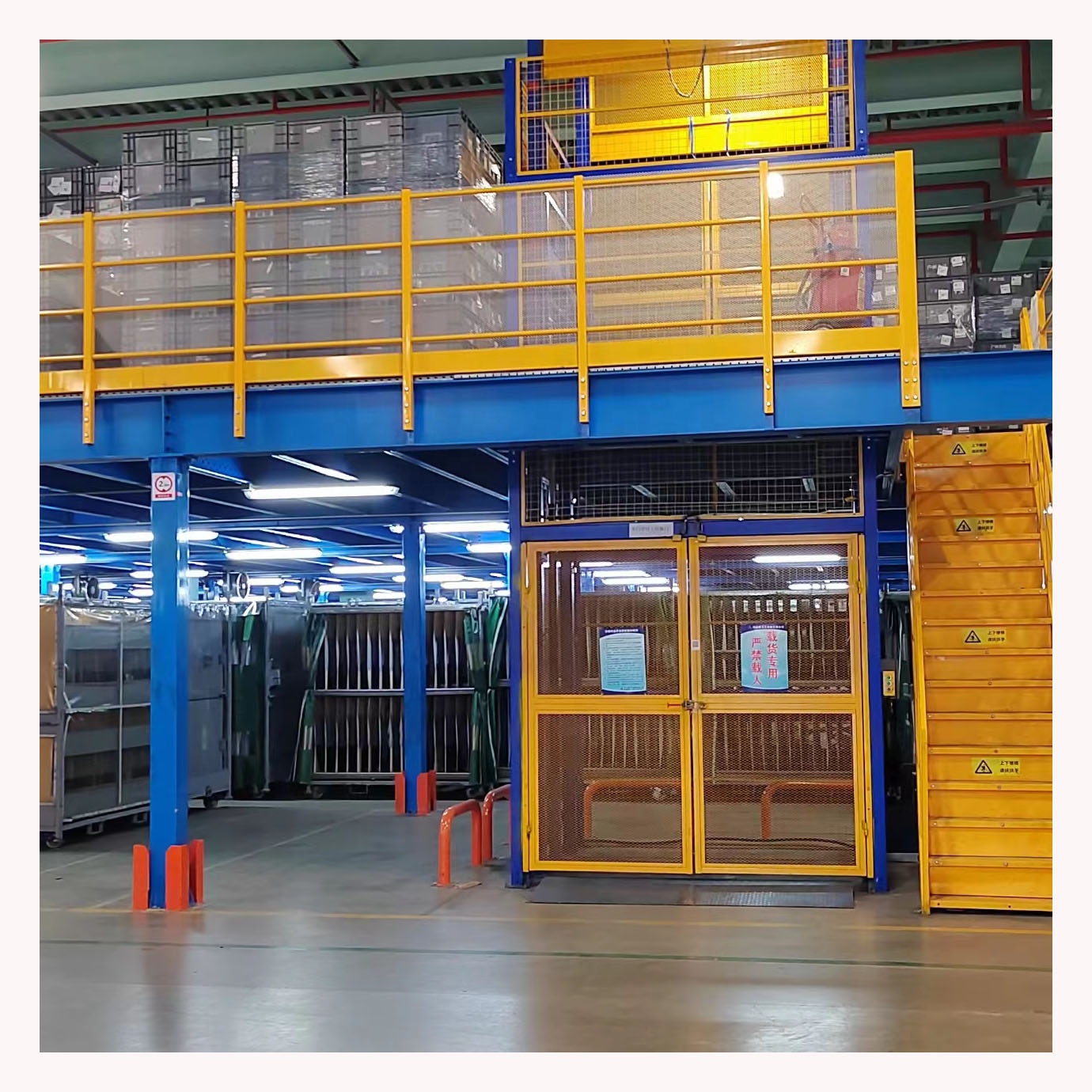

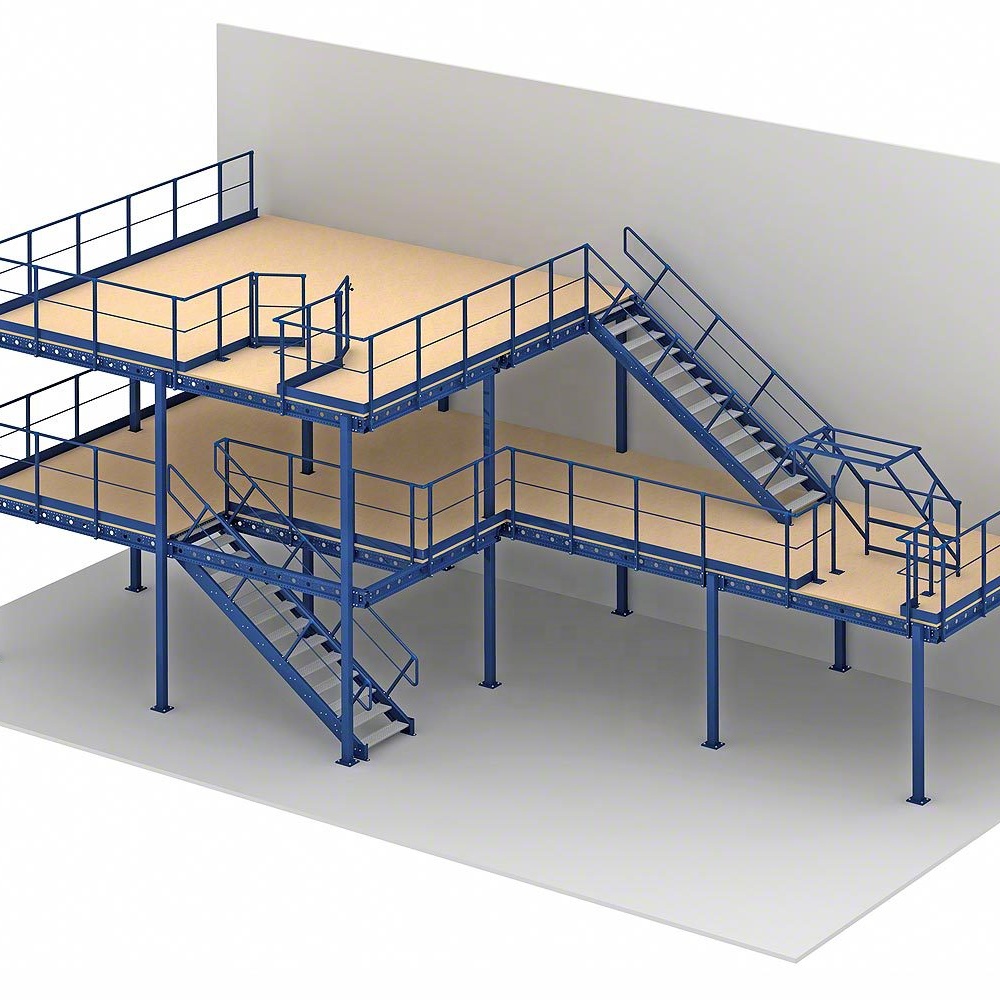

H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel. Usually, we use the steel panel or MDF panel for the mezzanine floor, equipped with staircase and guardrail. Match with the cargolift for efficiency.
It is suitable for higher warehouses, large loading capacity requirements, longer spans, and large-scale storage. It makes full use of space, effectively converting one warehouse to serve as two. Widely used for electronics products, hardware, communication, printing, etc.
| Parameter | Details |
|---|---|
| Raw Material | High-Quality Q235 Cold rolled steel |
| Color | Upright frame is blue, Beam is orange (can be customized) |
| Height | Customized |
| Width / Depth | Customized |
| Length | Customized |
| Loading Capacity | 200~5000kg per sqm |
| Surface Treatment | Powder coated |
| Packing Term | Air bubble, Wooden Case, etc. |

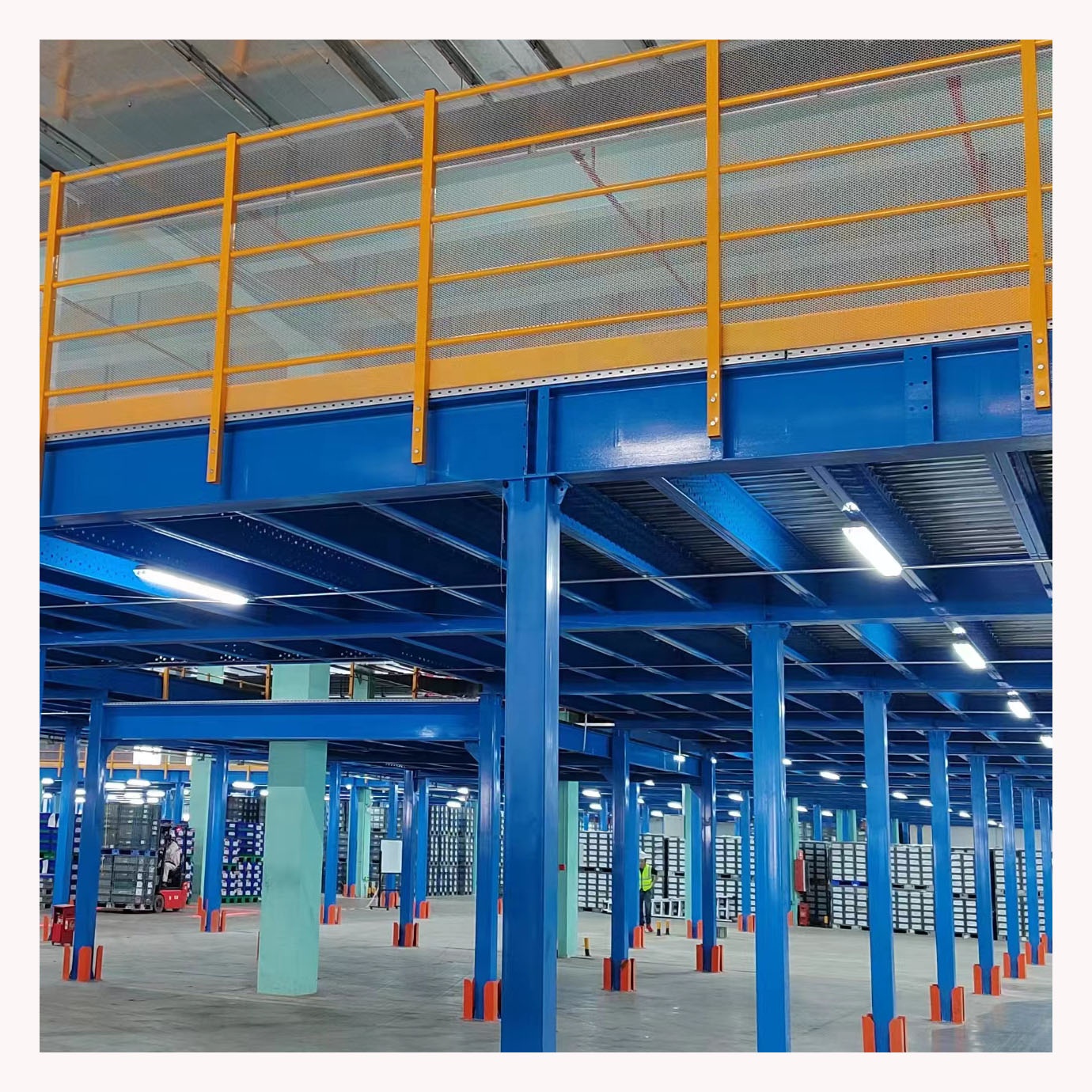

Both components are made from H-steel, providing exceptional loading capacity and supporting long spans. The major beams are connected by connector pieces on each side, maximizing overall structure stability.
These are connected with a specialized hanging piece. The hanging piece is welded securely onto the main beam, ensuring the major beam remains highly stable under heavy loads.

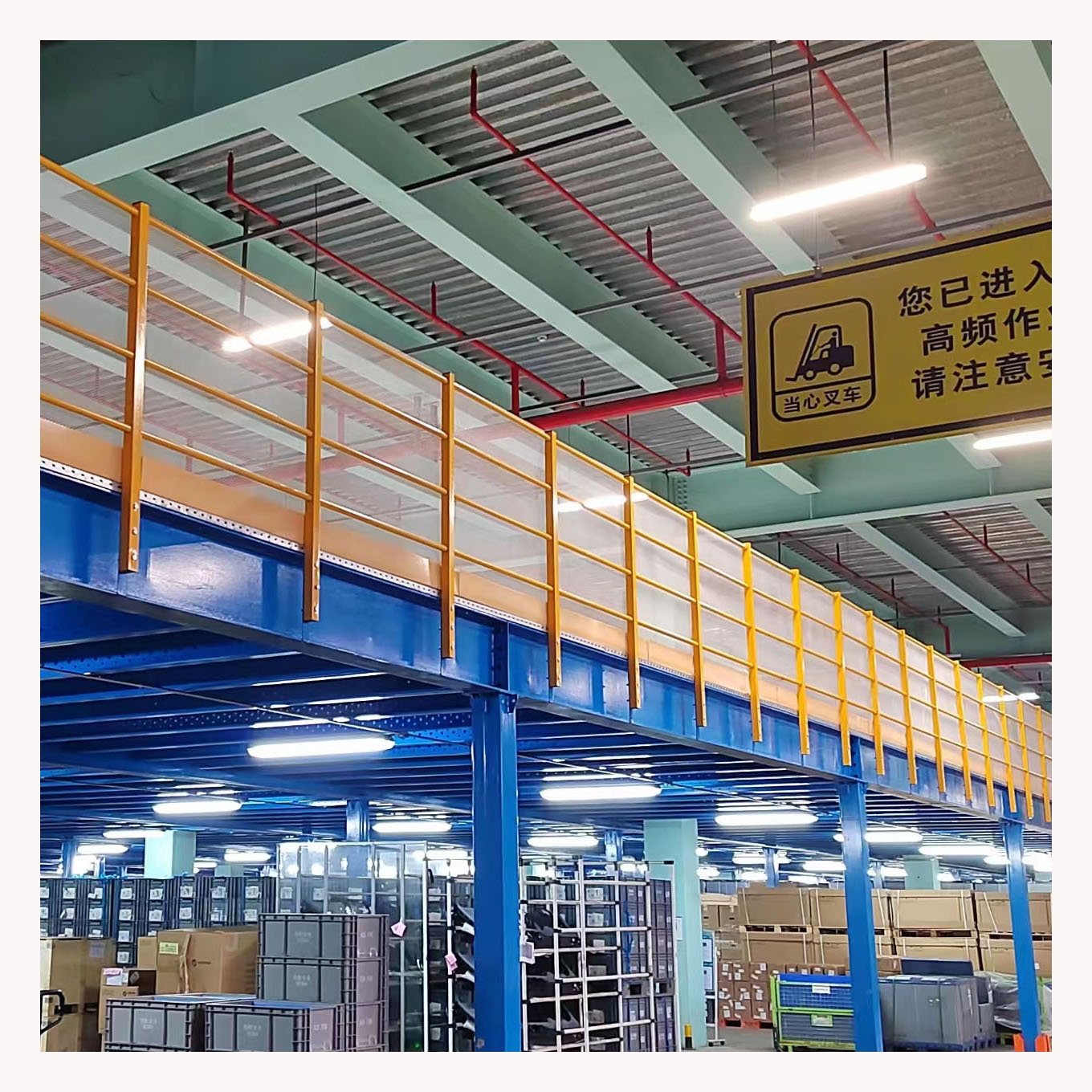

The steel panel and support beam are connected with heavy-duty hooks to provide a stable walking surface. The guardrail hangs securely on the main beam without requiring holes, preserving the structural integrity of the beam.
