Mracking Can Be Customized Steel Mezzanine Structure Shelves for Sale Mezzanine Steel Structure

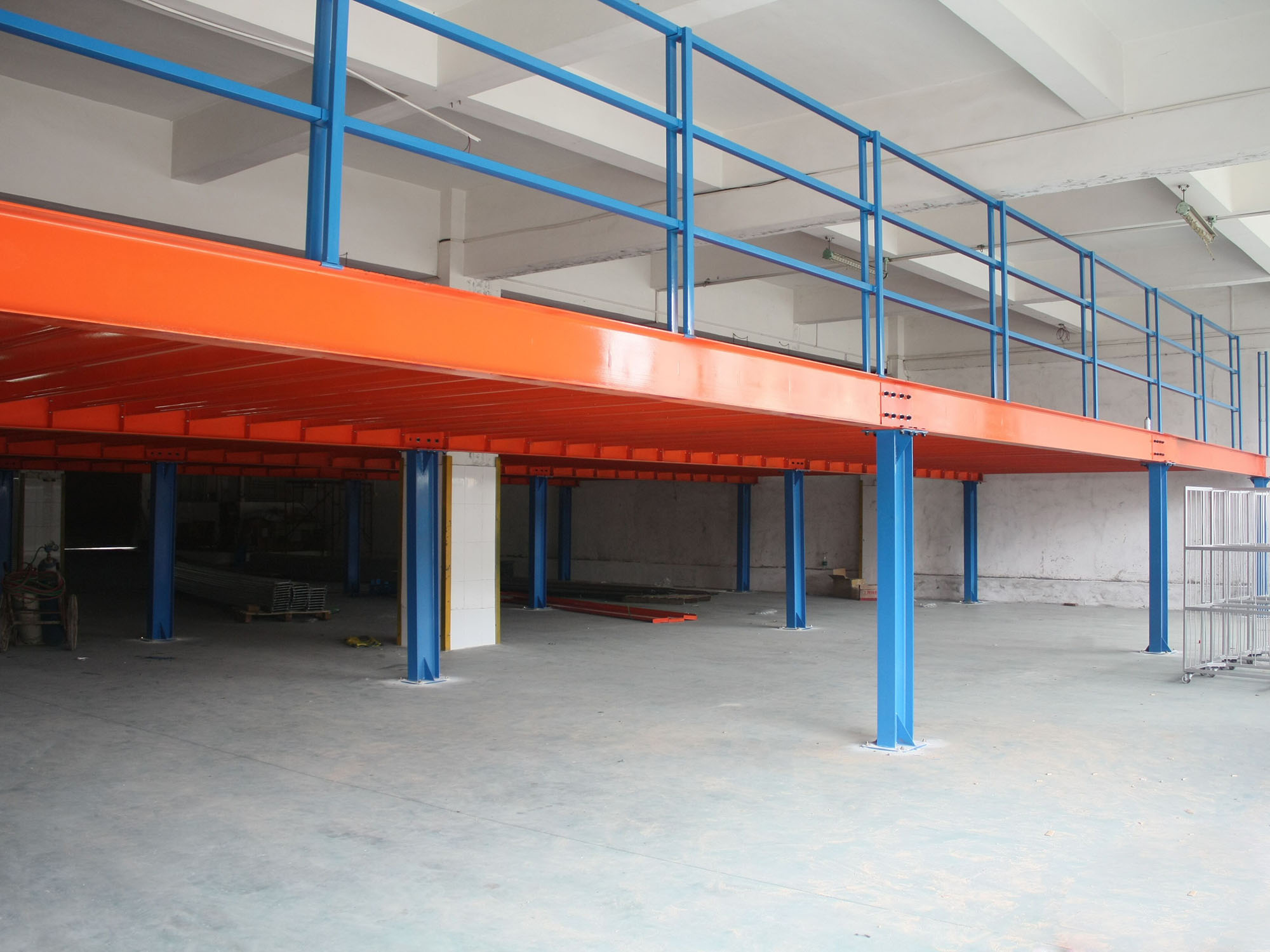

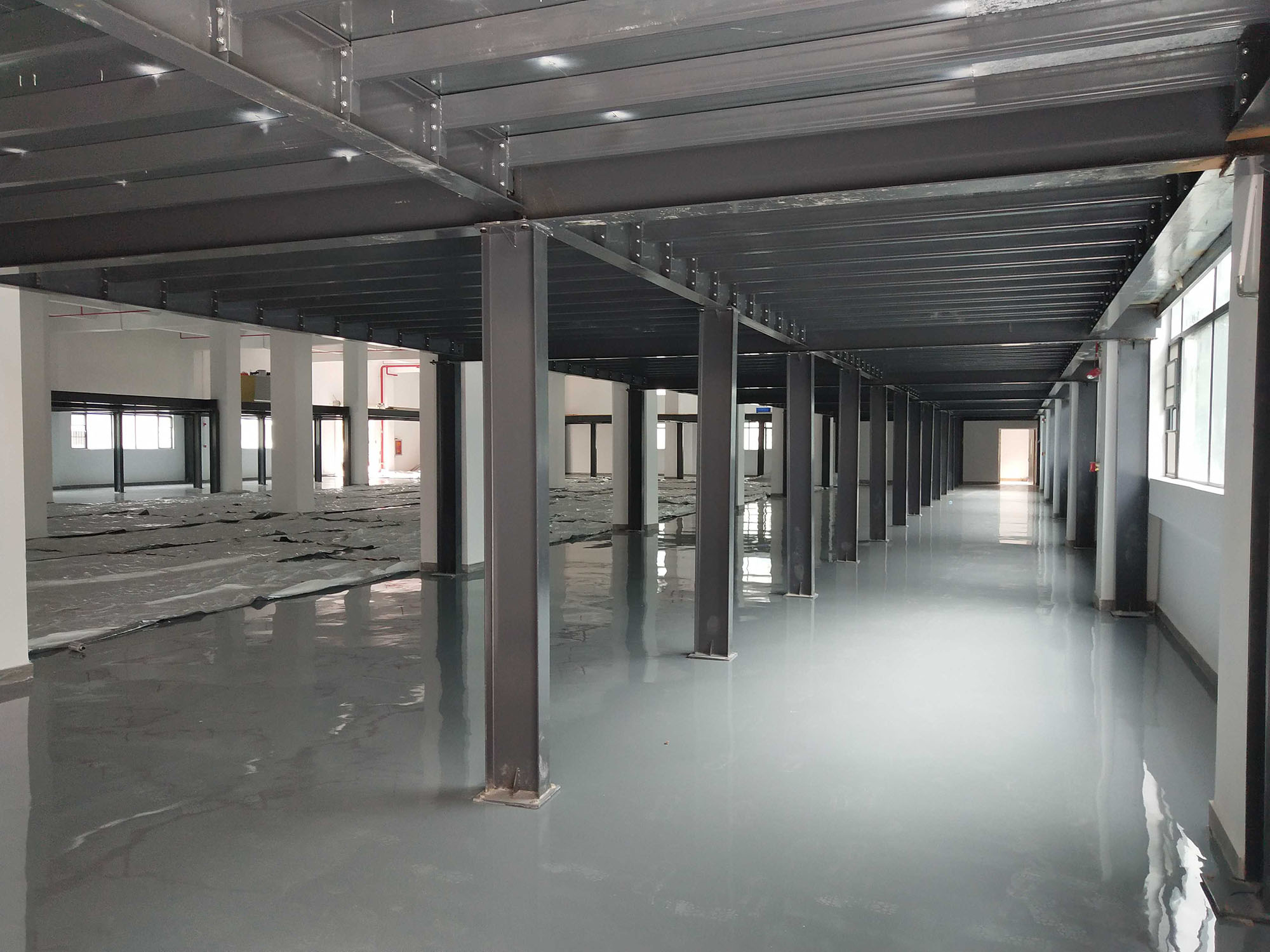

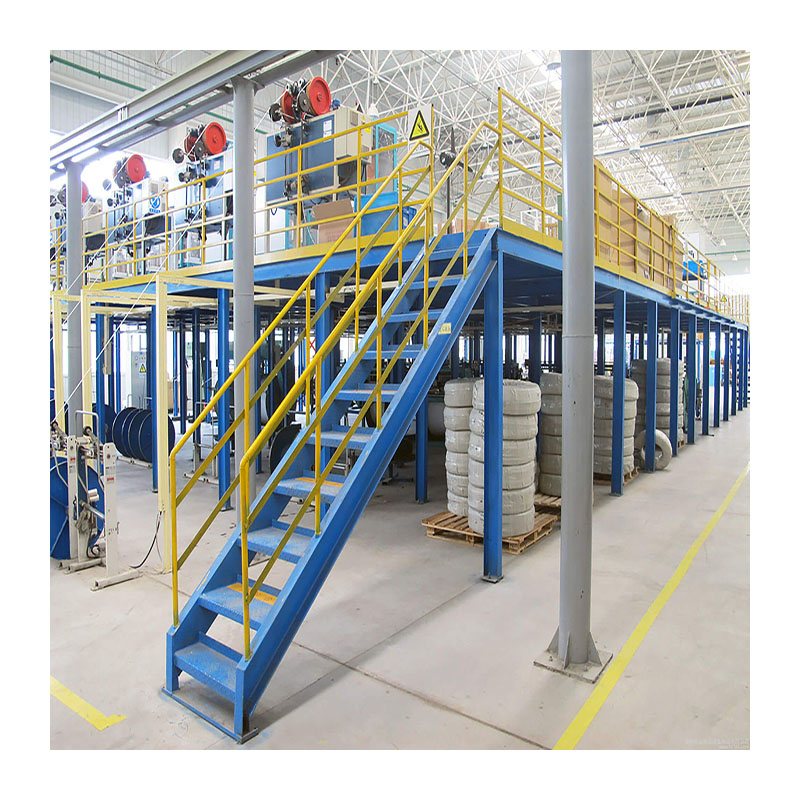

Design & Support: H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel. Usually, steel panels or MDF panels are used for the mezzanine floor, which are also equipped with staircases and guardrails. It can be matched with a cargo lift for optimized efficiency.

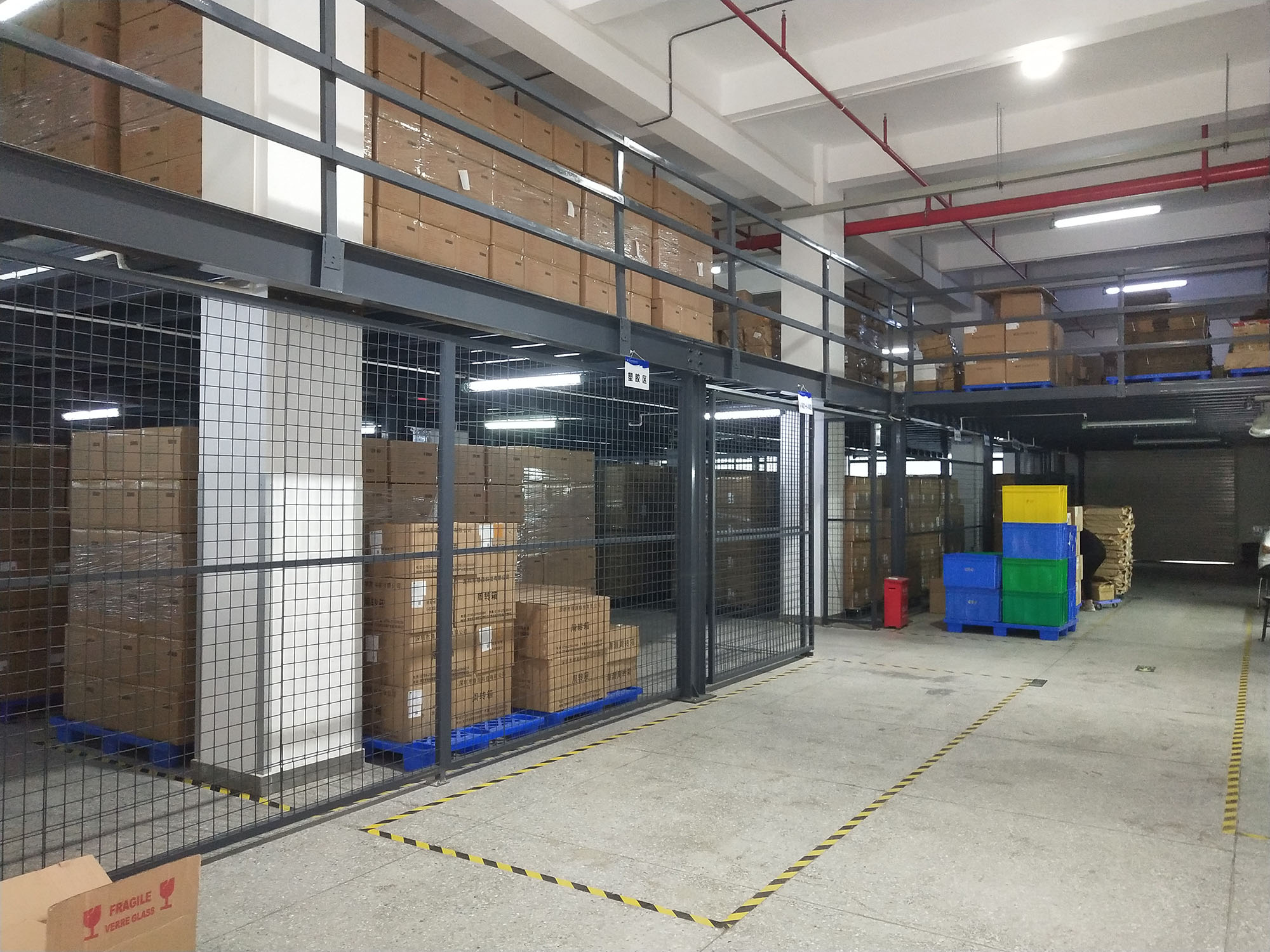

Applications: It is suitable for higher warehouses with large loading capacities, longer spans, and large storage requirements. It fully utilizes vertical space, effectively doubling the usable warehouse area. Widely used for electronics, hardware, communication, printing, and other industries.

Product Specifications

Parameter	Details
Raw-Material	High-Quality Q235 Cold rolled steel
Color	Upright frame is blue, Beam is orange (can be customized)
Height	Customized
Width / Depth	Customized
Length	Customized
Loading Capacity	200 ~ 5000kg per sqm
Surface Treatment	Powder coated
Packing Term	Air bubble, Wooden Case, etc.

Key Structural Connections

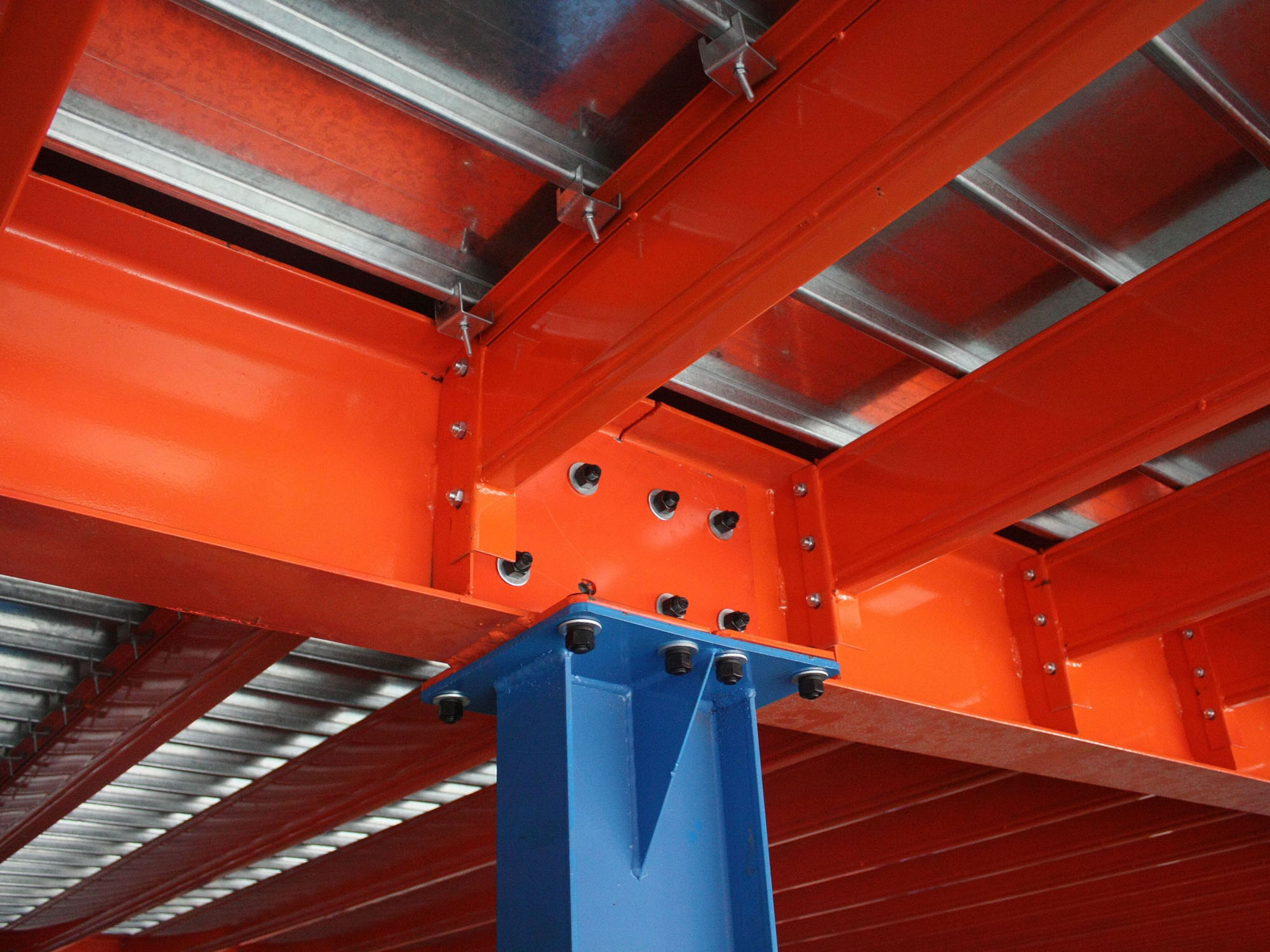

Upright & Main Beam Connection

Both components are made from H-steel, delivering high loading capacity and long span capabilities. The major beams are connected by connector pieces on each side, which makes the overall beam structure significantly more stable.

Support Beam & Main Beam Connection

They are connected via a hanging piece, which is securely welded onto the main beam. This integration ensures the major beam provides superior stability under heavy loads.

Steel Panel & Guardrail Connection

The steel panels and support beams are connected securely with hooks to guarantee high stability. The guardrail hangs directly on the main beam without requiring holes, avoiding any adverse impact on the structural integrity of the beam.
