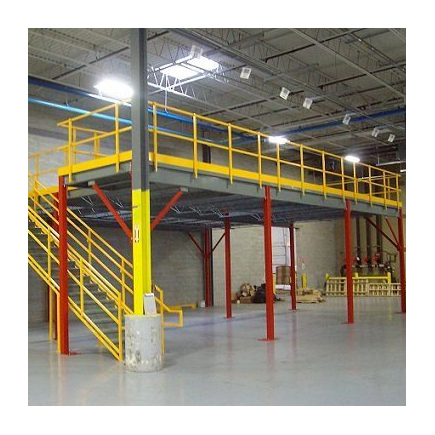

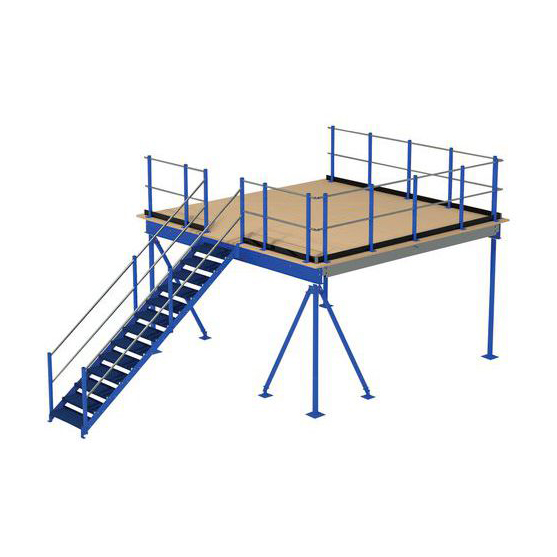

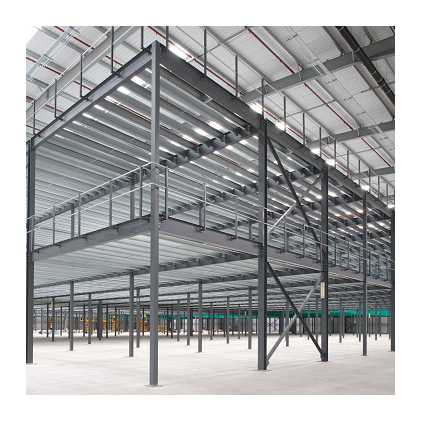

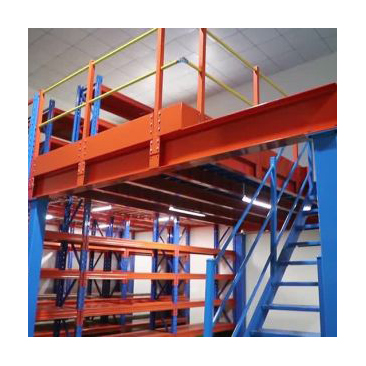

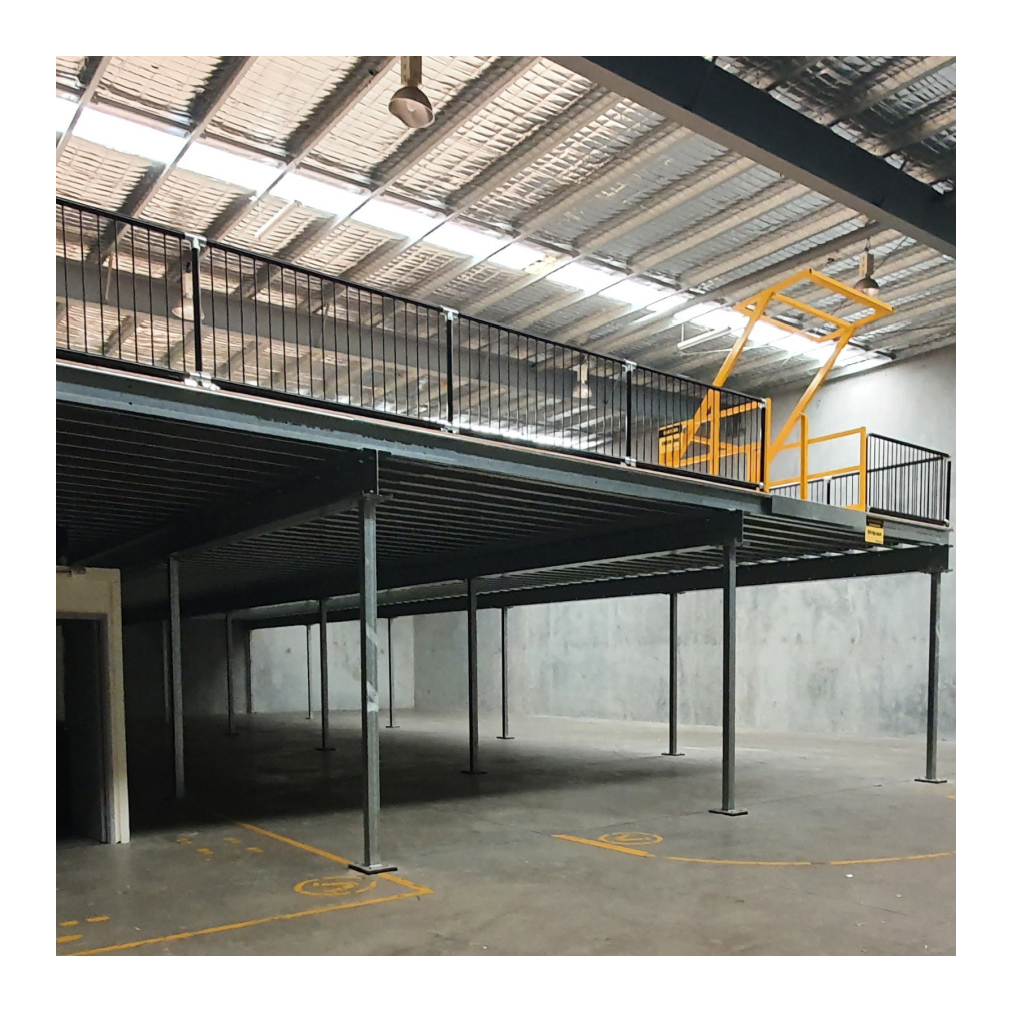

H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel. Usually we use the steel panel or MDF panel for the mezzanine floor, there are also with staircase and guardrail. Match with the cargolift for high efficiency.
It is suitable for higher warehouses, large loading capacities, longer spans, and large storage needs. It makes full use of space, effectively turning one warehouse layout into two. Widely used for electronics products, hardware, communication, printing, and more.
| Parameter | Details |
|---|---|
| Raw Material | High-Quality Q235 Cold rolled steel |
| Color | Upright frame is blue, Beam is orange (can be customized) |
| Height | Customized |
| Width / Depth | Customized |
| Length | Customized |
| Loading Capacity | 200 ~ 5000kg per sqm |
| Surface Treatment | Powder coated |
| Packing Term | Air bubble, Wooden Case, etc. |
Designed for stability and heavy duty applications. The cold rolled steel profile ensures durability, while customized dimensions cater to your exact warehouse layout requirements.
Both components are constructed from H-steel, ensuring high loading capacity and longer spans. The major beams are connected by structural connector pieces on each side to maximize overall stability.
Connected using dedicated hanging pieces. The hanging piece is welded directly onto the main beam, ensuring the structural integrity of the major beam remains highly stable under load.
The steel panel and support beams are interconnected with secure hooks for robust stability. The safety guardrail hangs directly on the main beam without requiring pre-drilled holes, preserving the beam's structural strength.
We are a professional racking manufacturer.
Our standard raw material is Q235B cold rolled steel.
Generally, it takes less than 15 workdays. The delivery time also depends on the final order quantity and custom shelving design.
Our standard terms are a 30% T/T down payment and the remaining 70% T/T paid prior to delivery.
To receive an accurate and quick quote, please provide the following details:
1. Racking size: Length * Depth * Height.
2. Desired layers per set.
3. Load capacity requirements per beam layer.
4. Total racking quantity needed.
Generally, racks are packed using air bubble film. Custom packaging options, such as wooden cases, are available upon request.
