Product Description

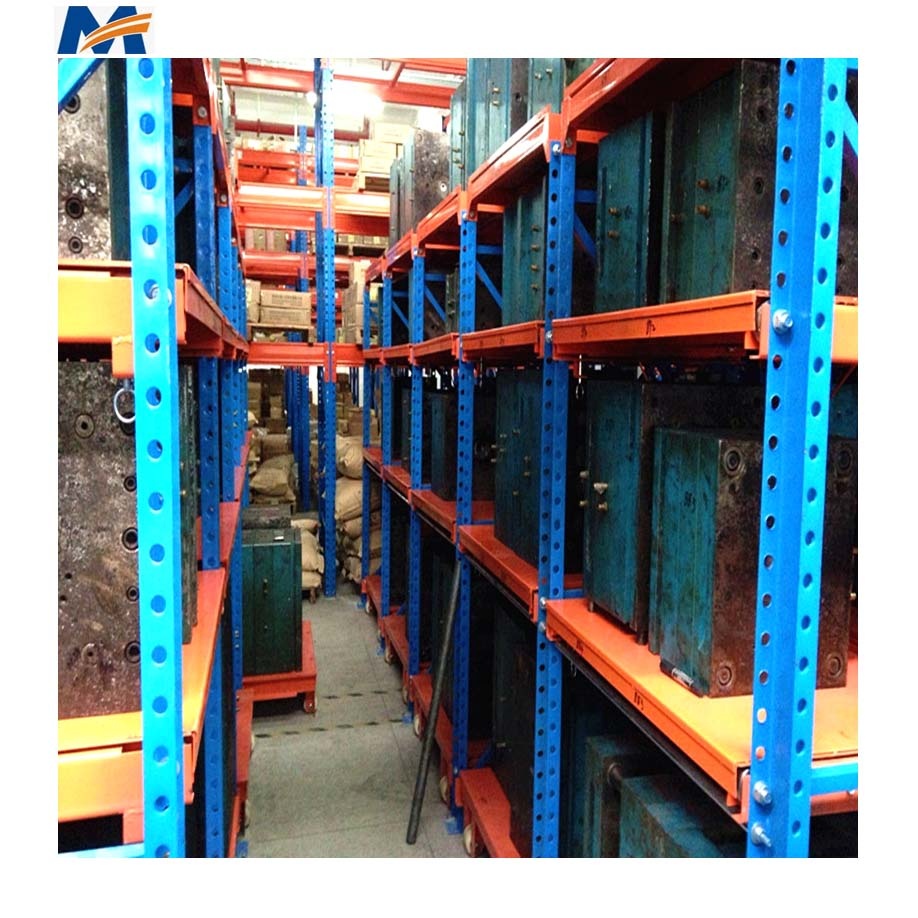

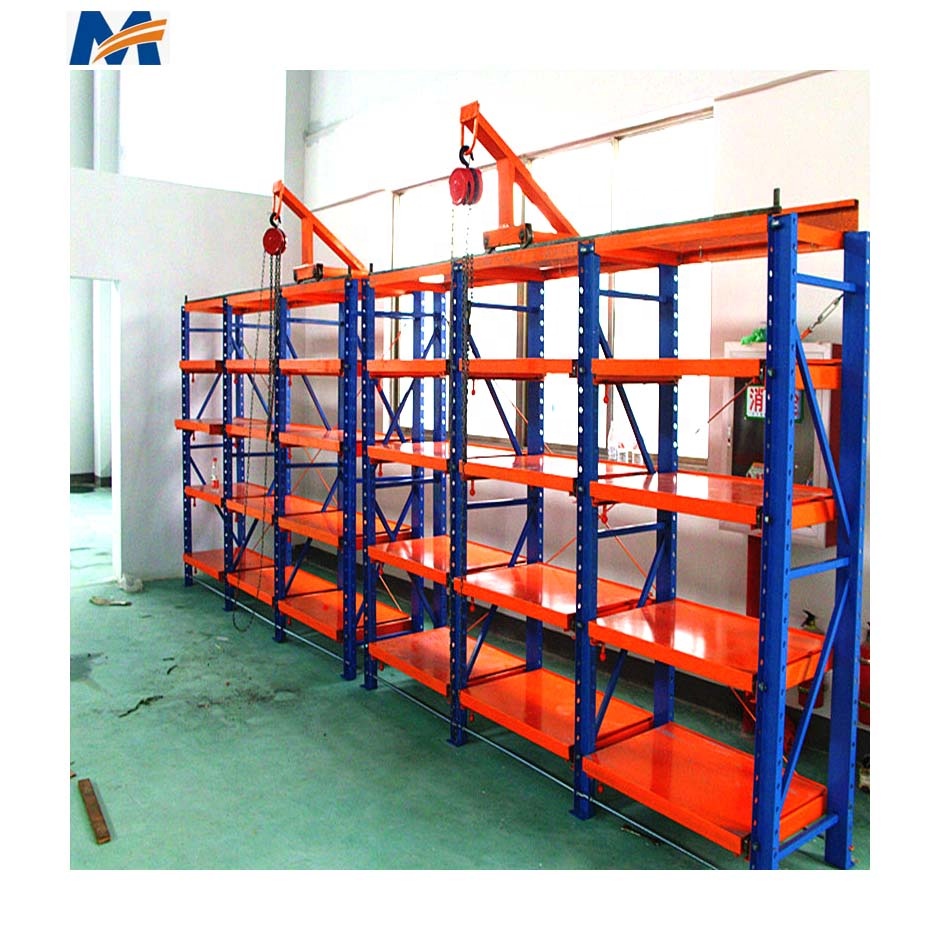

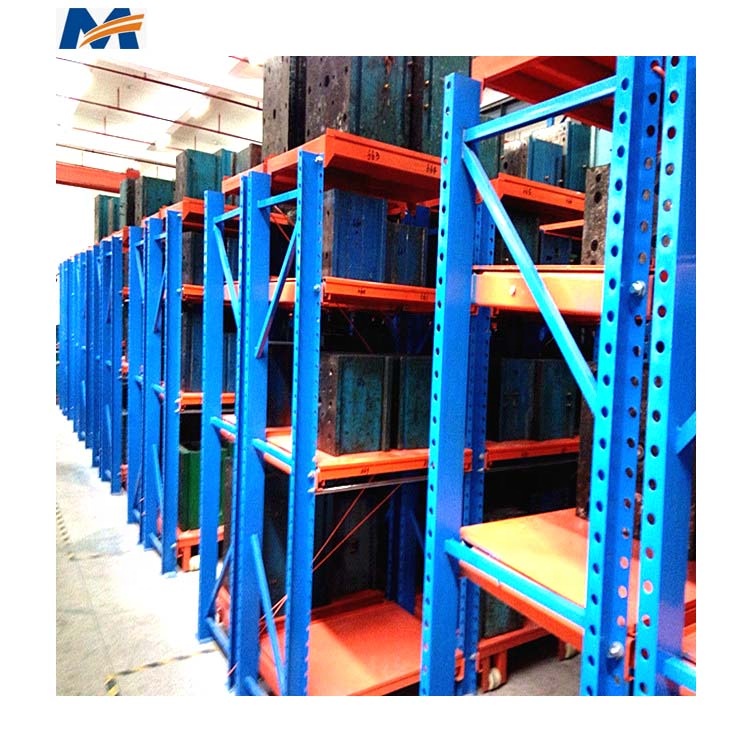

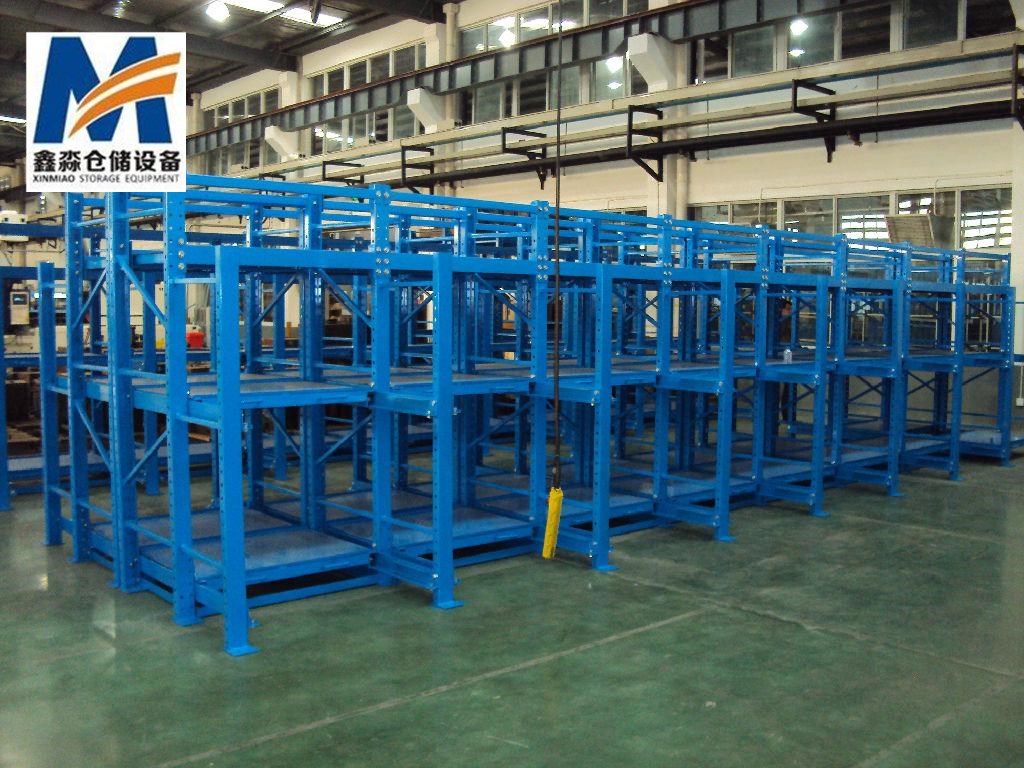

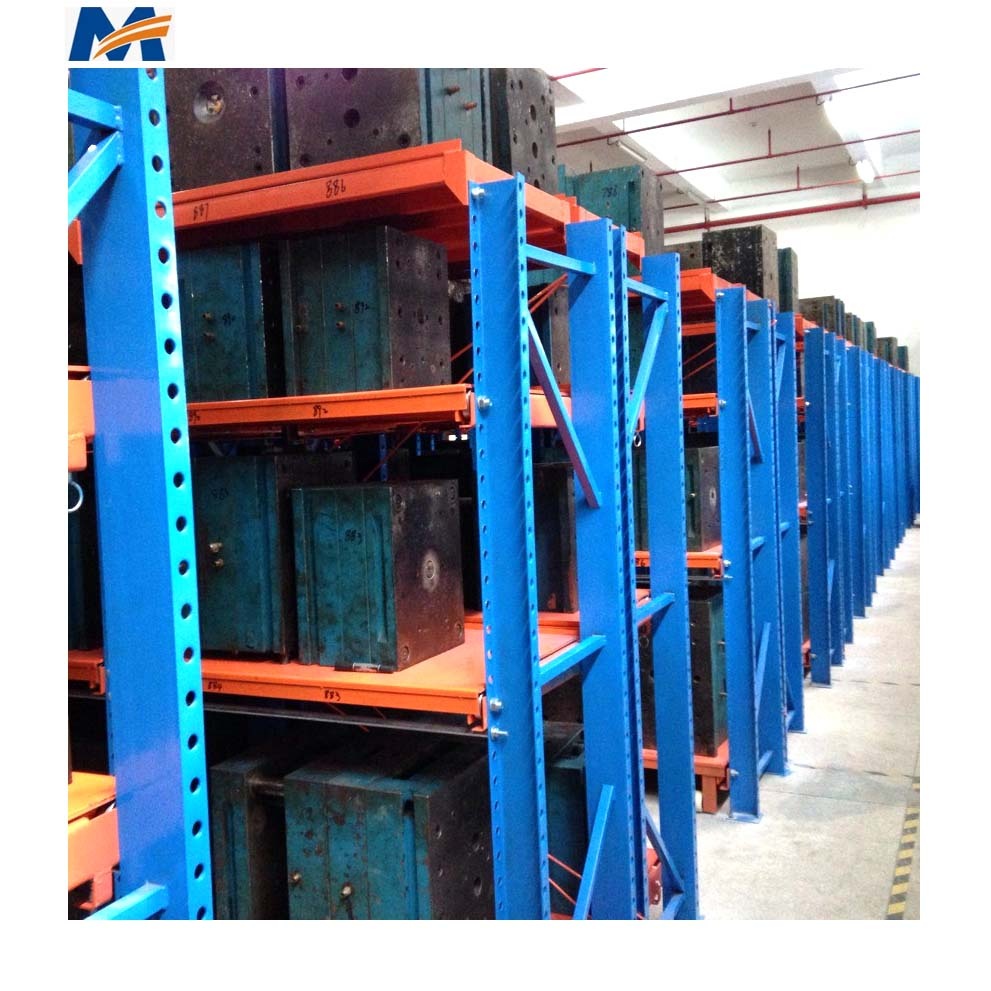

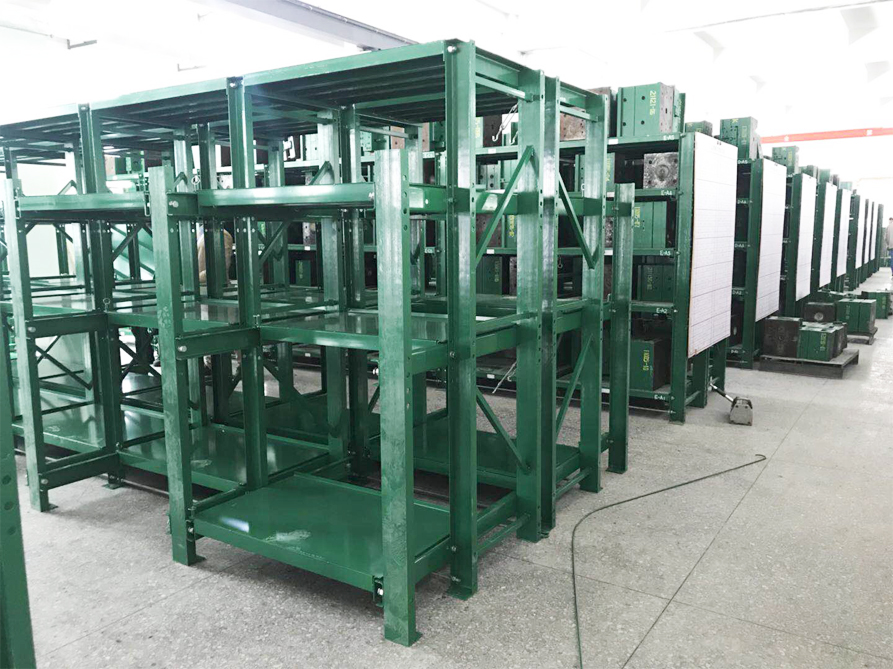

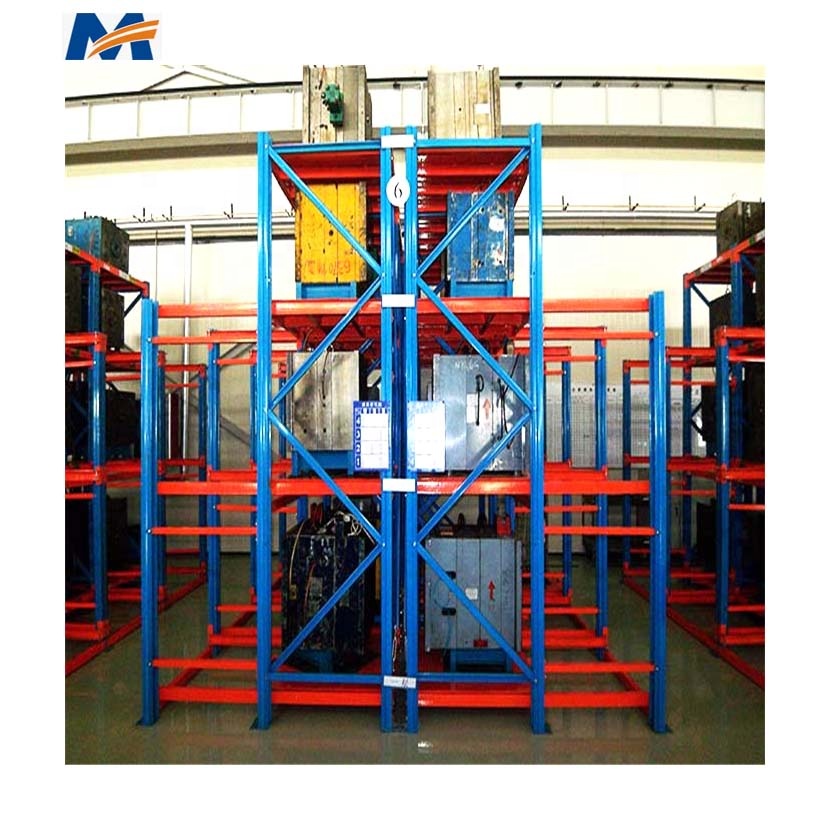

Mould racks are mainly used to store various kinds of moulds. According to loading capacity, they are divided into drawer type mould racks and full open mould racks. The top of the mould rack can be equipped with a crane and manual hoist to facilitate the slinging of moulds.
| Drawer Type Specifications |

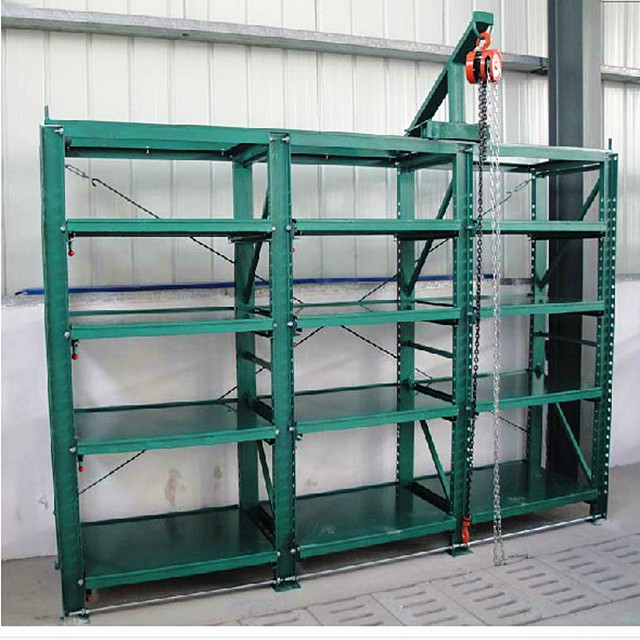

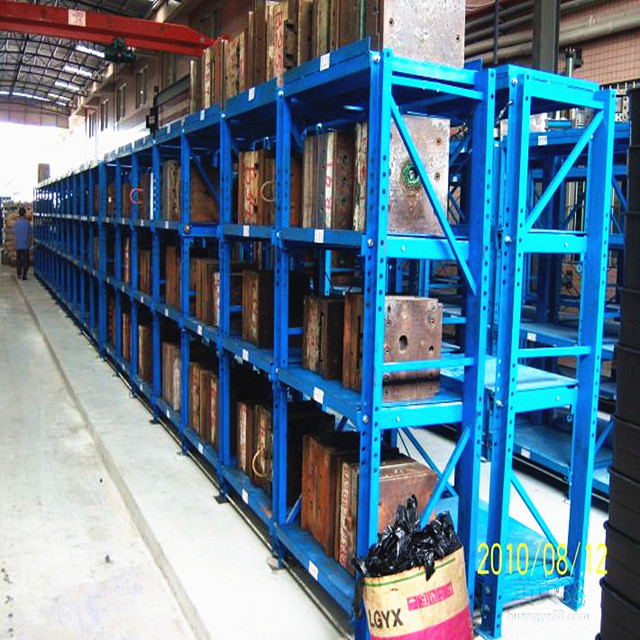

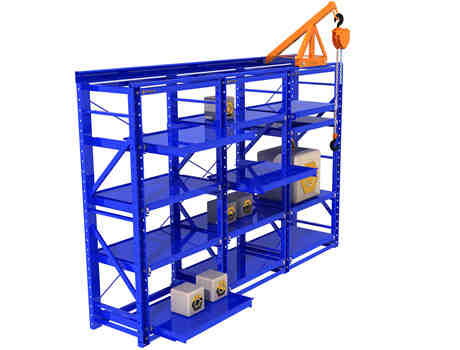

| Product | Drawer Type Mould Rack |
| Material | High-Quality Channel Steel |
| Standard Size | L3100 * D600 * H2000 mm |
| Layers | 4 Layers |
| Loading Capacity | 1000kg / drawer |
| Bearing Type | Model 6403 |
| Upright Specs | 100 * 40 * 4 mm |
| Thickness of Board | 2.0 mm |
| Color Options | Green, Blue (Customizable) |
| Surface Treatment | Powder coated |
| Packing Details | Air bubble |
| Full Open Specifications |

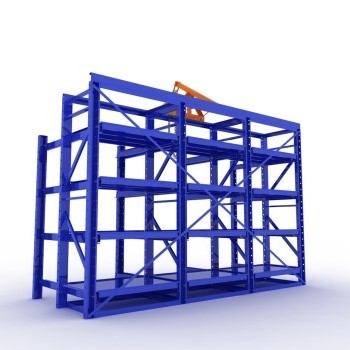

| Product | Full Open Mould Rack |
| Material | High-Quality Channel Steel |
| Standard Size | L3100 * D800+400 * H2000 mm |
| Layers | 4 Layers |
| Loading Capacity | 1000kg / drawer |
| Bearing Type | Model 6403 |
| Upright Specs | 100 * 40 * 4 mm |
| Thickness of Board | 2.0 mm |
| Color Options | Green, Blue (Customizable) |
| Surface Treatment | Powder coated |
| Packing Details | Air bubble |
Features & Technical Specifications
- Easy to remove the shelf boards; vertical spaces are adjustable.
- Each group has a pulley and handy-lift hoist block for easy storage and unloading of molds, ensuring safe positioning and quality.
- Each section can store several sets of molds, convenient for maintenance, management, and locating of molds without occupying extra space.
- The post adopts 10# channel steel, diagonal brace of post is 25*25 square meters.
- Rack of backing plate is 50*50 angle iron, board size of backing plate is 2mm iron plate.
- Sliding chute is made of folding 4mm iron plate.
- Bearing capacity: 800-1000kg per backing plate.
| Material & Business Terms |
| Material | High-quality cold rolled steel Q235 |
| Color | Standard color is green. Customizable to any color. |
| Packaging Term | Foam and wooden case options according to requirements. |
| Delivery Time | Delivery within 15 days. |
Product Details Gallery
Install Drawing
Color Options
Packaging & Shipping
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional racking manufacturer.
2. What is the material used for your racks?
Our standard material is Q235B cold rolled steel.
3. What is the standard delivery time?
Generally, delivery is within 15 workdays. It also depends on the order quantity and specific shelving design.
4. What are your terms of payment?
We accept 30% T/T down payment and 70% T/T before delivery.
5. How can I get a quick quotation on my racking project?
Please provide the following information for a quick quote: 1) The size of rack (Length * Depth * Height); 2) Layers per set; 3) Load capacity per beam layer; 4) Racking quantity.
6. How does your factory handle quality control?
Quality is our priority. We hold ISO 9001 and SGS certifications to ensure product standards.
