Product Description
Introduction

Mold rack mainly stores various kinds of molds. According to loading capacity, it is divided into drawer type mold rack and open-type mold rack. The top of the mold rack can be equipped with a crane and manual hoist, and mold racks of sling.

Features:
  • The structure is solid and loading and unloading is easy for transportation.
  • Suitable for small and medium sizes of molds.
  • The drawer board can draw out for easy removal of molds.
  • Can be installed with crane and hoist.
Material Specifications:
  • Column: 10# channel steel, diagonal bracing: 25*25 square meters
  • Backing plate: 50*25 angle iron and 2.0mm iron plate
  • Chute: 4.0mm iron plate

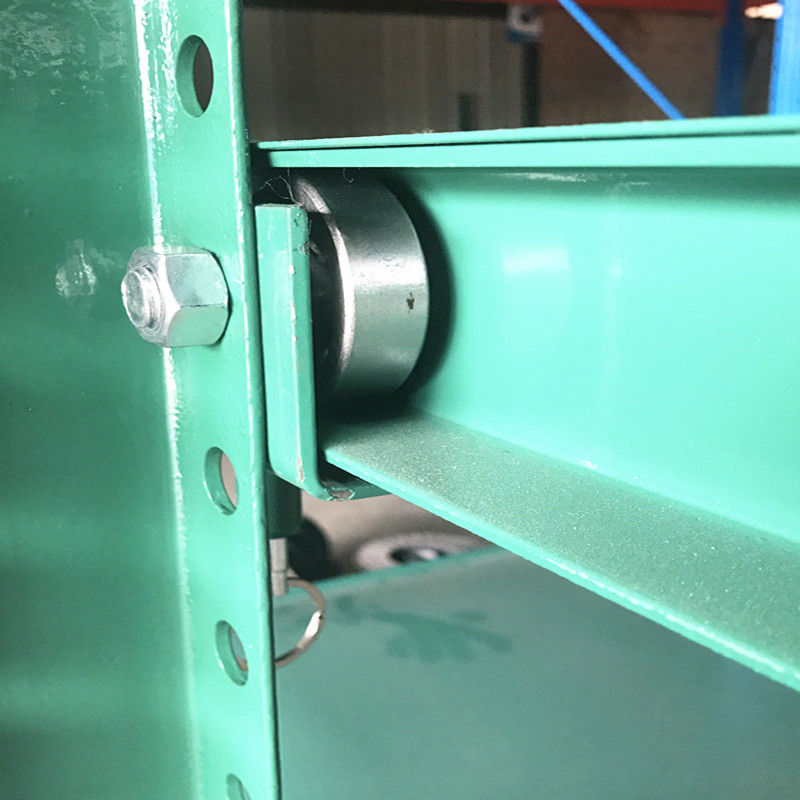

  • Bearing: 6403
  • Bearing capacity: 800-1000kg/drawer

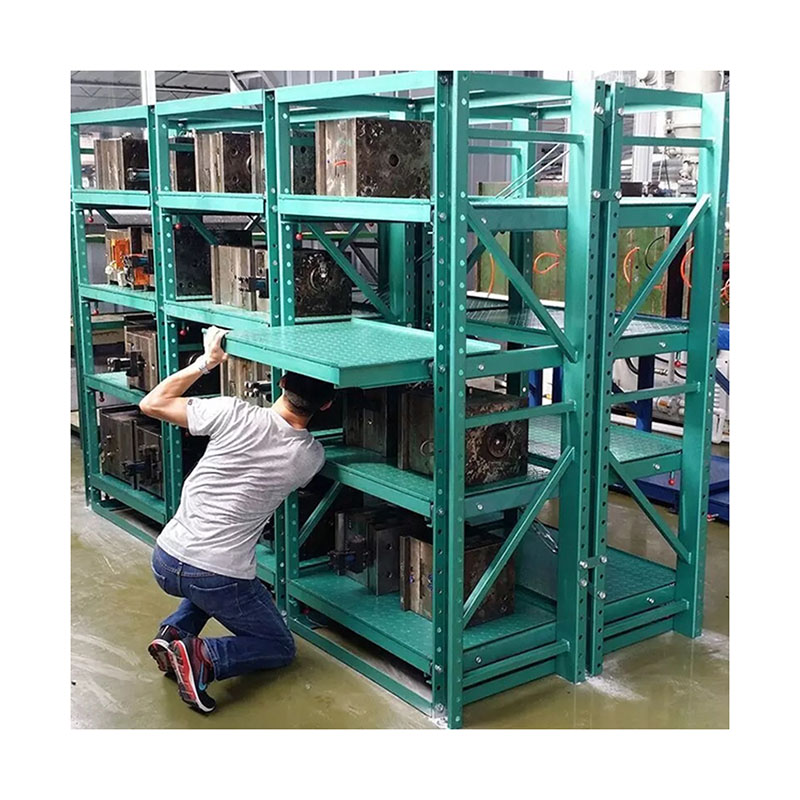

Drawer Type Mold Rack
Standard Size Layer Loading Capacity Bearing Upright (mm) Thickness of Board (mm)
L3100*D600*H2000 4 1000kg/drawer Model 6403 100*40*4 2.0
Drawer Type Mould Rack
Product Drawer Type Mould Rack
Material High-Quality Channel Steel
Standard size L3100*D600*H2000mm
Color Green; Blue. (Can be customized)
Loading Capacity 1000KG/drawer
Surface Treatment Powder coated
Packing Air bubble

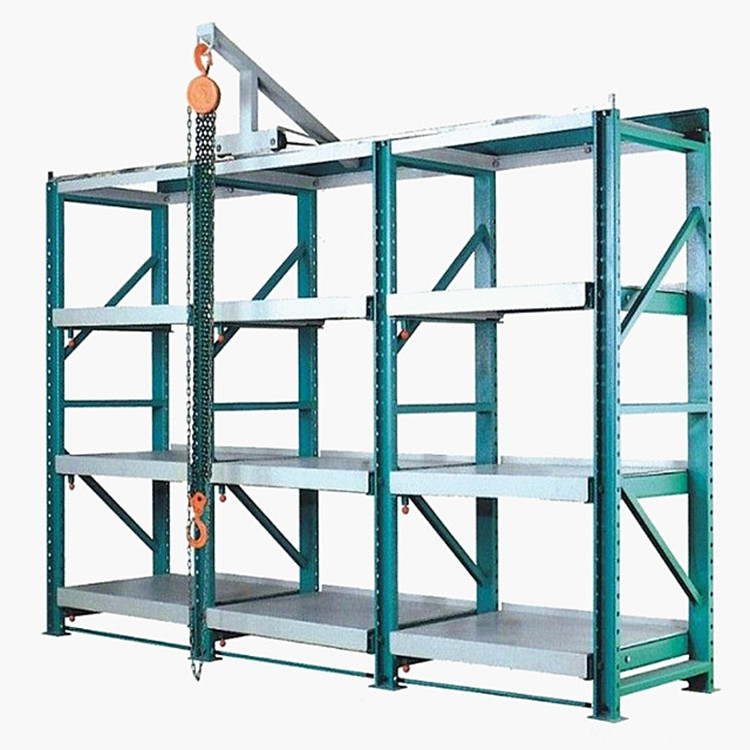

Full Open Mould Rack
Standard Size (mm) Layer Loading Capacity Bearing Upright (mm) Thickness of Board (mm)
L3100*D800+400*H2000 4 2000kg/drawer Model 6403 100*40*4 2.0
Full Open Mould Rack
Product Full Open Mould Rack
Material High Quality Channel Steel
Standard Size L3100*D800+400*H2000mm
Color Green; Blue; (Can be customized)
Loading Capacity 1000kg/drawer
Surface Treatment Powder coated
Packing Air bubble
Company Information
Factory Overview
Packaging & Shipping
Packaging & Shipping Details
Install Drawing
Install Drawing
FAQ
Are you a factory or trading company?
We are a professional factory manufacturing storage and racking systems.
Where is your factory located? How can I visit there?
Our factory is located in Guangdong Province, China, near Shenzhen. You can fly to Shenzhen or Guangzhou airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
What is the material of your products?
The material is Q235 Cold rolled steel. We can also choose material as customers’ requirements.
How can I get some samples?
We are honored to offer you samples for testing and checking quality.
How does your factory do regarding quality control?
Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has ISO9001 and SGS authentication.
What are the load capacity specifications for the mold racks?
The bearing capacity is 800-1000kg/drawer for the standard drawer type mold rack, and can reach up to 2000kg/drawer for the full open type mold rack.
