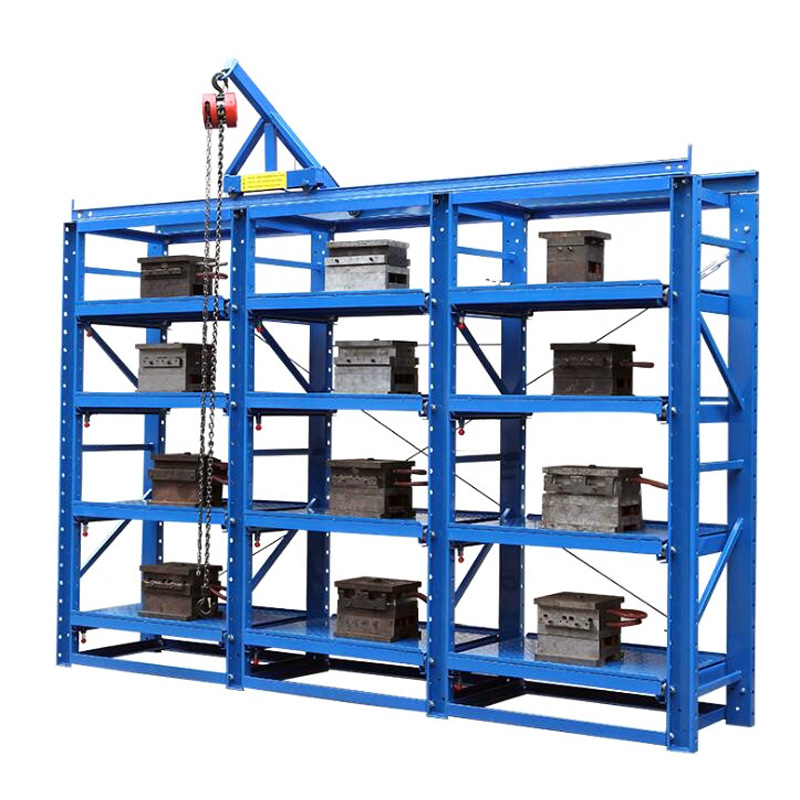

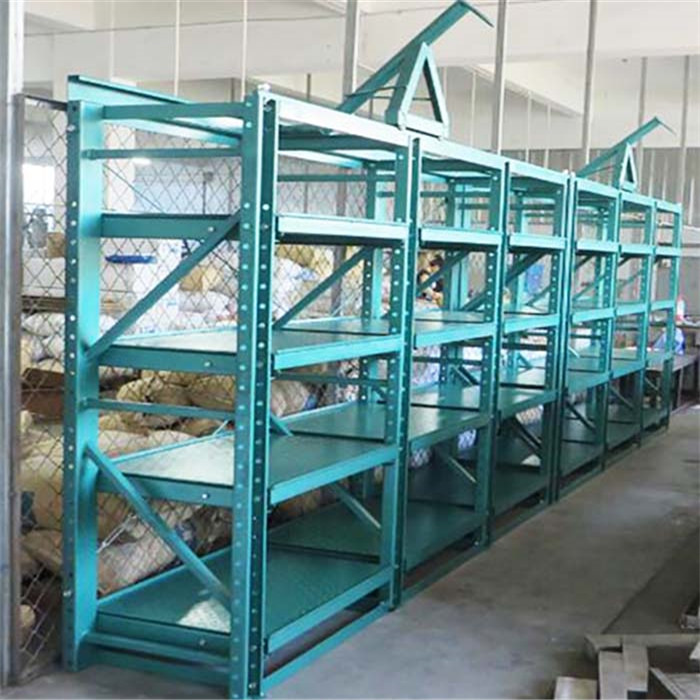

Mold rack mainly storage various kinds molds, according to loading capacity be divided into drawer type mold rack and open-type mold rack. The top of mold rack can be equipped with crane and manual hoist, mold racks of sling.
| Standards Size | Layer | Loading Capacity | Bearing | Upright (mm) | Thickness of Board (mm) |
|---|---|---|---|---|---|
| L3100*D600*H2000 | 4 | 1000kg/drawer | Model 6403 | 100*40*4 | 2.0 |

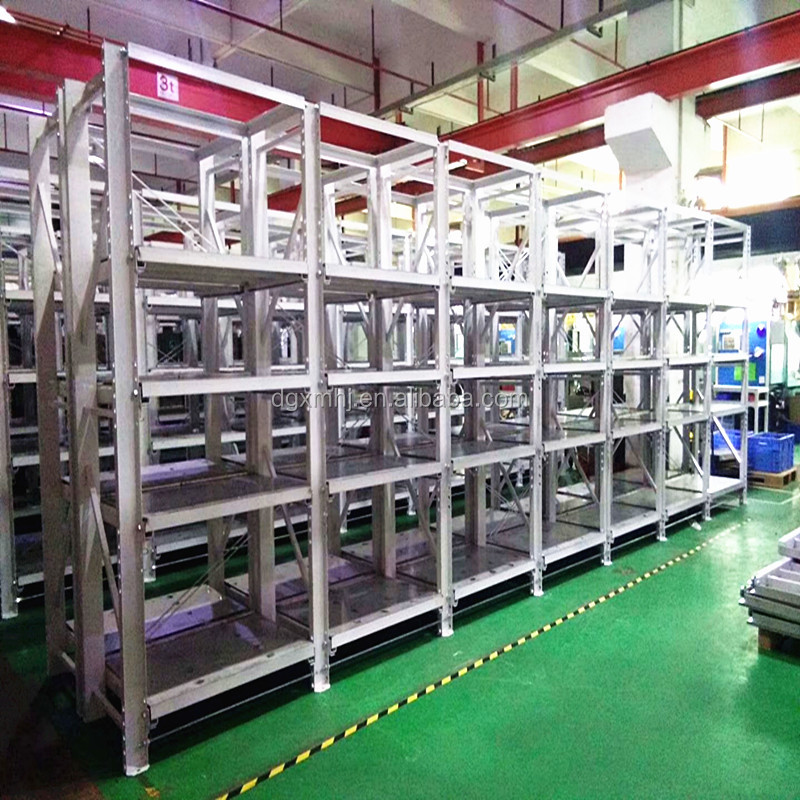

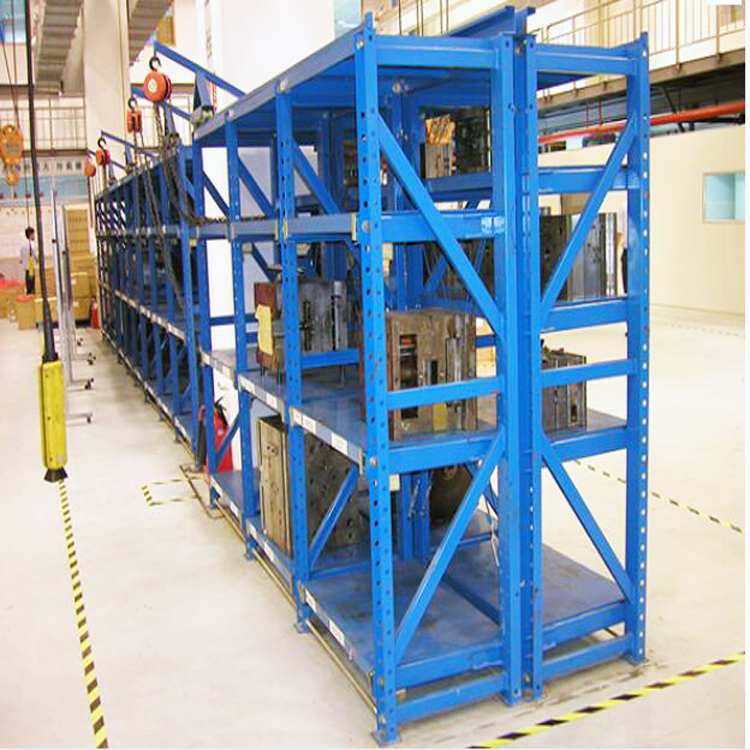

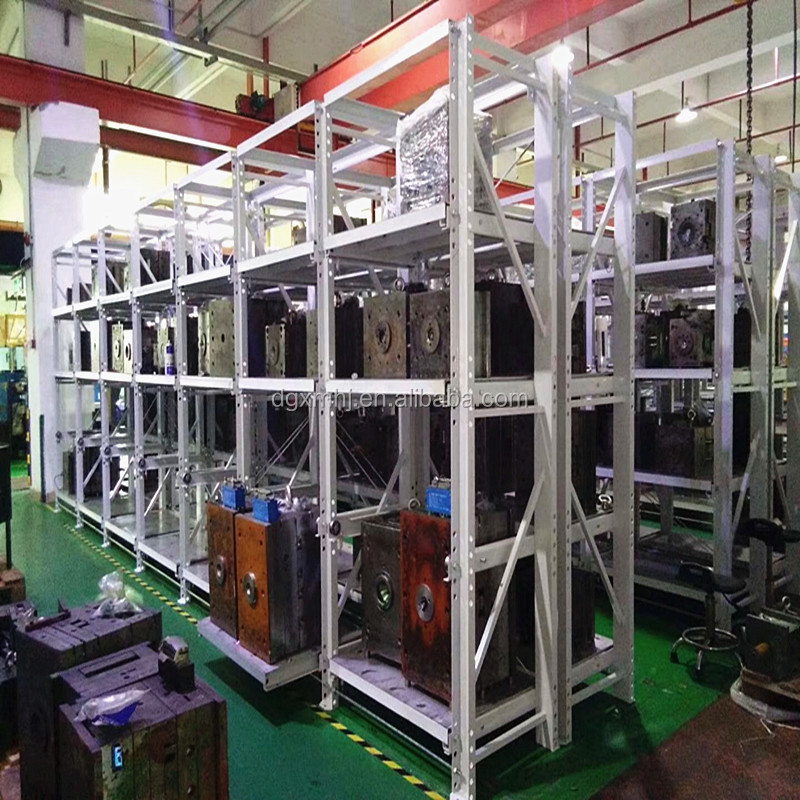

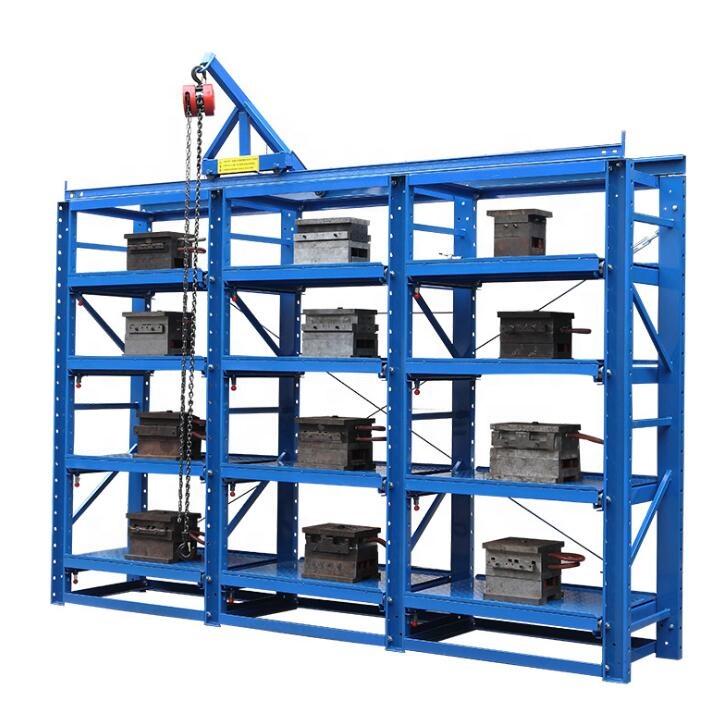

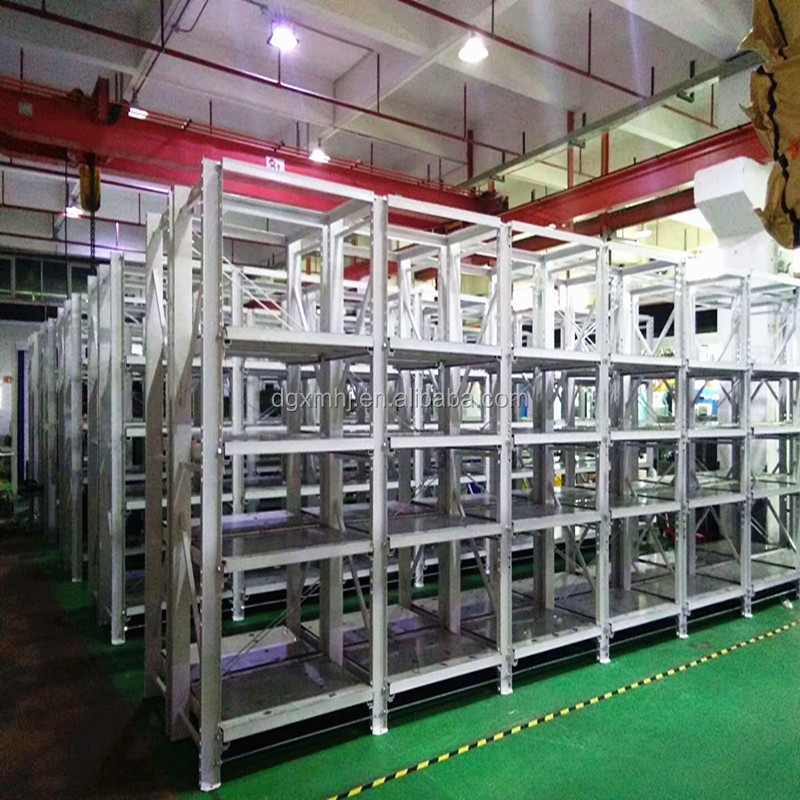

| Product | Drawer Type Mould Rack |
| Material | High-Quality Channel Steel |
| Standard Size | L3100*D600*H2000mm |
| Color | Green; Blue. (Can be customized) |
| Loading Capacity | 1000KG/drawer |
| Surface Treatment | Powder coated |
| Packing | Air bubble |
| Standard Size (mm) | Layer | Loading Capacity | Bearing | Upright (mm) | Thickness of Board (mm) |
|---|---|---|---|---|---|
| L3100*D800+400*H2000 | 4 | 2000kg/drawer | Model 6403 | 100*40*4 | 2.0 |

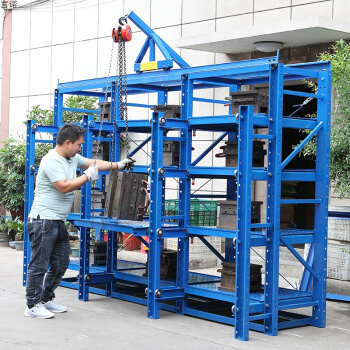

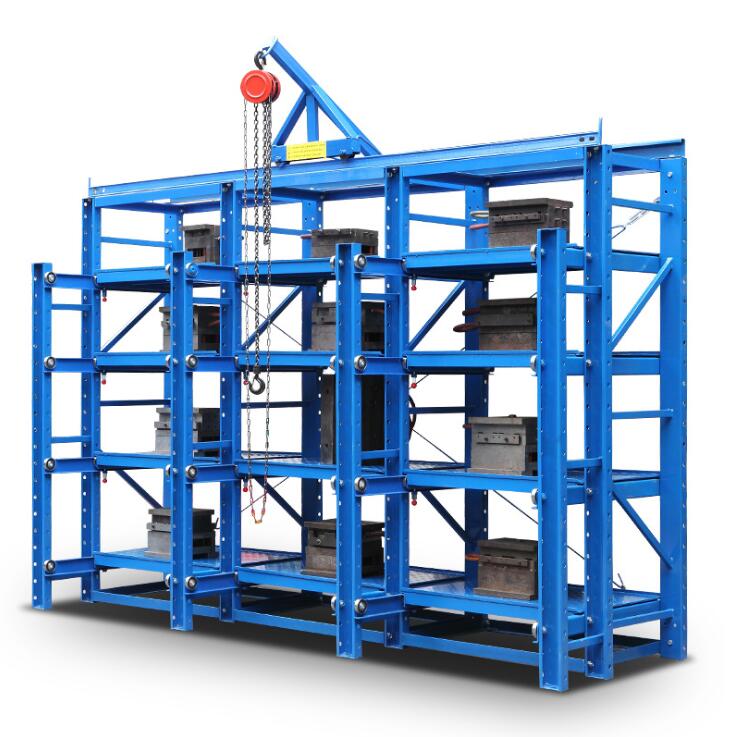

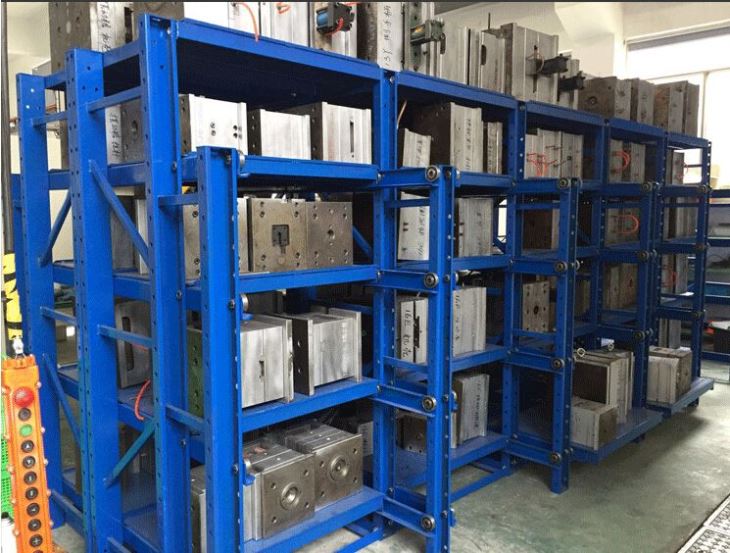

| Product | Full Open Mould Rack |
| Material | High Quality Channel Steel |
| Standard Size | L3100*D800+400*H2000mm |
| Color | Green; Blue. (Can be customized) |
| Loading Capacity | 1000kg/drawer |
| Surface Treatment | Powder coated |
| Packing | Air bubble |
| Feature | Easy to remove the shelf boards; vertical spaces are adjustable. |
| Each group has a pulley and handy-lift hoist block, making storage and unloading of molds easy, and ensuring quality with positioning. | |
| Each section can store several sets of molds, convenient for maintenance, management, and locating of molds without occupying space. | |
| Technological Details | The post adopts 10# channel steel; the diagonal brace of the post is 25*25 square meters. |
| Rack of backing plate is 50*50 angle iron; the board size of backing plate is 2mm iron plate. | |

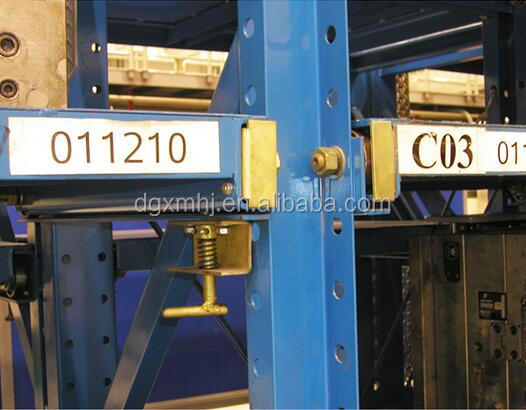

| Sliding chute is made of folding 4mm iron plate. | |
| Bearing capacity: 800-1000kg/backing plates. | |
| Material | High-quality cold rolled steel Q235. |
| Color | Standard color is green. Any color can be customized. |
| Packaging Term | Foam, wooden case as required for drawer mould racks. |
| Delivery Time | Within 15 days for delivery of goods. |
We devote ourselves to the design and manufacture of storage equipment. We are specialised in producing various pallet racking, longspan shelving, warehouse rack, mould rack, wire container, mobile filing cabinet, cantilever racks, rivet shelving, drive in racks, mezzanine and platform, canton flow rack, stacking racking and other related storage equipment.
Through products and service aimed at providing complete assistance for all warehousing, products showcasing and sales outlet requirements. We are able to offer our customers a wide range of products of highest quality with competitive price, as well as rapid delivery time and first-class back-up service.
We are a professional factory specializing in storage equipment and racking systems.
Our factory is located in Guangdong Province, China, near Shenzhen. You can fly to Shenzhen or Guangzhou airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
The standard material is high-quality Q235 cold rolled steel. We can also select materials according to customer requirements.
We are honored to offer you samples for testing and checking quality.
Quality is our priority. We always attach great importance to quality control from the very beginning to the very end. Our factory has obtained ISO9001 and SGS certifications.
The standard bearing capacity is 800-1000kg per drawer, and we also offer heavy-duty options up to 2000kg per drawer for full-open mold racks.
