| Standards Size | Layer | Loading Capacity | Bearing | Upright(mm) | Thickness of Board(mm) |
|---|---|---|---|---|---|
| L3100*D600*H2000 | 4 | 1000kg/drawer | Model 6403 | 100*40*4 | 2.0 |

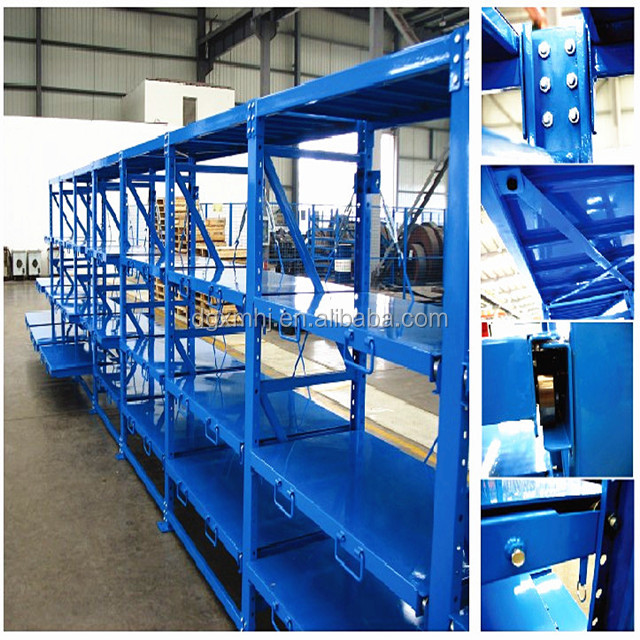

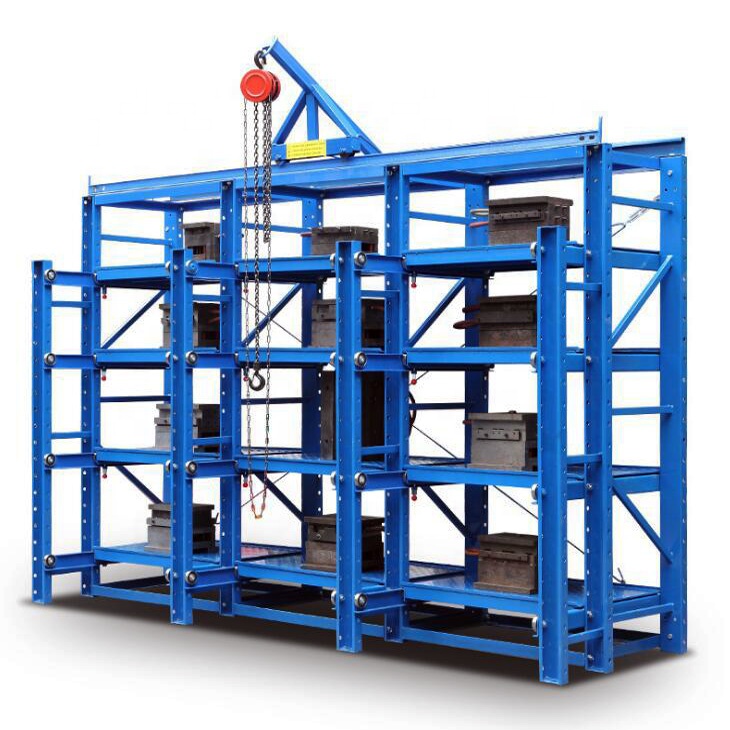

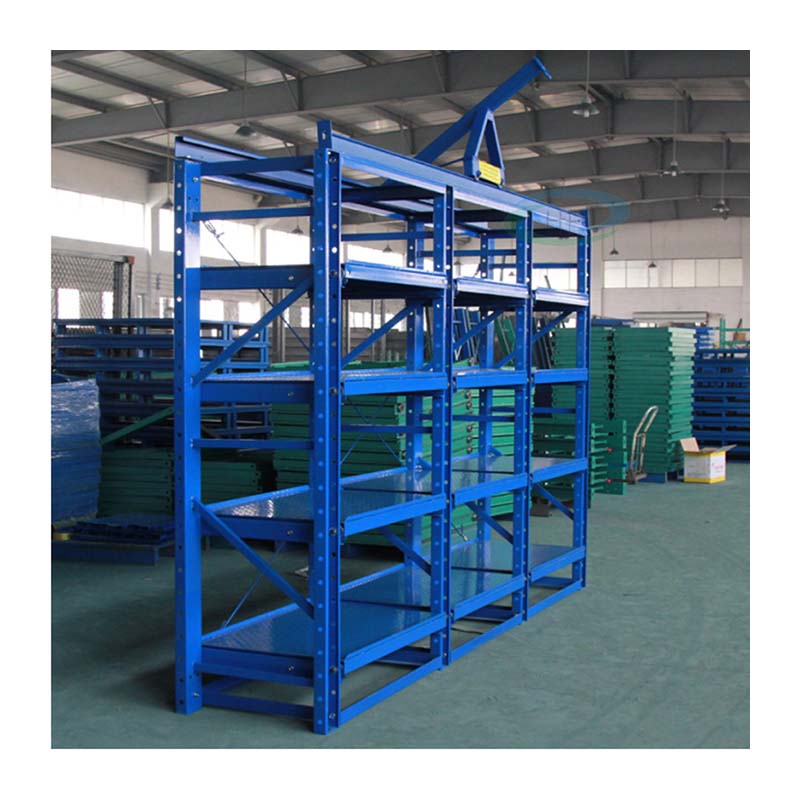

| Product | Drawer Type Mould Rack |
| Material | High-Quality Channel Steel |

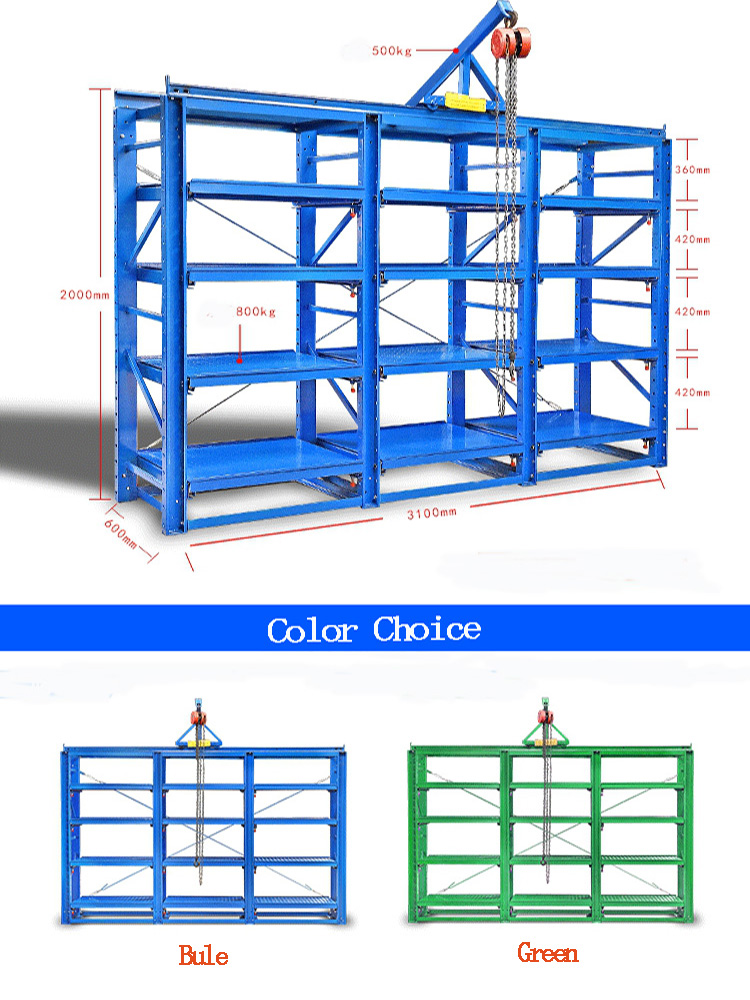

| Standard size | L3100*D600*H2000mm |
| Color | Green; Blue. Can be customized. |
| Loading Capacity | 1000KG/drawer |
| Surface Treatment | Powder coated |
| Packing | Air bubble. |
| Standard Size (mm) | Layer | Loading Capacity | Bearing | Upright (mm) | Thickness of Board(mm) |
|---|---|---|---|---|---|
| L3100*D800+400*H2000 | 4 | 2000kg/drawer | Model 6403 | 100*40*4 | 2.0 |
| Product | Full Open Mould Rack |
| Material | High Quality Channel Steel |
| Standard Size | L3100*D800+400*H2000mm |
| Color | Green; Blue; Can be customized. |
| Loading Capacity | 1000kg/drawer |
| Surface Treatment | Powder coated |
| Packing | Air bubble |
We are a factory.
The material is Q235 Cold rolled steel. We can also choose material as customers’ requirement.
We are honored to offer you samples.
Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has ISO9001 2001, SGS authentication.

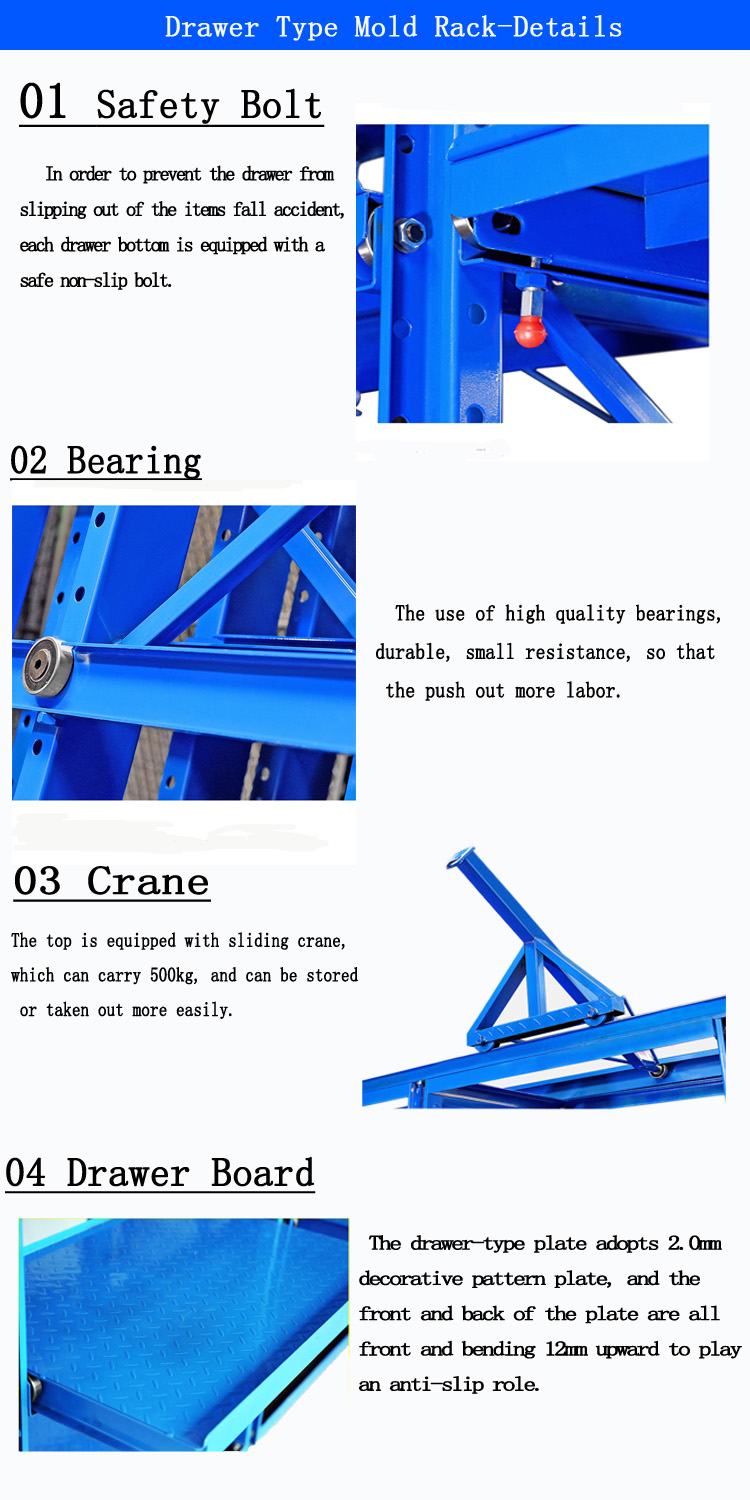

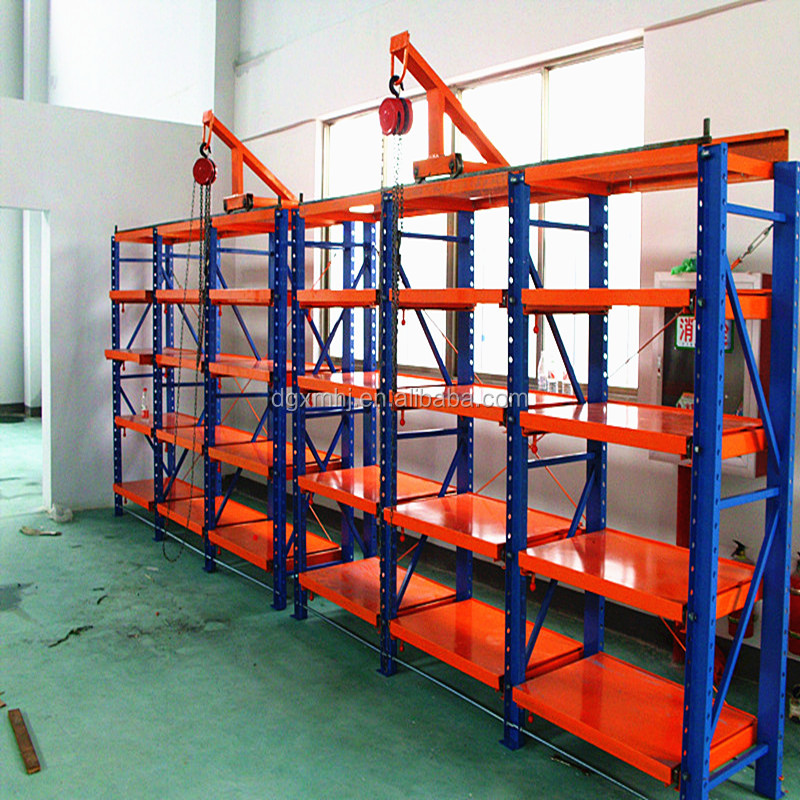

The mold rack structures are solid and designed for easy transportation, loading, and unloading. They are suitable for small and medium molds, feature drawer boards that draw out for easy mold removal, and can support crane and hoist installations.
Depending on configuration, the bearing capacity ranges from 800-1000kg per drawer for the standard Drawer Type Mold Rack up to 2000kg per drawer for the Full Open Mould Rack.
