Product Description
Introduction

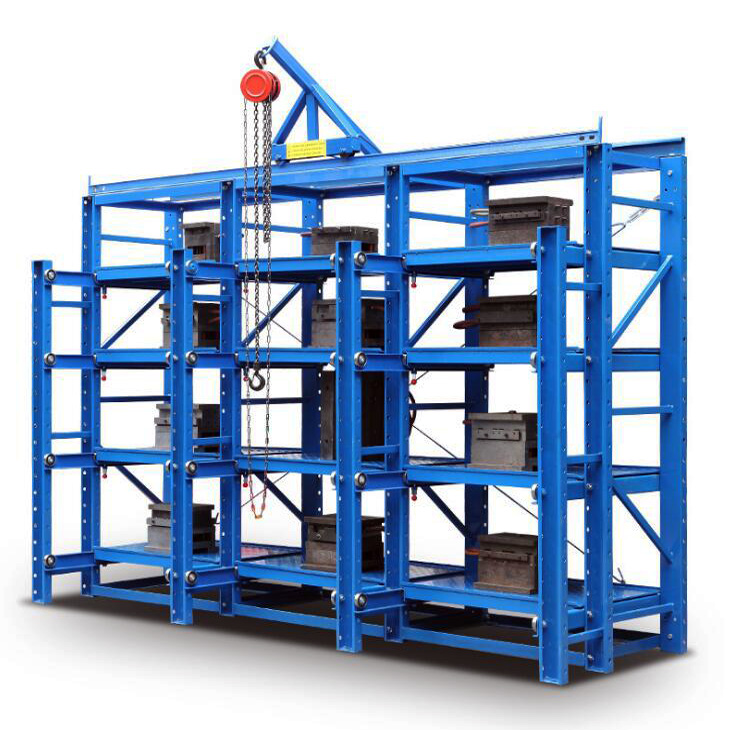

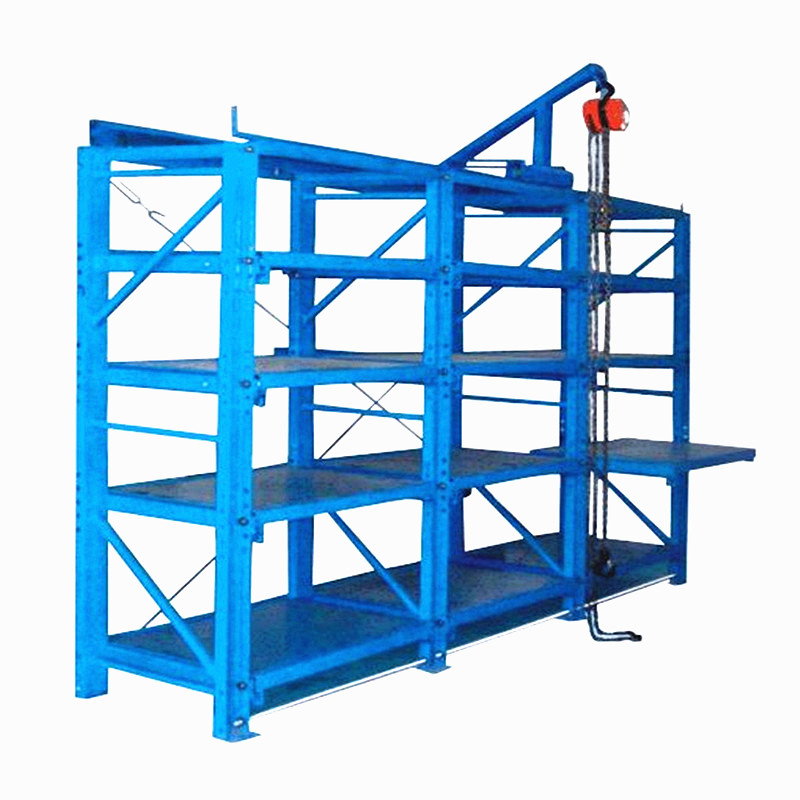

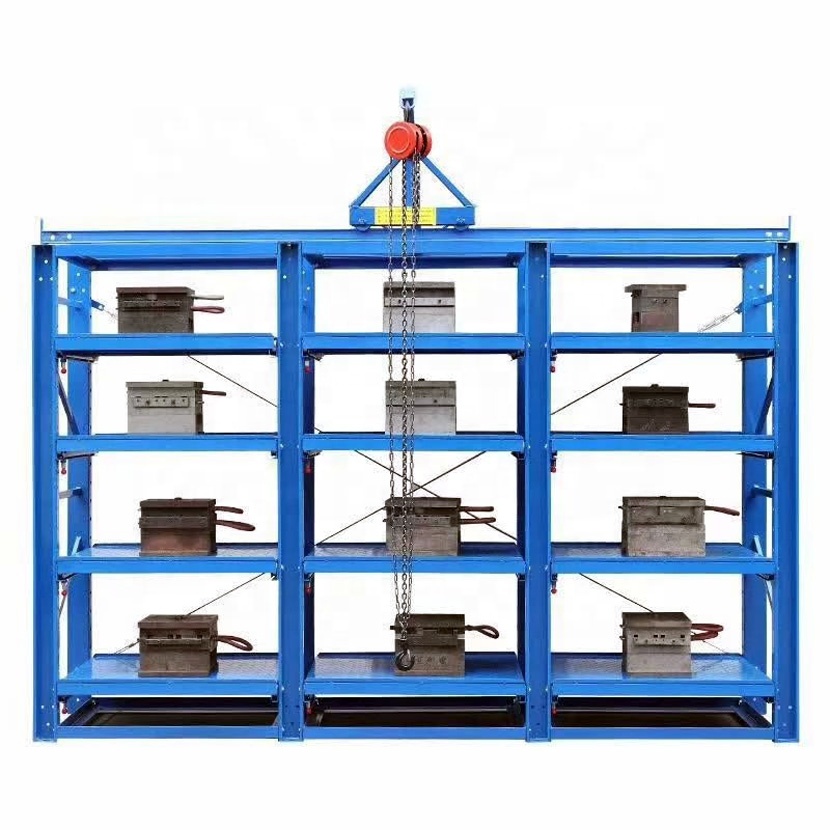

Mold rack mainly storage various kinds molds, according to loading capacity be divided into drawer type mold rack and open-type mold rack. The top of mold rack can be equipped with crane and manual hoist, mold racks of sling.
Key Features:
- The structure is solid and loading and unloading is easy for transportation.
- Suitable for small and medium sizes of molds.
- The drawer board can draw out, making removal of molds easy.
- Can be installed with crane and hoist.
Material & Specifications:
- Column: 10# channel steel, diagonal bracing: 25*25 square meters.
- Backing Plate: 50*25 angle iron and 2.0mm iron plate.
- Chute: 4.0mm iron plate.
- Bearing: 6403.
- Bearing Capacity: 800-1000kg/drawer.
Drawer Type Mold Rack
| Standards Size |
Layer |
Loading Capacity |
Bearing |
Upright (mm) |
Thickness of Board (mm) |
| L3100*D600*H2000 |
4 |
1000kg/drawer |
Model 6403 |
100*40*4 |
2.0 |
| Product |
Drawer Type Mould Rack |
| Material |
High-Quality Channel Steel |
| Standard size |
L3100*D600*H2000mm |
| Color |
Green; Blue. (Can be customized) |
| Loading Capacity |
1000KG/drawer |
| Surface Treatment |
Powder coated |
| Packing |
Air bubble |
Full Open Mould Rack:
| Standard Size (mm) |
Layer |
Loading Capacity |
Bearing |
Upright (mm) |
Thickness of Board (mm) |
| L3100*D800+400*H2000 |
4 |
2000kg/drawer |
Model 6403 |
100*40*4 |
2.0 |
| Product |
Full Open Mould Rack |
| Material |
High Quality Channel Steel |
| Standard Size |
L3100*D800+400*H2000mm |
| Color |
Green; Blue; (Can be customized) |
| Loading Capacity |
1000kg/drawer |
| Surface Treatment |
Powder coated |
| Packing |
Air bubble |
Technological Features & Materials
| Feature |
Easy to remove the shelf boards; vertical spaces are adjustable. |
| Each group has pulley and handy-lift hoist block for easy storage and unloading of molds, ensuring safety and precision. |
| Each section can store several sets of molds, convenient for maintenance, management, and locating of molds without occupying extra space. |
| Technological Specs |
The post adopts 10# channel steel, diagonal brace of post is 25*25 square meters. |
| Rack of backing plate is 50*50 angle iron, board size of backing plate is 2mm iron plate. |
| Sliding chute is made of folding 4mm iron plate. |
| Bearing capacity: 800-1000kg/backing plates. |
| Material |
High-quality cold rolled steel Q235 |
| Color |
Standard color is green. Can be customized to any color. |
| Packaging Term |
Foam, wooden case as required for drawer mould racks. |
| Delivery Time |
Within 15 days delivery of goods. |

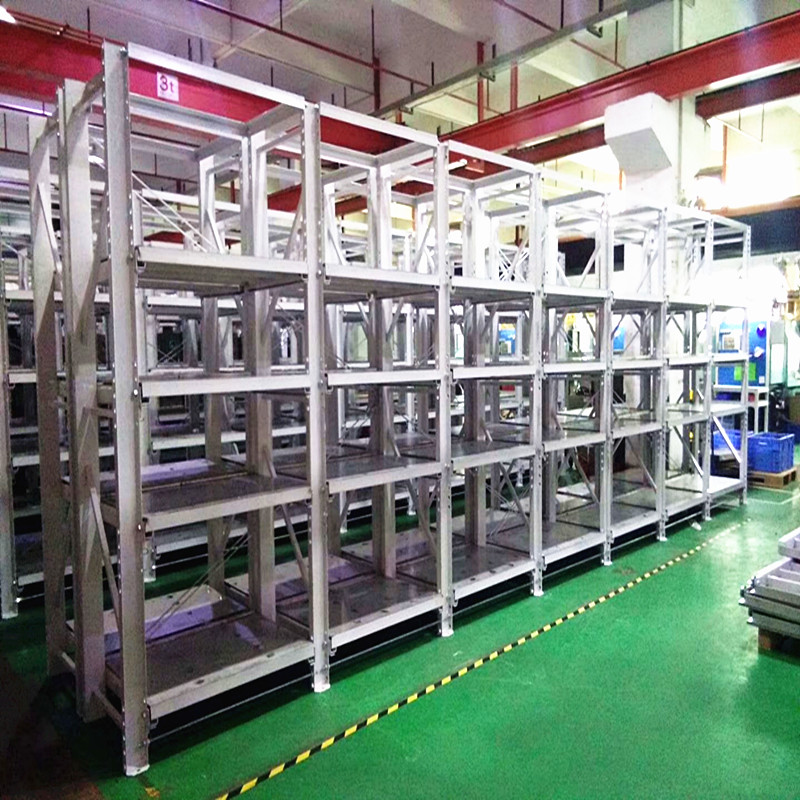

Product Showcase
About Us
We devote ourselves to the design and manufacture of storage equipment. We are specialised in producing various pallet racking, longspan shelving, warehouse rack, mould rack, wire container, mobile filing cabinet, cantilever racks, rivet shelving, drive in racks, mezzanine and platform, carton flow rack, stacking racking and other related storage equipment.
Through products and services aimed at providing complete assistance for all warehousing, product showcasing, and sales outlet requirements, we are able to offer our customers a wide range of products of the highest quality with competitive pricing, as well as rapid delivery time and first-class back-up support.
Color Options
Packaging & Shipping
Install Drawing
Frequently Asked Questions
Are you a factory or trading company?
We are a factory specializing in storage equipment.
Where is your factory located? How can I visit there?
Our factory is located in China, near Shenzhen. You can fly to Shenzhen or Guangzhou airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
What is the material of your products?
The material is Q235 Cold rolled steel. We can also choose material according to our customers' specific requirements.
How can I get some samples?
We are honored to offer you samples of our products. Please contact us for further details.
How does your factory do regarding quality control?
Quality is priority. We always attach great importance to quality control from the very beginning to the very end. Our factory has obtained ISO9001 and SGS authentications.
What is the delivery time for your storage racks?
Our standard delivery time is within 15 days for shipping out ordered goods.
