Heavy Duty Die Racks Affordable Tool and Die Storage Rack Manufacturer

Industrial Die Rack Systems

Our robust die rack systems are specifically designed for safe, organized, and convenient storage of industrial moulds. Built for high accessibility and efficient workshop management, they feature:

Flexible Adjustments: Shelves and vertical spaces can be adjusted at will to accommodate varying mould heights.
Convenient Mechanism: Equipped with built-in pulleys and hand-drive blocks, allowing easy storage and access to heavy moulds.
High Capacity Storage: Several moulds can be stored in each drawer, optimizing maintenance, management, and retrieval times.

Standard Specifications

Standards Size	Layer Count	Loading Weight	Bearing Model	Upright Specification	Board Thickness
*L3100 D600 * H2000 mm**	4 Layers	1000 kg / drawer	Model 6403	100 * 40 * 4 mm	2.0 mm

Technical & Material Information

Product Type	Die Rack / Drawer Mould Rack
Primary Material	High-Quality Channel Steel & Cold Rolled Q235 Steel
Standard Colors	Green (Fully customizable to any industrial standard color)
Loading Capacity	800 kg to 1000 kg per backing plate
Surface Treatment	Premium electrostatic powder coating for corrosion resistance
Packaging Material	Protective foam and wooden crates as required

Technological Features:

The upright post adopts robust 10# channel steel; the diagonal brace measures 25*25 square steel.
The backing plate rack is constructed with 50*50 angle iron, utilizing 2mm thick iron plate for structural integrity.
The smooth sliding chute is crafted using high-strength folded 4mm iron plate.

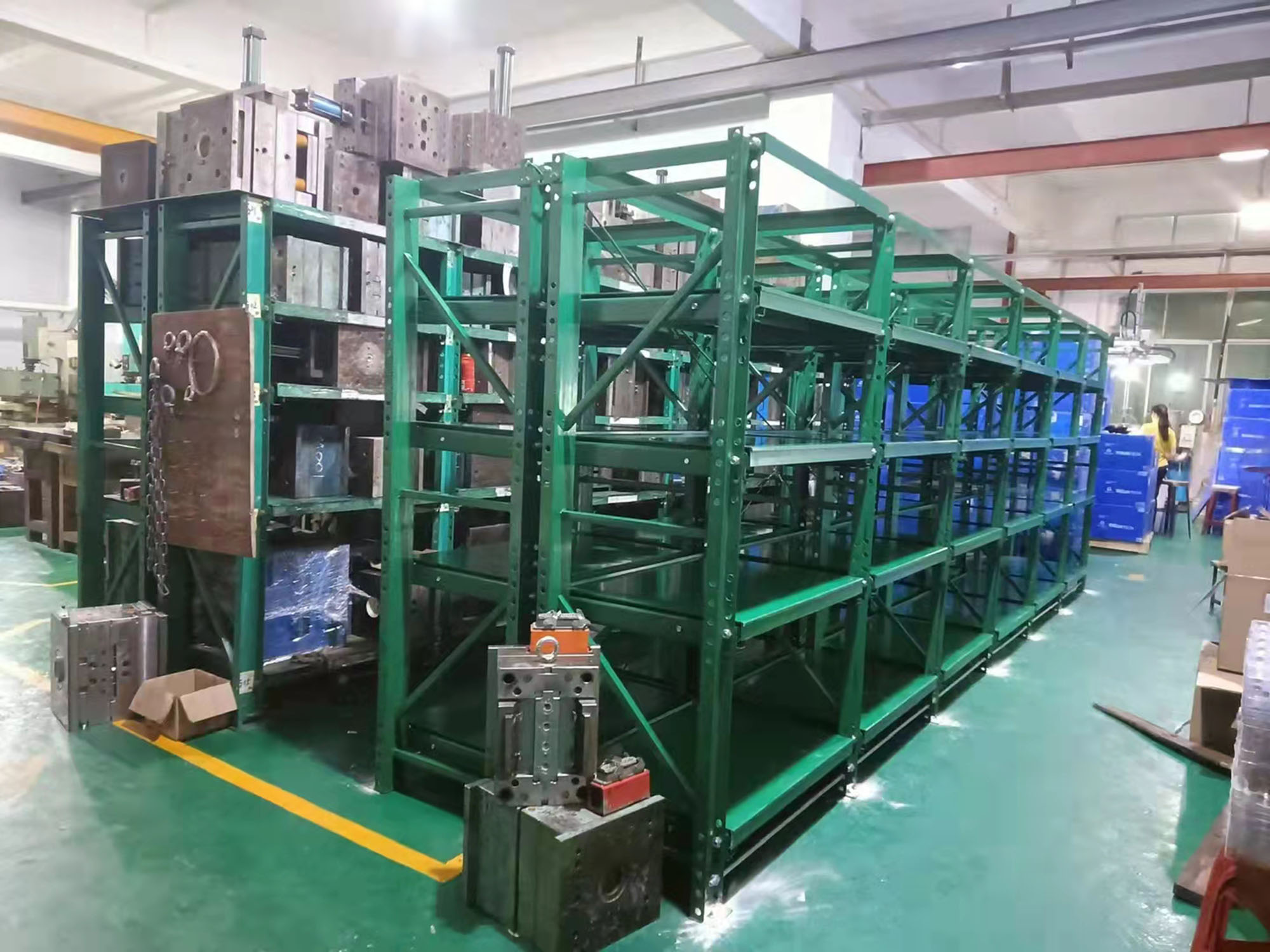

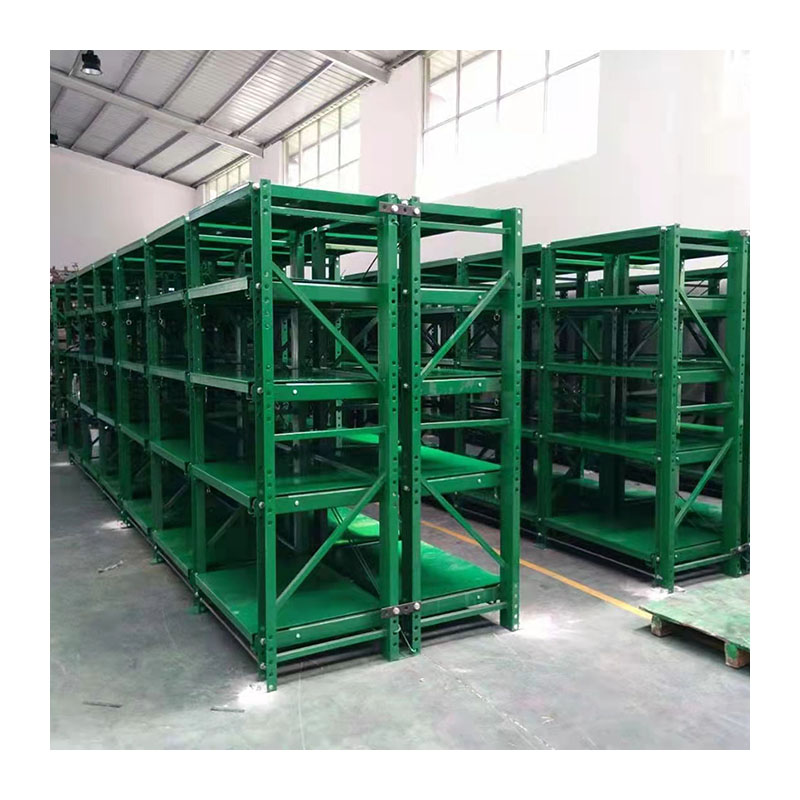

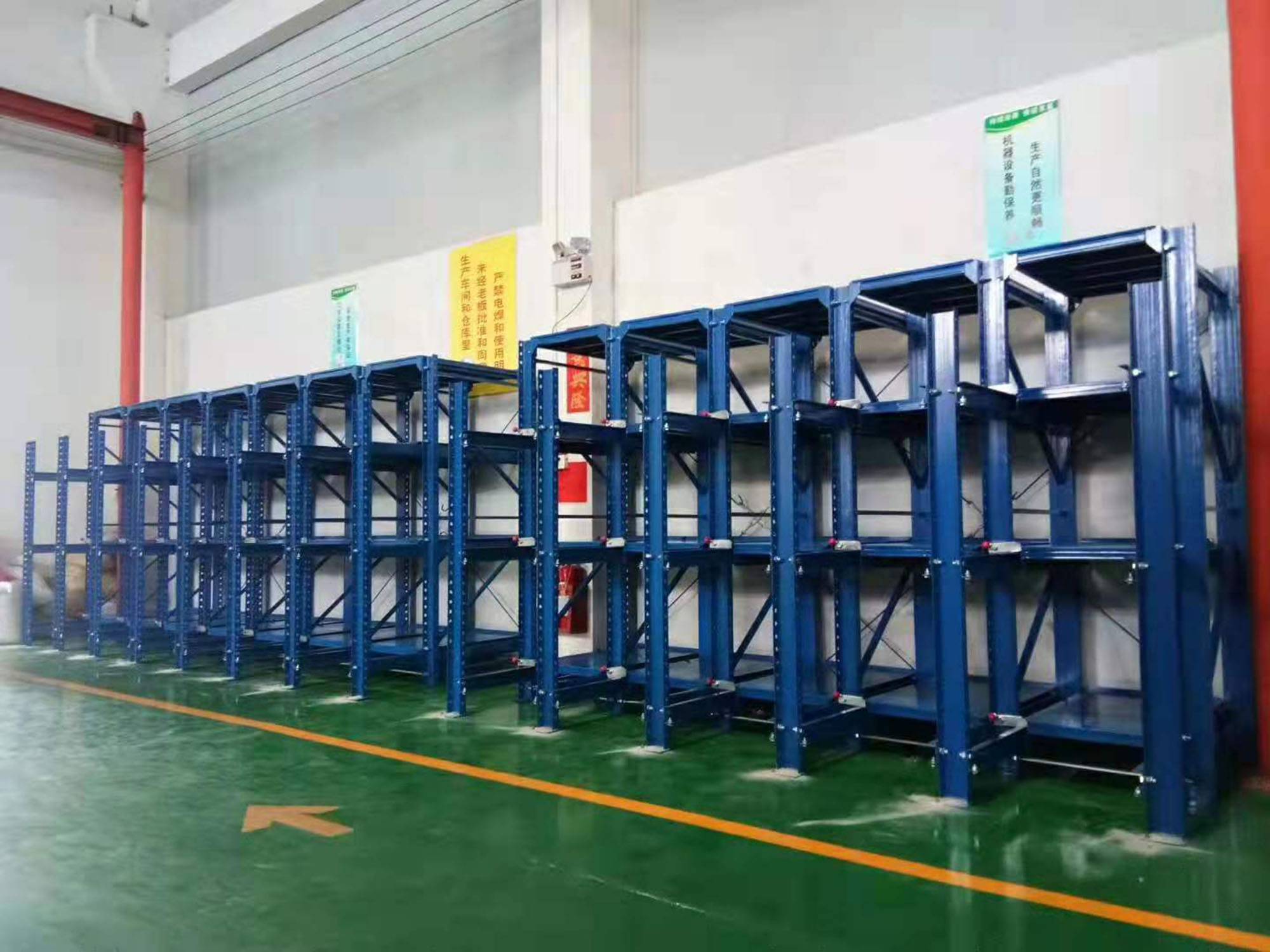

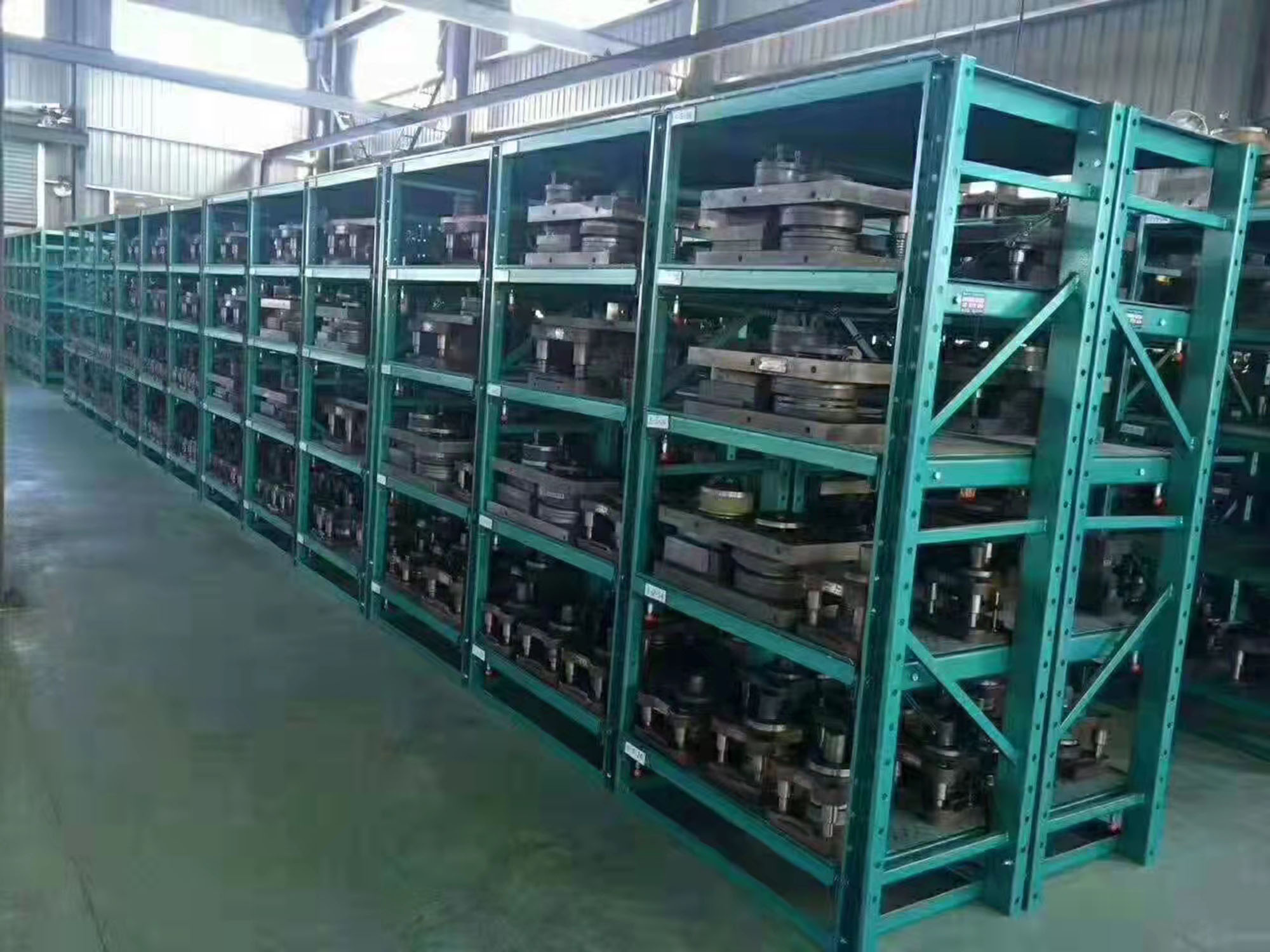

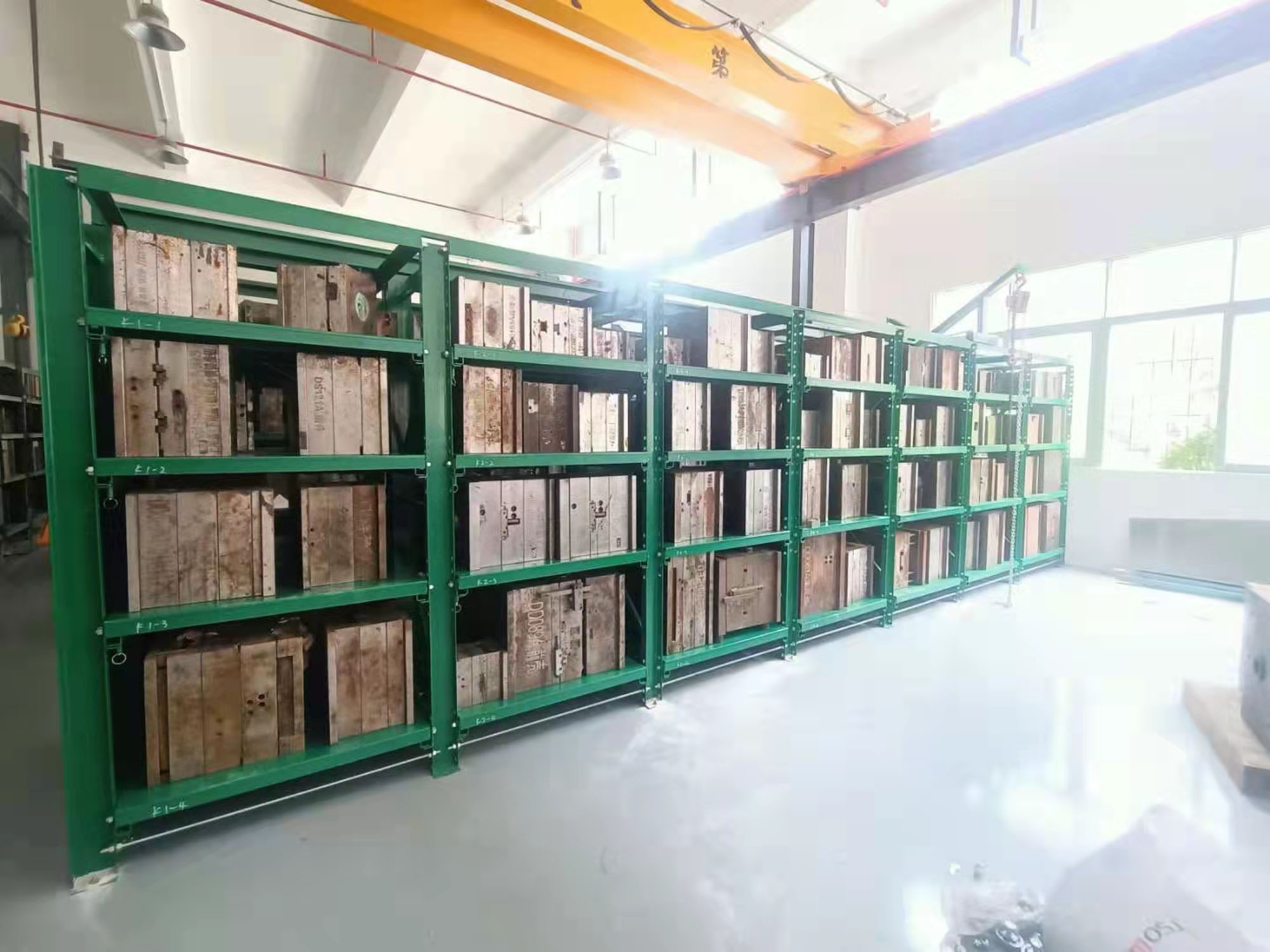

Product Gallery

Production Steps

1. Professional Design Service Group

2. Storage Area for Raw Materials

3. Automatic Cold Rolling Line

4. Powder Spraying Coating Line

5. Stamping Area (Bracket Processing)

6. Packaging Area (Uprights & Beams)

Installation Layout

Custom Color Selection

Packaging & Shipping

Industrial Manufacturing Capabilities

We are a dedicated manufacturer specializing in the research, development, production, and installation of professional warehouse storage systems. Operating advanced automated lines, we optimize warehouse spaces and maximize efficiency for global industrial operations.

Manufacturing Factory

Production Workshop

Storage Warehouse

Finished Product Dispatch Area

Industrial Racking Solutions

Warehouse Storage System Pallet Racking System Mezzanine Floor Drive-in Pallet Rack Mould Rack Warehouse Equipment Supermarket Shelf Cantilever Rack Wire Container Warehouse Rack & Shelf

Frequently Asked Questions (FAQ)

Are you a manufacturing factory or a trading company?

We are a direct manufacturing factory specializing in premium industrial racking systems and custom storage solutions.

What base materials are used in the construction of the mould racks?

We utilize high-quality Q235 cold-rolled steel to ensure heavy-duty carrying capacity, long-term durability, and structural safety.

Can the size and loading capacity of the die racks be customized?

Yes. Every rack system can be custom-engineered in terms of dimensions, loading capacity (up to 1000kg+ per drawer), drawer configuration, and powder-coat finish to match your operations.

How do you ensure manufacturing and structural quality control?

Quality is our absolute priority. Our manufacturing facilities are fully compliant with ISO9001 standards, and our products undergo rigid evaluations to satisfy SGS quality certifications.

Do you supply product samples prior to bulk orders?

Yes, we can provide samples and design blueprints of our structural components to verify the technical specifications and build quality before dispatching a production batch.

What is the standard delivery timeline for industrial orders?

Standard configurations are generally dispatched within 15 days of order confirmation, depending on volume specifications and customization requirements.
