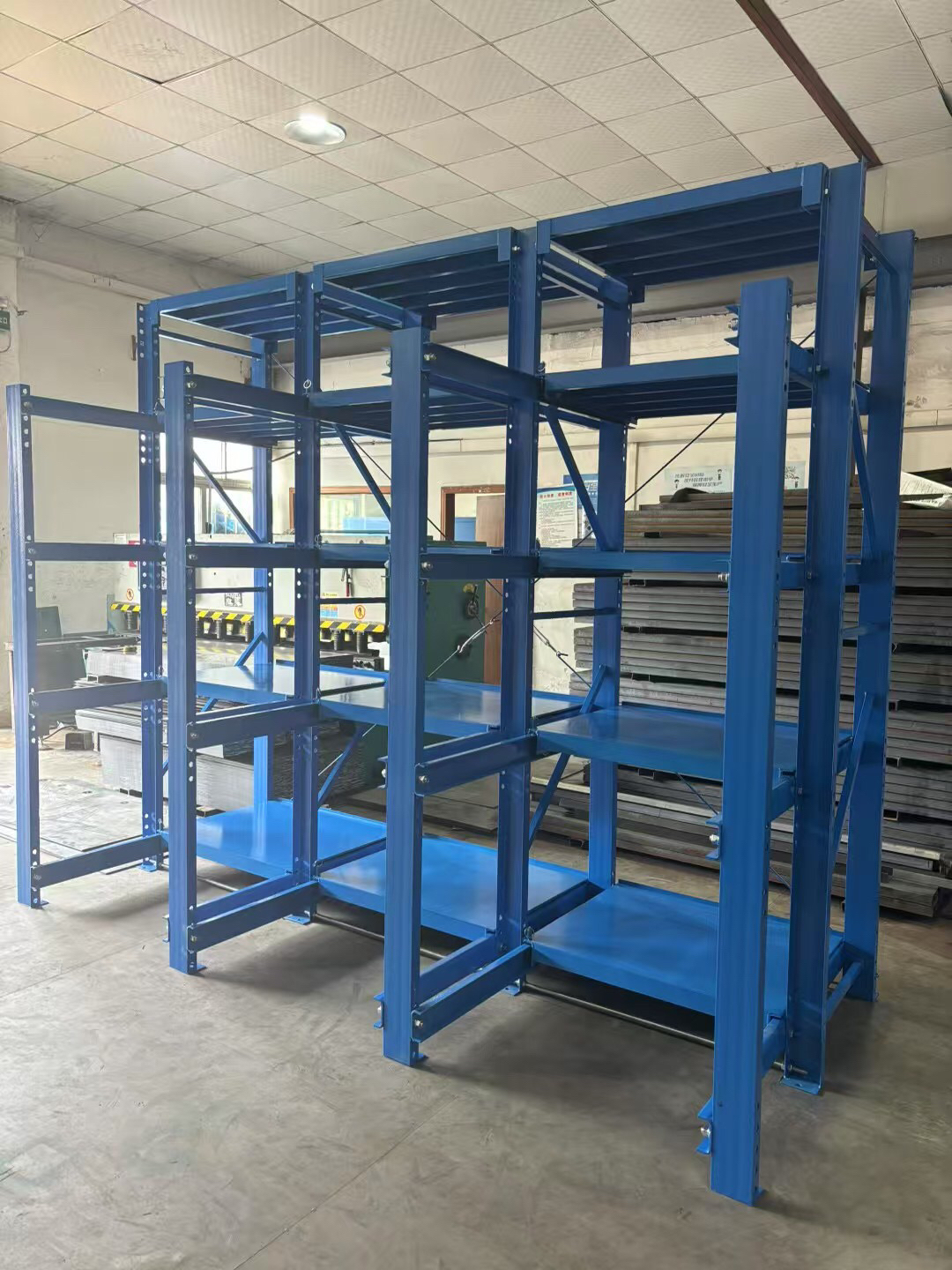

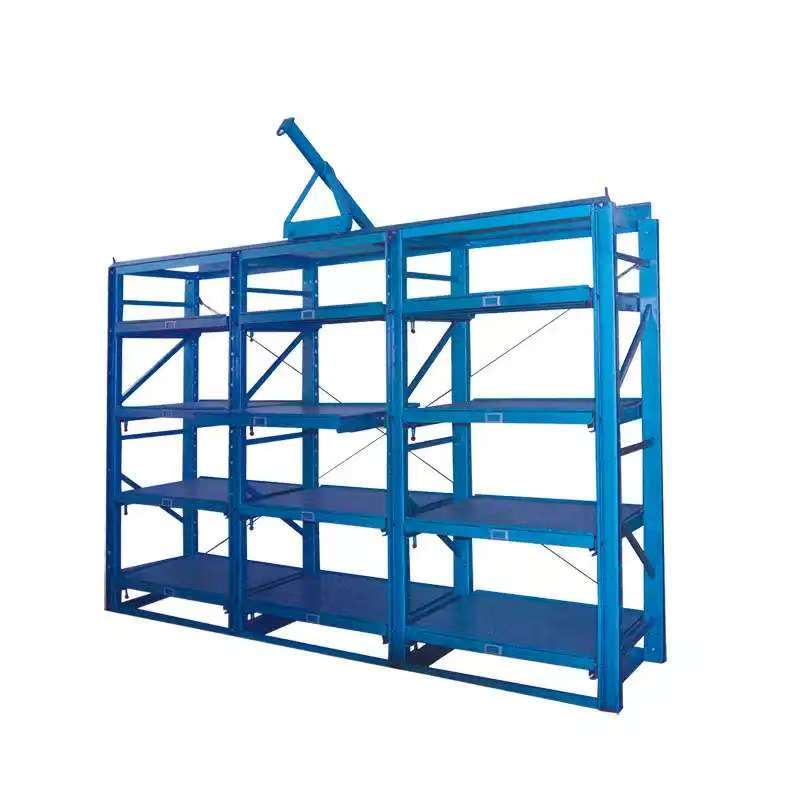

Mracking Customized Injection Drawer Mold Rack Adjustable Heavy Duty Mold Racking System Storage Racking

Mracking Customized Injection Drawer Mold Rack Adjustable Heavy Duty Mold Racking System Storage Racking

Mracking Customized Injection Drawer Mold Rack Adjustable Heavy Duty Mold Racking System Storage Racking

Mracking Customized Injection Drawer Mold Rack Adjustable Heavy Duty Mold Racking System Storage Racking

Mracking Customized Injection Drawer Mold Rack Adjustable Heavy Duty Mold Racking System Storage Racking

1 / 5

Mracking Customized Injection Drawer Mold Rack Adjustable Heavy Duty Mold Racking System Storage Racking

Mracking Customized Injection Drawer Mold Rack Adjustable Heavy Duty Mold Racking System Storage Racking

Mracking Customized Injection Drawer Mold Rack Adjustable Heavy Duty Mold Racking System Storage Racking

Mracking Customized Injection Drawer Mold Rack Adjustable Heavy Duty Mold Racking System Storage Racking

Mracking Customized Injection Drawer Mold Rack Adjustable Heavy Duty Mold Racking System Storage Racking

Mracking Customized Injection Drawer Mold Rack Adjustable Heavy Duty Mold Racking System Storage Racking

Send Inquiry

Product Description

Introduction

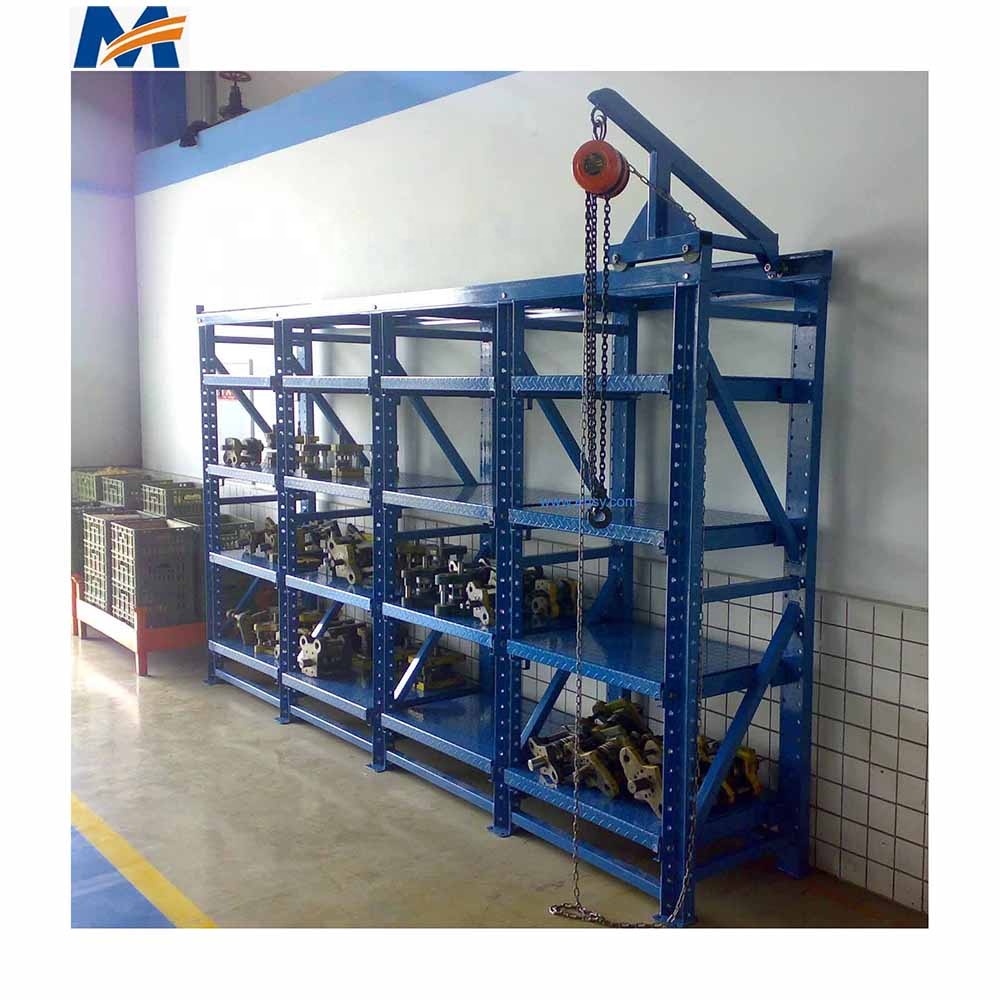

Mold rack mainly storage various kinds molds, according to loading capacity be divided into drawer type mold rack and open-type mold rack. The top of mold rack can be equipped with crane and manual hoist, mold racks of sling.

Features

The structure is solid and loading and unloading, is easy to transportation;
Suitable for small and medium of molds;
The drawer board can draw out, easy to removal of molds;
Can be installed crane and hoist.

Material Specifications

Column: 10# channel steel, diagonal bracing: 25*25 square meters;
Backing plate: 50*25 angle iron and 2.0mm iron plate;
Chute: 4.0mm iron plate;
Bearing: 6403;
Bearing capacity: 800-1000kg/drawer.

Drawer Type Mold Rack

Standards Size	Layer	Loading Capacity	Bearing	Upright (mm)	Thickness of Board (mm)
L3100D600H2000	4	1000kg/drawer	Model 6403	100404	2.0

Drawer Type Mold Rack

Product	Drawer Type Mould Rack
Material	High-Quality Channel Steel
Standard size	L3100D600H2000mm
Color	Green; Blue (Can be customized)
Loading Capacity	1000KG/drawer
Surface Treatment	Powder coated
Packing	Air bubble

Full Open Mould Rack

Standard Size (mm)	Layer	Loading Capacity	Bearing	Upright (mm)	Thickness of Board (mm)
L3100D800+400H2000	4	2000kg/drawer	Model 6403	100404	2.0

Full Open Mould Rack

Product	Full Open Mould Rack
Material	High Quality Channel Steel
Standard Size	L3100D800+400H2000mm
Color	Green; Blue (Can be customized)
Loading Capacity	1000kg/drawer
Surface Treatment	Powder coated
Packing	Air bubble

Product Details Showcase

Mold Rack Detail 1

Mold Rack Detail 2

Mold Rack Detail 3

Mold Rack Detail 4

Product Overviews

Product Overview 1

Product Overview 2

Product Overview 3

Hot Sale

Heavy Duty Pallet Racking

Heavy Duty Pallet Racking

Medium Duty Rack

Medium Duty Rack

Mould Rack

Mould Rack

Cantilever Rack

Cantilever Rack

Mezzanine Floor

Mezzanine Floor

Wire Mesh Container

Wire Mesh Container

Factory Storage Solution Overview

FAQ

Are you a manufacturer or trading company?

We are a professional racking manufacturer.

What is the material of the rack?

Our material is Q235B cold rolled steel.

What is the delivery time?

Less than 15 workdays in general. It also depends on the order quantity and shelving design.

What is the term of payment?

30% T/T down payment and 70% T/T before delivery.

How can I get a quick quotation on my racking project?

For a quick quotation, please let us know the following information:

1). The size of rack: Length * Depth * Height.
2). Layers per set.
3). Load capacity per beam layer.
4). Racking quantity.

Are samples available?

We accept to send you free samples with freight collect.
