Mracking Custom Heavy Duty Mold Rack Drawer Type Semi-open/fully Open Mold Rack

Product Description

Product Description
Mold rack mainly stores various kinds of molds. According to loading capacity, it can be divided into drawer type mold rack and open-type mold rack. The top of the mold rack can be equipped with a crane and manual hoist, and mold racks of sling.

Features

  • The structure is solid and loading and unloading is easy for transportation.
  • Suitable for small and medium size molds.
  • The drawer board can draw out, making it easy to remove molds.
  • Can be installed with a crane and hoist.

Materials

  • Column: 10# channel steel, diagonal bracing: 25*25 square meters.
  • Backing plate: 50*25 angle iron and 2.0mm iron plate.
  • Chute: 4.0mm iron plate.
  • Bearing: 6403.
  • Bearing capacity: 800-1000kg/drawer.

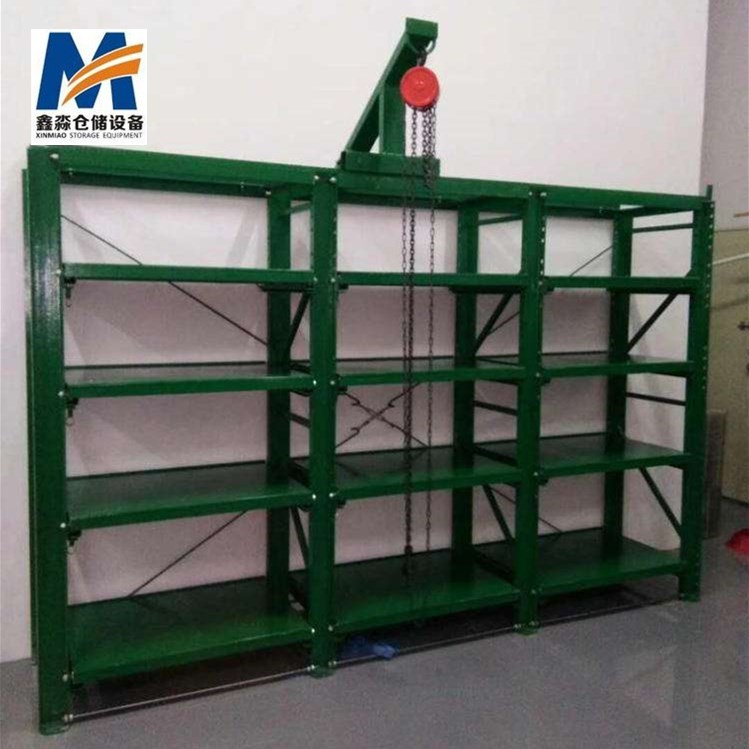

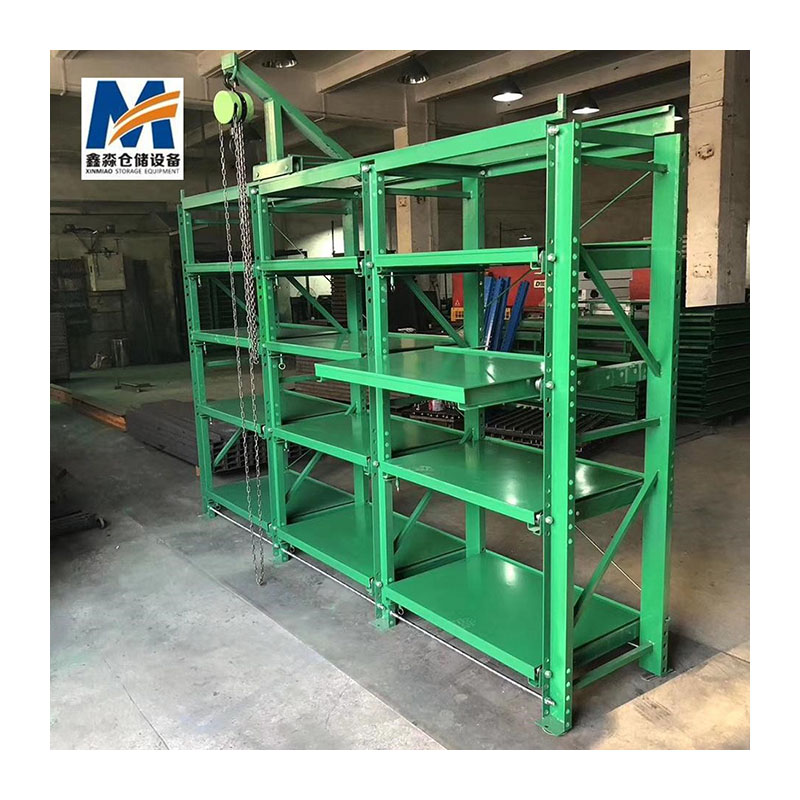

Drawer Type Mold Rack
Drawer Type Mold Rack
Parameter Specification
Product Drawer Type Mould Rack
Material High-Quality Channel Steel
Standard Size L3100*D600*H2000mm
Color Green; Blue. (Can be customized)
Loading Capacity 1000KG/drawer
Surface Treatment Powder coated
Packing Air bubble
Standards Size Layer Loading Capacity Bearing Upright (mm) Thickness of Board (mm)
L3100*D600*H2000 4 1000kg/drawer Model 6403 100*40*4 2.0
Full Open Mould Rack
Full Open Mould Rack
Parameter Specification
Product Full Open Mould Rack
Material High Quality Channel Steel
Standard Size L3100*D800+400*H2000mm
Color Green; Blue. (Can be customized)
Loading Capacity 1000kg/drawer
Surface Treatment Powder coated
Packing Air bubble
Standard Size (mm) Layer Loading Capacity Bearing Upright (mm) Thickness of Board (mm)
L3100*D800+400*H2000 4 2000kg/drawer Model 6403 100*40*4 2.0
Product Overviews
Hot Sale
Banner Details
FAQ
Q Are you a manufacture or trading company?
We are a professional racking manufacturer.
Q What's the material of the rack?
Our material is Q235B cold rolled steel.
Q What is the delivery time?
Less than 15 workdays in general. It also depends on the order quantity and shelving design.
Q What is the term of payment?
30% T/T down payment and 70% T/T before delivery.
Q How can I get a quick quotation on my racking project?
For a quick quotation, please let us know the following information:
1). The size of rack: Length* Depth*Height.
2). Layers per set.
3). Load capacity per beam layer.
4). Racking quantity.
Q Are samples available?
We accept to send you free samples with freight collect.
