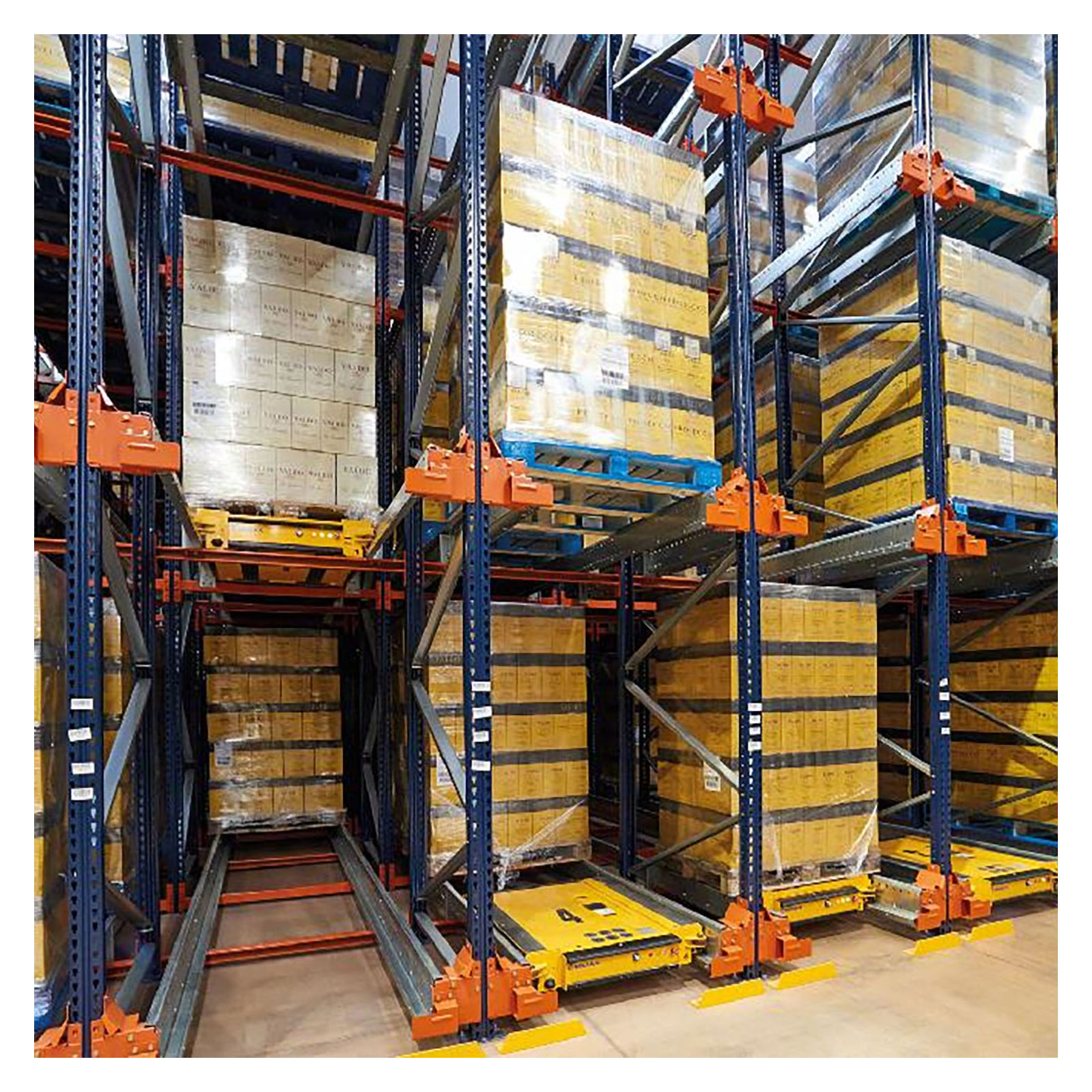

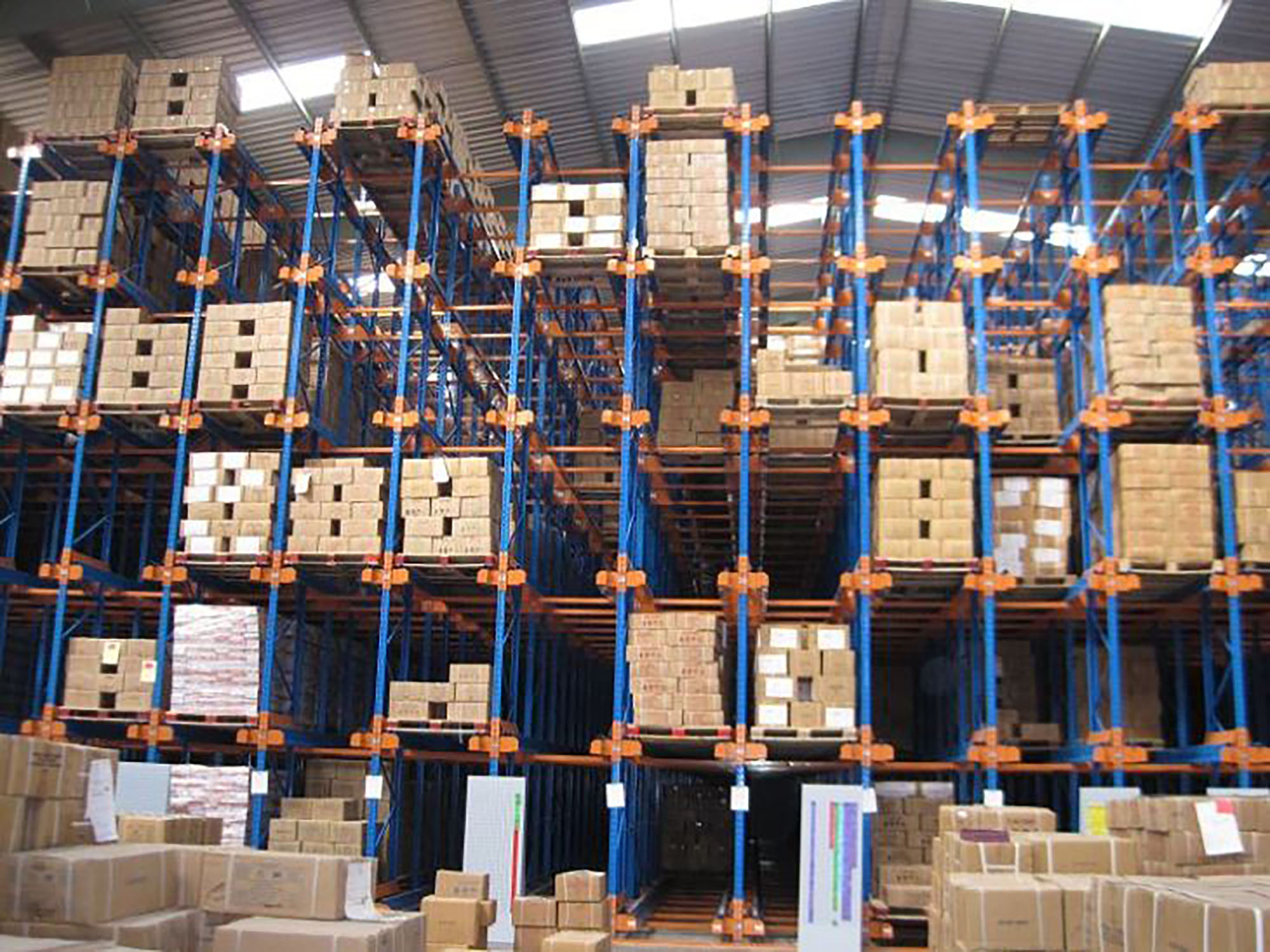

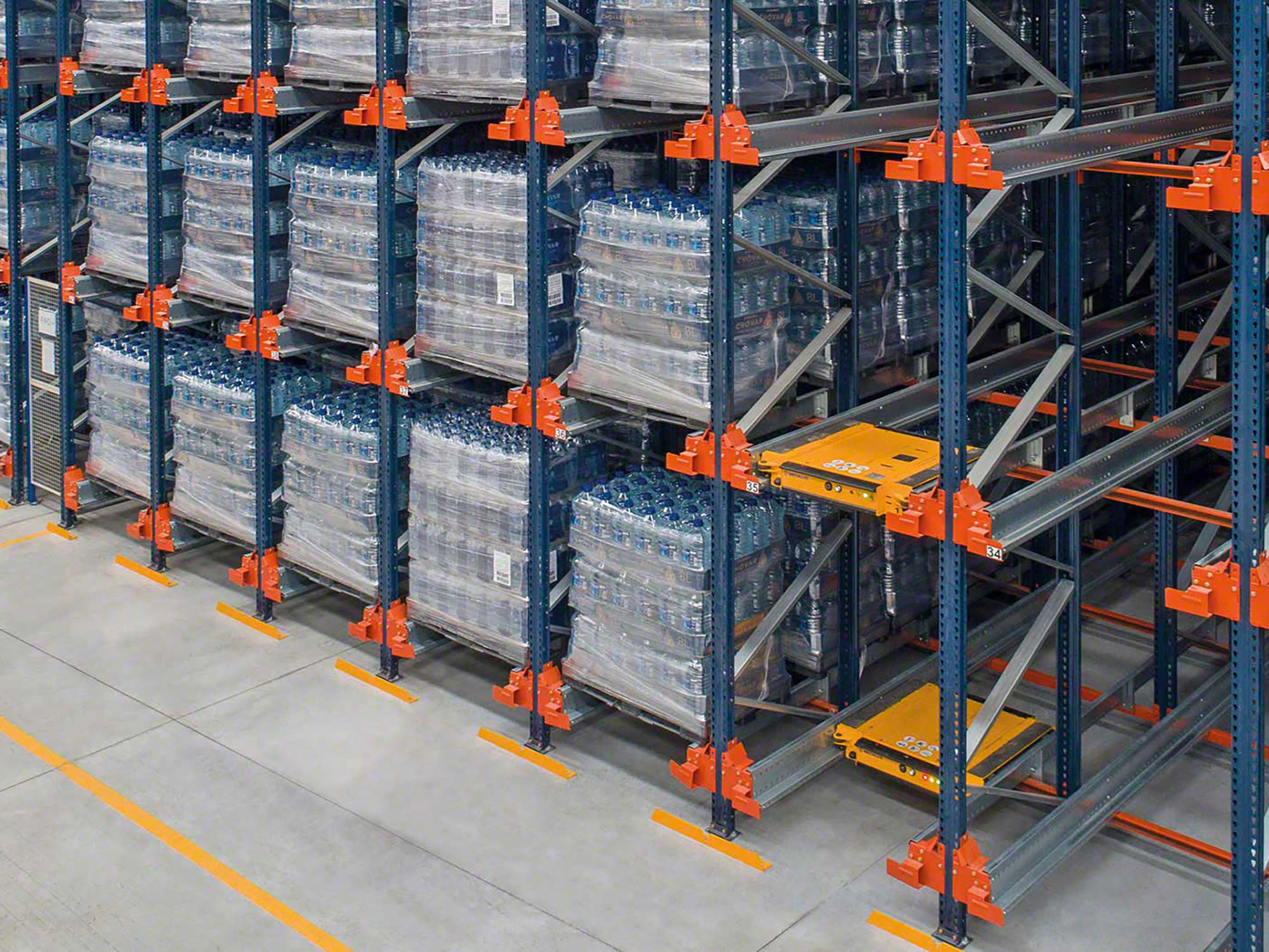

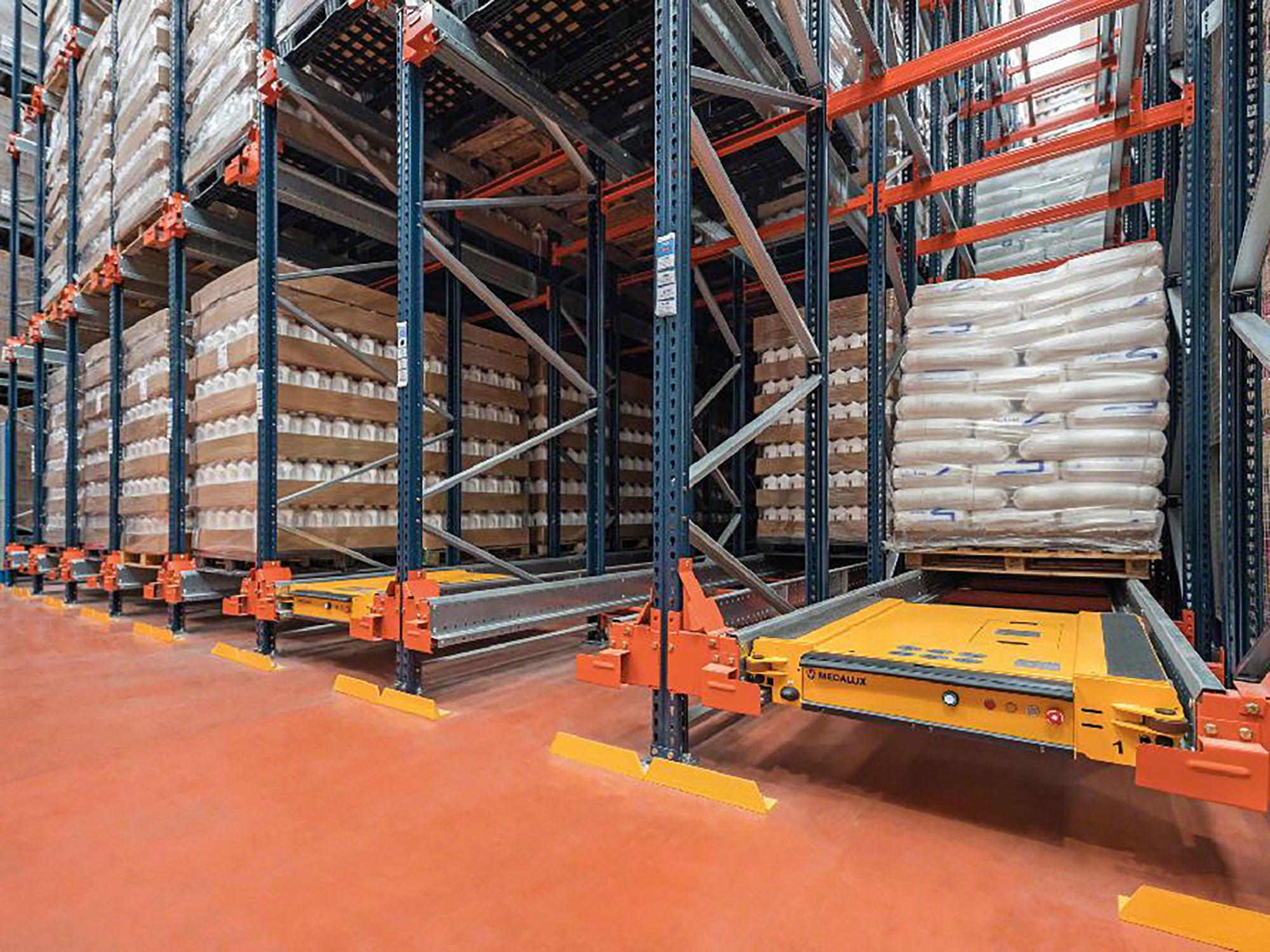

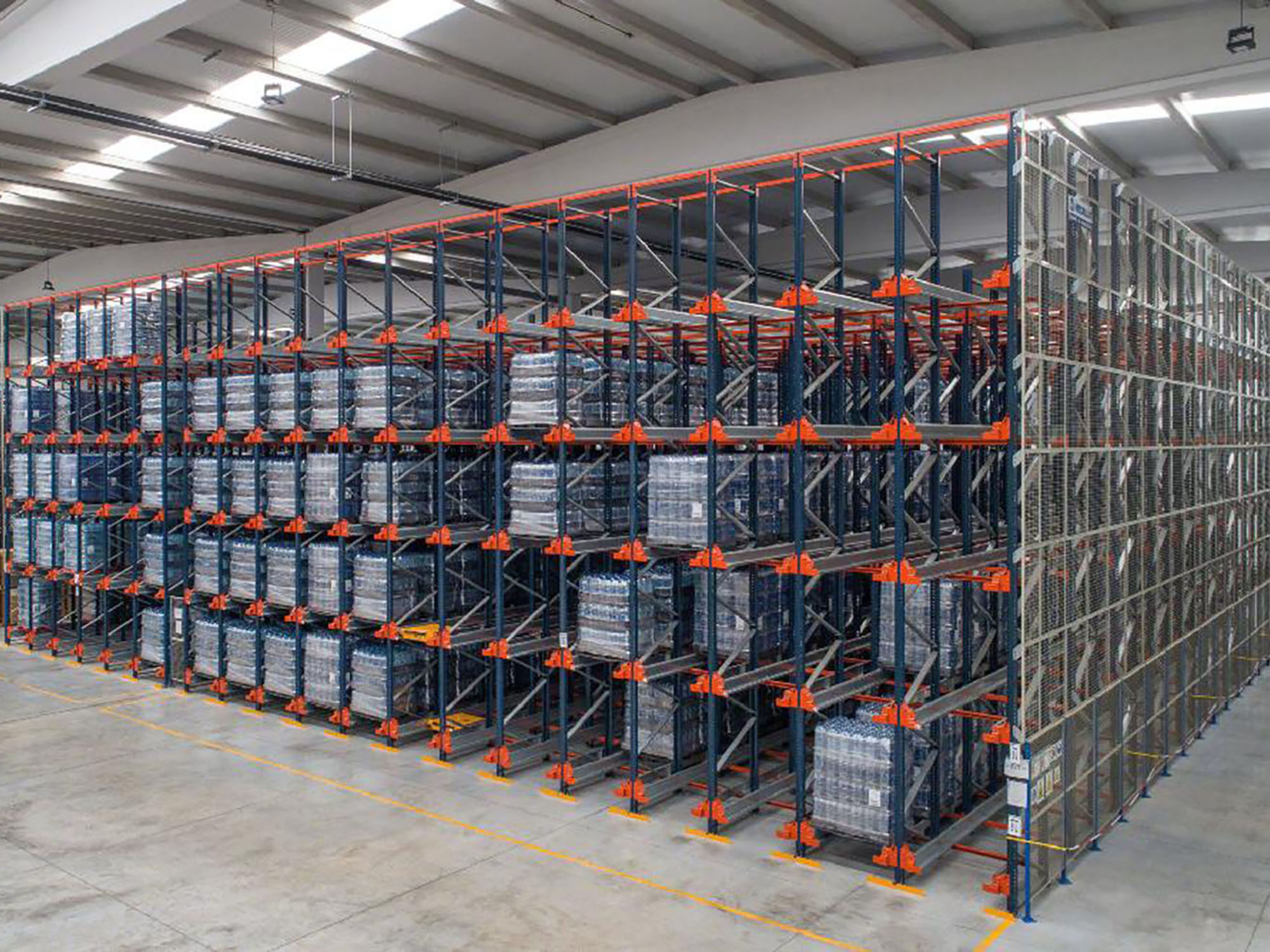

It is suitable for storing large quantity of goods with less types, goods of batched working and small range of selection. The goods are stored on the support guide rail with the pallet one after another in the direction of depth, increasing the storage density and space availability. It is quite convenient for fork truck drives into lane directly to store or take out the goods.
| Loading Weight |
Loading Weight: 800~1000kg/pallet; Height: 1500-8000mm, Wide/Depth: 1000-1500mm, Length: 1500-3200mm; Special size also available to specific storage needs. |
|---|---|
| Main Parts Specs |
Upright section: 90*65, 120*65, 1.5, 2.0mm; Beam Section: box beam 80*45/100*45/120*45/140*45/160*45, etc., Thickness: 1.0/1.2/1.5mm, etc.; Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Material | High-quality cold rolled steel, Q235 |
| Package Term | Air bubble pack, PE stretch film for keeping free from scratch |
Large loading capability: 1000KG-2000KG/each pallet.
The forklift may drive in the channel of racking to place and fetch pallets.
Low capital cost using conventional handling equipment.
Very high utility ratio of the warehouse.
Can configure first in - first out or first in - last out.
Structural steel construction for durability.
Pallet positions configure from 2 to 5 deep and 2 to 5 high ideal for roofing.
Finish: Powder coating and various color options available.
Suitable for storing few types of goods with large quantity.
Lift trucks can enter the rack from only one side.
Lift trucks can enter from both sides of a row of racks. The center of the rack row is stabilized by a beam.
Are you a manufacturer or a trading company?
We are a professional racking manufacturer.
What is the material used for the racks?
Our material is Q235B cold rolled steel.
What is the standard delivery time?
Less than 15 workdays in general. It also depends on the order quantity and shelving design.
What are your terms of payment?
30% T/T down payment and 70% T/T before delivery.
How can I get a quick quotation for my racking project?
For a quick quotation, please provide the following details:
1). The size of the rack: Length * Depth * Height.
2). Layers per set.
3). Load capacity per beam layer.
4). Racking quantity.
Are samples available?
Yes, we accept to send you free samples with freight collect.
