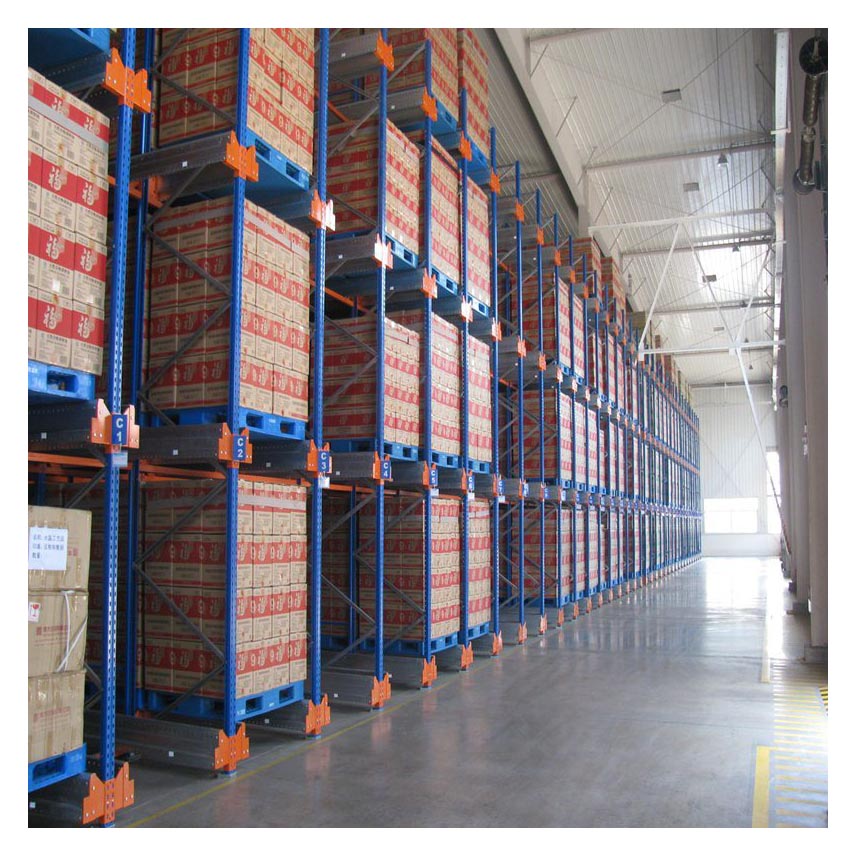

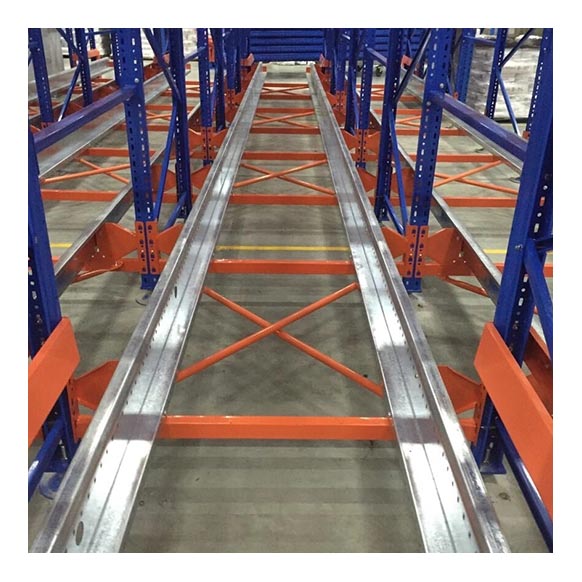

It is suitable for storing large quantity of goods with less types, goods of batched working and small range of selection. The goods are stored on the support guide rail with the pallet one after another in the direction of depth, increasing the storage density and space availability. It is quite convenient for fork truck drives into lane directly to store or take out the goods.
| Loading Weight | 800~1000kg/pallet; Height:1500-8000mm, Wide/Depth:1000-1500mm, Length:1500-3200mm. Special sizes also available to specific storage needs. |
|---|---|
| Main Parts Specs | Upright section: 90*65, 120*65, 1.5, 2.0mm. Beam Section: box beam 80*45/100*45/120*45/140*45/160*45, etc. Thickness: 1.0/1.2/1.5mm, etc. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Material | High-quality cold rolled steel, Q235 |
| Package Term | Air bubble pack, PE stretch film for keeping free from scratch |
Lift trucks can enter the rack from only one side.
Lift trucks can enter from both sides of a row. The center of the rack row is stabilized by a beam.
We are a professional racking manufacturer specializing in heavy duty and medium duty warehouse storage solutions.
Our products are manufactured using high-quality Q235B cold rolled steel to ensure strength, safety, and long-term durability.
Generally, the lead time is less than 15 workdays, depending on the order volume and design configuration. Our payment terms are 30% T/T down payment and 70% T/T paid prior to delivery.
Please provide us with the overall dimensions of the racking (Length x Depth x Height), the number of storage levels, the loading capacity per beam level, and the total quantity required.
Yes, we provide product samples free of charge, with the shipping freight collected.
Quality is our absolute priority. Our manufacturing facilities and processes conform strictly to ISO 9001 and ISO 2001 certification standards.
