Wholesale Metal Q235 Steel Medium Duty Shelf

Product Description

Product Description
Medium Duty Rack Cover

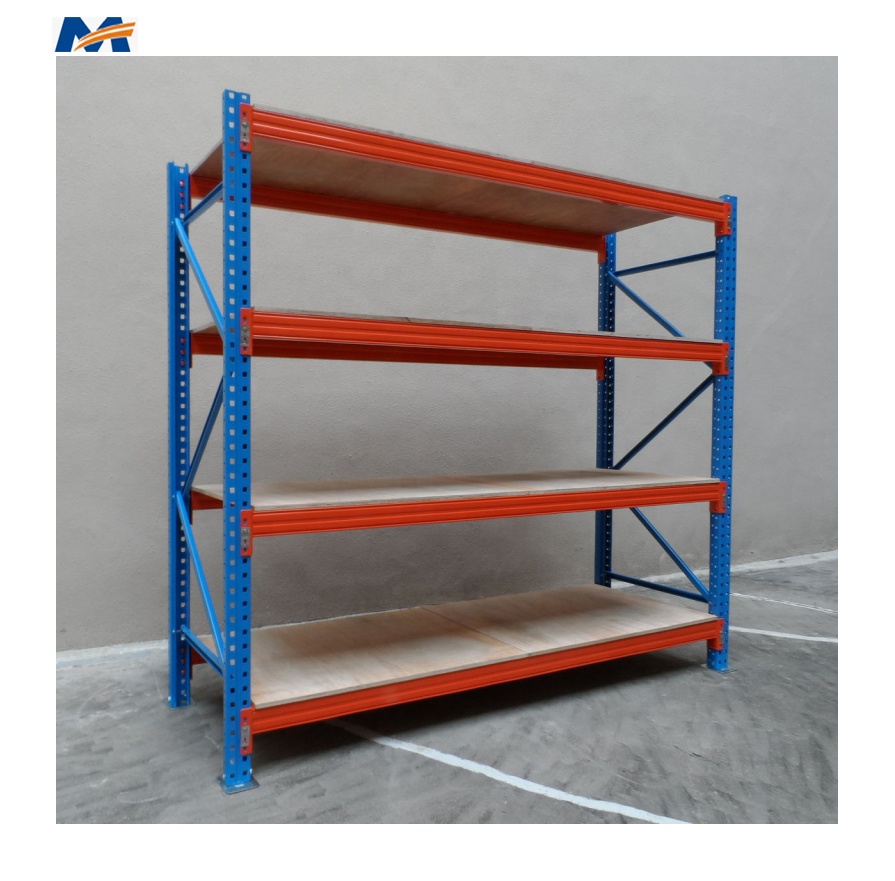

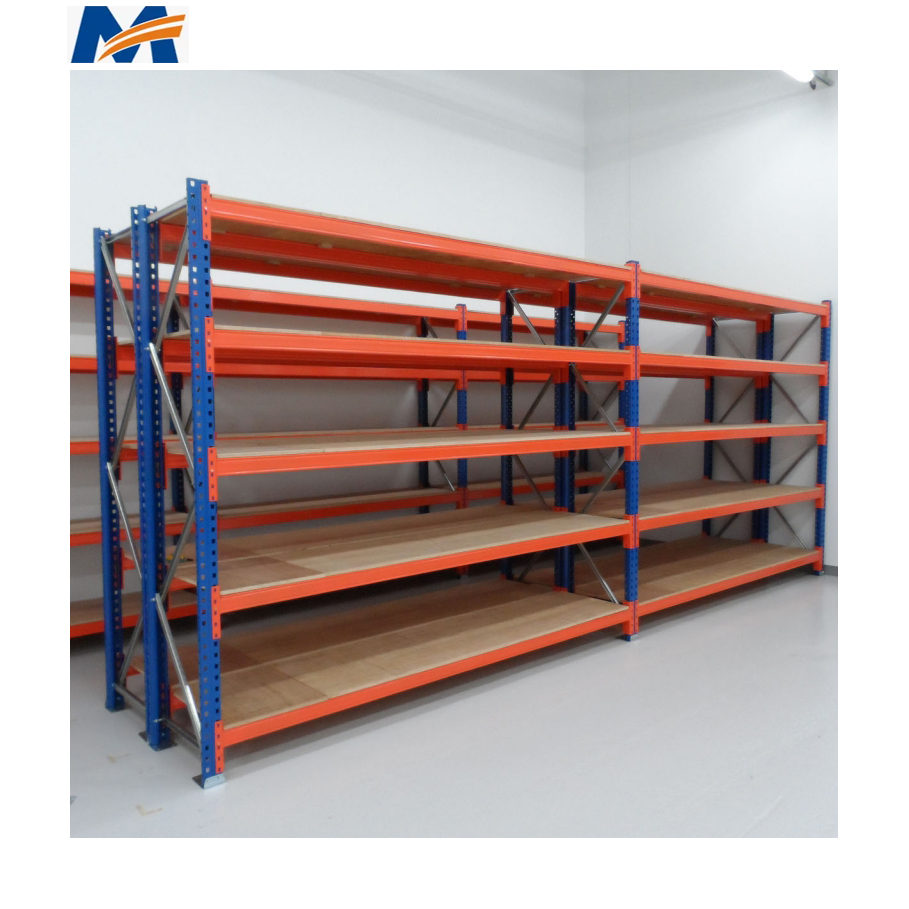

Medium Duty Rack

Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.

Standards Size Layer Loading Weight Beam (mm) Upright (mm) Thickness of Board (mm)
L2000*D600*H2000 4 200~300kg/layer 60*40*1.2 60*50*1.2 0.5
L2000*D600*H2000 4 400~500kg/layer 60*40*1.5 60*50*1.5 0.7
Product Name Medium Duty Rack/Shelf
Material High-Quality Q235 Colded-Coll Steel
Loading Capacity 200~500kgs/level
Thickness Upright: 60*40*1.0, 1.2, 1.5mm | Beam: 60*40/80*40*1.0, 1.2, 1.5mm | Steel: 0.5, 0.6, 0.7mm
Color Upright: blue, Beam: Orange, Steel: Gray white. Customizable color.
Surface Treatment Electrostatic Spray Surface
Packing Term Air bubble, Carton, Wooden Case
Warranty 10 Years
Certification SGS
  1. Long span shelving rack is very convenient for installation.
  2. The adjustment distance of steel layers is 50mm for multiple usages. It consists of vertical columns, layer plates, corner pieces, pins, special bolts, and plastic footing.
  3. The surface is electrostatic sprayed and the color is selectable. It has good ability of corrosion protection and rust protection.
  4. It is widely used in families, stores, supermarkets, company storages, and public institutions. It is the most updated product.
Beam Loading Capacity & Size
Beam Loading Capacity and Size Table
Detailed Images
Medium Duty Rack Details
Medium Duty Rack Specifications
Size L2000*D600*H2000mm, Loading: 300kg/layer, Layer: 4 levels.
Material Upright: 60*50*1.0, Beam: 60*40*1.2, Steel: 0.5mm
Color Upright is blue, beam and steel is gray white.
Packaging Term Air bubble
Surface treatment Powder Coating
Beam & Upright Connect
Beam & Upright Connect
Diagonal & Horizontal Bracing Installed
Diagonal & Horizontal Bracing Installed
Steel Board Section
Steel Board Section
Medium Duty Shelf Structural Detail
Warehouse Storage Rack Assembly
Metal Shelving Connection Profile
Industrial Racking System Close-up
Product Packaging
Racking System Packaging Process
Manufacturing Facility Information
Racking Factory Workshop
FAQ
Q Are you a manufacturer or a trading company?
A: We are a professional racking manufacturer.
Q What is the material used for the racks?
A: Our material is Q235B cold rolled steel.
Q What is the general delivery time?
A: Generally, it is less than 15 workdays. It also depends on the order quantity and the shelving design.
Q What is the term of payment?
A: 30% T/T down payment and 70% T/T before delivery.
Q How can I get a quick quotation for my racking project?
A: For a quick quotation, please provide the following details:
  • The size of the rack: Length * Depth * Height
  • Number of layers per set
  • Loading capacity per beam layer
  • Racking quantity
Q Are samples available?
A: We accept to send you free samples with freight collect.
Quality Standard & Certificates
