Xinmiao Racking
1 / 5
| Type | Size L*W*H (mm) | Layer | Loading Capacity (kg/layer) |
|---|---|---|---|
| XM-2021 | 2000*600*2000 | 4 | 200kg, 300kg, 500kg |
| XM-2025 | 2000*500*2000 | 4 | 200kg, 300kg, 500kg |
| XM-2027 | 2000*600*2500 | 4 | 200kg, 300kg, 500kg |
| XM-2031 | 1500*500*2000 | 4 | 200kg, 300kg, 500kg |
| XM-2040 | 1200*500*2000 | 4 | 200kg, 300kg, 500kg |

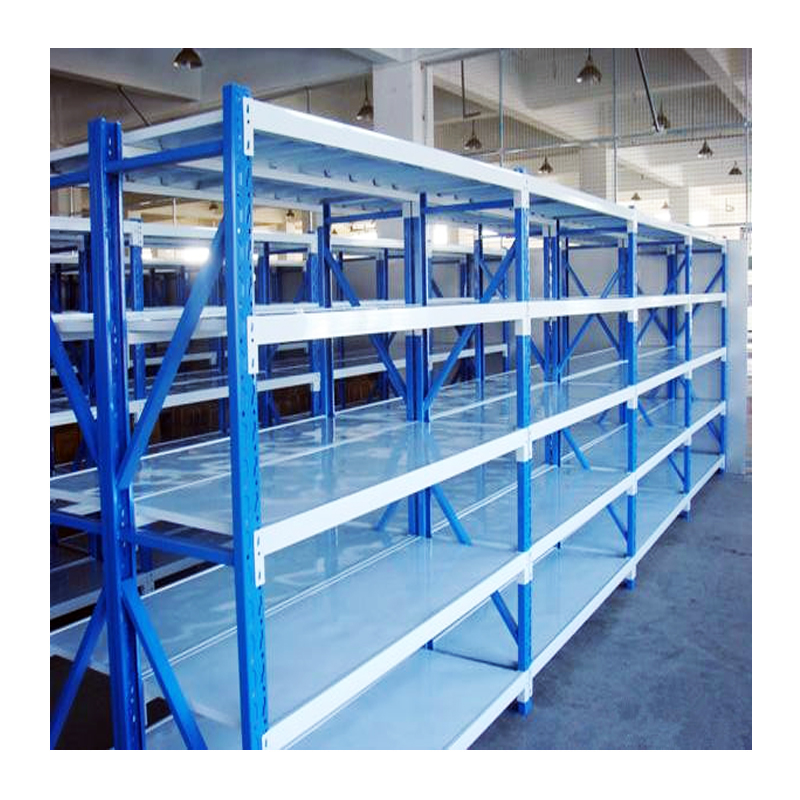

Color: Blue, white and orange red.
20GP container can be loaded with about 75 sets of main racks; 40HQ container can be loaded with about 195 sets of main racks.
| Structure | Component | Specification | Qty | Unit |
|---|---|---|---|---|
| Start-bay (1 Set) | Upright Frame | H2000*D600*75*35*0.6 | 2 | pcs |
| Beam | L1830*60*40*0.6 | 8 | pcs | |
| Steel Board | L915*D560*0.3 | 8 | pcs | |
| Add-bay (1 Set) | Upright Frame | H2000*D600*75*35*0.6 | 1 | pcs |
| Beam | L1830*60*40*0.6 | 8 | pcs | |
| Steel Board | L915*D560*0.3 | 8 | pcs |
Packaging term: Upright is wrapped in air bubble; beam and steel board are packed in carton.

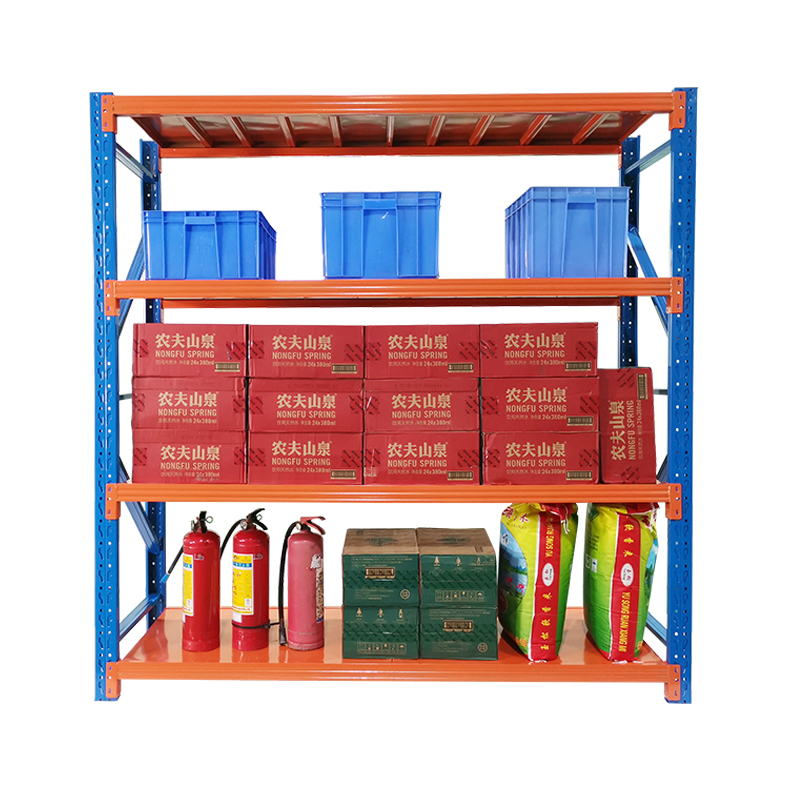

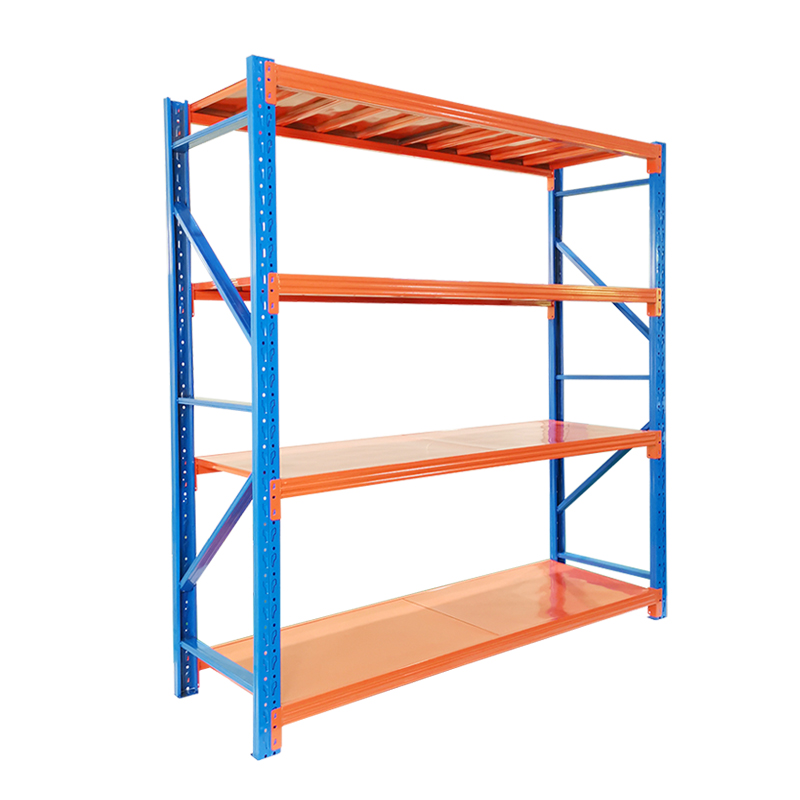

Color: Blue, gray and orange red.
We are a specialized manufacturing factory with our own production facilities.
Our factory is located in China, near Shenzhen. You can fly to Shenzhen or Guangzhou airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
The primary material used is Q235 cold rolled steel. We can also select materials according to specific customer requirements.
We are honored to offer you samples for quality check and evaluation.
Quality is our priority. We attach great importance to quality controlling from the very beginning to the very end of production. Our factory has obtained ISO9001 and SGS authentication.

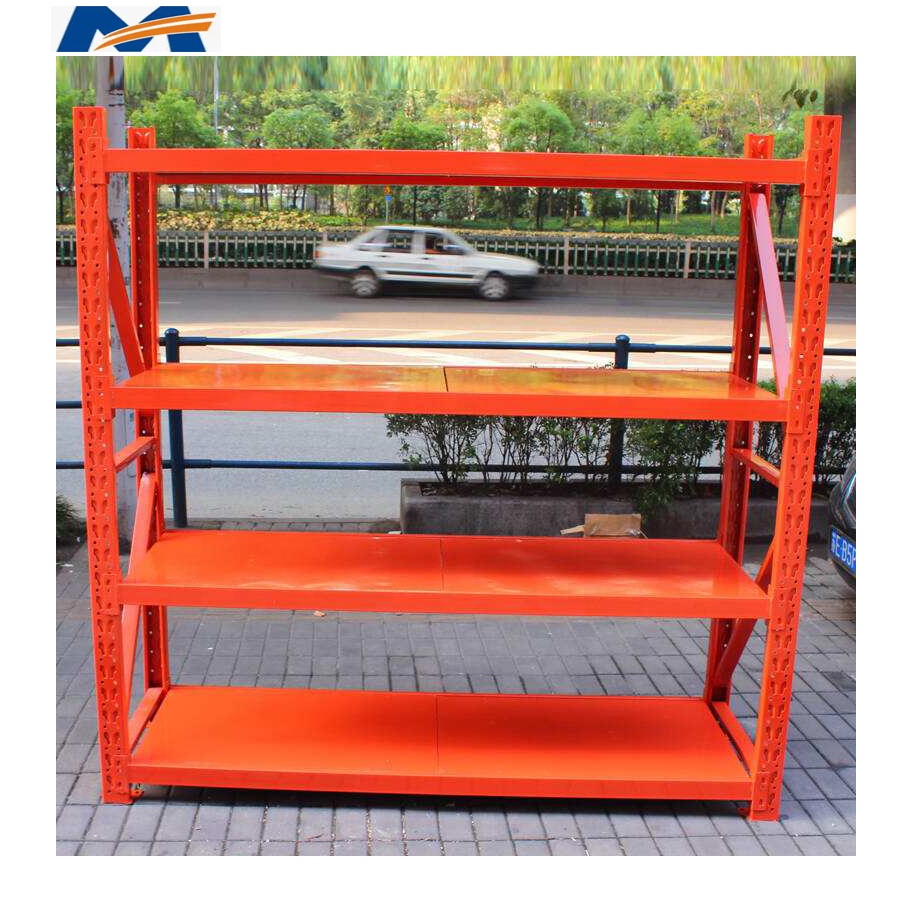

Our standard colors include blue, white, gray, and orange-red. Custom colors can also be produced according to project demands.
