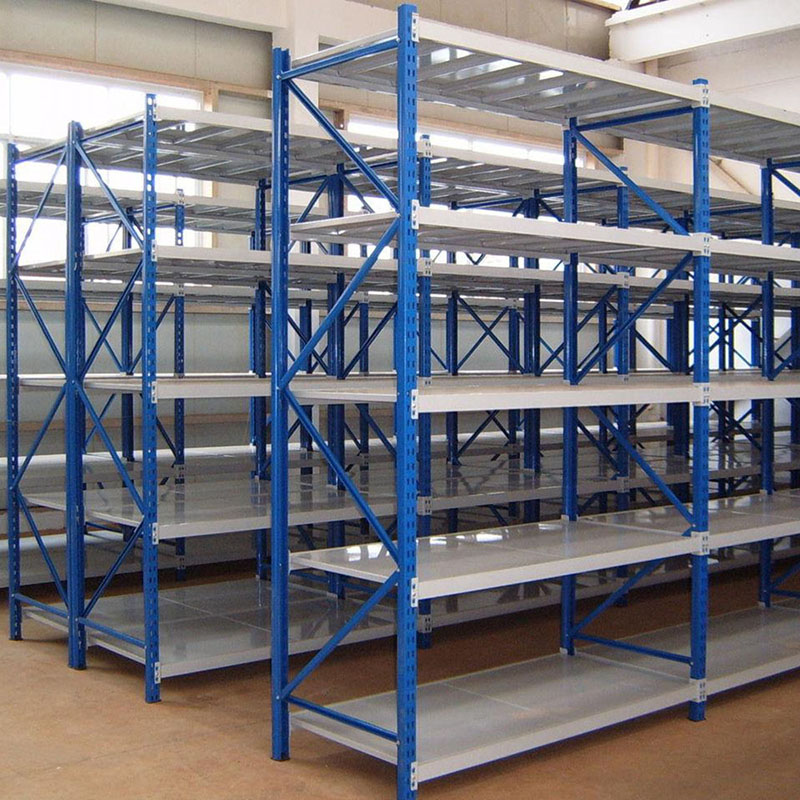

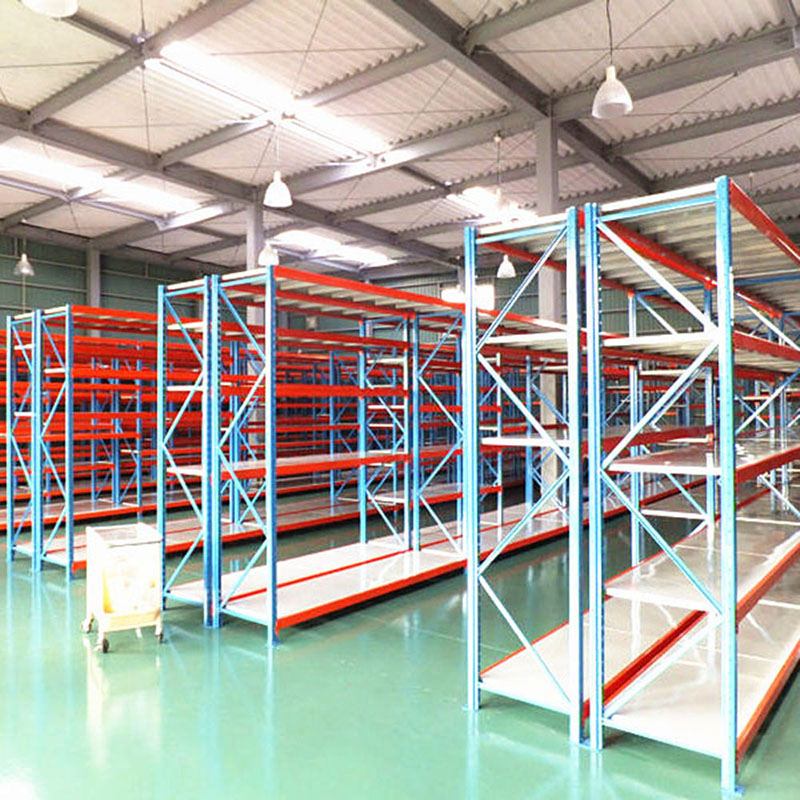

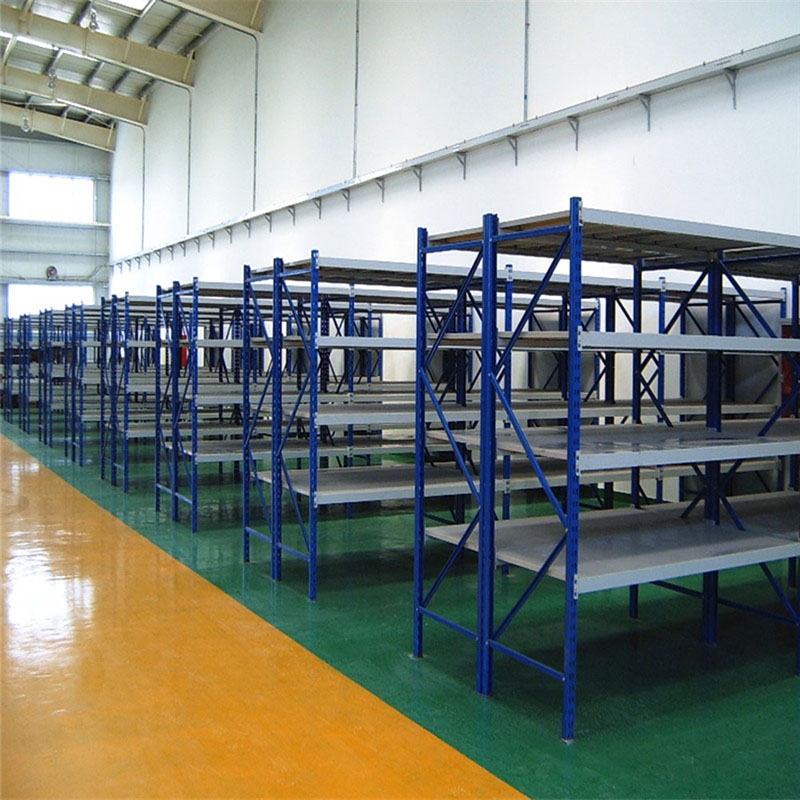

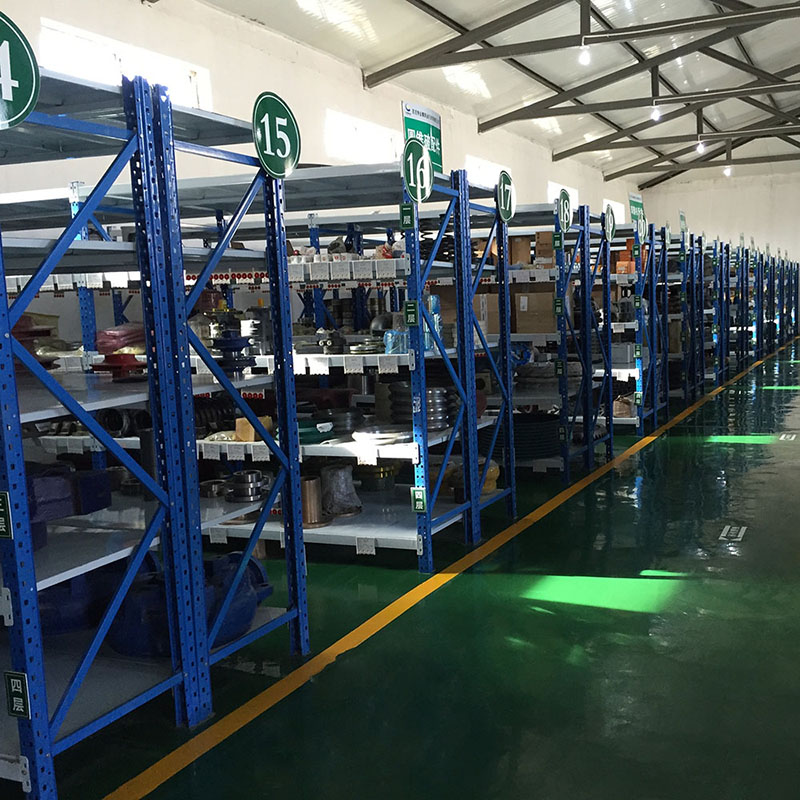

Medium Duty Rack: Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Standards Size | Layer | Loading Weight | Beam (mm) | Upright (mm) | Thickness of Board (mm) |
|---|---|---|---|---|---|
| L2000*D600*H2000 | 4 | 200~300kg/layer | 60*40*1.2 | 60*50*1.2 | 0.5 |
| L2000*D600*H2000 | 4 | 400~500kg/layer | 60*40*1.5 | 60*50*1.5 | 0.7 |
| Product Name | Medium Duty Rack/Shelf |
| Material | High-Quality Q235 Cold-Rolled Steel |
| Loading Capacity | 200~500kgs/level |
| Thickness | Upright: 60*40*1.0, 1.2, 1.5mm; Beam: 60*40/80*40*1.0, 1.2, 1.5mm; Steel: 0.5, 0.6, 0.7mm |
| Color | Upright: Blue, Beam: Orange, Steel: Gray white. Customizable. |
| Surface Treatment | Electrostatic Spray Surface |
| Packing Term | Air bubble, Carton, Wooden Case |
| Warranty | 10 Years |
| Certification | SGS |
| Rack Profile Details | |
|---|---|
| Size | L2000*D600*H2000mm, Loading: 300kg/layer, Layer: 4 levels. |
| Material | Upright: 60*50*1.0, Beam: 60*40*1.2, Steel: 0.5mm |
| Color | Upright is Blue, Beam and Steel is Gray white. |
| Packaging Term | Air bubble |
| Surface Treatment | Powder Coating |
Beam & Upright Connection
Diagonal & Horizontal Bracing
Steel Board Section
Heavy Duty Pallet Racking
Medium Duty Rack
Mould Rack
Cantilever Rack
Mezzanine Floor
Wire Mesh Container
We are a professional racking manufacturer.
Our material is high-quality Q235B cold rolled steel.
Typically, it takes less than 15 workdays. It also depends on the order quantity and shelving design specifications.
Our payment terms are 30% T/T down payment and 70% T/T before delivery.
For a quick quotation, please provide the following details:
1) The size of rack: Length * Depth * Height.
2) Number of layers per set.
3) Loading capacity required per beam layer.
4) Total racking quantity.
Yes, we can send you free samples with freight collect.
