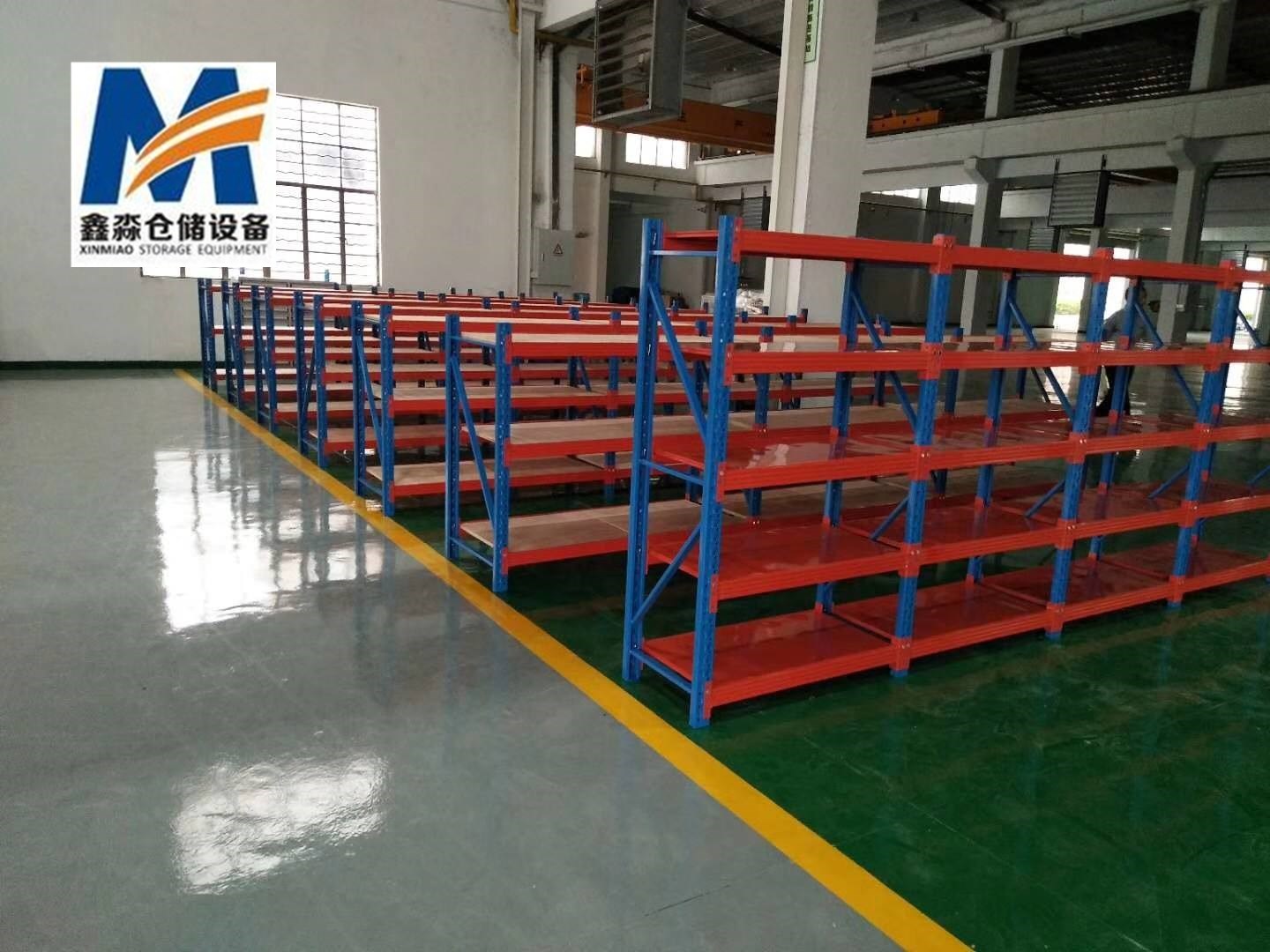

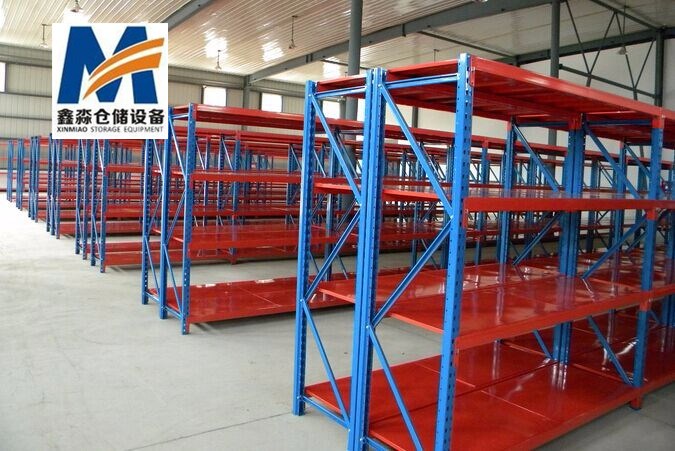

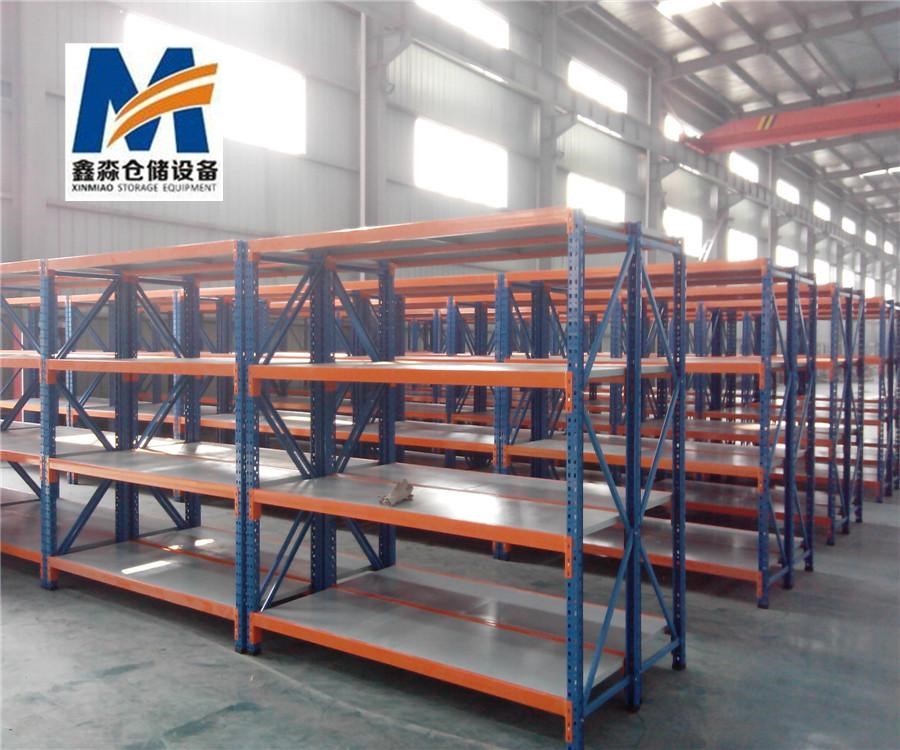

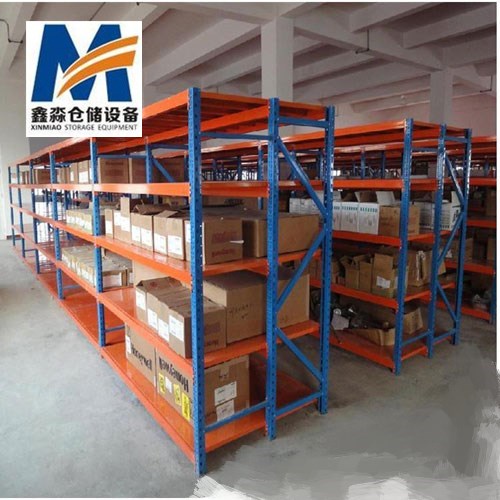

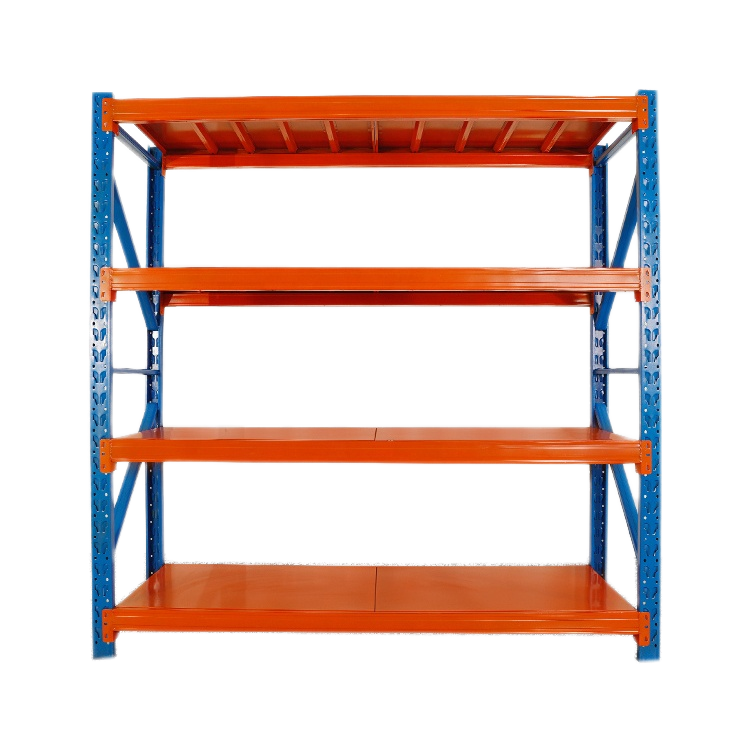

Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Standards Size | Layer | Loading Weight | Beam (mm) | Upright (mm) | Thickness of Board (mm) |
|---|---|---|---|---|---|
| L2000*D600*H2000 | 4 | 200~300kg/layer | 60*40*1.2 | 60*50*1.2 | 0.5 |
| L2000*D600*H2000 | 4 | 400~500kg/layer | 60*40*1.5 | 60*50*1.5 | 0.7 |
| Product Name | Medium Duty Rack/Shelf |
| Material | High-Quality Q235 Colded-Coll Steel |
| Loading Capacity | 200~500kgs/level |
| Thickness | Upright: 60*40*1.0, 1.2, 1.5mm; Beam: 60*40/80*40*1.0, 1.2, 1.5mm; Steel: 0.5, 0.6, 0.7mm |
| Color | Upright: blue, Beam: Orange, Steel: Gray white. It can be customized any color. |
| Surface Treatment | Electrostatic Spray Surface |
| Packing Term | Air bubble, Carton, Wooden Case. |
| Warranty | 10 Years |
| Certification | SGS |
| Medium Duty Rack Specifications | |
|---|---|
| Size | L2000*D600*H2000mm, Loading: 300kg/layer, Layer: 4 levels. |
| Material | Upright: 60*50*1.0, Beam: 60*40*1.2, Steel: 0.5mm |
| Color | Upright is blue, beam and steel is gray white. |
| Packaging Term | Air bubble |
| Surface treatment | Powder Coating |
Beam & Upright Connect
Diagonal & Horizontal Bracing Installed
Steel Board Section
