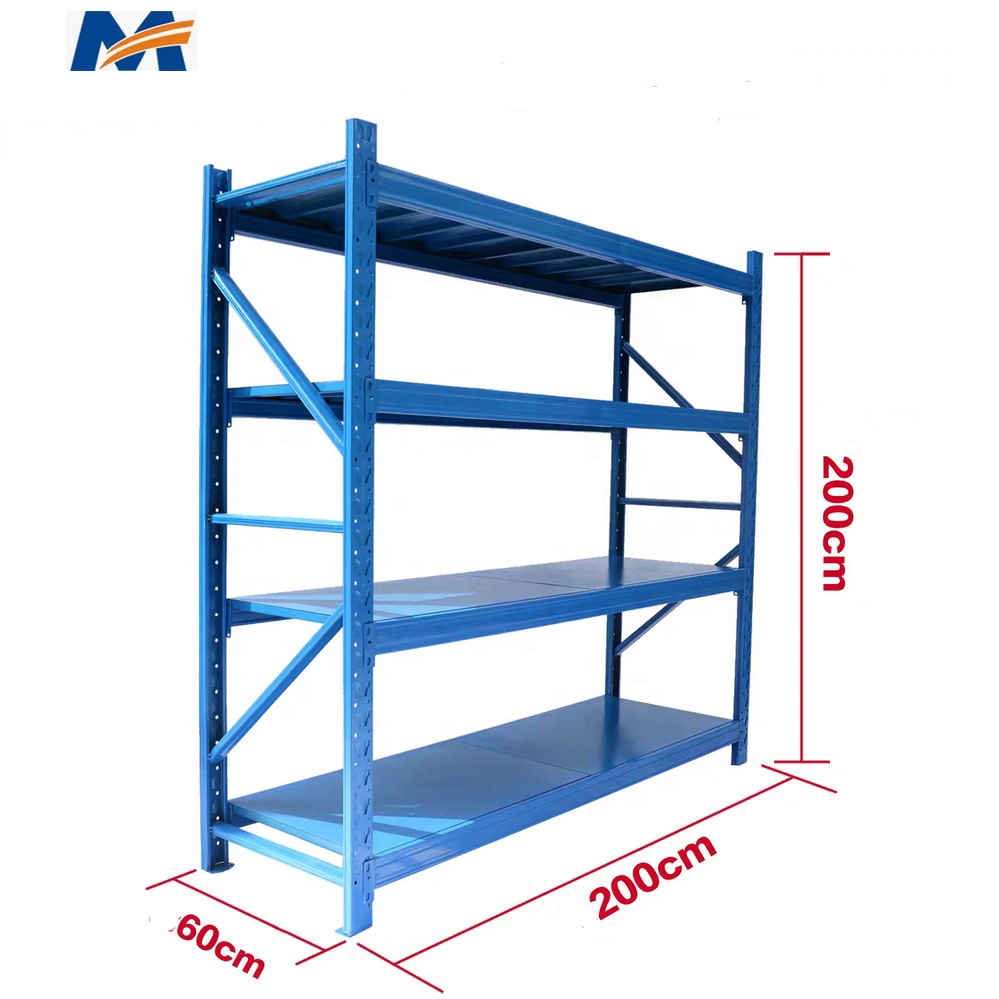

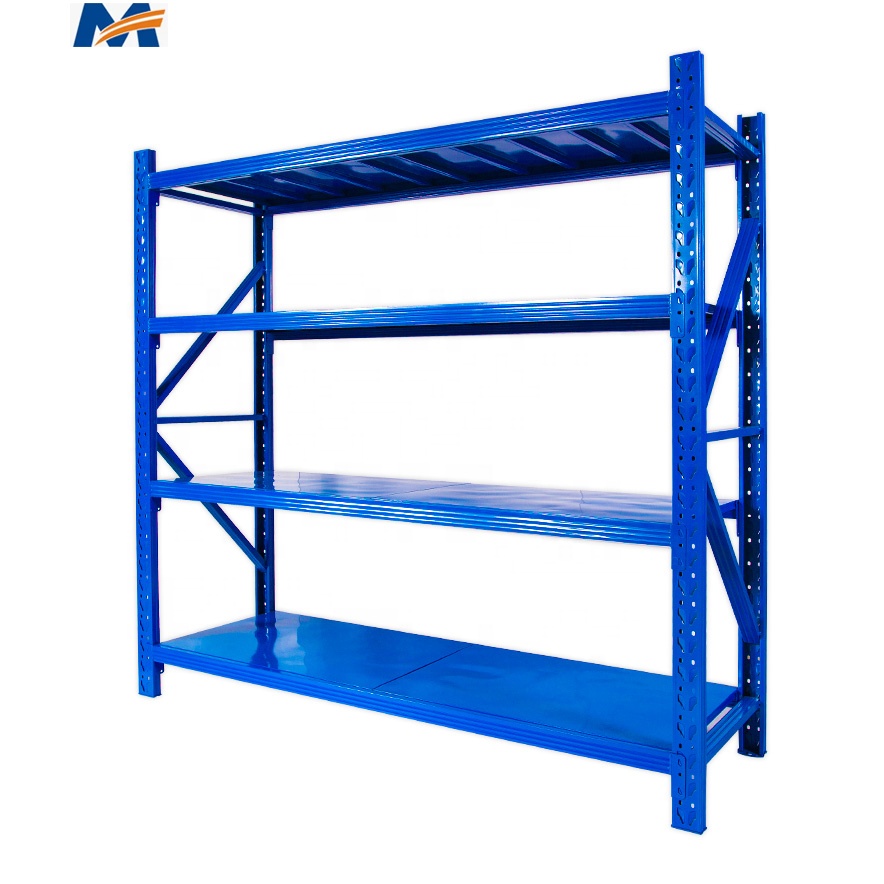

Medium duty rack/shelf belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Medium Duty Rack/Shelf Specifications | ||||
|---|---|---|---|---|
| Type | Specification (L*D*H) | Load Capacity | Layers | Color |
| XM-B-001 | 2000*600*2000mm | 200kg/layer | 4 layers | Blue/White/Orange |
| XM-B-002 | 2000*600*2500mm | |||
| XM-B-003 | 2000*500*2000mm | |||
| XM-B-004 | 1500*600*2000mm | |||
| XM-B-005 | 1200*600*2000mm | |||
| XM-B-006 | 2000*600*2000mm | 300kg/layer | ||
| XM-B-007 | 2000*600*2500mm | |||
| XM-B-008 | 2000*600*2000mm | 500kg/layer | ||
| XM-B-009 | 2000*600*2500mm | |||
💡 All the above sizes can be added layer or subtracted layer!
A: We are a professional racking manufacturer.
A: Our material is Q235B cold rolled steel.
A: Generally, it is less than 15 workdays. It also depends on the order quantity and shelving design.
A: We accept 30% T/T down payment and 70% T/T before delivery.
A: Yes, samples are available at any time. We charge a sample fee and will return it during the next order.
