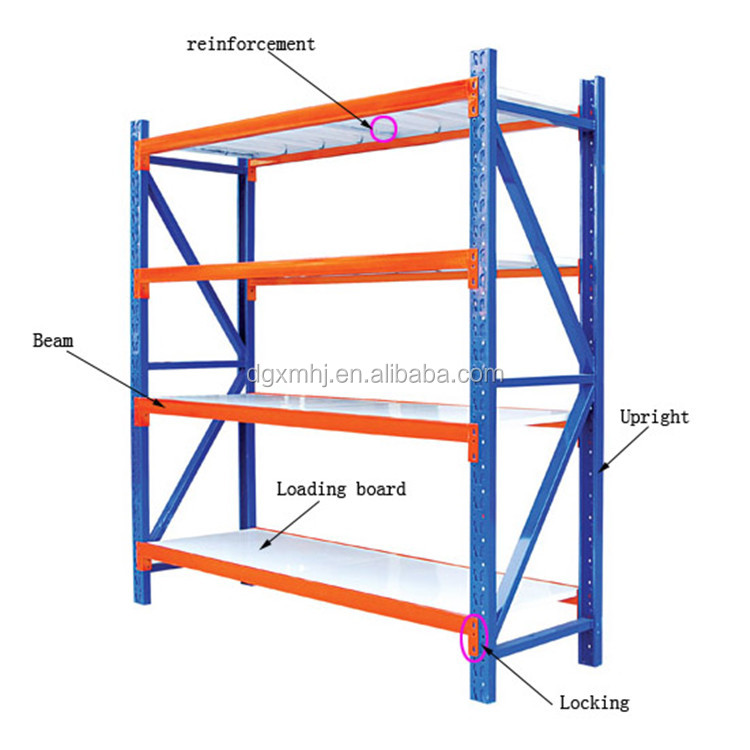

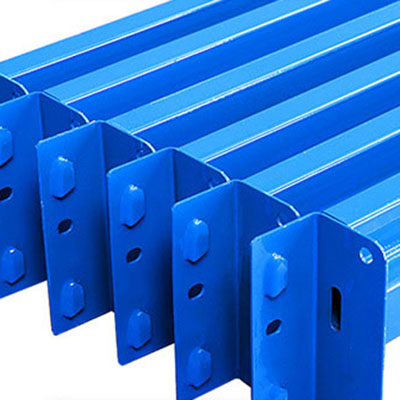

Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can be reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Standards Size | Layer | Loading Weight | Beam (mm) | Upright (mm) | Thickness of Board (mm) |
|---|---|---|---|---|---|
| L2000*D600*H2000 | 4 | 200~300kg/layer | 60*40*1.2 | 60*50*1.2 | 0.5 |
| L2000*D600*H2000 | 4 | 400~500kg/layer | 60*40*1.5 | 60*50*1.5 | 0.7 |
| Product Name | Medium Duty Rack/Shelf |
| Material | High-Quality Q235 Colded-Coll Steel |
| Loading Capacity | 200~500kgs/level |
| Thickness | Upright: 60*40*1.0, 1.2, 1.5mm; Beam: 60*40/80*40*1.0, 1.2, 1.5mm; Steel: 0.5, 0.6, 0.7mm |
| Color | Upright: Blue; Beam: Orange; Steel: Gray white. (Customizable to any color) |
| Surface Treatment | Electrostatic Spray Surface |
| Packing Term | Air bubble, Carton, Wooden Case |
| Warranty | 10 Years |
| Certification | ISO |
| Medium Duty Rack Specifications | |
|---|---|
| Size | L2000*D600*H2000mm, Loading: 300kg/layer, Layer: 4 levels |
| Material | Upright: 60*50*1.0, Beam: 60*40*1.2, Steel: 0.5mm |
| Color | Upright is blue, beam and steel is gray white |
| Packaging Term | Air bubble |
| Surface Treatment | Powder Coating |
We devote ourselves to the design and manufacture of storage equipment. We are specialised in producing various pallet racking, longspan shelving, warehouse rack, mould rack, wire container, mobile filing cabinet, cantilever racks, rivet shelving, drive in racks, mezzanine and platform, canton flow rack, stacking racking and other related storage equipment.
Through products and service aimed at providing complete assistance for all warehousing, products showcasing and sales outlet requirements, we are able to offer our customers a wide range of products of highest quality with competitive price, as well as rapid delivery time and first-class back-up service.
