Medium Duty Rack Overview
Medium Duty Rack

Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.

Standards Size Layer Loading Weight Beam(mm) Upright(mm) Thickness of Board(mm)
L2000*D600*H2000 4 200~300kg/layer 60*40*1.2 60*50*1.2 0.5
L2000*D600*H2000 4 400~500kg/layer 60*40*1.5 60*50*1.5 0.7
Product Name Medium Duty Rack/Shelf
Material High-Quality Q235 Cold-Rolled Steel
Loading Capacity 200~500kgs/level
Thickness Upright:60*40*1.0, 1.2, 1.5mm; Beam:60*40/80*40*1.0, 1.2, 1.5mm; Steel:0.5, 0.6, 0.7mm
Color Upright: blue, Beam: Orange, Steel: Gray white. (Can be customized to any color)
Surface Treatment Electrostatic Spray Surface
Packing Term Air bubble, Carton, Wooden Case
Warranty 10 Years
Certification SGS
  • Long span shelving rack is very convenient for installation.
  • The adjustment distance of steel layers is 50mm for multiple usages. It consists of vertical columns, layer plates, corner pieces, pins, special bolts and plastic footing.
  • The surface is electrostatic sprayed and the color is selectable. It has excellent corrosion protection and rust protection.
  • It is widely used in families, stores, supermarkets, company storages and public institutions. It is the most updated product design.
Beam Loading Capacity & Size
Beam Loading Capacity and Size Chart
Detailed Images
Medium Duty Rack Detail
Rack Specifications
Size L2000*D600*H2000mm, Loading:300kg/layer, Layer:4 levels
Material Upright:60*50*1.0, Beam:60*40*1.2, Steel:0.5mm
Color Upright is blue, beam and steel is gray white
Packaging Term Air bubble
Surface Treatment Powder Coating
Beam and Upright Connection
Beam & Upright Connect
Diagonal and Horizontal Bracing
Diagonal & Horizontal Bracing Installed

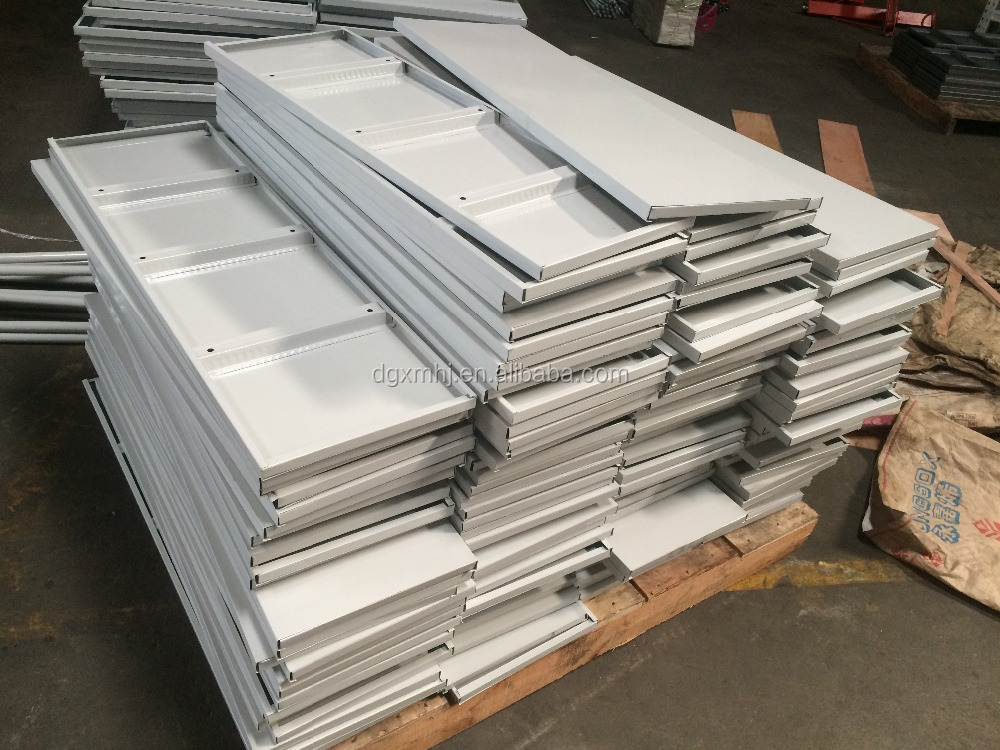

Steel Board Section
Steel Board Section
Product Detail Image 1
Product Detail Image 2
Product Detail Image 3
Product Detail Image 4
Color As You Request
Color Customization Options
Packaging & Shipping
Packaging and Shipping Detail
Frequently Asked Questions
Are you a factory or trading company?
We are a factory.
What is the material of your products?
The material is Q235 Cold rolled steel. We can also choose material as customers’ requirement.
How can I get some samples?
We are honored to offer you samples.
How does your factory do regarding quality control?
Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has ISO9001 and SGS authentication.
What is the warranty period for your racking products?
We offer a 10-year warranty on our racking systems.
Can we customize the color of the racks?
Yes. While the standard color is blue for uprights, orange for beams, and gray-white for steel boards, they can be customized to any color as you request.
