It's supported by racks, and a mezzanine is built on the upper layer, then the lower racks can store goods in order. The upper mezzanine has better load capacity, and the ground load capacity is relatively average.
It's widely used in these situations: warehouse is high; goods are small; accessing goods by manpower, storage demand is large. Besides, it can be applied to renovate old warehouse, to improve the warehouse space utilization. Single layer or multi-layer mezzanine can be designed according to the actual area and specific requirements to make full use of space and save warehouse area. Normally it's 2-layer or 3-layer, and stairs, handrails and cargo elevators are equipped.
| Size | Height: 1000-8000mm, Width: 10000-20000mm, Length: 20000-30000mm |
| Material | High-quality Q235 Cold-Rolled Steel |
| Surface Treatment | Powder Coating |
| Color | Upright is blue, beam is orange, steel board is gray white, etc. |
| Upright | 60*50, 90*65, 120*65, 100*70, 130*90mm |
| Beam | 60*40, 80*40, 80*45, 100*45, 120*45, 140*45, 160*45, 180*45, 200*45, 220*45, 240*45, etc. |

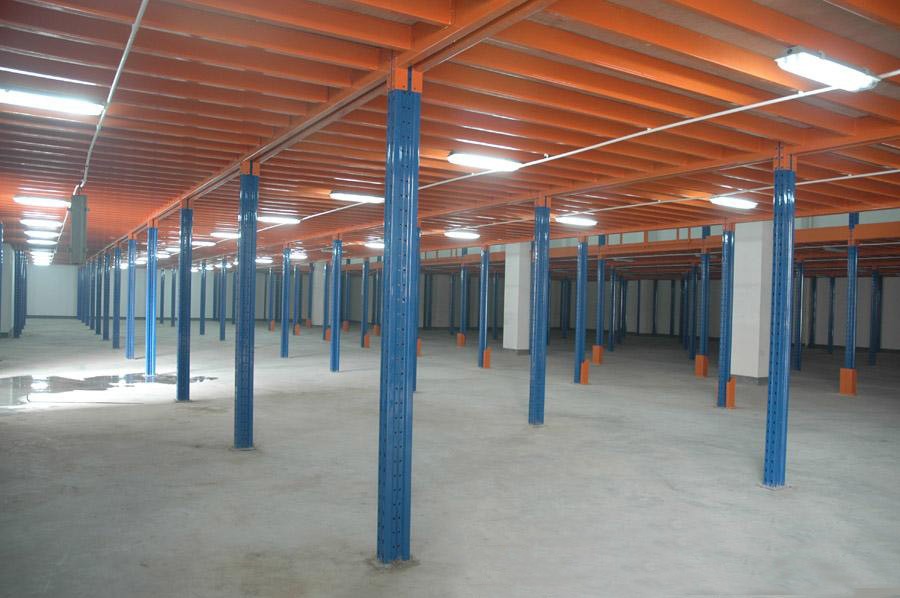

Main Beam & Upright Installed
Support Bar
Frame, Main Beam and Support Bar Installed Picture

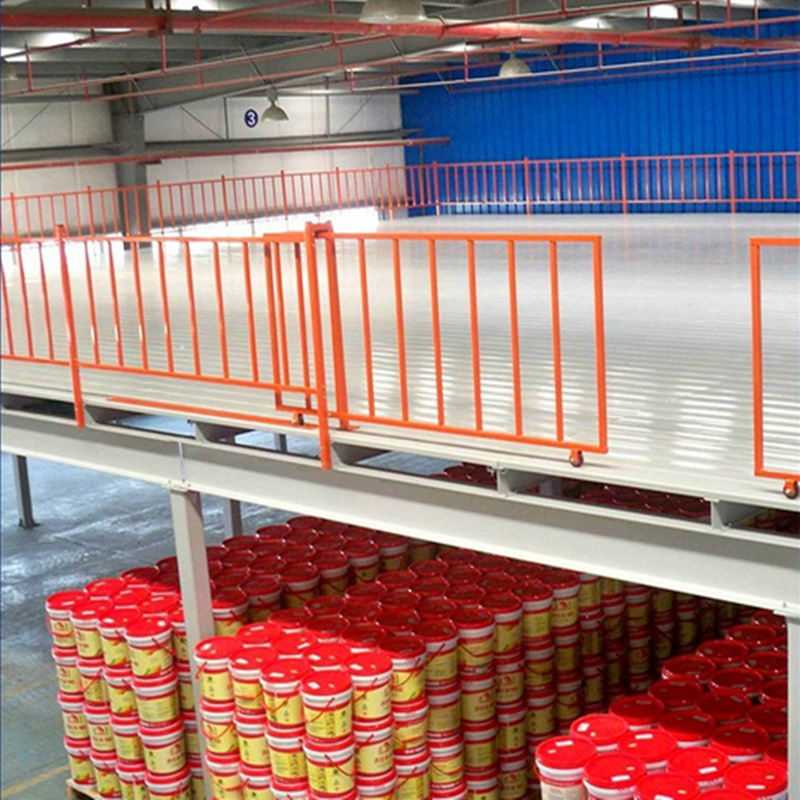

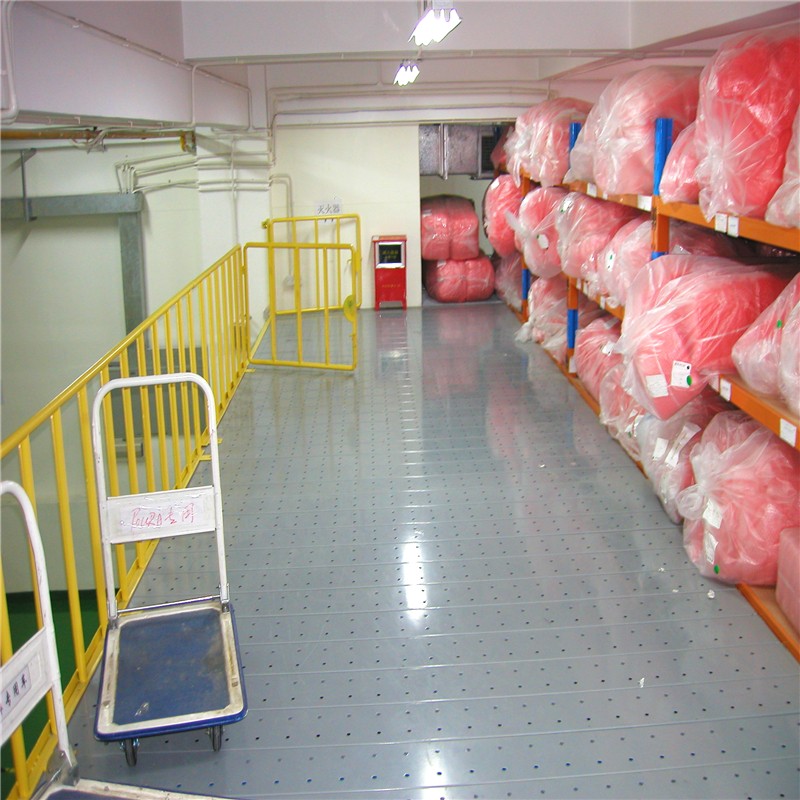

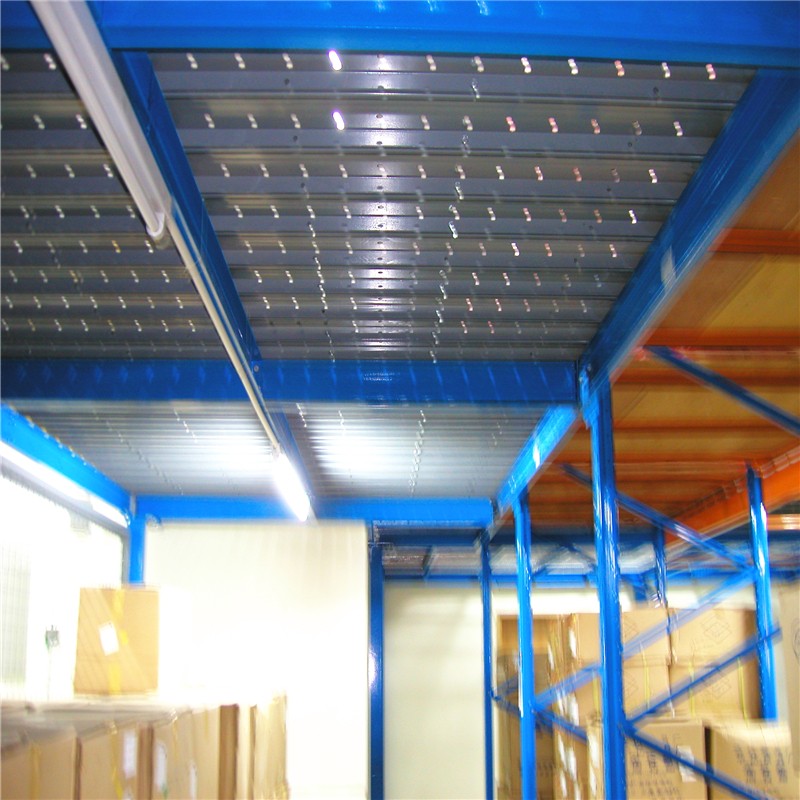

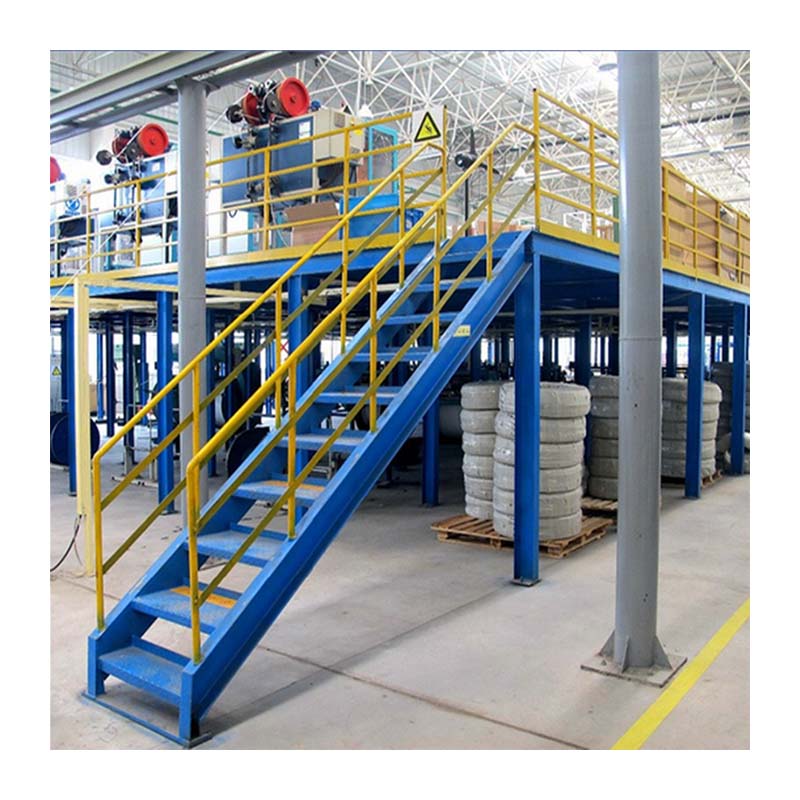

Mezzanine Floor/Platform (Upright Support)

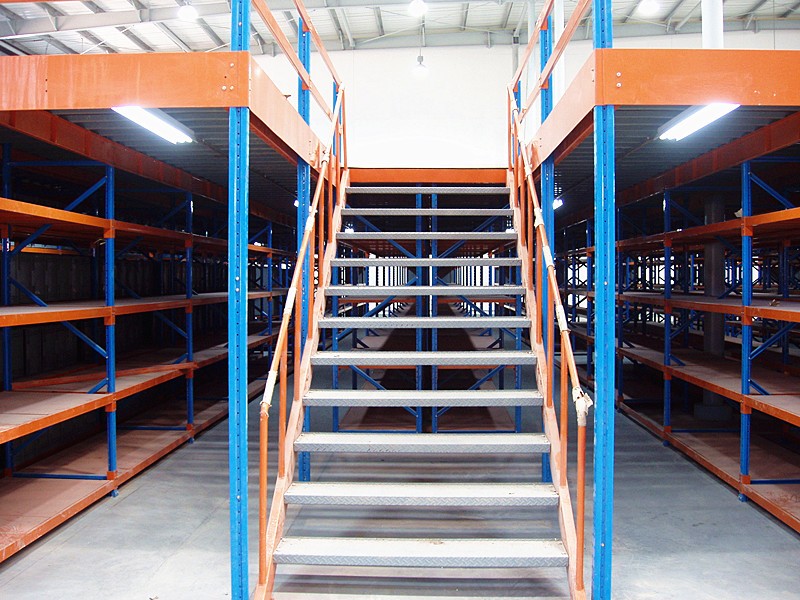

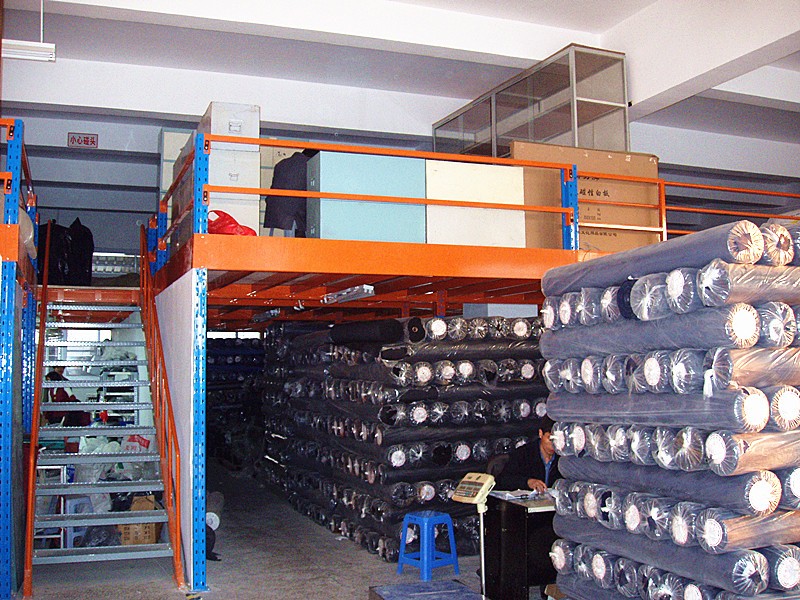

Mezzanine Rack

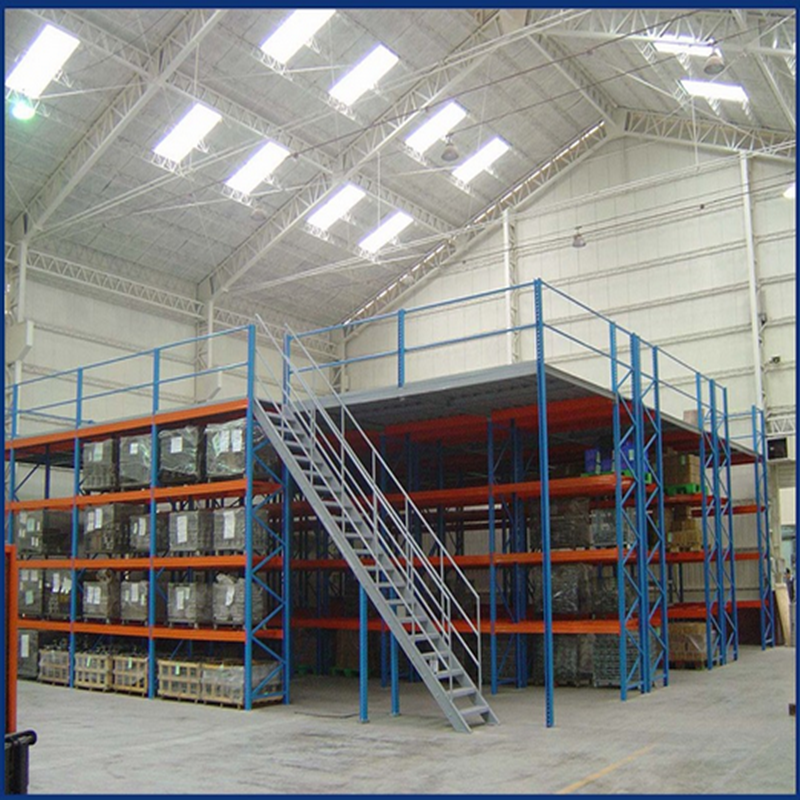

Rack Mezzanine Rack
"I" Steel Mezzanine Floor
Professional Design Service Group
Storage Hold Area For Raw Materials
All-automatic Cold Rolling Line
Spraying Coating Line
Stamping Area (Bracket)
Goods Packaging Area (Upright & Beam)
Our enterprise devotes itself to the professional design and manufacture of high-quality storage equipment. We specialize in producing various pallet racking, longspan shelving, warehouse racks, mould racks, wire containers, mobile filing cabinets, cantilever racks, rivet shelving, drive-in racks, mezzanine and platform systems, carton flow racks, stacking racks, and other related warehouse storage solutions.
Through our tailored products and service aimed at providing complete assistance for all warehousing, showcasing, and sales outlet requirements, we offer our customers a wide range of premium products at competitive prices, coupled with rapid delivery cycles and first-class customer service support.
Our Factory
Our Workshop
Our Warehouse
Finished Product Area
We are a direct manufacturing factory specializing in industrial storage solutions and racking systems.
Our factory is located in Guangdong Province, China. You can fly to Shenzhen or Guangzhou airport directly, and we will be pleased to assist with your visit. All clients from home and abroad are warmly welcome.
The primary material we use is high-quality Q235 cold-rolled steel. We can also select customized materials based on your specific load requirements.
We are pleased to offer you custom component samples to help you verify the material quality and powder coating finish.
Quality is our top priority. We attach great importance to strict quality control from raw materials to final packaging. Our production processes are ISO9001 and SGS certified.
Yes. We provide complete layout planning and customized design services. The layer count, loading capacity per square meter, size, and layout can all be tailored to match your specific warehouse structure.
