Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Standards Size | Layer | Loading Weight | Beam (mm) | Upright (mm) | Thickness of Board (mm) |
|---|---|---|---|---|---|
| L2000*D600*H2000 | 4 | 200~300kg/layer | 60*40*1.2 | 60*50*1.2 | 0.5 |
| L2000*D600*H2000 | 4 | 400~500kg/layer | 60*40*1.5 | 60*50*1.5 | 0.7 |
| Product Name | Medium Duty Rack/Shelf |
| Material | High-Quality Q235 Colded-Coll Steel |
| Loading Capacity | 200~500kgs/level |
| Thickness | Upright: 60*40*1.0, 1.2, 1.5mm | Beam: 60*40/80*40*1.0, 1.2, 1.5mm | Steel: 0.5, 0.6, 0.7mm |
| Color | Upright: blue, Beam: Orange, Steel: Gray white. It can be customized to any color. |
| Surface Treatment | Electrostatic Spray Surface |
| Packing Term | Air bubble, Carton, Wooden Case |
| Warranty | 10 Years |
| Certification | SGS |
| Size | L2000*D600*H2000mm, Loading: 300kg/layer, Layer: 4 levels. |
| Material | Upright: 60*50*1.0, Beam: 60*40*1.2, Steel: 0.5mm |

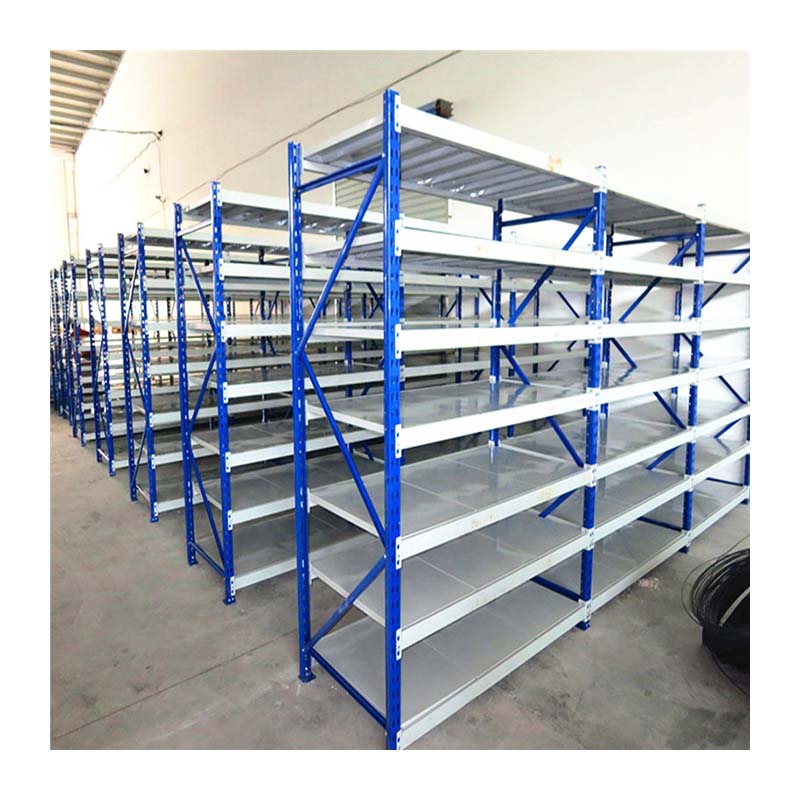

| Color | Upright is blue, beam and steel is gray white. |
| Packaging Term | Air bubble |
| Surface Treatment | Powder Coating |

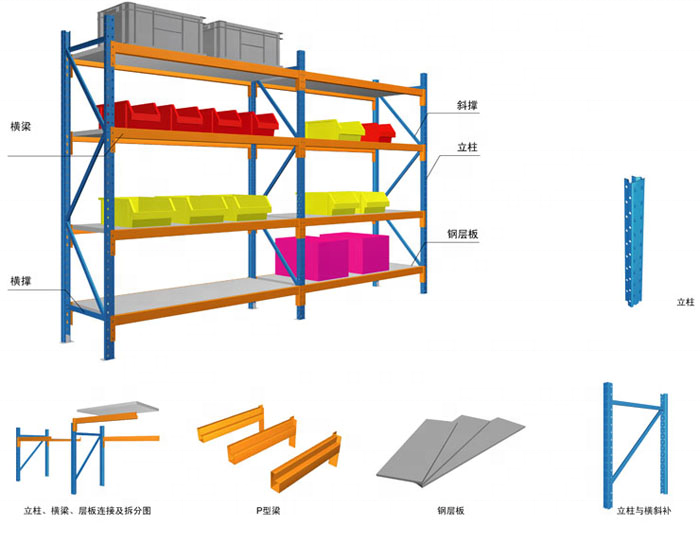

Beam & Upright Connect
Diagonal & Horizontal Bracing Installed
Steel Board Section
Heavy Duty Pallet Racking
Medium Duty Rack
Mould Rack
Cantilever Rack
Mezzanine Floor
Wire Mesh Container
Our material is Q235B cold rolled steel.
Less than 15 workdays in general. It also depends on the order quantity and shelving design.
30% T/T down payment and 70% T/T before delivery.
For a quick quotation, please let us know the following information:
1). The size of rack: Length* Depth*Height.
2). Layers per set.
3). Load capacity per beam layer.
4). Racking quantity.
We accept to send you free samples with freight collect.
Quality is priority. We have ISO 9001 2001 certifications.
