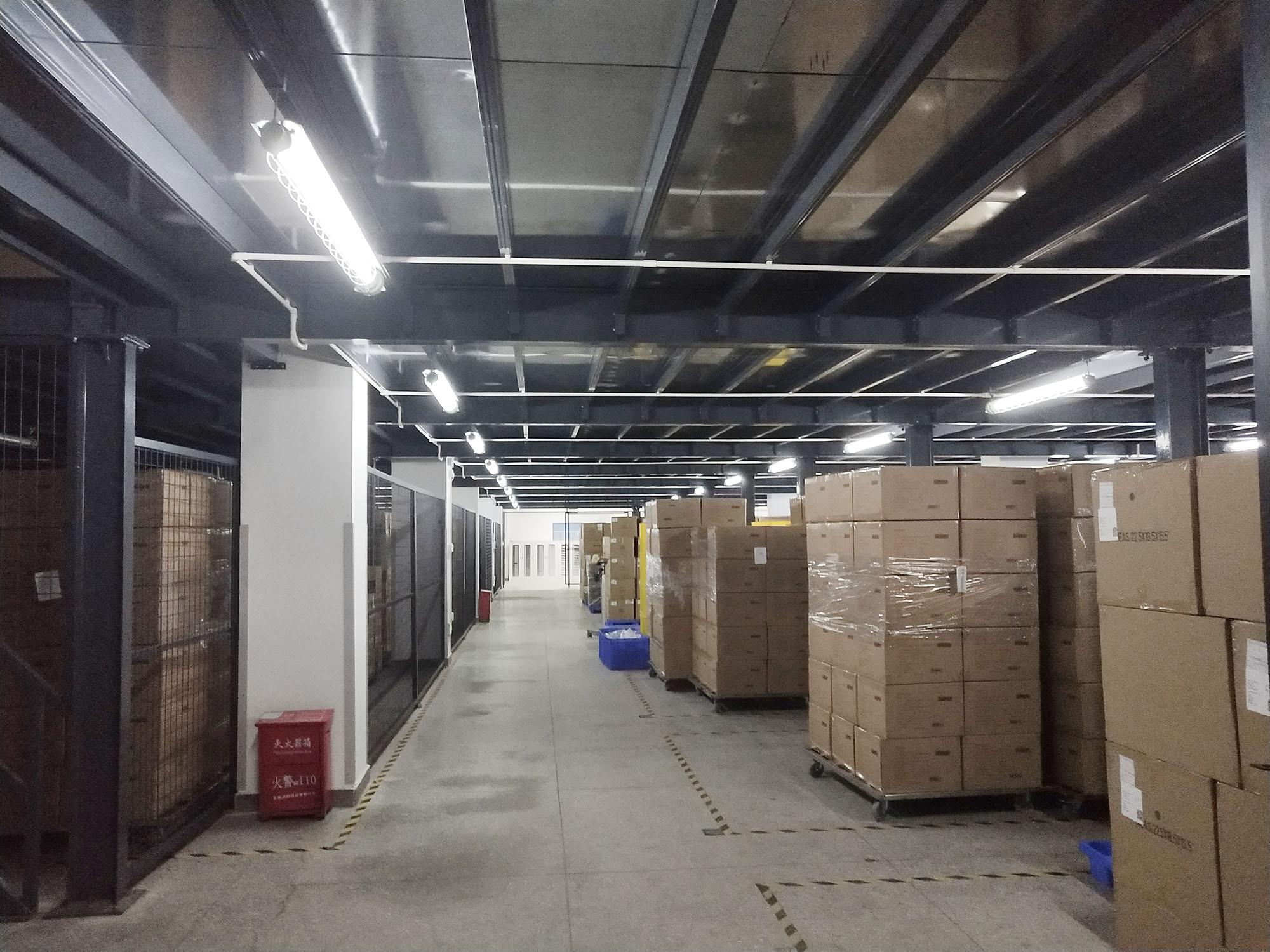

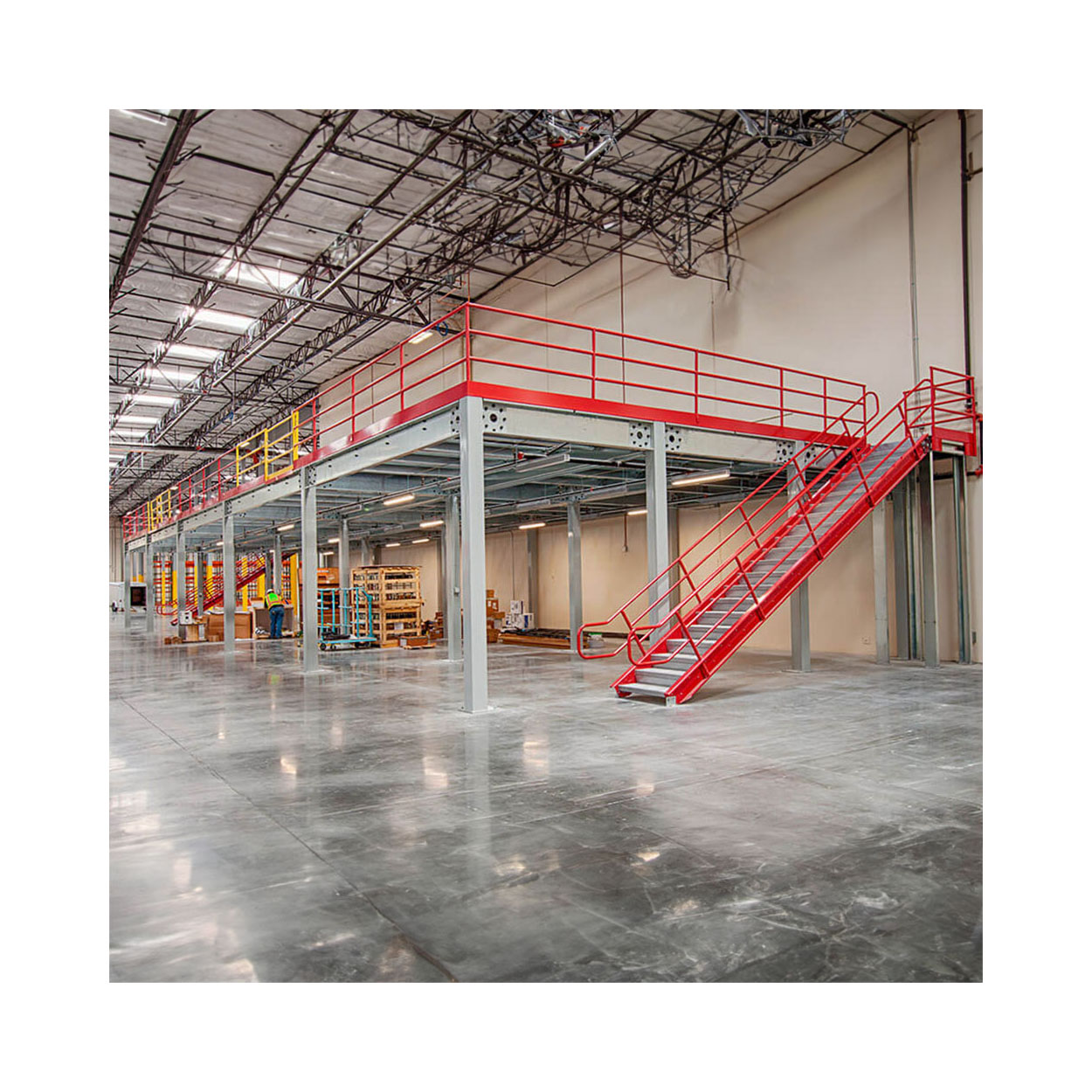

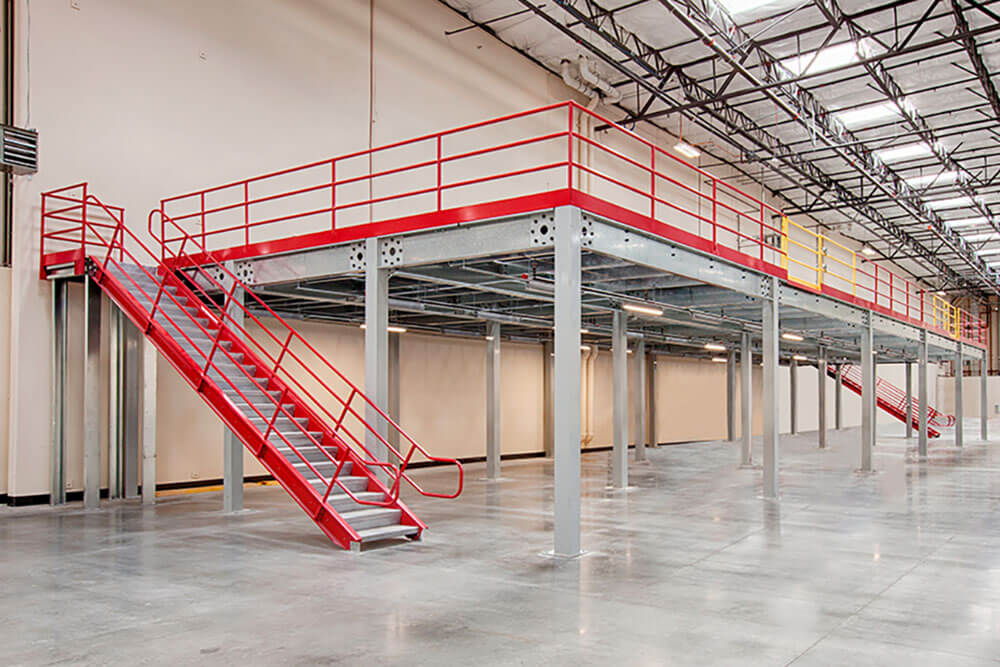

H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel. Usually we use the steel panel or MDF panel for the mezzanine floor, there are also with staircase and guardrail. Match with the cargolift for the efficiency.
It is suitable for the higher warehouse, large loading capacity, longer span and large storage. It will make full use of the space, turning one warehouse into two. Widely used for electronics products, hardware, communication, printing, etc.
| Parameter | Details |
|---|---|
| Raw-Material | High-Quality Q235 Cold rolled steel |
| Color | Upright frame is blue, Beam is orange (can be customized) |
| Height | Customized |
| Width / Depth | Customized |
| Length | Customized |
| Loading Capacity | 200 ~ 5000kg per sqm |
| Surface Treatment | Powder coated |
| Packing Term | Air bubble, Wooden Case, etc. |

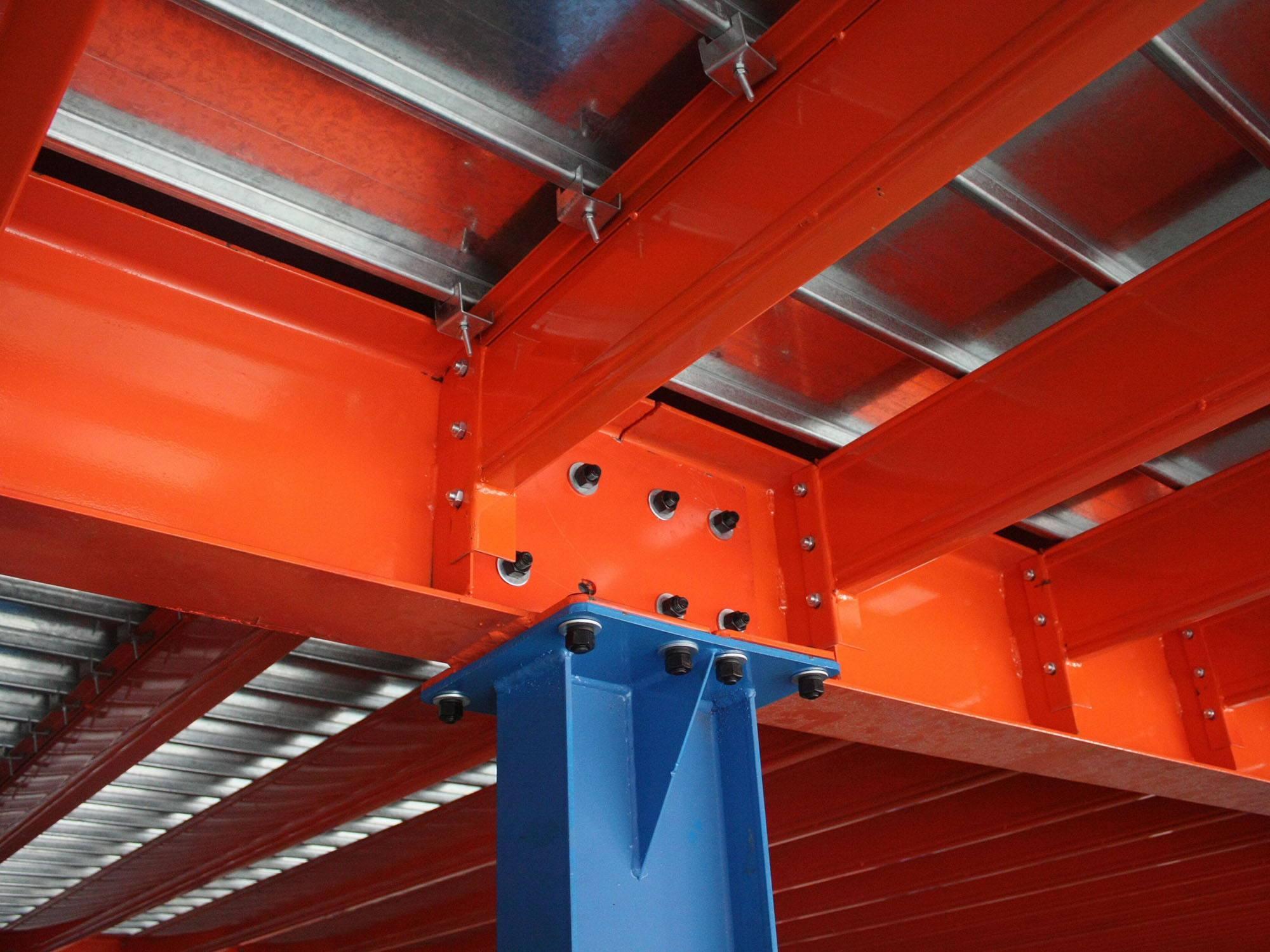

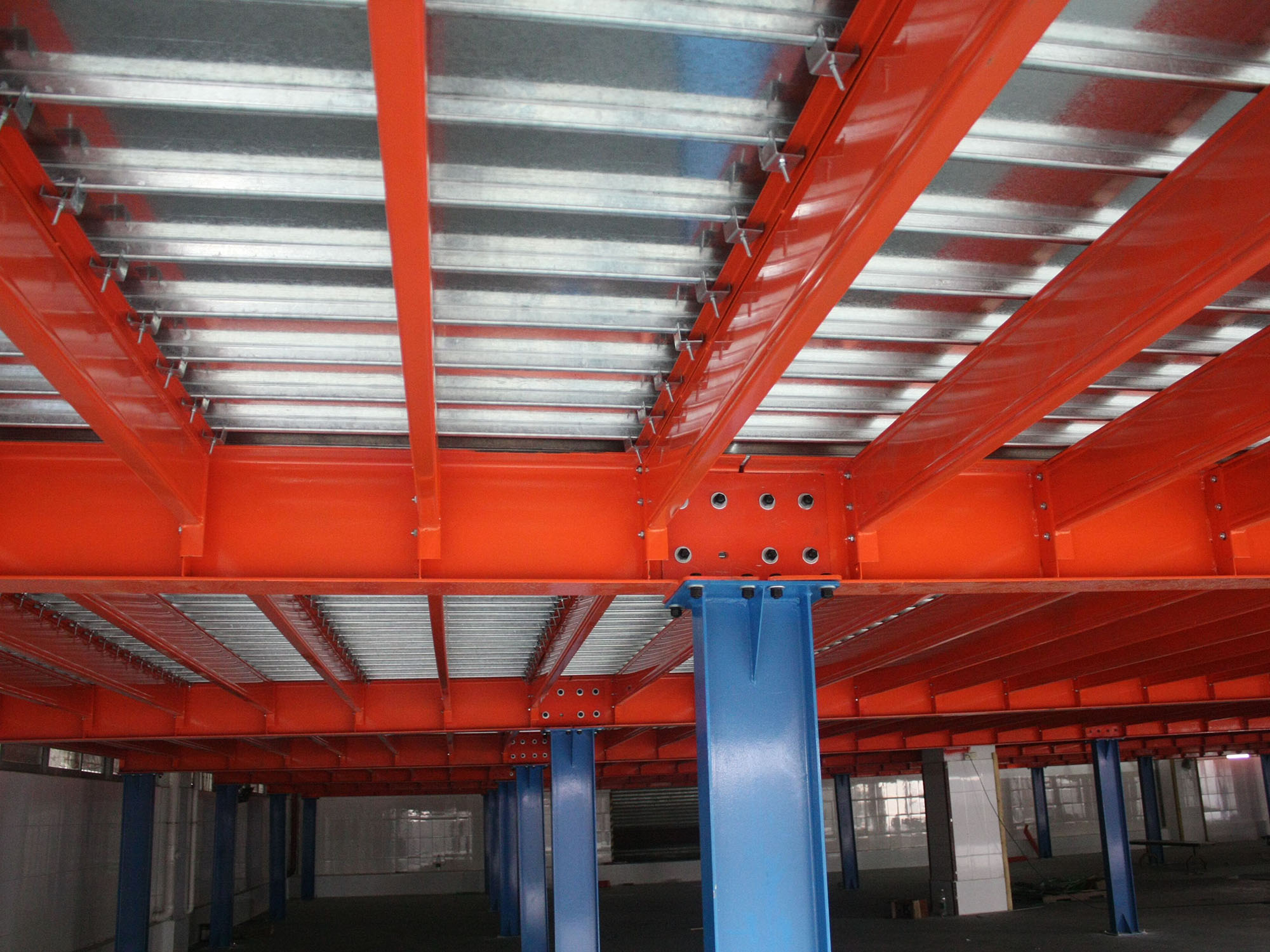

Both components are constructed from H-steel, delivering high loading capacity and facilitating longer spans. The major beams are secured by connector pieces on each side to maximize overall stability.
Connected securely via custom hanging pieces. The hanging piece is welded directly onto the main beam, ensuring optimal load distribution and structural integrity.
The steel panels and support beams are connected robustly using specialized integrated hooks. Guardrails hang directly on the main beam without requiring hole drillings, preserving the load capability of the beam.
