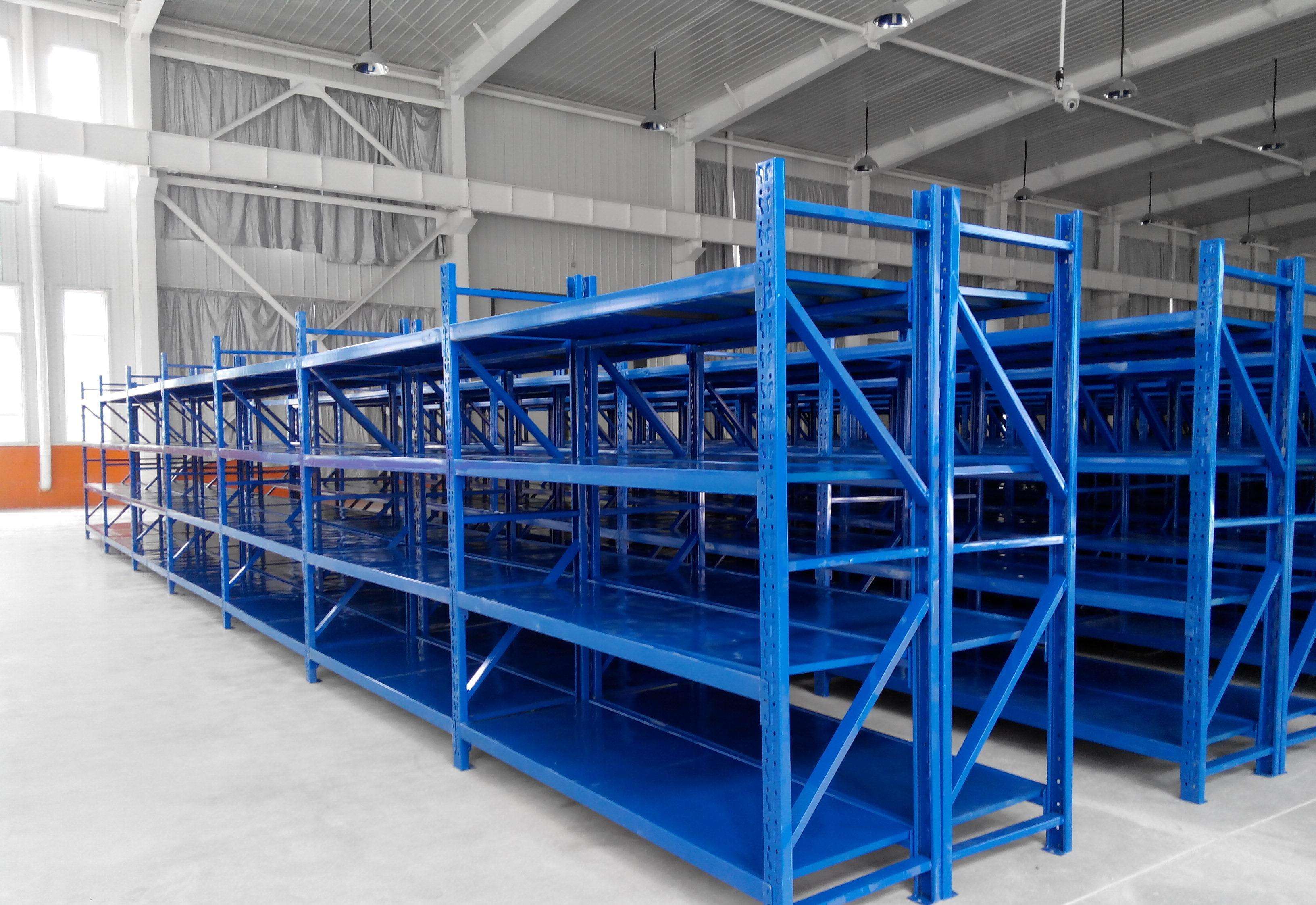

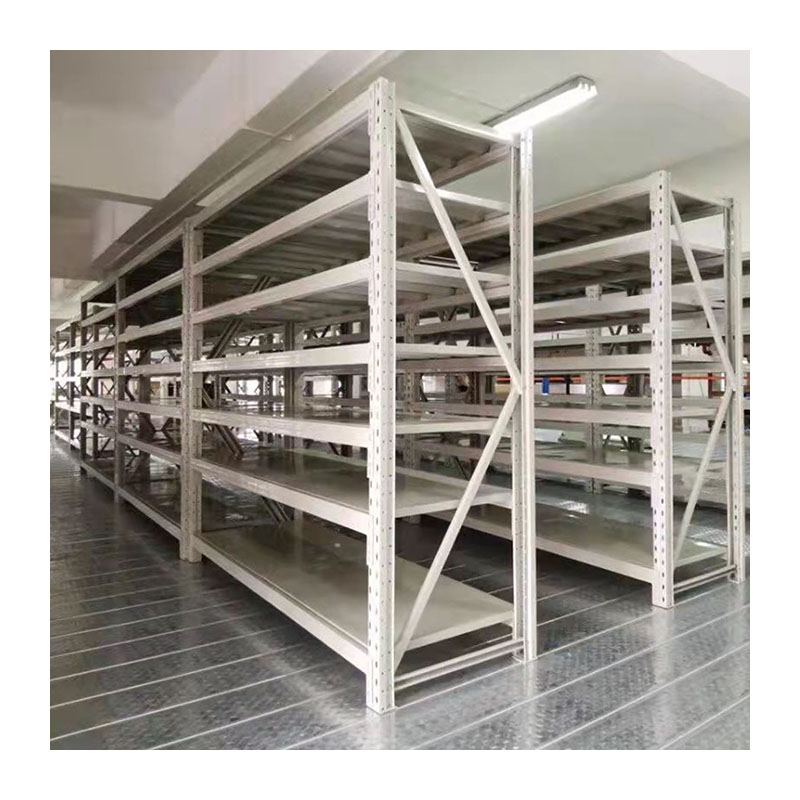

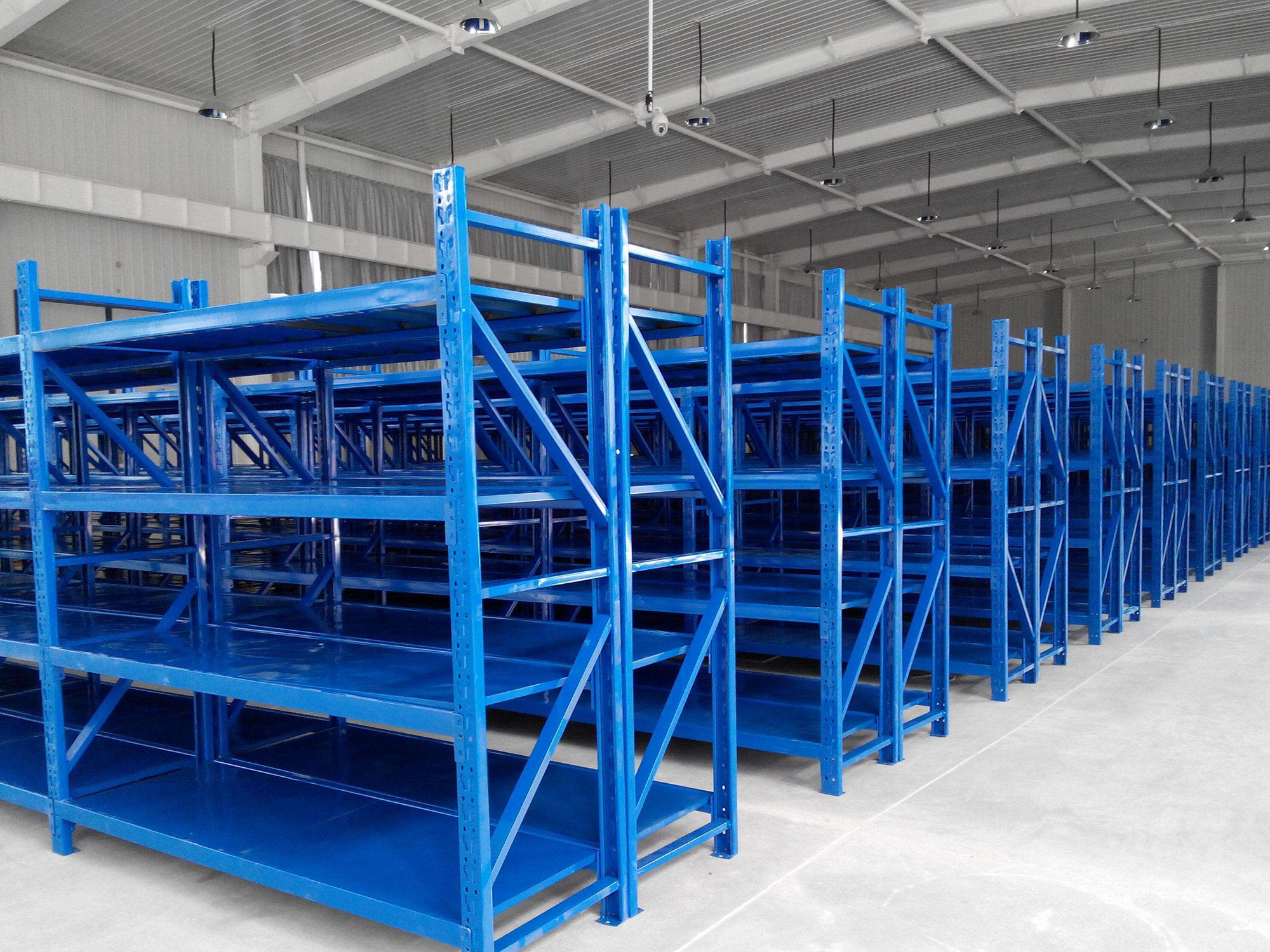

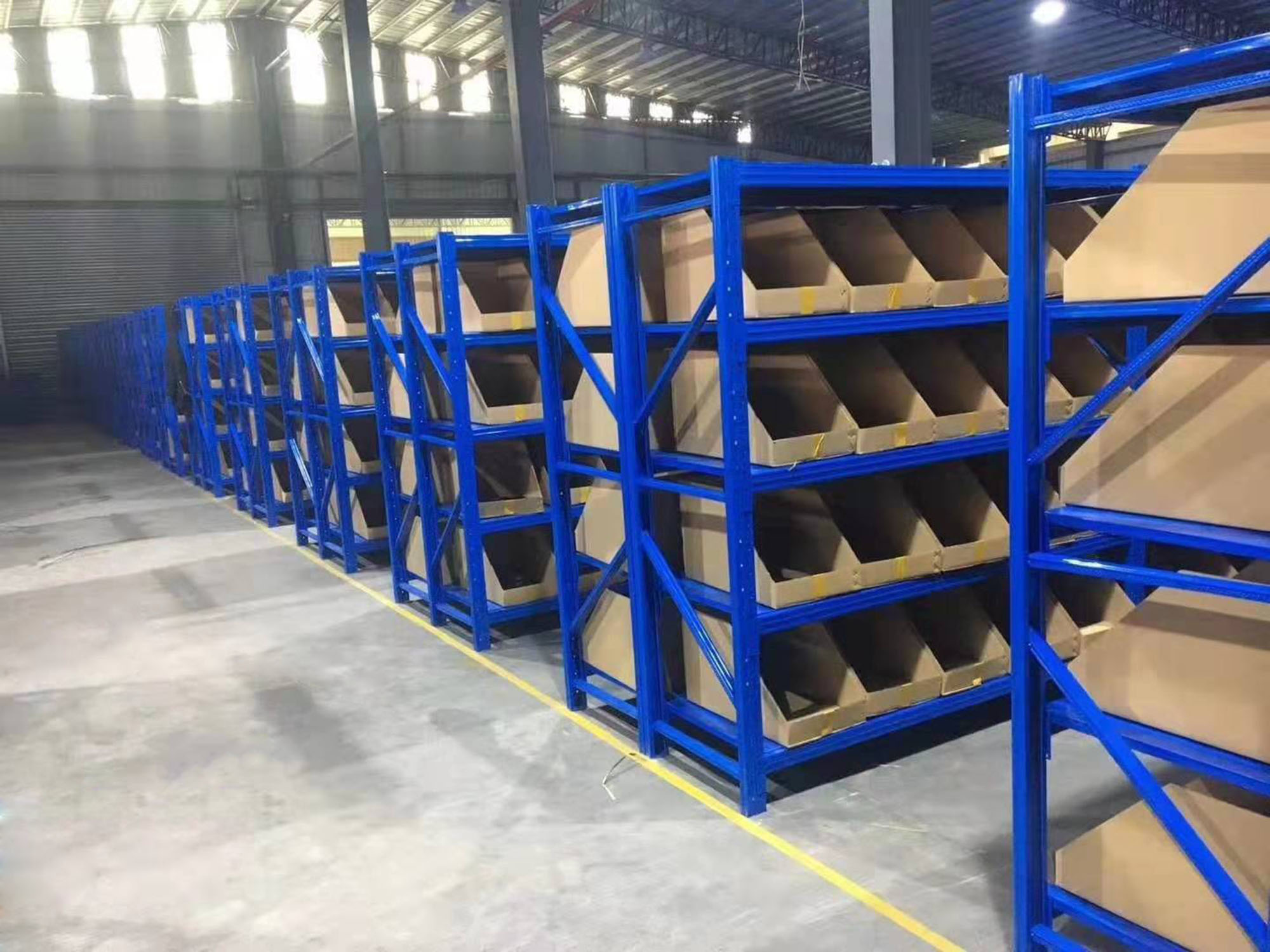

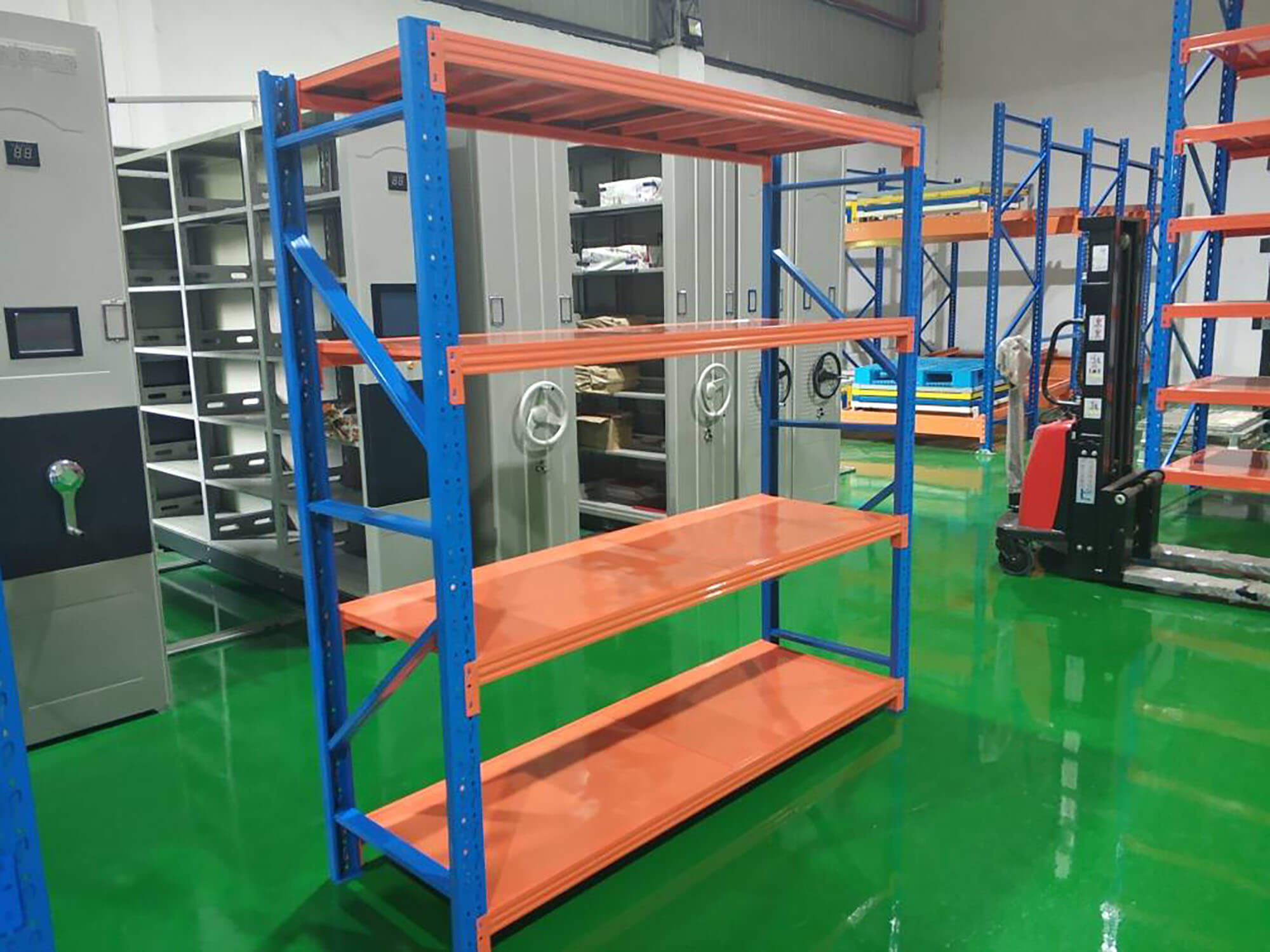

Medium duty rack/shelf belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is a "P" type beam, whose height matches with that of the layer board.
Remark:
Color: Blue, white and orange red.
Container Loading Capacity: A 20GP container can be loaded with approximately 75 sets of main racks; a 40HQ container can be loaded with approximately 195 sets of main racks.
Packaging & Shipping Details
Category
Component
Specification Details
Qty
Unit
Start-bay (1 Set)
Upright Frame
H2000 * D600 * 75 * 35 * 0.6 mm
2
pcs
Beam
L1830 * 60 * 40 * 0.6 mm
8
pcs
Steel Board
L915 * D560 * 0.3 mm
8
pcs
Add-bay (1 Set)
Upright Frame
H2000 * D600 * 75 * 35 * 0.6 mm
1
pcs
Beam
L1830 * 60 * 40 * 0.6 mm
8
pcs
Steel Board
L915 * D560 * 0.3 mm
8
pcs
Specification Context:
Overall Dimensions: L2000 (Outside length) * D600 * H2000 mm
Configuration: 4 layers, Weight capacity: 200kg/layer
Packaging: Uprights are wrapped with air bubble film, beams and steel boards are packed in cartons. Colors: Blue, gray, and orange red.
Frequently Asked Questions
1. Q: Are you a manufacturing or trading company?
A: We are a professional racking manufacturer.
2. Q: What material is used for the racks?
A: Our material is Q235B cold rolled steel.
3. Q: What is the delivery time?
A: Generally, it is less than 15 workdays. It also depends on the order quantity and shelving design.
4. Q: What are the terms of payment?
A: 30% T/T down payment and 70% T/T before delivery.
5. Q: How can I get a quick quotation on my racking project?
A: For a quick quotation, please provide the following details:
The size of the rack: Length * Depth * Height.
Number of layers per set.
Loading capacity per beam layer.
Racking quantity needed.
6. Q: Are samples available?
A: We accept to send you free samples with freight collect.
