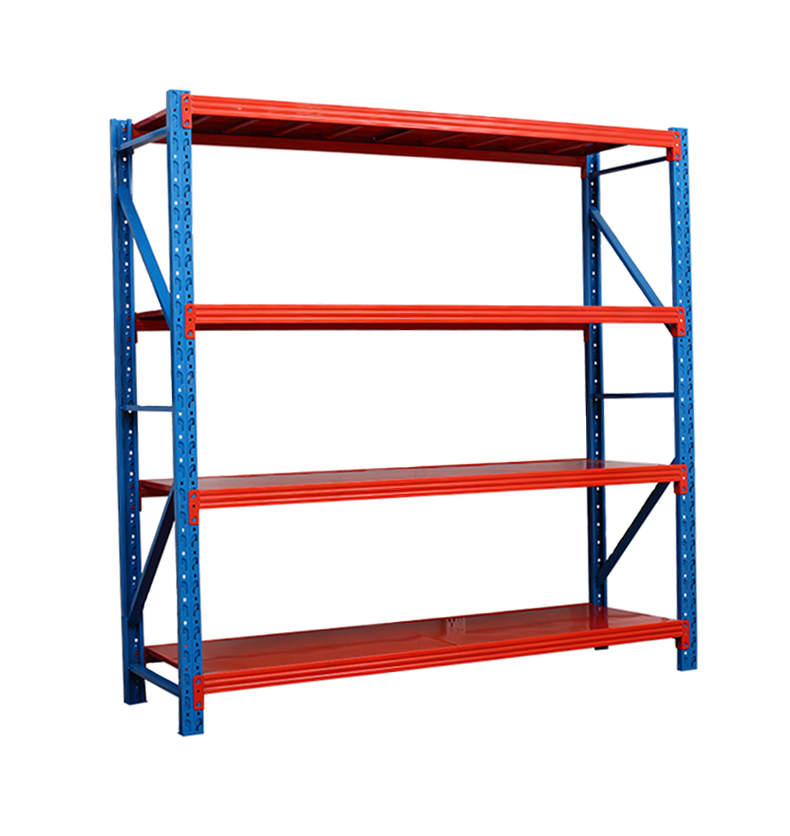

Medium duty rack/shelf belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Parameter | Details |
|---|---|
| Product Name | Medium Duty Rack/Shelf |
| Material | Q235 Cold rolled Steel |
| Standard size | L2000*D600*H2000mm |
| Loading Capacity | 200kg/layer |
| Thickness | Upright: 75*35*0.6mm; Beam: 60*40*0.6mm; Steel panel: 0.3mm |
| Color | Blue/Grey white/Orange |
| Surface Treatment | Powder Coating |
| Packing Term | Air bubble, Carton, Wooden Case. |
| MOQ | 10 sets |
| Payment Terms | T/T ; L/C |
| Delivery Time | 10-15 workday upon receipt of the deposit |
| Certification | SGS/ISO 9001 |
| Service | OEM&ODM |
| Type | Size L*W*H (mm) | Layer | Loading Capacity (kg/layer) |
|---|---|---|---|
| XM-2021 | 2000*600*2000 | 4 | 200kg, 300kg, 500kg |
| XM-2025 | 2000*500*2000 | 4 | 200kg, 300kg, 500kg |
| XM-2027 | 2000*600*2500 | 4 | 200kg, 300kg, 500kg |
| XM-2031 | 1500*500*2000 | 4 | 200kg, 300kg, 500kg |
| XM-2040 | 1200*500*2000 | 4 | 200kg, 300kg, 500kg |
Available Colors: Blue, white, and orange red.
Loading Capacity Estimation: A 20GP container can load approximately 75 sets of main racks; a 40HQ container can load approximately 195 sets of main racks.
Oversize: L2000 (Outside length) * D600 * H2000
Layers: 4 layers
Weight capacity: 200kg/layer
| Racking Type | Component Part | Dimension Specifications | Qty | Unit |
|---|---|---|---|---|
| Start-bay (1 Set) | Upright Frame | H2000*D600*75*35*0.6 | 2 | pcs |
| Beam | L1830*60*40*0.6 | 8 | pcs | |
| Steel Board | L915*D560*0.3 | 8 | pcs | |
| Add-bay (1 Set) | Upright Frame | H2000*D600*75*35*0.6 | 1 | pcs |
| Beam | L1830*60*40*0.6 | 8 | pcs | |
| Steel Board | L915*D560*0.3 | 8 | pcs |
Packaging Term: The upright frame is wrapped in air bubble film; beams and steel boards are packed in cartons.
Available Color Options: Blue, gray, and orange red.
We are a professional racking manufacturer.
Our material is Q235B cold rolled steel.
Generally less than 15 workdays. It also depends on the order quantity and shelving design.
30% T/T down payment and 70% T/T before delivery.
For a quick quotation, please let us know the following information:
1) The size of rack: Length * Depth * Height.
2) Layers per set.
3) Load capacity per beam layer.
4) Racking quantity.
We accept to send you free samples with freight collect.
