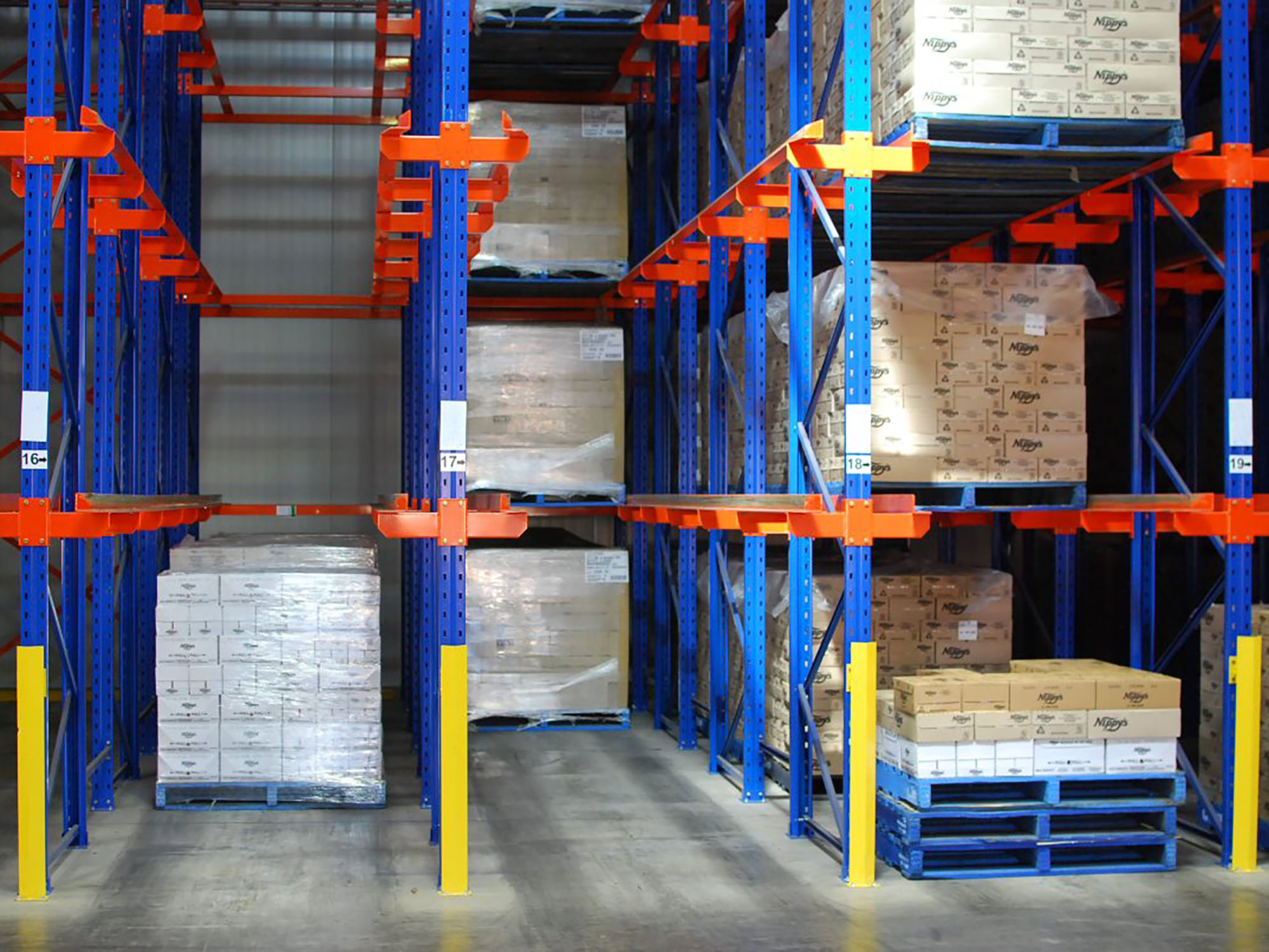

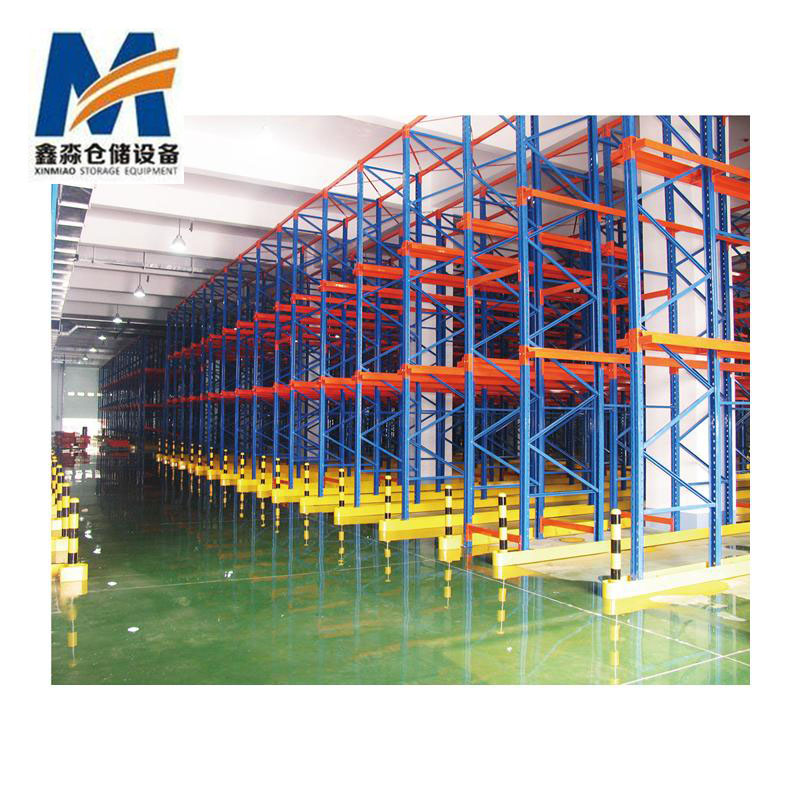

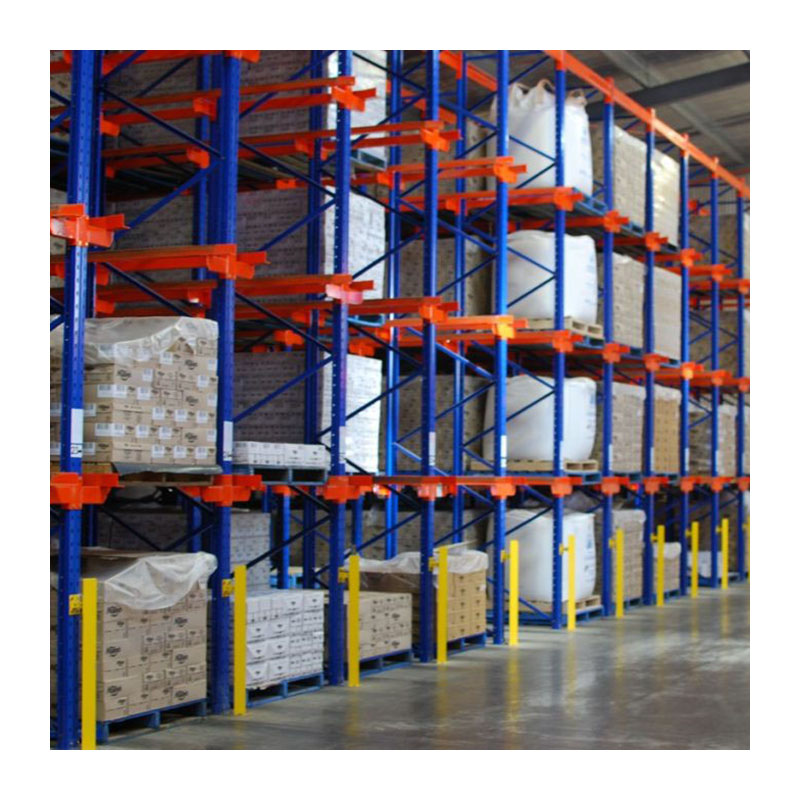

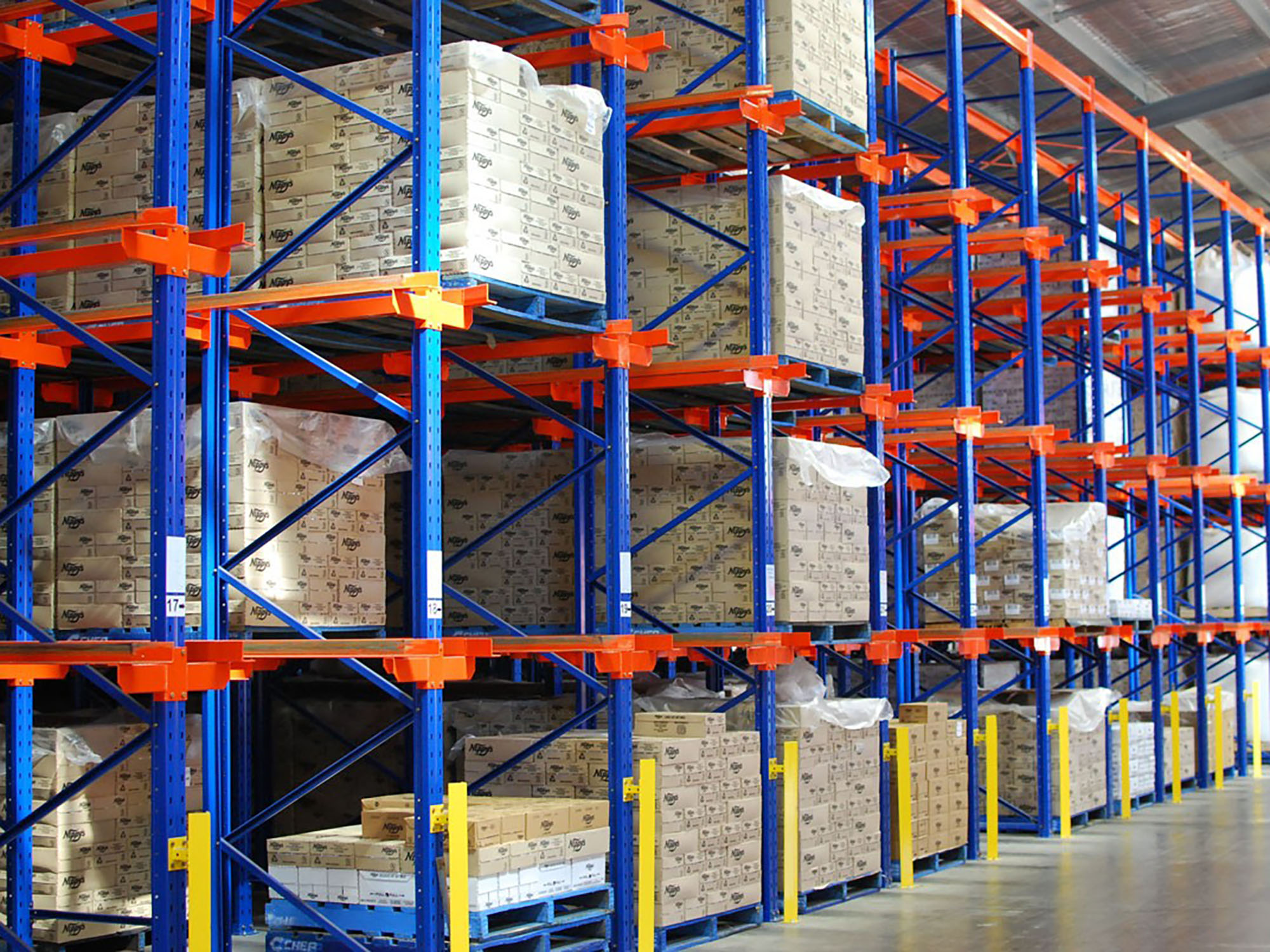

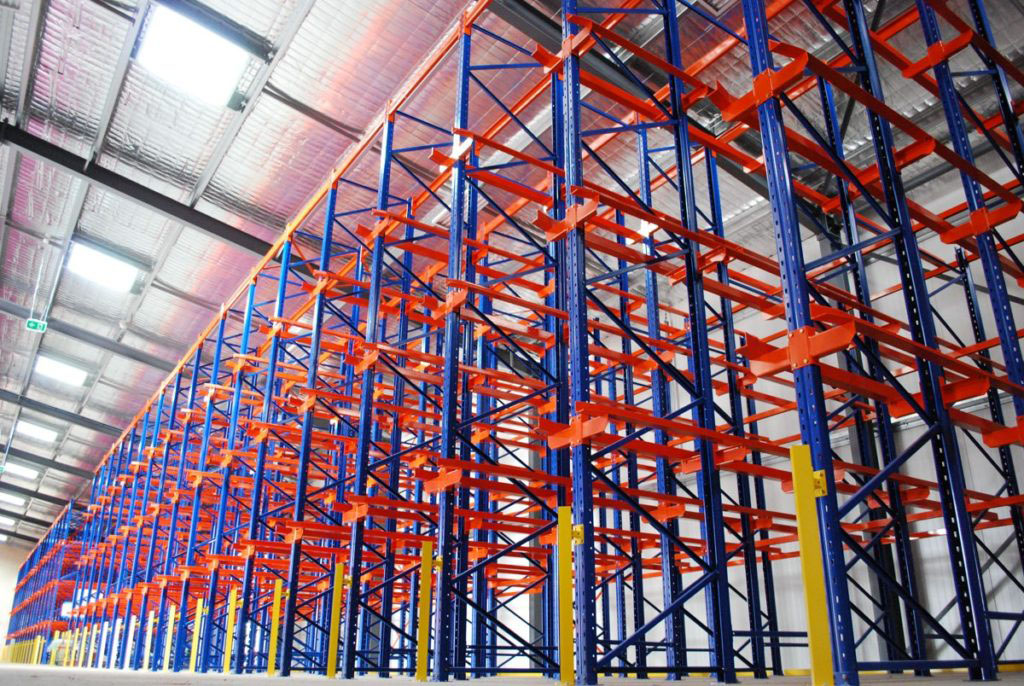

It is suitable for storing large quantity of goods with less types, goods of batched working and small range of selection. The goods are stored on the support guide rail with the pallet one after another in the direction of depth, increasing the storage density and space availability. It is quite convenient for fork truck drives into lane directly to store or take out the goods.
| Specifications | Details |
|---|---|
| Loading Weight | 800~1000kg/pallet; Height: 1500-8000mm, Wide/Depth: 1000-1500mm, Length: 1500-3200mm. Special size also available to specific storage needs. |
| Main Parts Specs |
Upright section: 90*65, 120*65, 1.5, 2.0mm; Beam Section: box beam 80*45/100*45/120*45/140*45/160*45, etc, Thickness: 1.0/1.2/1.5mm, etc; Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Material | High-quality cold rolled steel, Q235 |
| Package Term | Air bubble pack, PE stretch film for keeping free from scratch |
Lift trucks can enter the rack from only one side.
Lift trucks can enter from both sides or a row of racks. The center of the rack row is stabilized by a beam.
