Mracking Prefab Modular Metal Mezzanine Platform Customizable Warehouse Steel Mezzanine Floor System Supplier

📋 Product Description

⚙️ Design & Structure: H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel. Usually we use the steel panel or MDF panel for the mezzanine floor, there are also with staircase and guardrail. Match with the cargolift for high efficiency.

📦 Application: It is suitable for the higher warehouse, large loading capacity, longer span and large storage, it will make full use of the space, converting one warehouse to function as two. Widely used for electronics products, hardware, communication, and printing, etc.

🔧 Technical Specifications

Raw-Material	High-Quality Q235 Cold rolled steel
Color	Upright frame is blue, Beam is orange, can be customized.
Height	Customized
Wide / Depth	Customized
Length	Customized
Loading Capacity	200 ~ 5000kg per sqm
Treatment Surface	Powder coated
Packing Term	Air bubble, Wooden Case, etc.

🔩 Structural Connections

🔹 Upright & Main Beam Connection

Both of them are made of robust H-steel, ensuring high loading capacity and long spans.

The major beams are connected securely by connector pieces on each side to make the overall structure highly stable.

🔹 Support Beam & Main Beam Connection

These components are connected firmly using a heavy-duty hanging piece.

The hanging piece is welded directly onto the main beam, significantly increasing the structural stability of the major beam.

🔹 Steel Panel & Guardrail Connection

The steel panel and support beam are connected securely using dedicated hooks for maximum stability.

The guardrail hangs directly on the main beam without requiring holes on the beam, avoiding any structural degradation.

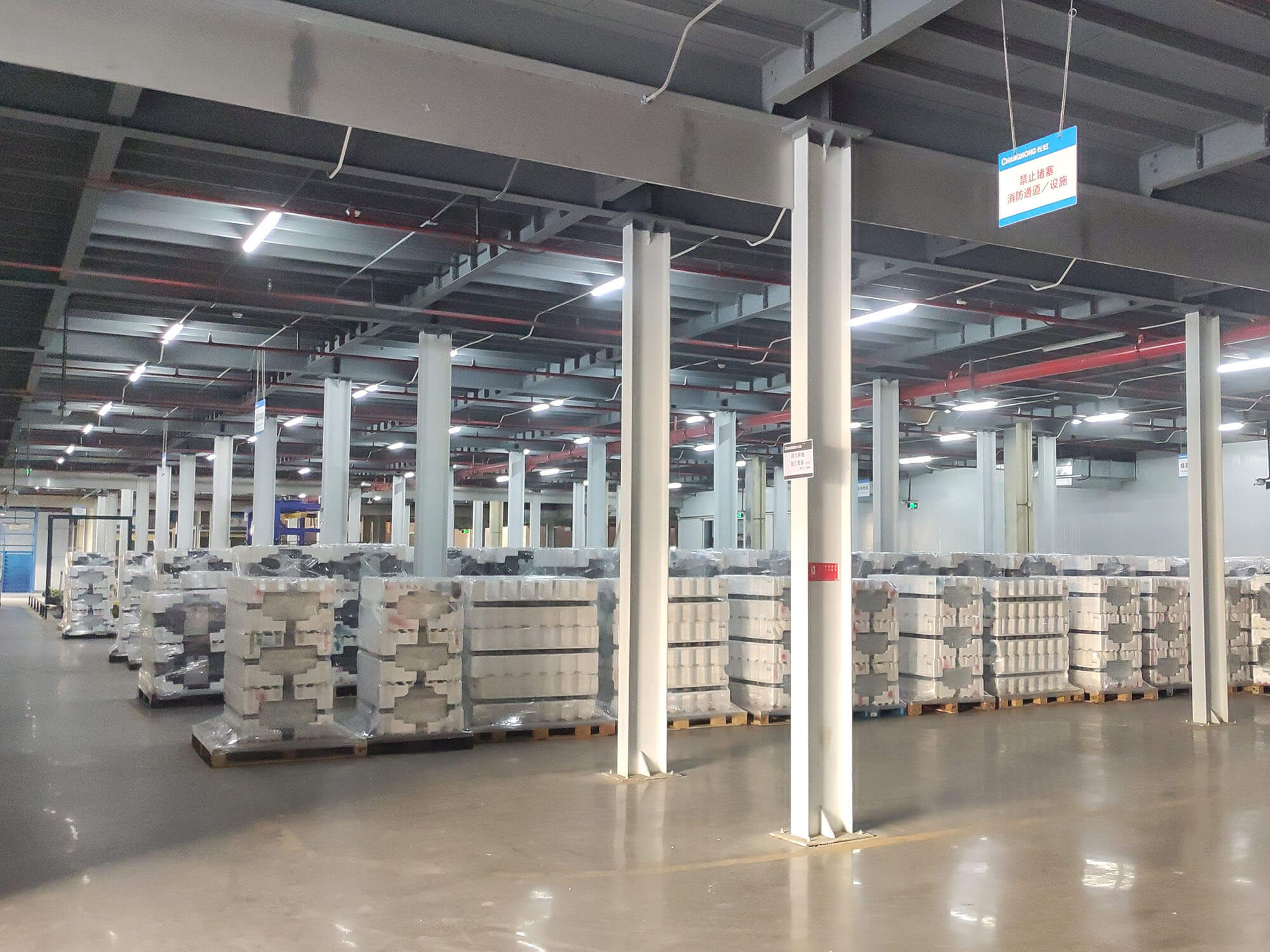

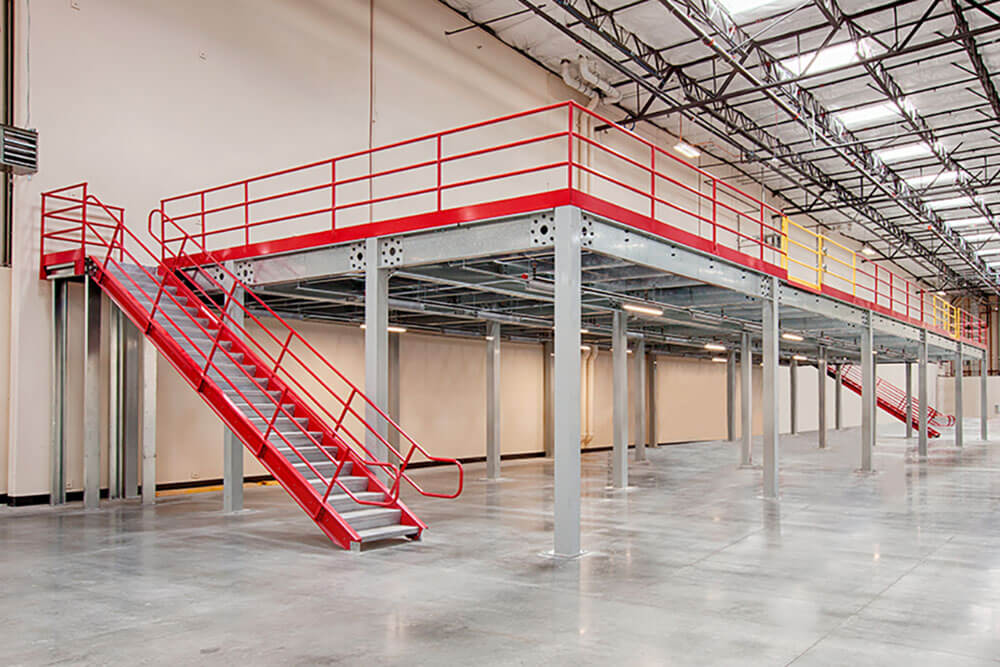

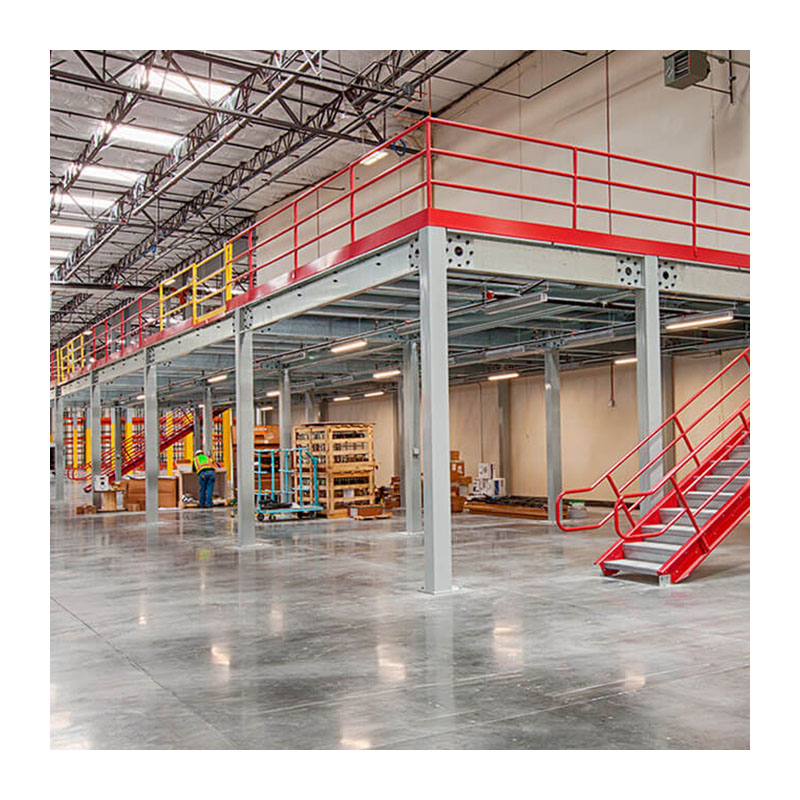

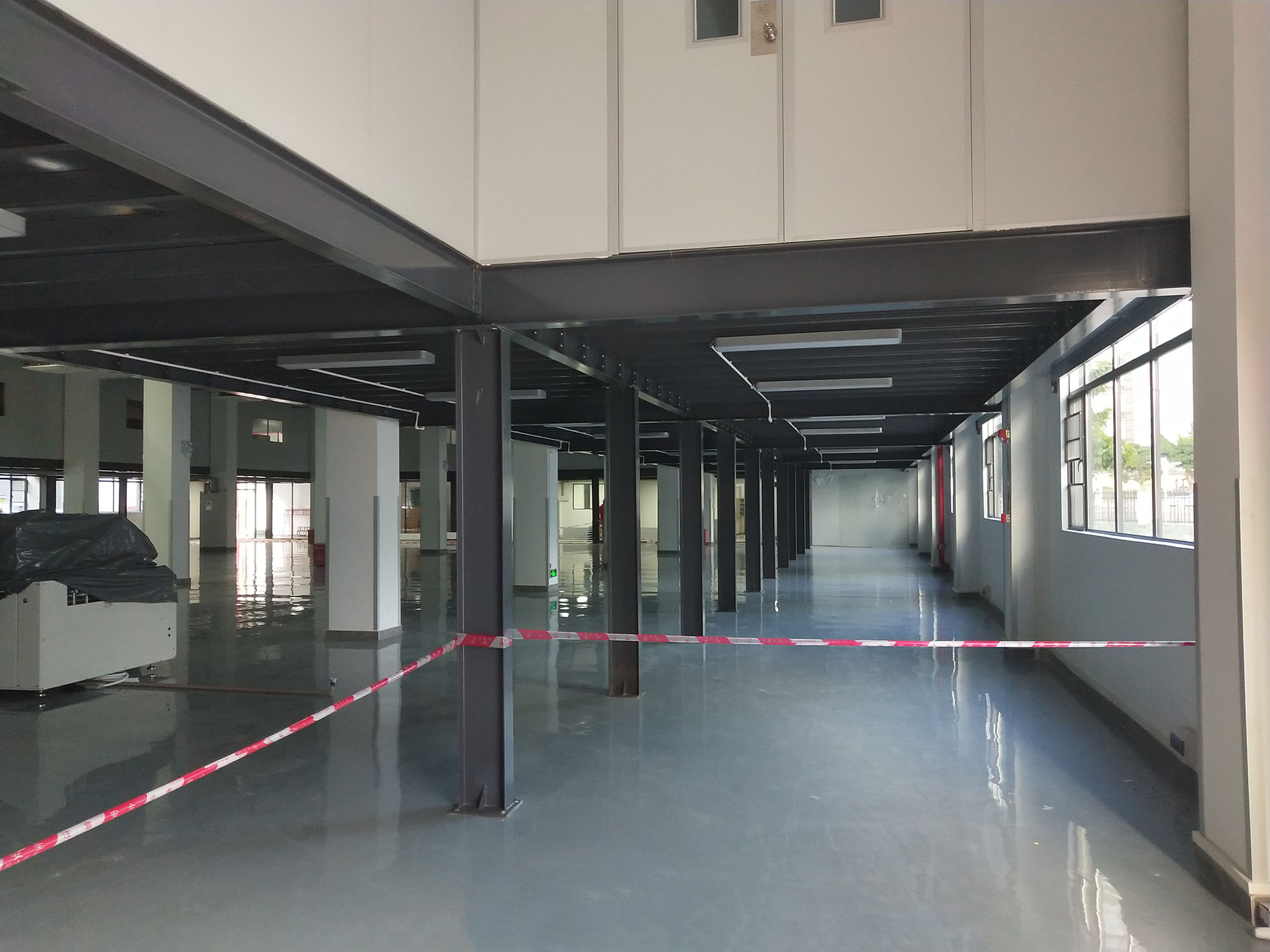

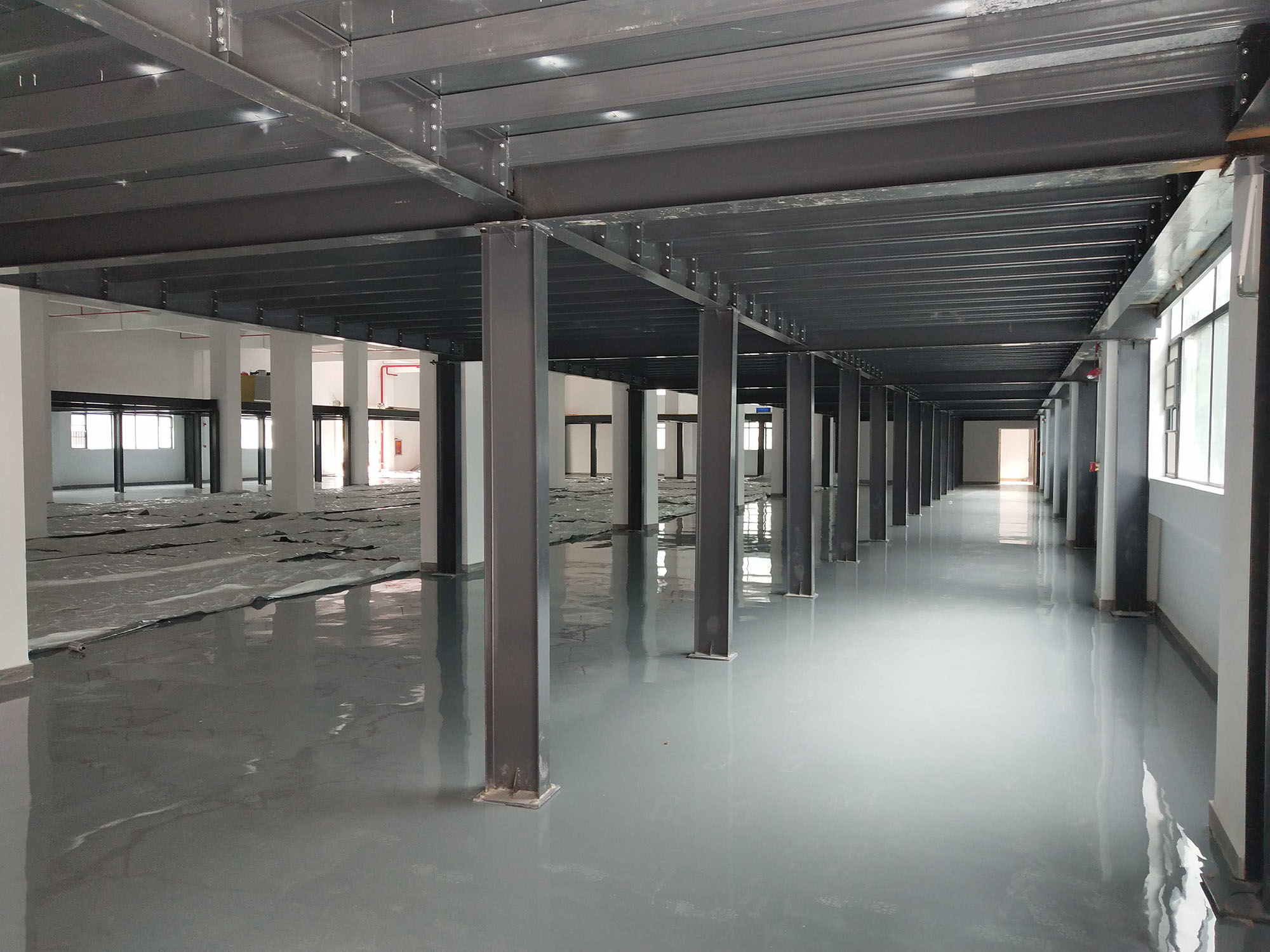

📸 Detailed Images

🏢 Product Overviews

🔥 Hot Sale Products

Heavy Duty Pallet Racking

Medium Duty Rack

Mould Rack

Cantilever Rack

Mezzanine Floor

Wire Mesh Container

❓ Frequently Asked Questions

💬 Q1: Are you a manufacturing or trading company?

A: We are a professional racking manufacturer.

💬 Q2: What is the raw material used for the racks?

A: Our standard raw material is Q235B cold rolled steel.

💬 Q3: What is the typical delivery time?

A: Generally, it takes less than 15 working days. It also depends on the order quantity and specific shelving design.

💬 Q4: What are the payment terms?

A: Our standard payment terms are 30% T/T down payment and 70% T/T before delivery.

💬 Q5: How can I request a quick quotation for my racking project?

A: For a quick quotation, please provide the following details:
1) The size of rack (Length * Depth * Height)
2) Number of layers per set
3) Load capacity per beam layer
4) Total racking quantity

💬 Q6: Do you provide free samples?

A: Yes, we accept to send you free samples with freight collect.
