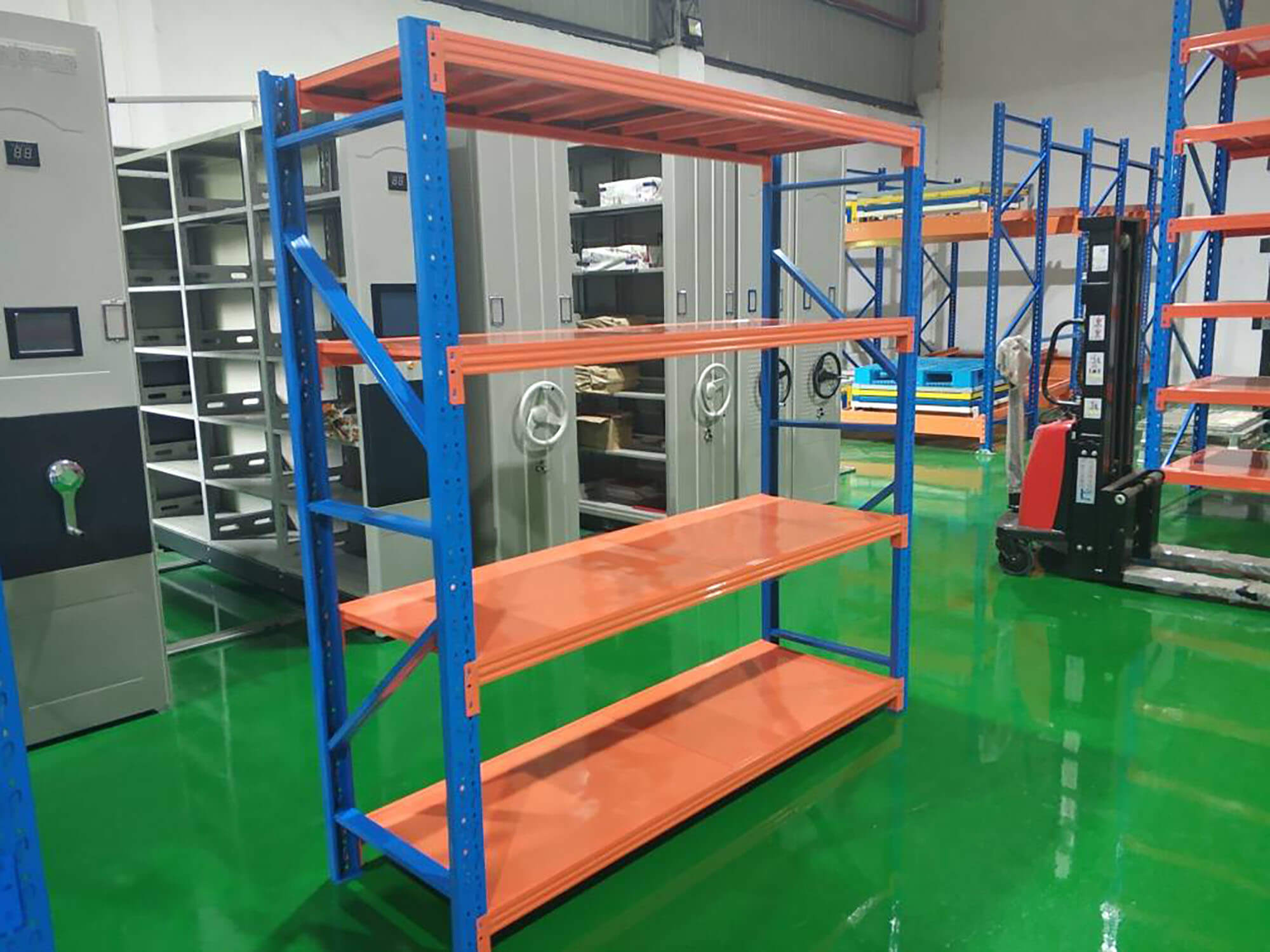

Medium duty rack/shelf belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is a "P" type beam, whose height matches with that of the layer board.
| Parameter | Details | ||
|---|---|---|---|
| Product Name | Medium Duty Rack/Shelf | ||
| Material | Q235 Cold rolled Steel | ||
| Standard Size | L2000*D600*H2000mm | ||
| Loading Capacity | 200kg/layer | ||
| Thickness | Upright: 75*35*0.6mm; Beam: 60*40*0.6mm; Steel panel: 0.3mm | ||
| Color | Blue / Grey white / Orange | ||
| Surface Treatment | Powder Coating | ||
| Packing Term | Air bubble, Carton, Wooden Case | ||
| MOQ | 10 sets | ||
| Payment Terms | T/T ; L/C | ||
| Delivery Time | 10-15 workday upon receipt of the deposit | ||
| Certification | SGS/ISO 9001 | ||
| Service | OEM & ODM |
| Type | Size L*W*H (mm) | Layer | Loading Capacity (kg/layer) | Remark |
|---|---|---|---|---|
| XM-2021 | 2000*600*2000 | 4 | 200kg, 300kg, 500kg |
Color: Blue, white and orange red. Loading: - 20GP can load approx. 75 sets of main racks. - 40HQ can load approx. 195 sets of main racks. |
| XM-2025 | 2000*500*2000 | 4 | 200kg, 300kg, 500kg | |
| XM-2027 | 2000*600*2500 | 4 | 200kg, 300kg, 500kg | |
| XM-2031 | 1500*500*2000 | 4 | 200kg, 300kg, 500kg | |
| XM-2040 | 1200*500*2000 | 4 | 200kg, 300kg, 500kg |
| Specification Information As Follow | Remarks | ||||
|---|---|---|---|---|---|
|
Oversize: L2000 (Outside length) * D600 * H2000 Layers: 4 layers, Weight capacity: 200kg/layer |
Packaging Term: Upright frame is protected with air bubble film. Beams and steel boards are packed in cartons. Available Colors: Blue, Gray, and Orange Red. |
||||
| Start-bay Component List | Qty | Unit | Set Total | ||
| Upright Frame | H2000 * D600 * 75 * 35 * 0.6 | 2 | pcs | 1 Set | |
| Beam | L1830 * 60 * 40 * 0.6 | 8 | pcs | ||
| Steel Board | L915 * D560 * 0.3 | 8 | pcs | ||
| Add-bay Component List | Qty | Unit | Set Total | ||
| Upright Frame | H2000 * D600 * 75 * 35 * 0.6 | 1 | pcs | 1 Set | |
| Beam | L1830 * 60 * 40 * 0.6 | 8 | pcs | ||
| Steel Board | L915 * D560 * 0.3 | 8 | pcs | ||
We are a professional racking manufacturer.
Our material is Q235B cold rolled steel.
Generally, it is less than 15 workdays. It also depends on the order quantity and shelving design.
30% T/T down payment and 70% T/T before delivery.
Quality is our priority. We strictly carry out quality management and hold ISO 9001 certification.
