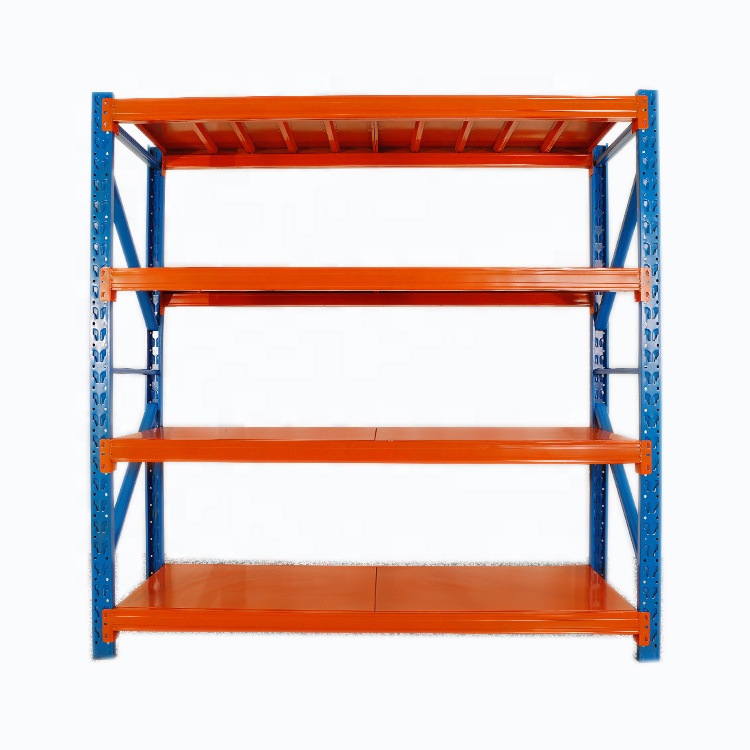

Overview Medium duty rack/shelf belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Parameter Details | |
|---|---|
| Product Name | Medium Duty Rack/Shelf |
| Material | Q235 Cold rolled Steel |
| Standard Size | L2000*D600*H2000mm |
| Loading Capacity | 200kg/layer |
| Thickness | Upright: 75*35*0.6mm; Beam: 60*40*0.6mm; Steel panel: 0.3mm |
| Color | Blue / Grey white / Orange |
| Surface Treatment | Powder Coating |
| Packing Term | Air bubble, Carton, Wooden Case |
| MOQ | 10 sets |
| Payment Terms | T/T ; L/C |
| Delivery Time | 10-15 workdays upon receipt of the deposit |
| Certification | SGS / ISO 9001 |
| Service | OEM & ODM |
| Type | Size L*W*H (mm) | Layer | Loading Capacity (kg/layer) |
|---|---|---|---|
| XM-2021 | 2000*600*2000 | 4 | 200kg, 300kg, 500kg |
| XM-2025 | 2000*500*2000 | 4 | 200kg, 300kg, 500kg |
| XM-2027 | 2000*600*2500 | 4 | 200kg, 300kg, 500kg |
| XM-2031 | 1500*500*2000 | 4 | 200kg, 300kg, 500kg |
| XM-2040 | 1200*500*2000 | 4 | 200kg, 300kg, 500kg |
• Color: Blue, white and orange red;
• Container Capacity: 20GP can load about 75 sets of main racks; 40HQ can load about 195 sets of main racks.
PACKAGING INFORMATION DETAILS
Packing Size: L2010*W610*H155 mm
Packing Size: L1910*W195*H235 mm
Packing Size: L950*W580*H210 mm
We are a professional racking manufacturer.
Our material is Q235B cold rolled steel.
Generally less than 15 workdays. It also depends on the order quantity and shelving design.
30% T/T down payment and 70% T/T before delivery.
Quality is priority. We hold ISO 9001 and SGS certifications.
