| Standards Size | Layer | Loading Weight | Bearing | Upright (mm) | Thickness of Board (mm) |
|---|---|---|---|---|---|
| L3100*D600*H2000 | 4 | 1000kg/drawer | Model 6403 | 100*40*4 | 2.0 |

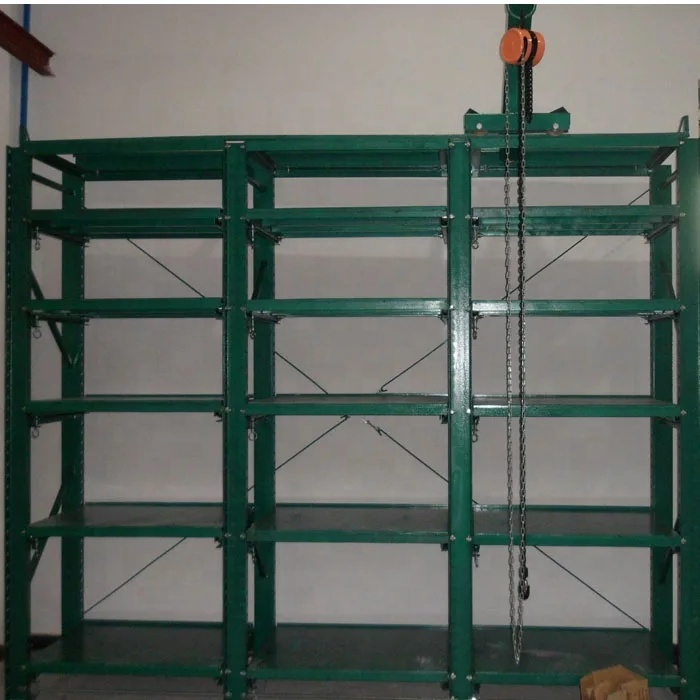

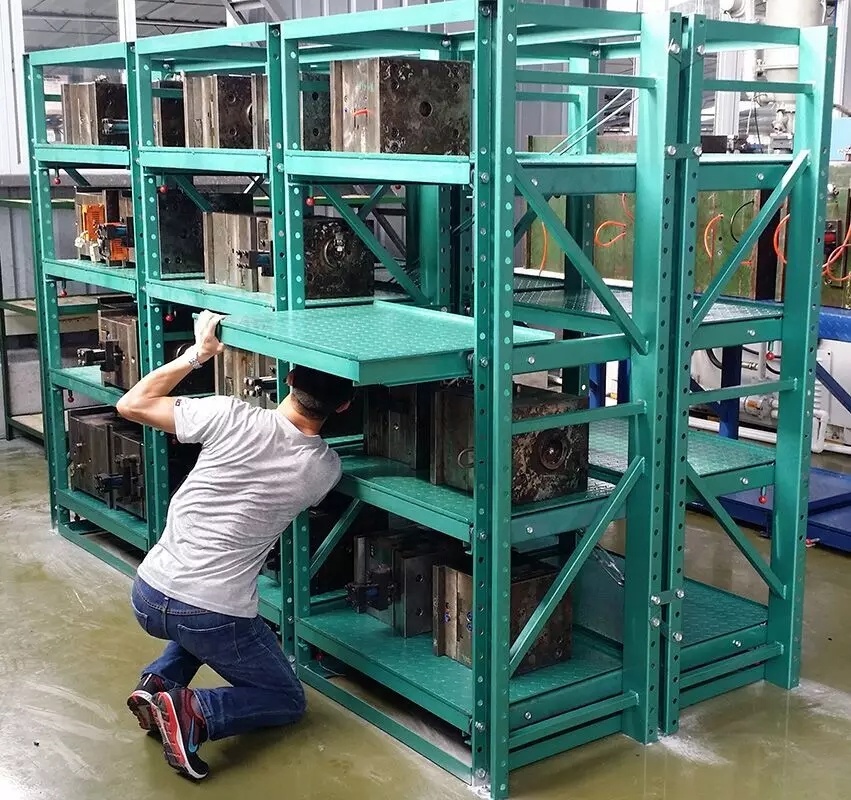

| Product | Mold Rack |
|---|---|
| Material | High-Quality Channel Steel |
| Size | L3100*D600*H2000 |
| Color | Green (Customizable to any color) |
| Loading Capacity | 1000KG/drawer |
| Surface Treatment | Powder coated |
| Packing | Air bubble |
| Feature |

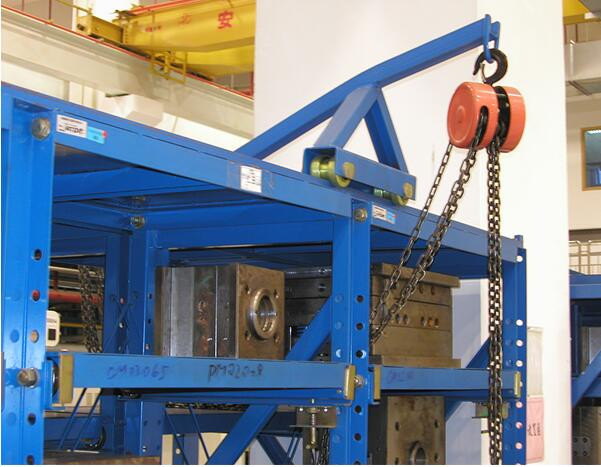

• Easy to remove the shelf boards; vertical spaces are adjustable. • Each group has pulley and handy-lift hoist block for easy storage and unloading of molds, ensuring safety and precise positioning. • Each section can store several sets of molds, convenient for maintenance, management and locating of molds without occupying extra space. |
|---|---|
| Technological Specs |
• Post adopts 10# channel steel, diagonal brace of post is 25*25 square meters. • Rack of backing plate is 50*50 angle iron; board size of backing plate is 2mm iron plate. • Sliding chute is made of folding 4mm iron plate. • Bearing capacity: 800-1000kg/backing plates. |
| Material | High-quality cold-rolled steel Q235 |
| Color Options | Standard color is green. Customizable to any color. |
| Packaging Term | Foam, wooden case as required for drawer mould racks. |
| Delivery Time | Goods delivered within 15 days. |
We are a professional enterprise specializing in the research, development, manufacture, sales, and installation of warehouse racking systems and related warehouse equipment. Backed by advanced manufacturing machinery, professional processing techniques, and a comprehensive service system, we fulfill standard and highly customized design requests for global customers.
Our main product range includes: light duty racks, medium duty racks, heavy duty racks, mezzanine floors, cantilever racks, drive-in racks, mobile racks, drawer-type mold racks, wire mesh containers, logistics carts, and related handling equipment. We pursue design excellence and operate on the principle of "quality first, integrity foremost," ensuring maximum storage capacity and organization within limited warehouse footprints.
