| Type | Size L*W*H (mm) | Layer | Loading Capacity (kg/layer) |
|---|---|---|---|
| XM-2021 | 2000 * 600 * 2000 | 4 | 200kg, 300kg, 500kg |
| XM-2025 | 2000 * 500 * 2000 | 4 | 200kg, 300kg, 500kg |
| XM-2027 | 2000 * 600 * 2500 | 4 | 200kg, 300kg, 500kg |
| XM-2031 | 1500 * 500 * 2000 | 4 | 200kg, 300kg, 500kg |
| XM-2040 | 1200 * 500 * 2000 | 4 | 200kg, 300kg, 500kg |
Color options: Blue, white, and orange red.
Loading capacity estimation: 20GP container can load approximately 75 sets of main racks; 40HQ container can load approximately 195 sets of main racks.
Oversize: L2000 (Outside length) * D600 * H2000
Layers: 4 layers | Weight capacity: 200kg/layer

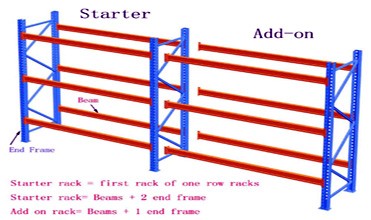

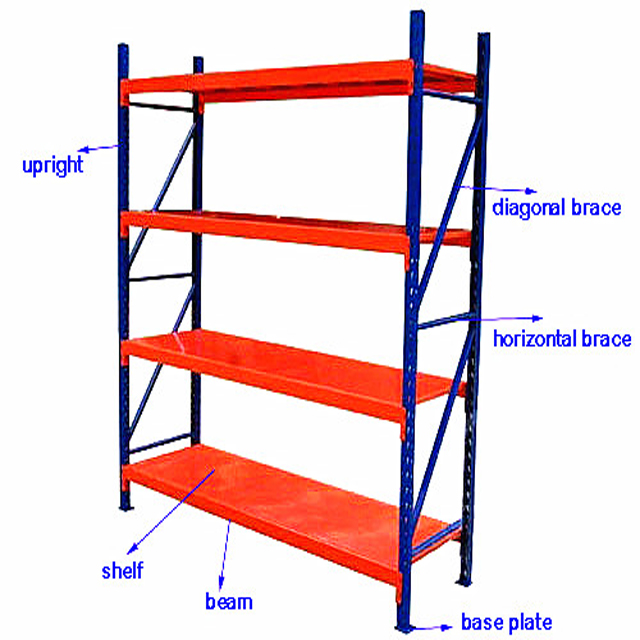

| Structure Type | Component | Dimensions (mm) | Qty | Unit |
|---|---|---|---|---|
| Start-bay (1 Set) | Upright Frame | H2000 * D600 * 75 * 35 * 0.6 | 2 | pcs |
| Beam | L1830 * 60 * 40 * 0.6 | 8 | pcs | |
| Steel Board | L915 * D560 * 0.3 | 8 | pcs | |
| Add-bay (1 Set) | Upright Frame | H2000 * D600 * 75 * 35 * 0.6 | 1 | pcs |
| Beam | L1830 * 60 * 40 * 0.6 | 8 | pcs | |
| Steel Board | L915 * D560 * 0.3 | 8 | pcs | |
| Extra Part | Steel Board | L915 * D560 * 0.3 | 8 | pcs |
Packaging Term: Upright frame wrapped with air bubble film. Beams and steel boards packed in secure cartons.
Color Options: Blue, gray, and orange red.
A: We are a factory.
A: Our factory is located in China. You can fly to nearby airports directly, and we warmly welcome all clients from home or abroad to visit us!
A: The material is Q235 Cold rolled steel. We can also select customized material options according to your requirements.
A: We are honored to offer you samples of our shelving products.
A: Quality is our main priority. We always attach great importance to quality control from the very beginning to the very end. Our factory is certified with ISO9001 and SGS authentication.
A: Standard component colors include blue, white, gray, and orange red.
