XINMIAO Heavy Duty Rack Storage Equipment

Product Description

Heavy Duty Rack Showcase
Heavy Duty Rack

Heavy duty rack is hooking structured, easy to dismount and install. It can be adjusted by each 75mm based on the goods height, and can load 800-3000kg/layer. Steel plate, wood plate, and MDF can be chosen as the layer board. This kind of rack is an ideal storage rack for small and medium-sized warehouses for its advantages of appropriate height and convenience in accessing goods.

Technical Specifications
Raw-Material High-Quality Q235 Cold rolled steel
Color Upright frame is blue, Beam is orange, can be customized.
Standards Size L2300*D1000*H4500 and size can be customized according to your requirement
Height 1500-8000mm or Customized;
Wide/Depth 400-1500mm or Customized;
Length 1500-3200mm or Customized;
Upright-Section 80*60*1.5/1.8/2.0mm, 90*65*1.5/1.8/2.0mm, 100*70*2.0/2.5mm, 120*95*2.0/2.5mm etc
Loading Capacity 1000~6000kgs or 2200~13200lbs
Beam-Section 80*45mm, 100*45mm, 120*45mm, 140*45mm, 160*45mm, 180*45mm etc.
Treatment Surface Powder coated
Packing Term Air bubble, Wooden Case, etc.
Key Features
  • Pallets can be located, accessed and moved individually.
  • Rapid handling of almost all types of palletized goods.
  • The loading capacity per level of such rack may reach 5000KG.
  • Bottom level of pallets can be stored on the floor, lowering structure costs.
  • Durable powder coated finish, clean appearance, fire proof.
  • Height of level can be adjusted by 75mm.
  • Widely used in manufacturing, Third-Party Logistics, and Distribution centers, etc. Applies to multi-varieties/small batch goods, and few varieties/big batch goods.
Beam Loading Capacity & Size
Beam Loading Capacity and Size Chart
Detailed Images
Detailed Racking Components
Upright & Beam Installed
Upright & Beam Installed
Box Beam
Box Beam
Upright
Upright
Racking Profile Detail
What's Start-bay and Add-bay?
  • Start-bay = First rack of one row racks
  • Start-bay = 2 end frames + Beams
  • Add-bay = 1 end frame + Beams
Start-bay and Add-bay Diagram

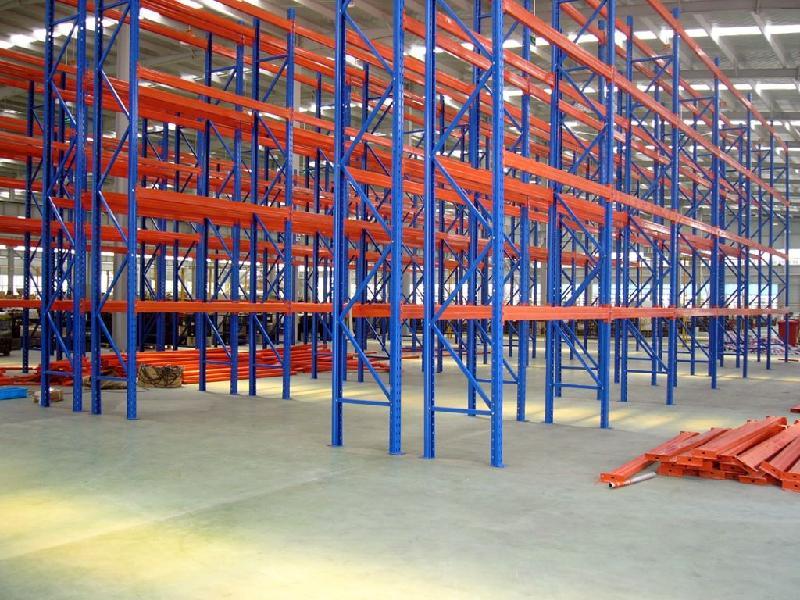

Warehouse Racking View 1

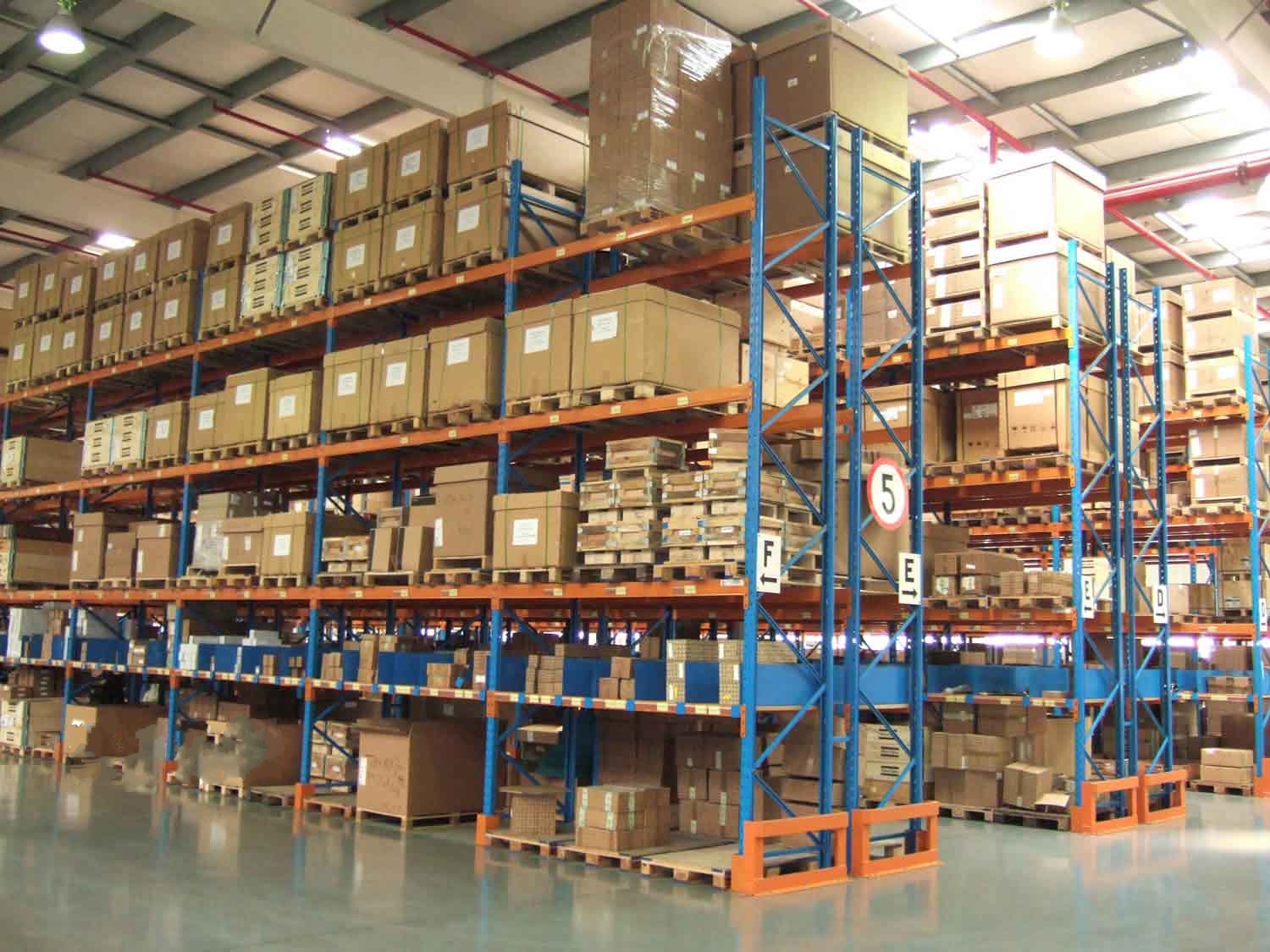

Warehouse Racking View 2
Installation Drawing
Installation Drawing Blueprint
Color Options As Requested
Color Customization Options
Packaging & Shipping
Packing Process 1
Packing Process 2
Packing Process 3
Packing Process 4
Shipping Preparation 1
Shipping Preparation 2
Hot Sale Products
Hot Sale Rack Style 1
Hot Sale Rack Style 2
Hot Sale Rack Style 3
Hot Sale Rack Style 4
Hot Sale Rack Style 5
Hot Sale Rack Style 6
Frequently Asked Questions
Are you a factory or trading company?
We are a factory dedicated to the design and manufacture of high-quality storage equipment.
What material is used for your products?
The raw material is high-quality Q235 cold-rolled steel. We can also select materials based on custom requirements.
How can I obtain product samples?
We are honored to offer you samples for testing and quality evaluation. Please feel free to contact us.
How does your factory handle quality control?
Quality is always the highest priority. We attach great importance to strict quality control processes from the very beginning to the end. Our factory holds ISO9001 and SGS certifications.
Can the size and color of the racks be customized?
Yes, both sizes (length, depth, height) and colors (standard upright is blue, beam is orange) can be customized to match your specific warehouse layout and workflow.
What is the standard loading capacity of these heavy duty racks?
The standard loading capacity ranges from 1000kg to 6000kg (2200 to 13200 lbs) per level, depending on the chosen configuration and beam selection.
