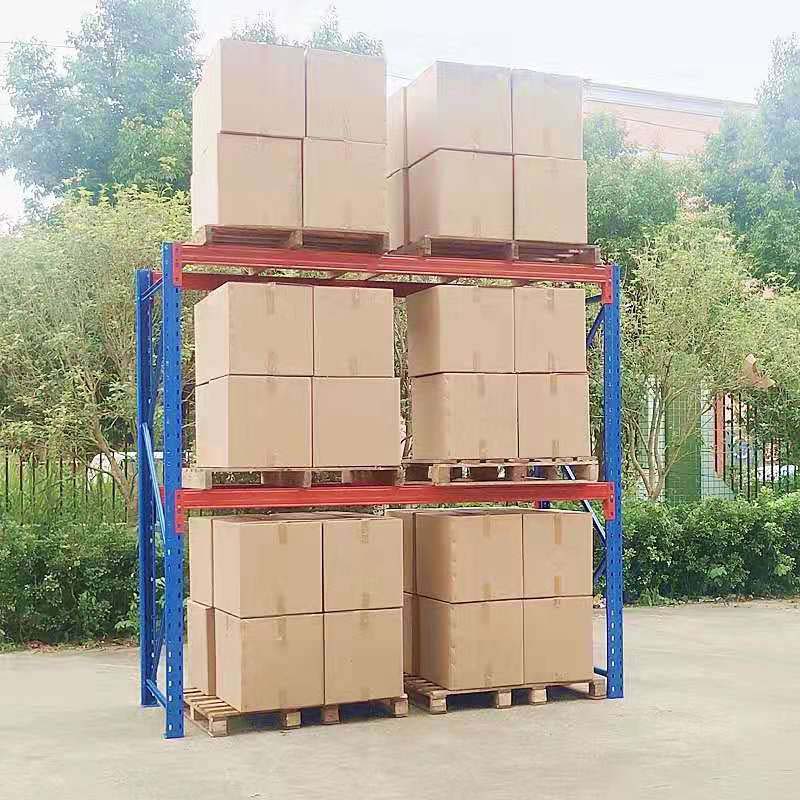

Powder Coating Locked Safety Pins Upright Frame Box Beam Heavy Duty Pallet Rack

Heavy Duty Rack Overview

Heavy duty rack is hooking structured, easy to dismount and install. It can be adjusted by each 50mm based on the goods height, and can load 800-3000kg/layer. Steel plate, wood plate, and MDF can be chosen as the layer board. This kind of rack is an ideal storage rack for small and medium-sized warehouses due to its height adjustability and convenience in accessing goods.

Key Specifications

■ Product Name: Heavy Duty Rack
■ Loading Capacity: 800 - 4000 kg / level
■ Specification: Fully Customized
■ Shelf Board: Without / Plywood / Steel Board / Wire Mesh
■ Material: High-quality Q235 Hot Rolled Steel
■ Surface Treatment: Powder Coated
■ Packing: Air Bubble / Carton Packaging

Technical Specifications & Design parameters

Category	Details & Guidelines
Safety Guidelines	• Avoid being top-heavy: lighter goods should go on higher levels, while heavier loads go on lower levels. • Avoid overloading: actual weight per layer must not exceed the maximum load capacity. • Avoid impact: forklift operators should handle pallets gently to prevent collision with columns.
Load & Size Parameters	• Loading Weight: 800 - 1000 kg / pallet. • Height: 1500 - 8000 mm \| Width/Depth: 1000 - 1500 mm \| Length: 1500 - 3200 mm. • Special sizes available for specific storage applications.
Main Component Specs	• Upright Sections: 9065 / 12065 (Thickness: 1.5mm, 2.0mm). • Beam Sections: Box beam sizes include 8045 / 10045 / 12045 / 14045 / 160*45 (Thickness: 1.0 - 1.5mm). • Complete set includes horizontal & diagonal braces, upright footplates, safety locking pins, bolts, nuts, and anchors.
Material Specification	High-quality cold rolled steel, grade Q235.
Delivery & Lead Time	Shipment within 15 days upon order confirmation.
Packaging Standard	Air bubble pack and PE stretch film to keep parts clean and scratch-free.

Key Features & Applications

Widely used in manufacturing, third-party logistics (3PL), and distribution centers, suitable for both multi-variety/small-batch and few-variety/high-volume storage.
Cost-effective solution that is safe, reliable, and convenient to assemble or disassemble.
Ideal for manual loading operations or with parts bins, turnover boxes, and standard palletized loads.
Commonly utilized in industrial warehousing, commercial logistics, and inventory depots.

Beam Loading Capacity & Dimensions

Product Structural Details

Box Beam

Upright & Beam Connection

Frame

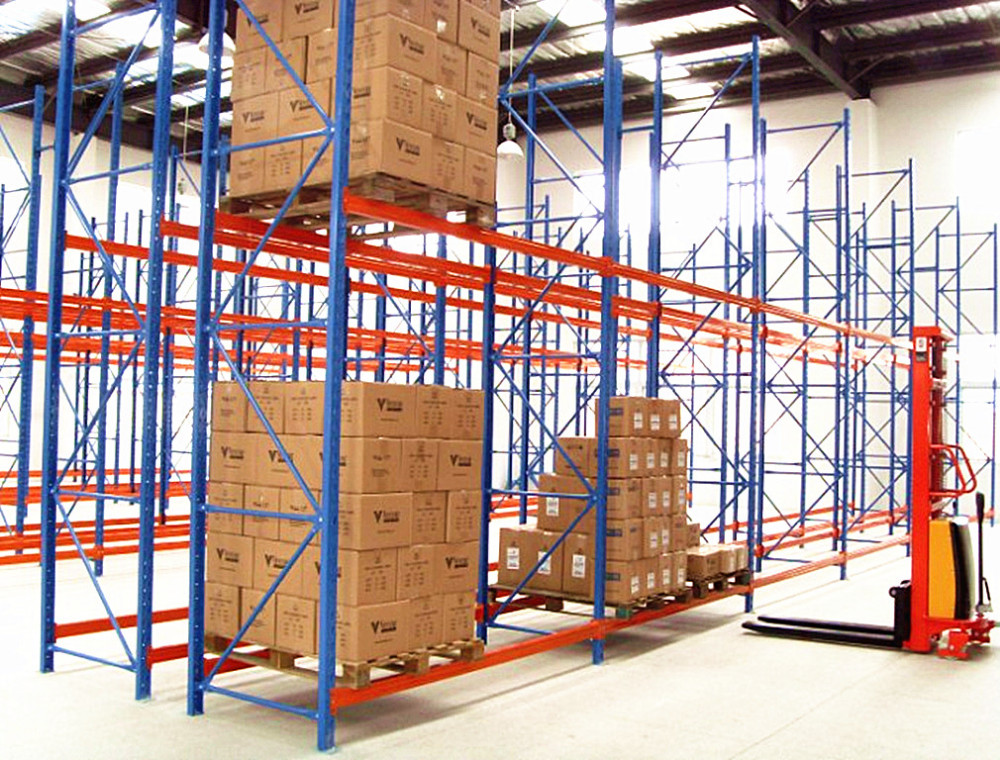

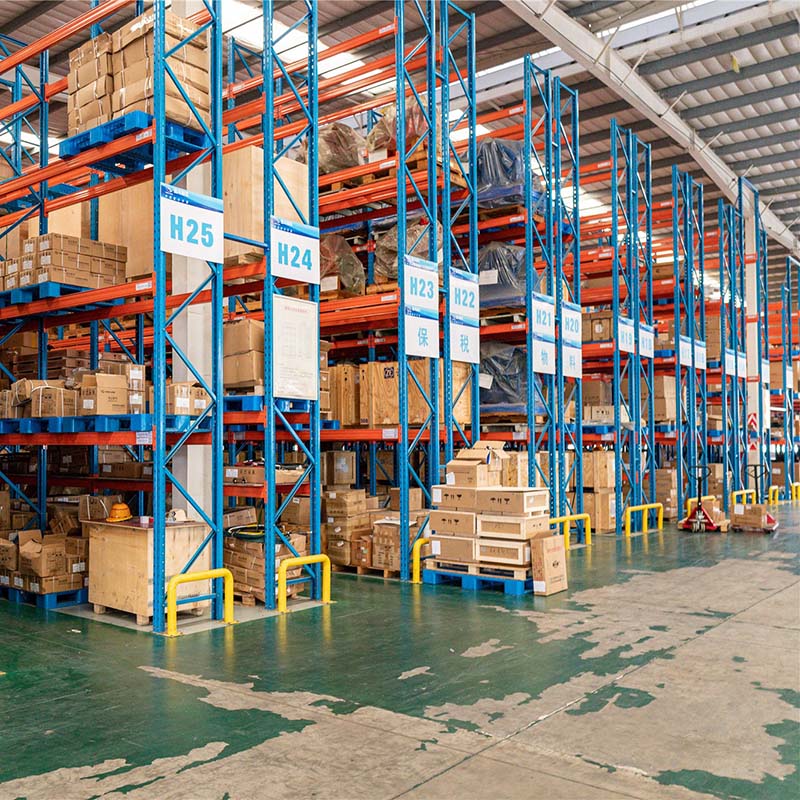

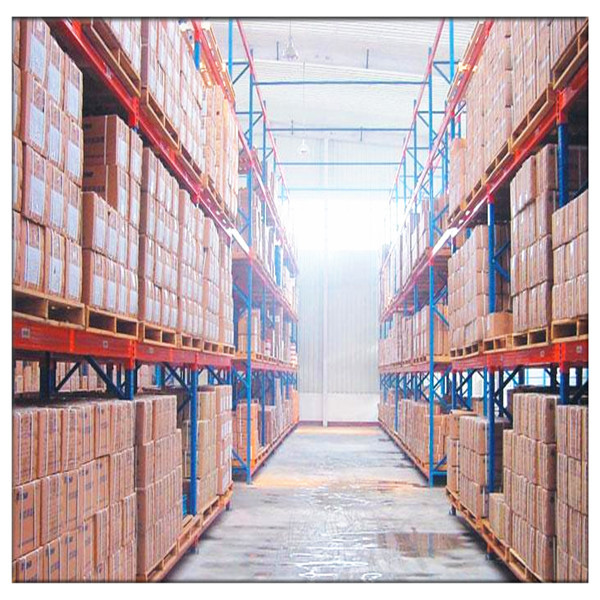

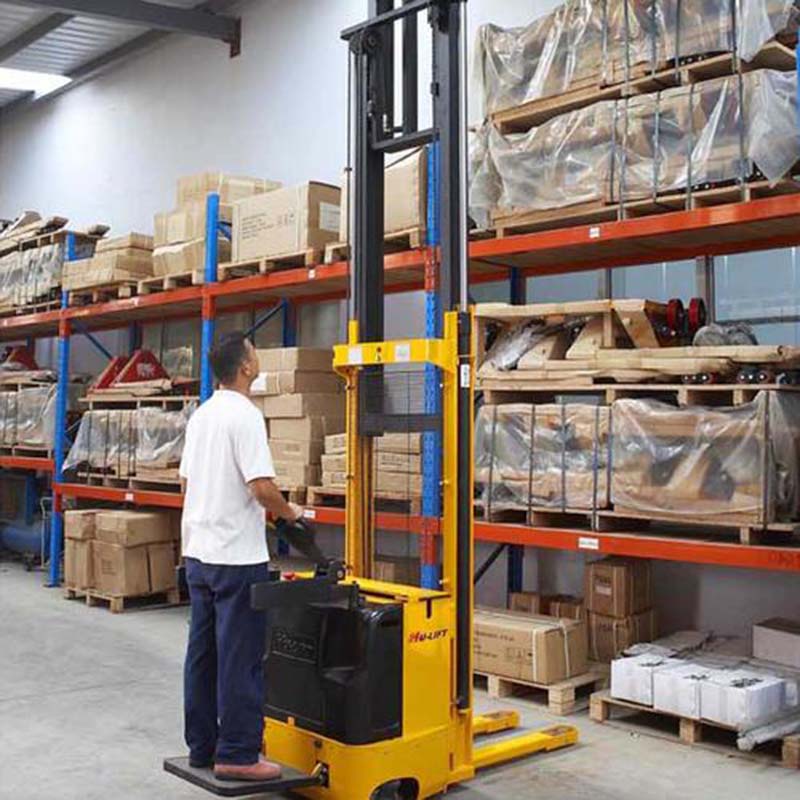

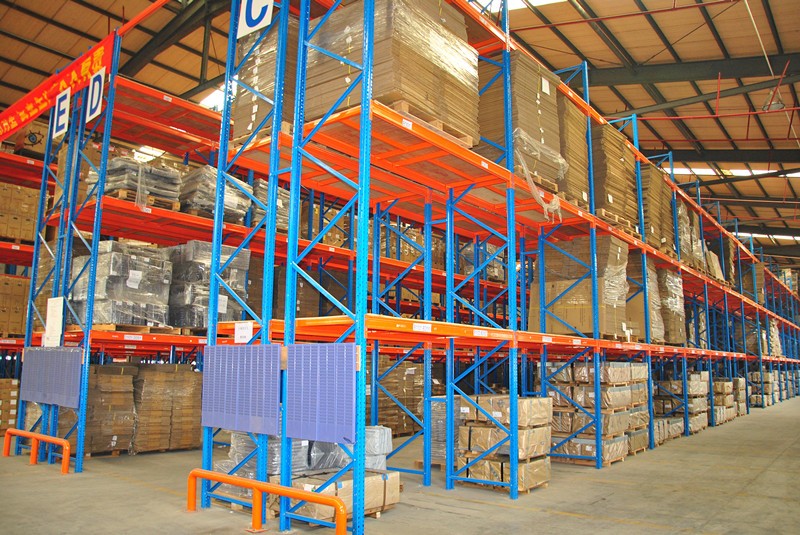

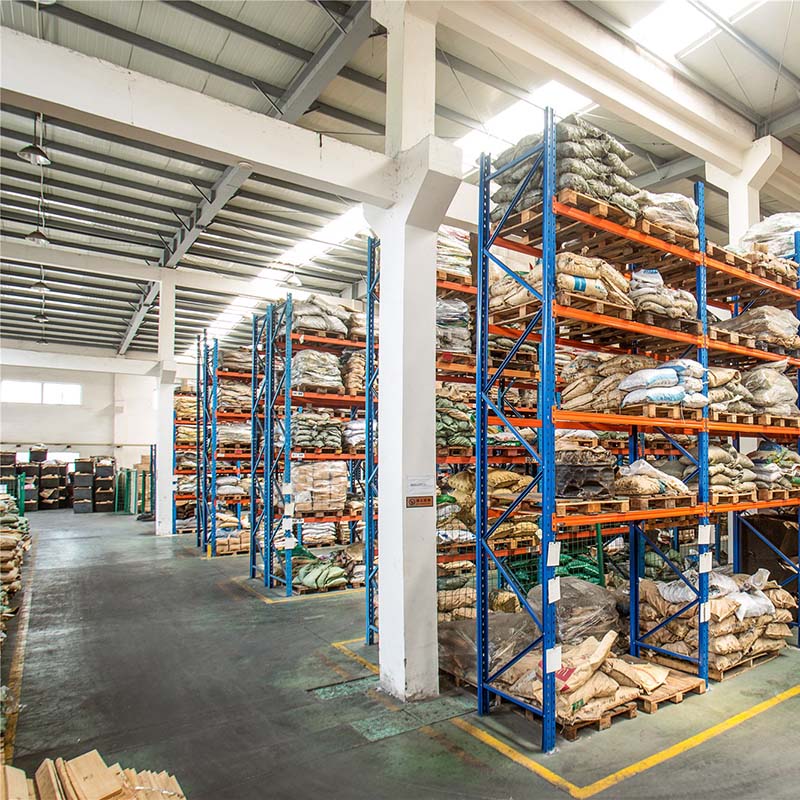

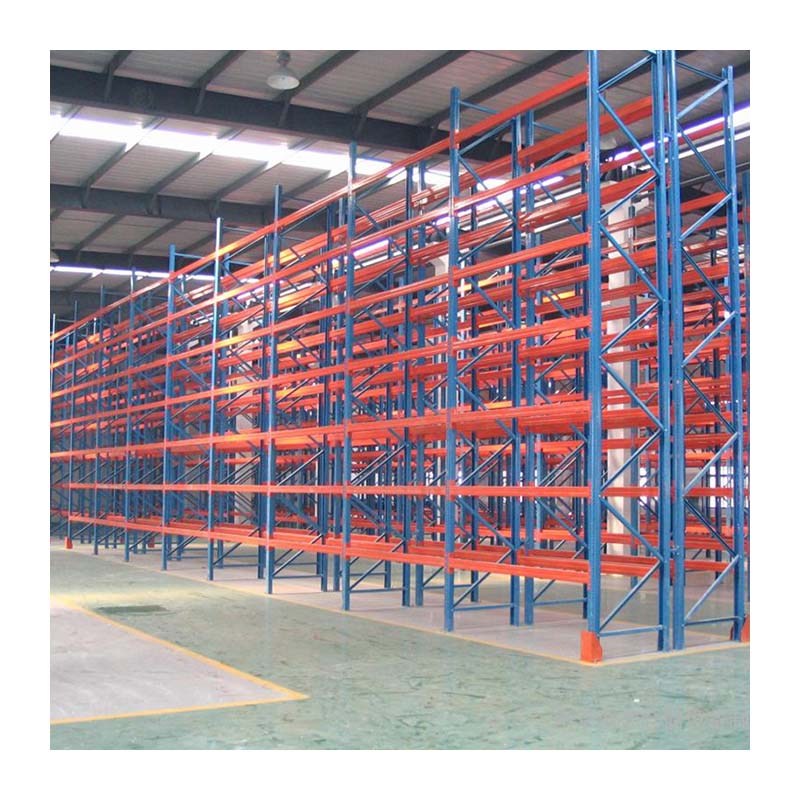

Real Case Demonstrations

Hot Sale Products

Production Steps

Professional Design Service Group

Storage Area for Raw Materials

All-automatic Cold Rolling Line

Spraying Coating Line

Stamping Area (Bracket)

Goods Packaging Area (Upright & Beam)

Product Overviews

About Us

We devote ourselves to the design and manufacture of high-quality storage equipment. We are specialised in producing various pallet racking, longspan shelving, warehouse rack, mould rack, wire container, mobile filing cabinet, cantilever racks, rivet shelving, drive in racks, mezzanine and platform, carton flow rack, stacking racking and other related storage equipment.

Our products and services are aimed at providing complete assistance for all warehousing, product showcasing, and retail requirements. We are able to offer our customers a wide range of products of the highest quality with competitive pricing, as well as rapid delivery times and first-class customer service.

Packaging & Shipping

Installation Drawing

Frequently Asked Questions (FAQ)

Q1. Are you a factory or a trading company?

A: We are a factory specializing in designing and manufacturing storage racking systems.

Q2. Where is your factory located and how can I visit?

A: Our manufacturing facility is located in Guangdong Province, China, convenient to major shipping hubs. You can fly to Shenzhen or Guangzhou airport directly, and we are happy to arrange your visit.

Q3. What materials are used to manufacture the racking products?

A: The main material is Q235 cold rolled steel. We can also choose other steel grades and finishes based on your specific requirements.

Q4. Can I request samples of the racking components?

A: Yes, we are pleased to offer samples for your quality checks and structural verification.

Q5. How is the product quality controlled during production?

A: Quality control is our highest priority. From processing raw steel to final packaging, we adhere strictly to ISO9001 and SGS standards to ensure high reliability.

Q6. Can your heavy duty racks be customized for unique spaces?

A: Yes, all parameters including height, length, width, and loading capacity are fully customizable to meet your specific warehouse layout and storage needs.
