Mrack Drive in Rack the Size Is Your Choice, the Colour Is Your Favourite, and the Product Is Sturdy and Durable.

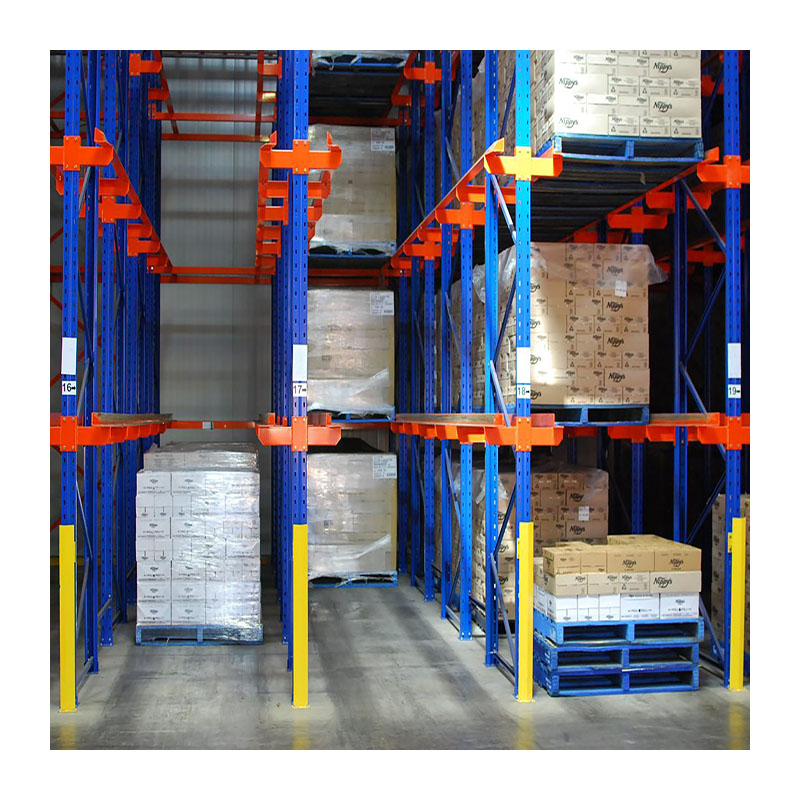

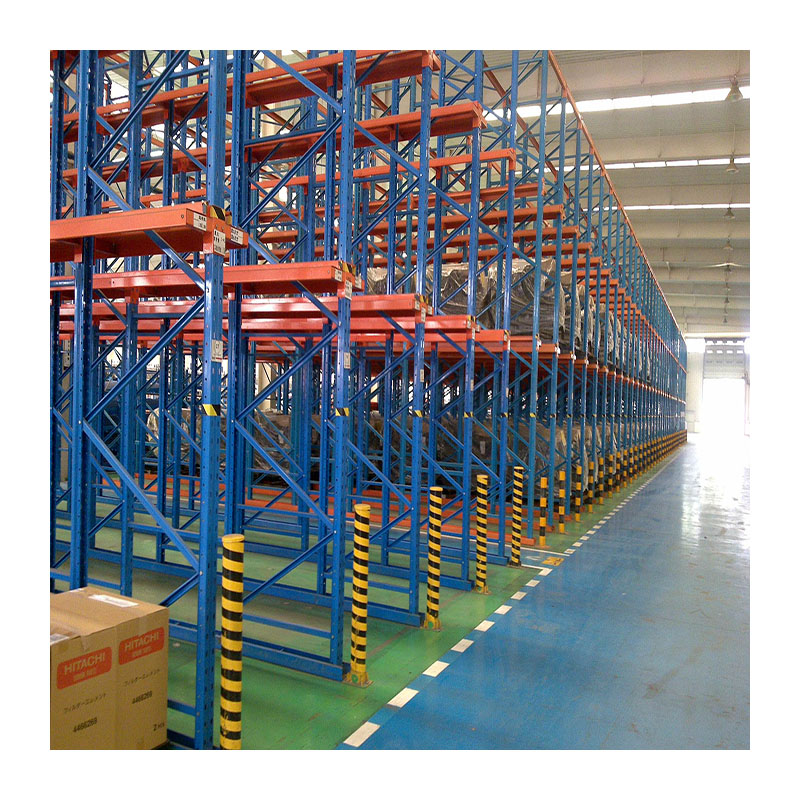

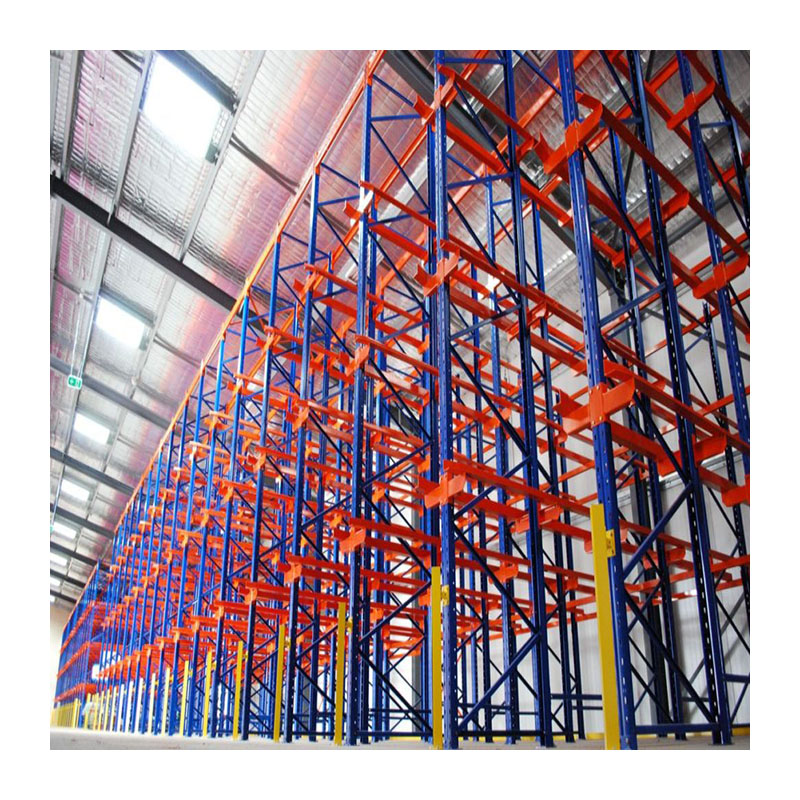

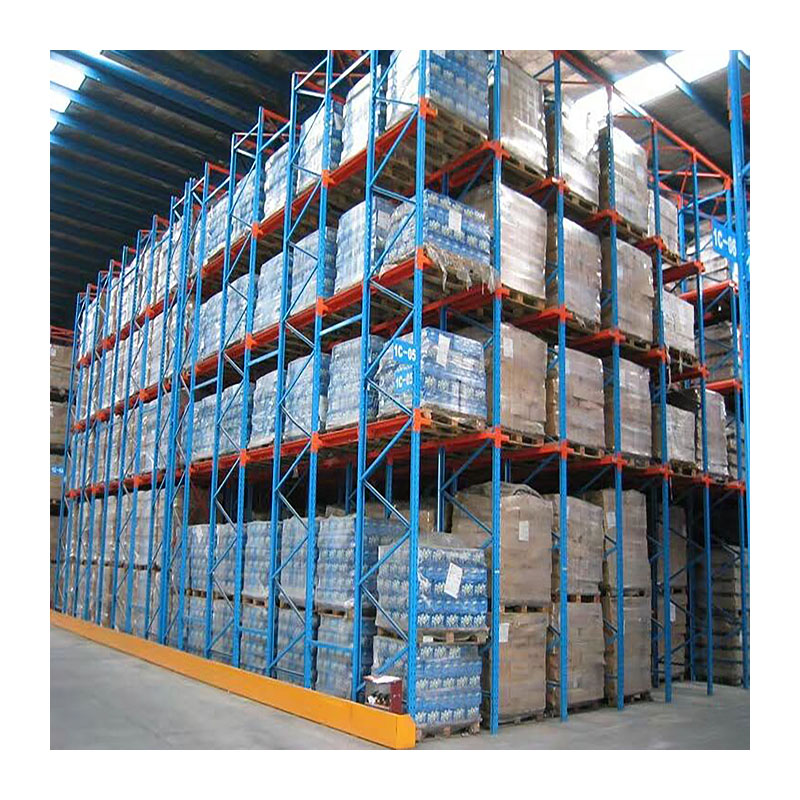

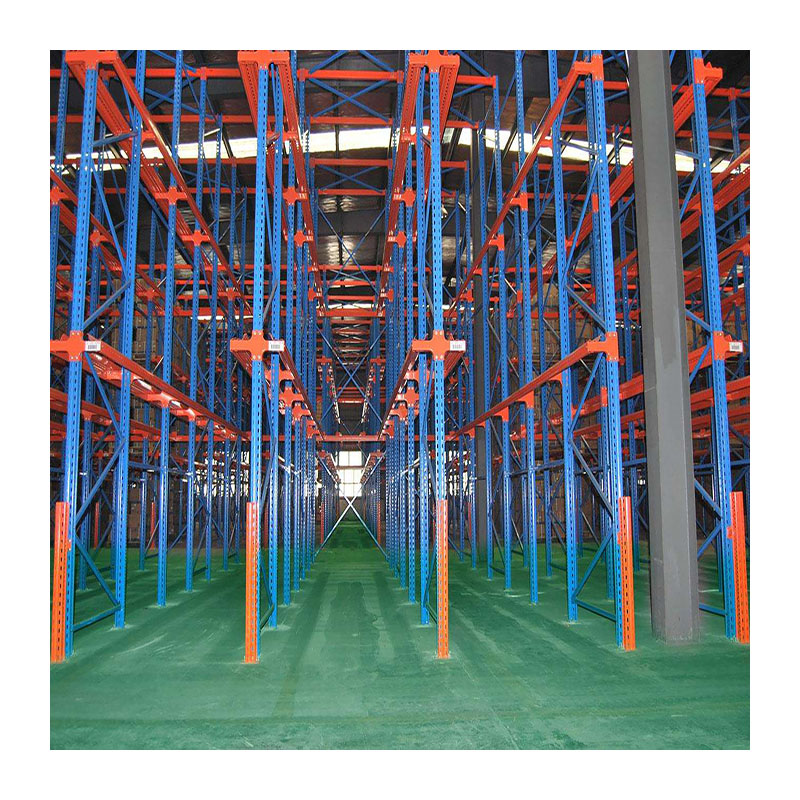

Drive-in Rack

It is suitable for storing large quantity of goods with less types, goods of batched working and small range of selection. The goods are stored on the support guide rail with the pallet one after another in the direction of depth, increasing the storage density and space availability. It is quite convenient for fork truck drives into lane directly to store or take out the goods.

Technical Specifications

Parameter	Specifications Details
Loading Weight	800~1000kg/pallet; Height: 1500-8000mm, Width/Depth: 1000-1500mm, Length: 1500-3200mm. Special sizes are also available to specific storage needs.
Main Parts Specs	Upright section: 9065, 12065, 1.5, 2.0mm. Beam Section: box beam 8045 / 10045 / 12045 / 14045 / 160*45, etc. Thickness: 1.0 / 1.2 / 1.5mm, etc. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors, and all necessary components.
Material	High-quality cold rolled steel, Q235
Package Term	Air bubble pack, PE stretch film for keeping free from scratch

Key Features

Large loading capability: 1000KG-2000KG/each pallet.
The forklift may drive in the channel of racking to place and fetch pallets.
Low capital cost using conventional handling equipment.
Very high utility ratio of the warehouse.
Can support first in - first out (FIFO) or first in - last out (FILO).
Structural steel construction for durability.
Pallet positions configure from 2 to 5 deep and 2 to 5 high ideal for roofing.
Finish: Powder coating and various colors are available.
Suitable for storing few types of goods with large quantity.

Beam Loading Capacity & Size

Details Images

Single Entry Racks

Lift trucks can enter the rack from only one side.

Double Entry Racks

Lift trucks can enter from both sides or a row of racks. The center of the rack row is stabilized by a beam.

Product Overviews

Hot Sale

Heavy Duty Pallet Racking

Medium Duty Rack

Mould Rack

Cantilever Rack

Mezzanine Floor

Wire Mesh Container

Frequently Asked Questions

What's the material of the rack?

Our material is Q235B cold rolled steel.

What is the delivery time?

Less than 15 workdays in general. It also depends on the order quantity and shelving design.

What is the term of payment?

30% T/T down payment and 70% T/T before delivery.

How can I get a quick quotation on my racking project?

For a quick quotation, please let us know the following information:
1) The size of rack: Length*Depth*Height.
2) Layers per set.
3) Load capacity per beam layer.
4) Racking quantity.

Are samples available?

We accept to send you free samples with freight collect.

How does your factory do regarding quality control?

Quality is priority. We hold ISO 9001 2001 certifications.
