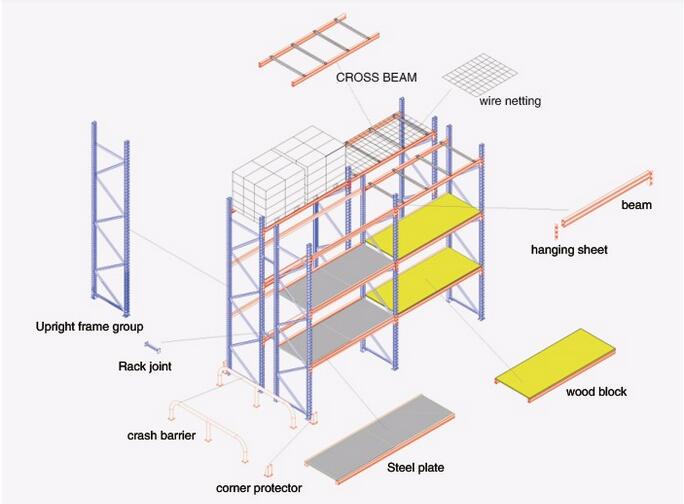

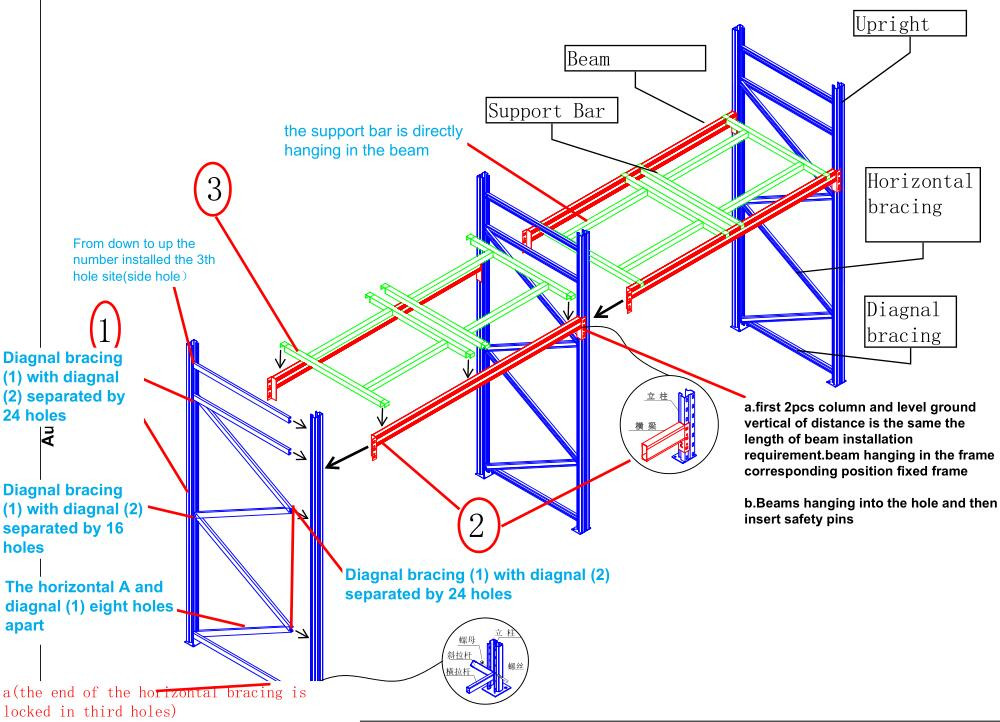

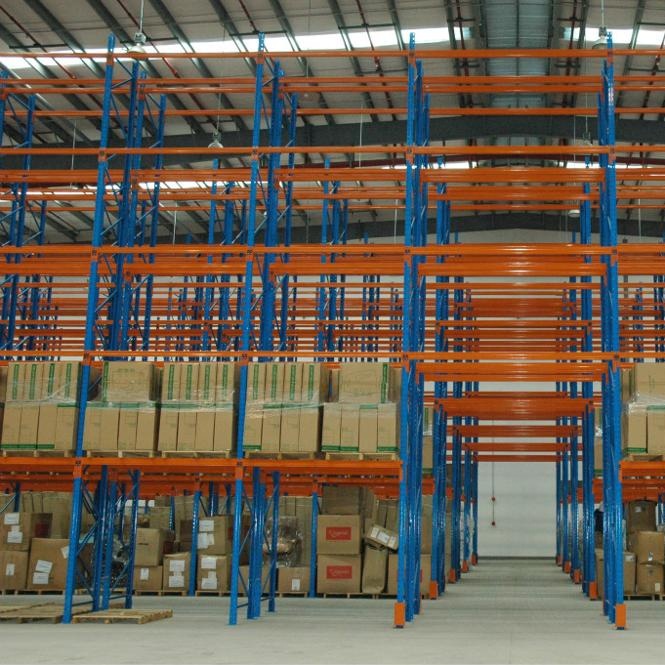

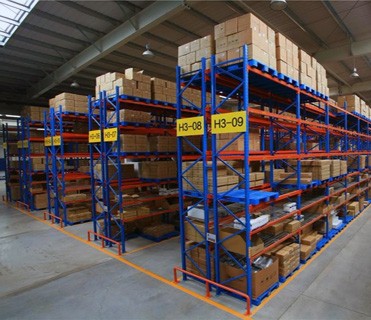

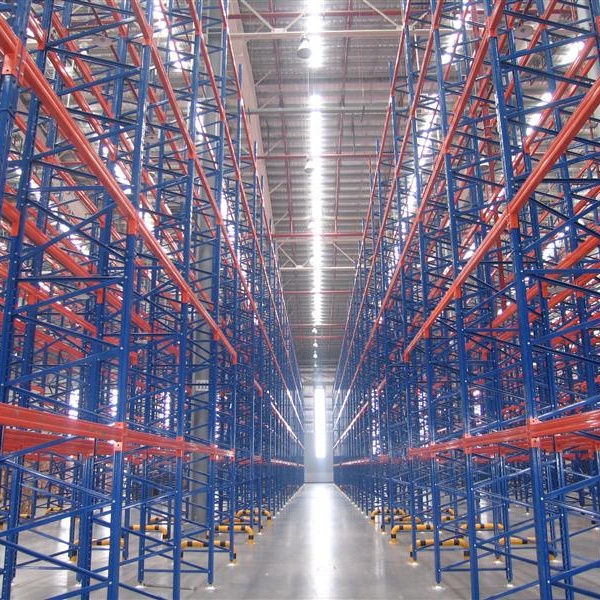

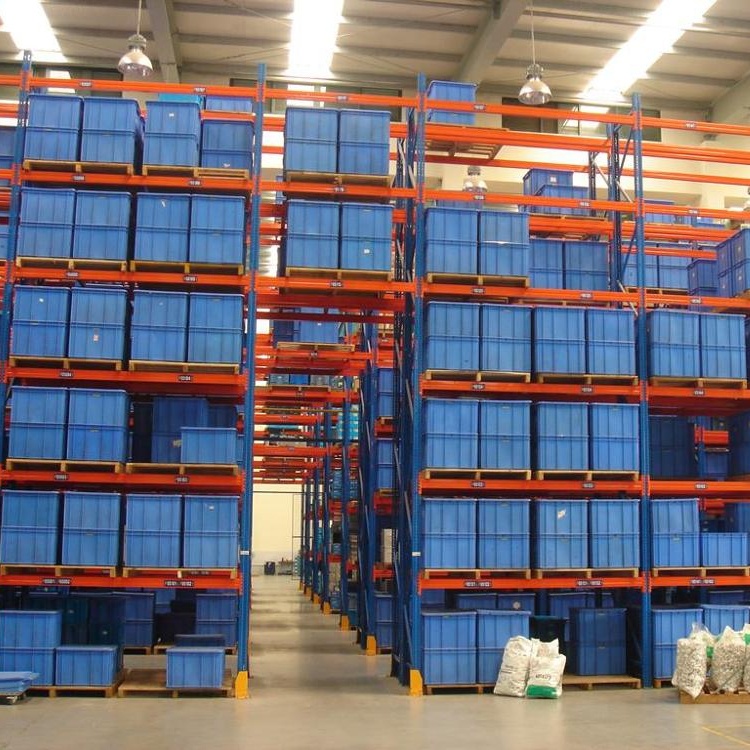

Heavy duty rack is hooking structured, easy to dismount and install. It can be adjusted by each 75mm based on the goods height, and can load 800-3000kg/layer. Steel plate, wood plate, and MDF can be chosen as the layer board. This kind of rack is an ideal storage rack for small and medium-sized warehouses for its advantages of appropriate height and convenience in accessing goods.
| Raw Material | High-Quality Q235 Cold rolled steel |
| Color | Upright frame is blue, Beam is orange, can be customized. |
| Standard Size | L2300*D1000*H4500 and size can be customized according to your requirement |
| Height | 1500-8000mm or Customized |
| Width / Depth | 400-1500mm or Customized |
| Length | 1500-3200mm or Customized |

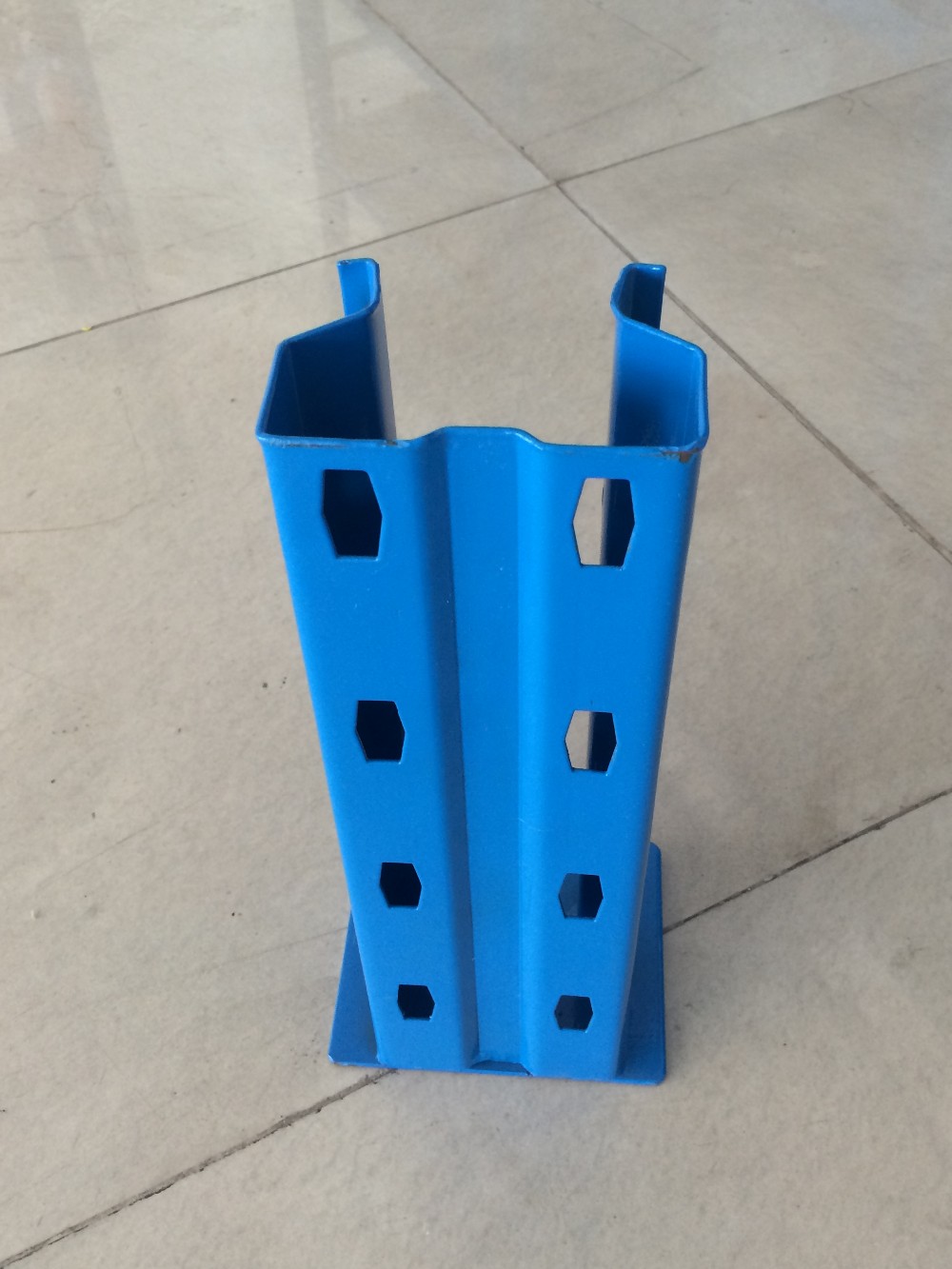

| Upright Section | 80*60*1.5/1.8/2.0mm, 90*65*1.5/1.8/2.0mm, 100*70*2.0/2.5mm, 120*95*2.0/2.5mm etc. |
| Loading Capacity | 1000~6000kgs or 2200~13200lbs |

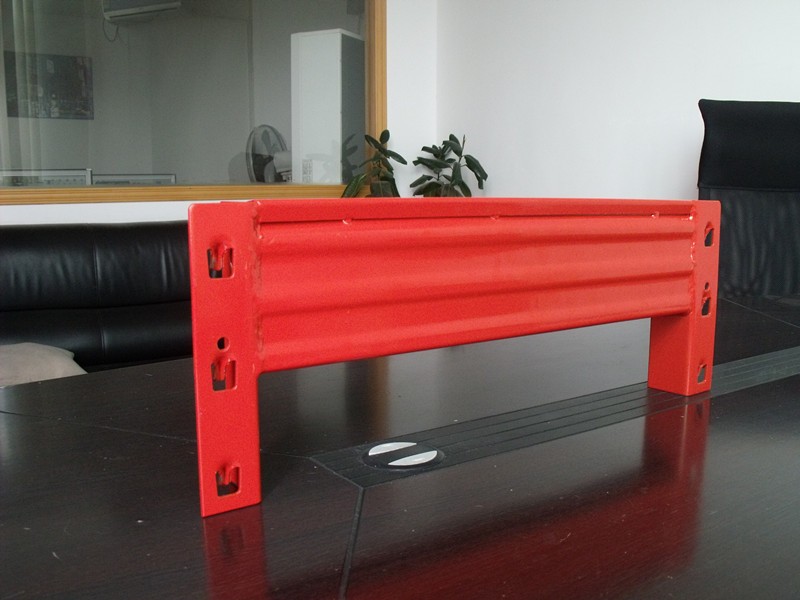

| Beam Section | 80*45mm, 100*45mm, 120*45mm, 140*45mm, 160*45mm, 180*45mm etc. |
| Surface Treatment | Powder coated |

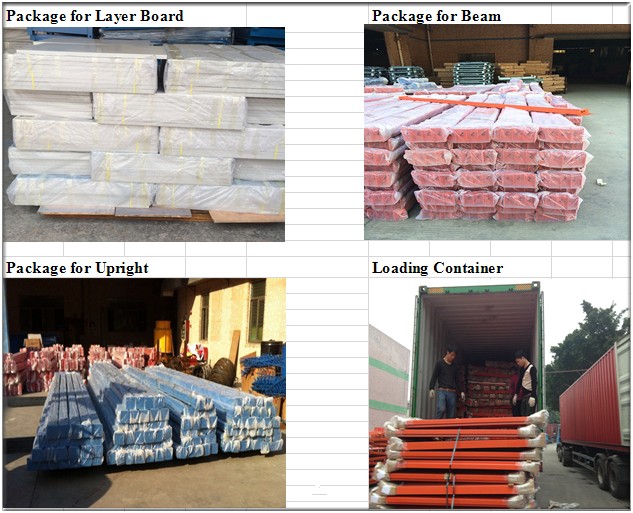

| Packing Term | Air bubble, Wooden Case, etc. |
We are a specialized manufacturing factory with dedicated facilities for producing high-quality storage and racking systems.
Our factory is located in China, near major transport hubs. You can fly directly to Shenzhen or Guangzhou airports. All our clients are warmly welcomed to schedule a visit to our facilities.
The standard raw material is high-quality Q235 Cold Rolled Steel. Other material options can also be accommodated based on specific client requirements.
Yes, we are honored to supply product samples for testing and quality evaluation.
Quality is our absolute priority. We implement strict quality control from raw materials to final packaging. Our production processes have achieved ISO9001 and SGS authentication.
Yes, both dimensions (length, height, depth) and loading capacities (up to 6000kg) can be fully customized according to your specific warehouse storage requirements.
