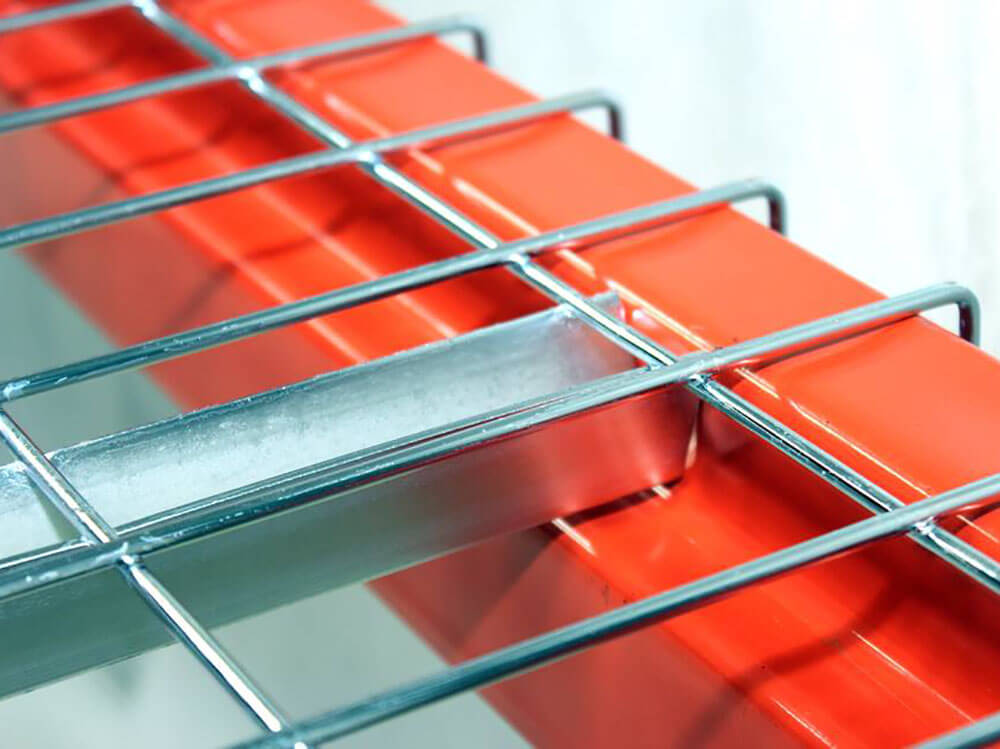

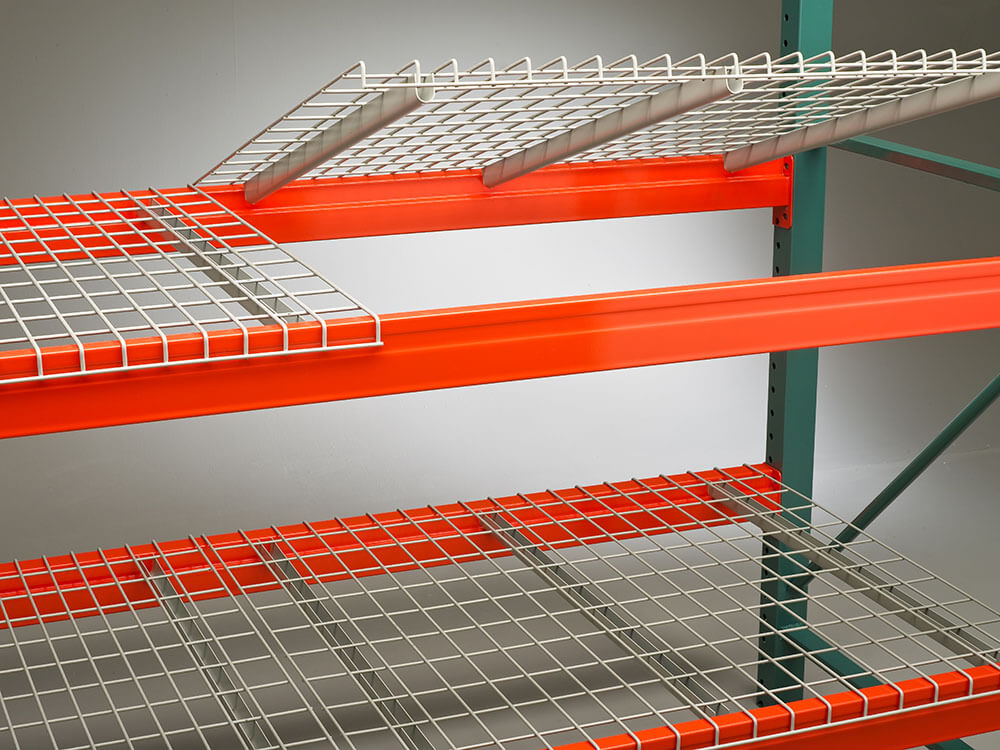

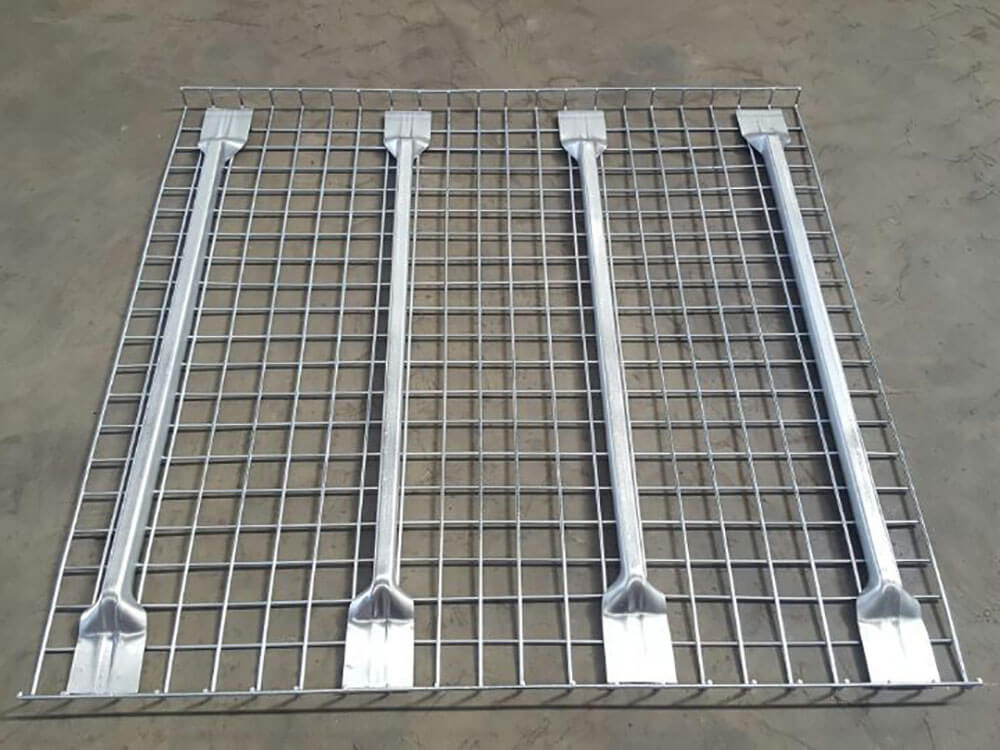

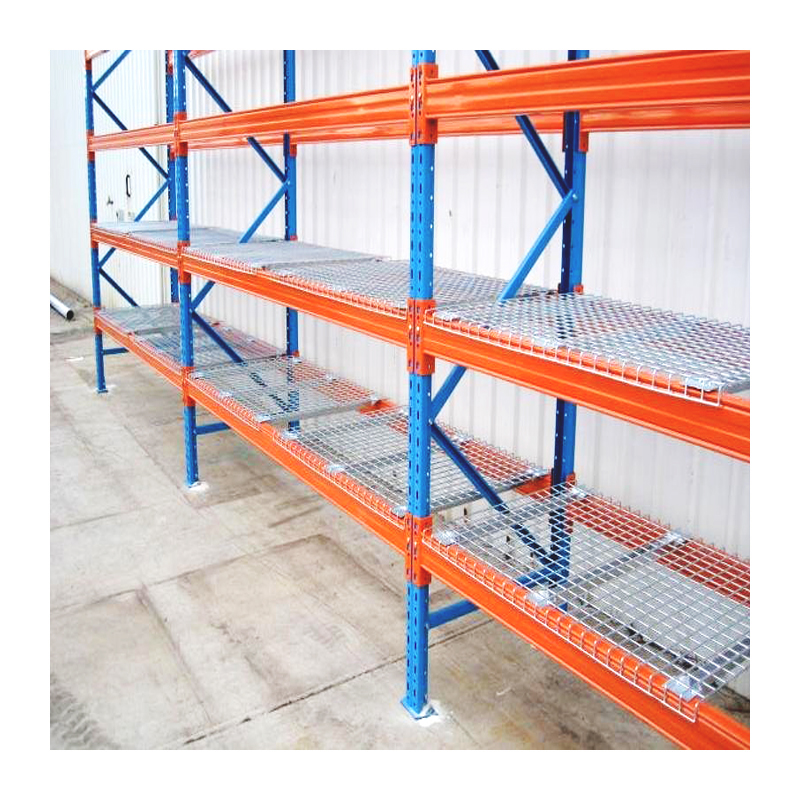

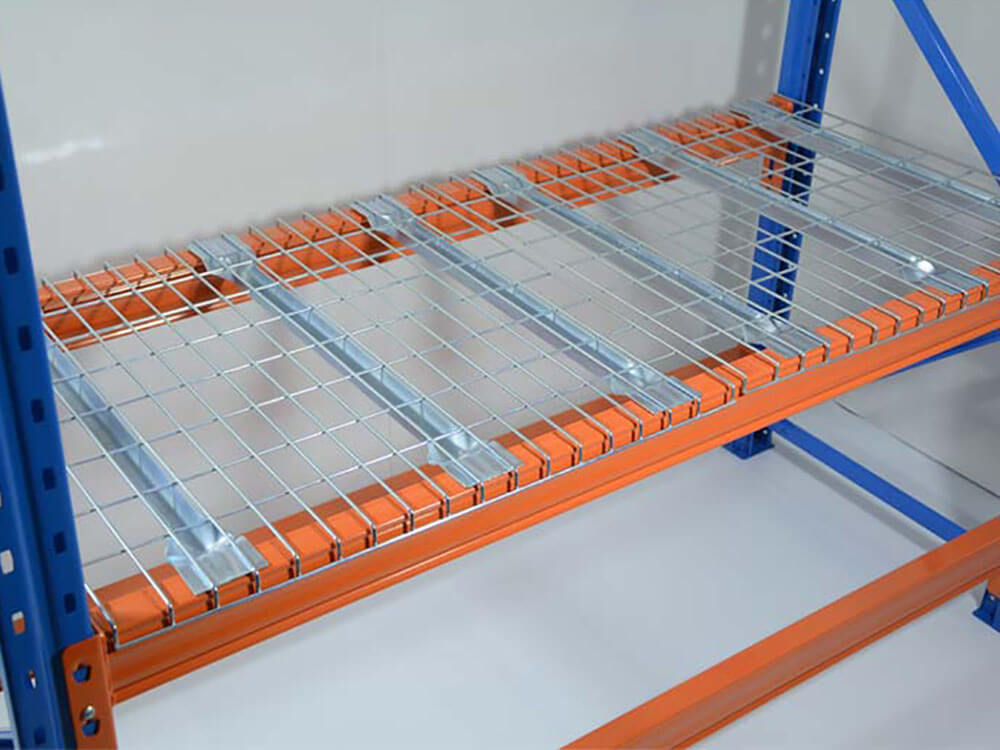

China Made Selective Pallet Rack Wire Mesh Decking

Product Description

Product Description
Heavy Duty Rack Showcase
Heavy Duty Rack

Heavy duty rack is hooking structured, easy to dismount and install. It can be adjusted by each 75mm based on the goods height, and can load 800-3000kg/layer. Steel plate, wood plate, and MDF can be chose as the layer board. This kinds of rack is an ideal storage rack for small and medium-sized warehouse for its advantages of appropriate height, and convenience in accessing goods.

Technical Specifications
Raw-Material High-Quality Q235 Cold rolled steel
Color Upright frame is blue, Beam is orange, can be customized.
Standards Size L2300*D1000*H4500 and size can be customized according to your requirement
Height 1500-8000mm or Customized
Width/Depth 400-1500mm or Customized
Length 1500-3200mm or Customized
Upright-Section 80*60*1.5/1.8/2.0mm, 90*65*1.5/1.8/2.0mm, 100*70*2.0/2.5mm, 120*95*2.0/2.5mm etc.
Loading Capacity 1000~6000kgs or 2200~13200lbs
Beam-Section 80*45mm, 100*45mm, 120*45mm, 140*45mm, 160*45mm, 180*45mm etc.
Surface Treatment Powder coated
Packing Term Air bubble, Wooden Case, etc.
Key Features & Applications
  • Heavy Duty Rack are widely used in manufacturing, Third-Party Logistics and Distribution centers, etc., applicable to multi-varieties and small batch goods, and few varieties and big batch goods.
  • Low cost, high safety and reliability, convenient assembly and simple disassembly.
  • Suitable for artificial access box goods, or matching load heavy goods with separate parts box and turnover box.
  • Often applied in warehousing logistics and industrial storage fields.
Beam Loading Capacity & Size
Beam Loading Capacity and Size Reference Chart
Detailed Images
Overall Product Assembly Diagram
Upright and Beam Installed Connection
Upright & Beam Installed
Box Beam Profile Details
Box Beam
Upright Frame Profile Details
Upright
Additional Product Component Detail
Understanding Start-bay & Add-bay

Start-bay = First rack of one row racks (2 end frames + Beams)

Add-bay = Extension rack (1 end frame + Beams)

Start-bay and Add-bay Diagram
Heavy duty rack physical display 1
Heavy duty rack physical display 2
Hot Sale Products
Hot Sale Storage Product 1
Hot Sale Storage Product 2
Hot Sale Storage Product 3
Hot Sale Storage Product 4
Hot Sale Storage Product 5
Hot Sale Storage Product 6
Manufacturing Facility & Capabilities

We devote ourselves to the design and manufacture of storage equipment. We are specialised in producing various pallet racking, longspan shelving, warehouse rack, mould rack, wire container, mobile filing cabinet, cantilever racks, rivet shelving, drive in racks, mezzanine and platform, canton flow rack, stacking racking and other related storage equipment.

Through products and service aimed at providing complete assistance for all warehousing, products showcasing and sales outlet requirements. We are able to offer our customers a wide range of products of highest quality with competitive price, as well as rapid delivery time and first-class back-up service.

Factory Workshop View
Production Facility Showcase
Storage Material Inventory
Color Options
Custom Color Selection Guide
Packaging & Shipping
Standard Packaging Process 1

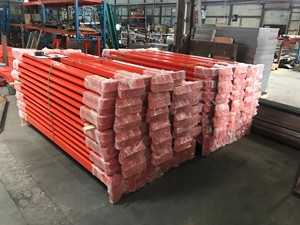

Standard Packaging Process 2

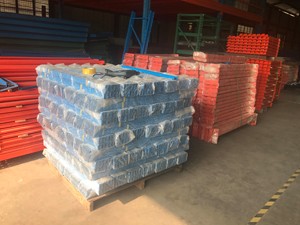

Standard Packaging Process 3

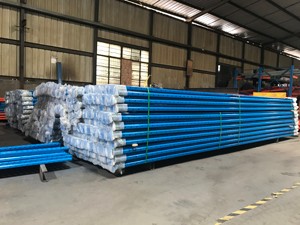

Standard Packaging Process 4

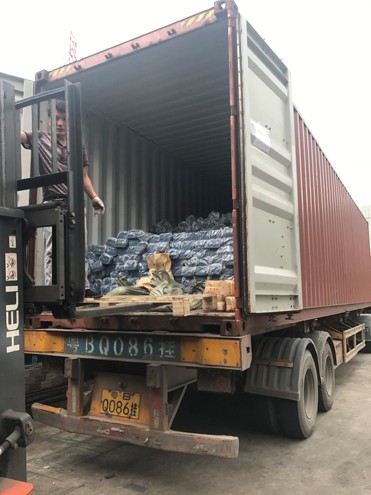

Container Loading Scene 1

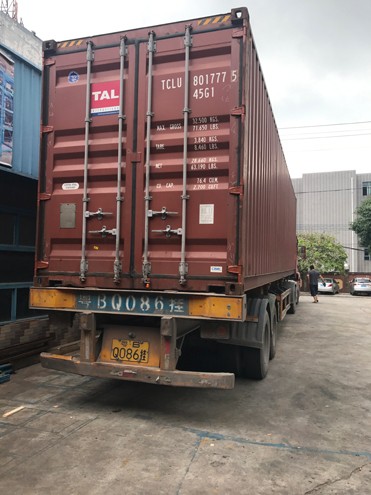

Container Loading Scene 2
Frequently Asked Questions
Are you a factory or trading company?
We are a factory.
What materials are used for your products?
The primary material is high-quality Q235 Cold rolled steel. We can also select materials in accordance with specific customer requirements.
How can I obtain product samples?
We are honored to offer you samples for verification and quality checking.
How does your factory manage quality control?
Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has obtained ISO9001 and SGS authentication.
What is the standard loading capacity of the heavy duty racks?
The heavy duty rack can support loads ranging from 800kg to 3000kg per layer, with maximum limits going up to 6000kg depending on your custom specifications.
Can the size and color of the racks be customized?
Yes. Dimensions (Length, Width/Depth, Height) and colors (standard blue upright frames and orange beams) can be custom manufactured according to your warehouse needs.
